SEAT: FRONT SEAT ASSEMBLY (for Power Seat): INSTALLATION

INSTALLATION

1. INSTALL FRONT SEAT ASSEMBLY
(a) Place the front seat assembly in the cabin.
NOTICE: Be careful not to damage the vehicle body.

(b) Connect the connectors under the seat.
(c) Connect the cable to the negative (-) battery terminal.
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

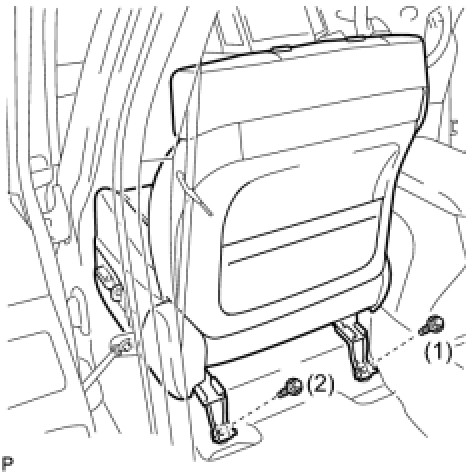

(d) Temporarily install the front seat assembly with the 4 bolts.
(e) Operate the power seat switch knob and move the seat to the rearmost position.





(f) Tighten the 2 bolts on the front side of the seat.
Torque: 37 Nm (377 kgf-cm, 27ft-lbf)
HINT: Tighten the bolts in the order indicated in the illustration.

(g) Operate the power seat switch knob and move the seat to the foremost position.





(h) Tighten the 2 bolts on the rear side of the seat.
Torque: 37 Nm (377 kgf-cm, 27ft-lbf)
HINT: Tighten the bolts in the order indicated in the illustration.

2. INSTALL FRONT SEAT REAR INNER TRACK COVER

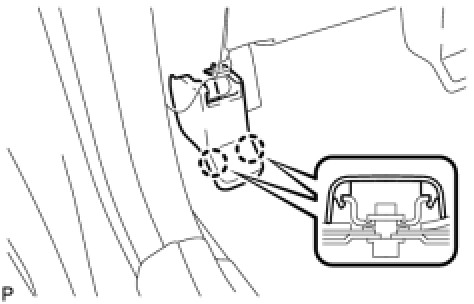

(a) Engage the 2 claws and install the front seat rear inner track cover.
3. INSTALL FRONT SEAT REAR OUTER TRACK COVER

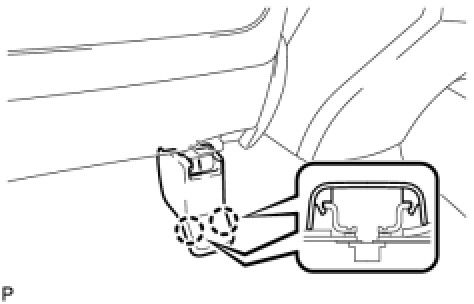

(a) Engage the 2 claws and install the front seat rear outer track cover.
4. INSTALL FRONT SEAT HEADREST ASSEMBLY





(a) Install the front seat headrest assembly as shown in the illustration.
5. INSPECT FRONT SEAT ASSEMBLY
(a) Inspect the power seat operation.
(b) w/ Seat Heater System:
Check the seat heater operation.
(1) Turn the ignition switch to ON.
(2) Turn the seat heater switch on.
(3) Wait 5 minutes or more and confirm that the seat surface becomes warm.
6. INSPECT SRS WARNING LIGHT Diagnosis System
