TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the system to enter self-diagnostic mode. If a malfunction is present, the MIL will blink.
HINT: When a particular warning light remains blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DLC3 - ECM)




(a) Disconnect the ECM connector.

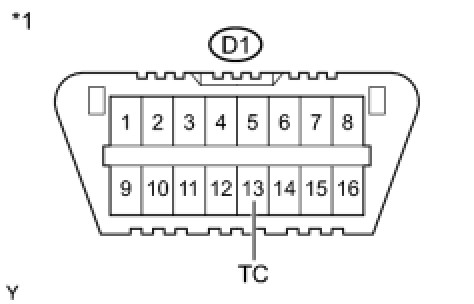

Text in Illustration





(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

For 1AR-FE





For 2GR-FE





(c) Reconnect the ECM connector.
HINT:

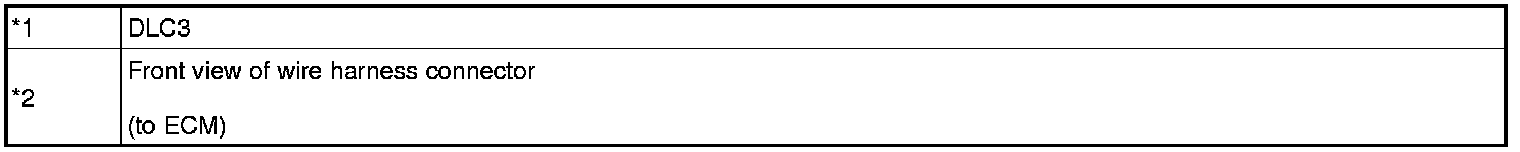

- *3: for 1AR-FE
- *4: for 2GR-FE

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)





Text in Illustration





(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)





Text in Illustration





(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
