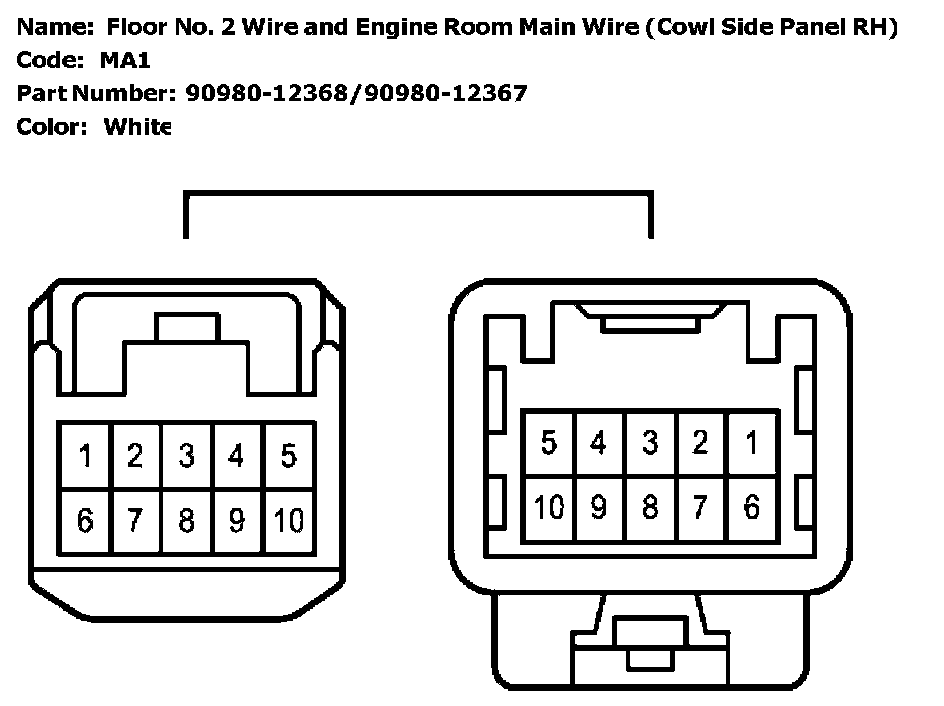

MA1 (Floor No. 2 Wire and Engine Room Main Wire (Cowl Side Panel RH))
MA1 (Floor No. 2 Wire and Engine Room Main Wire (Cowl Side Panel RH))
