Wire and Wire In Instrument Panel
Wire and Wire In Instrument Panel
AD1-ME2:

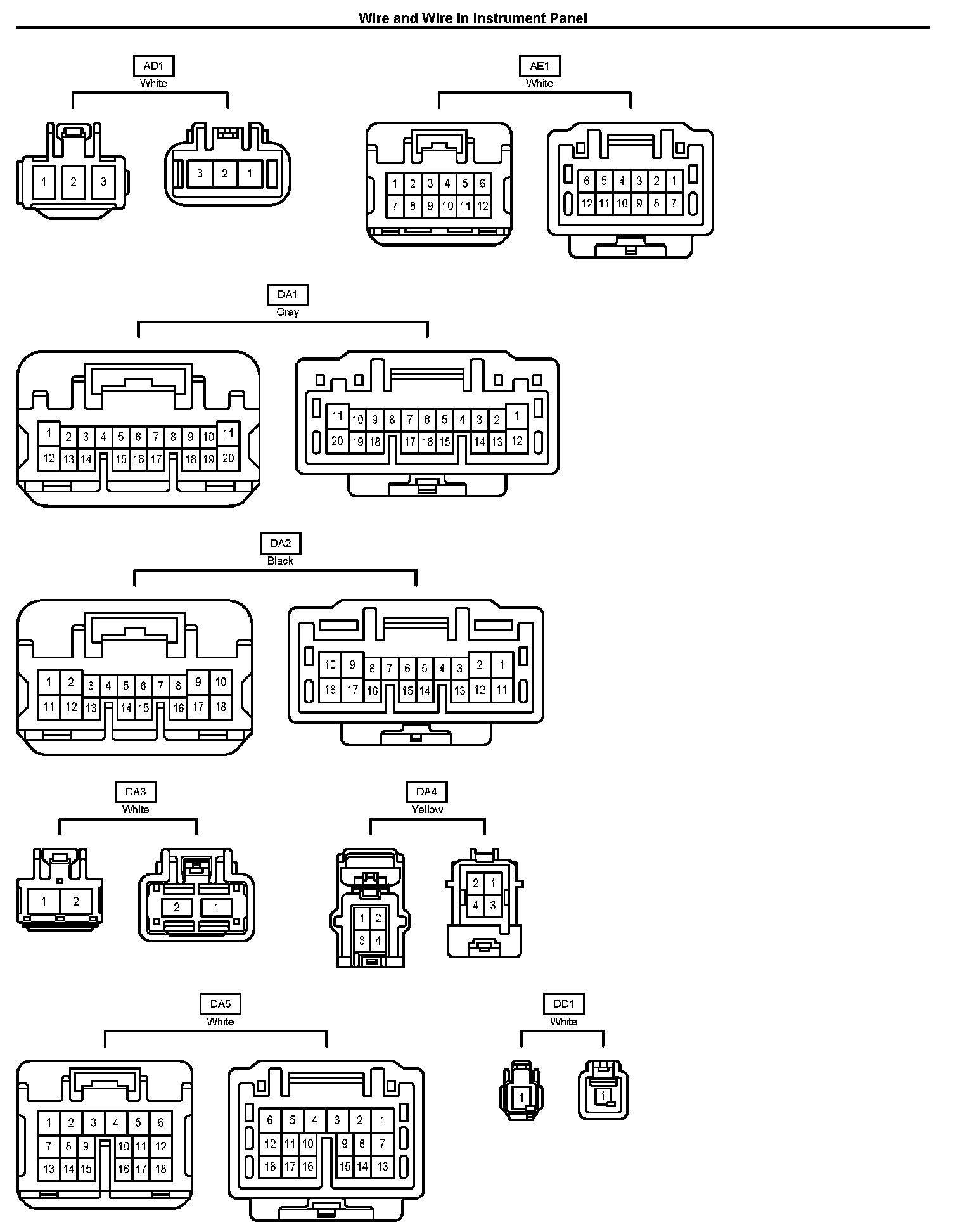

AD1-DD1:

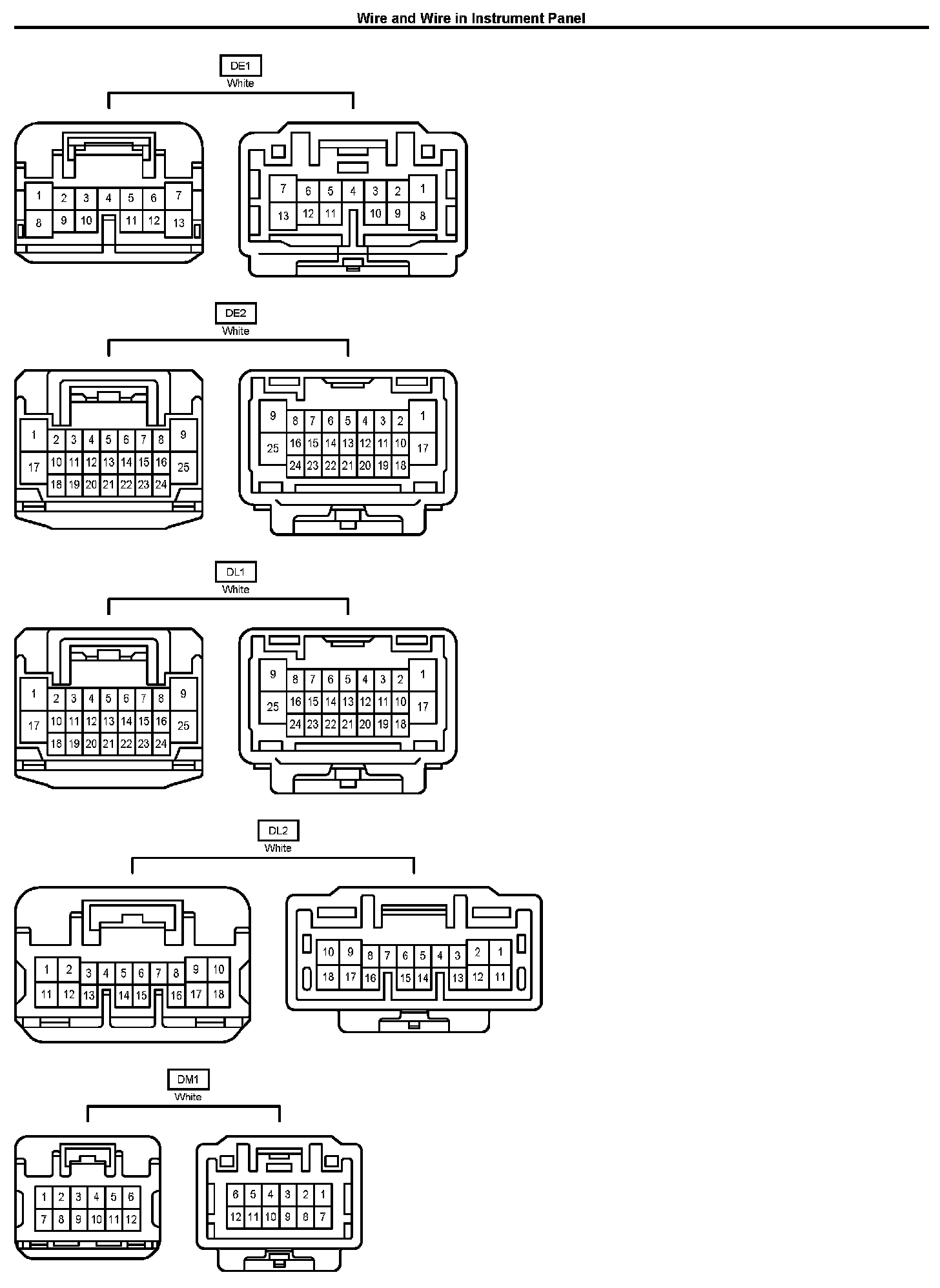

DE1-DM1:
DM2-HD1:

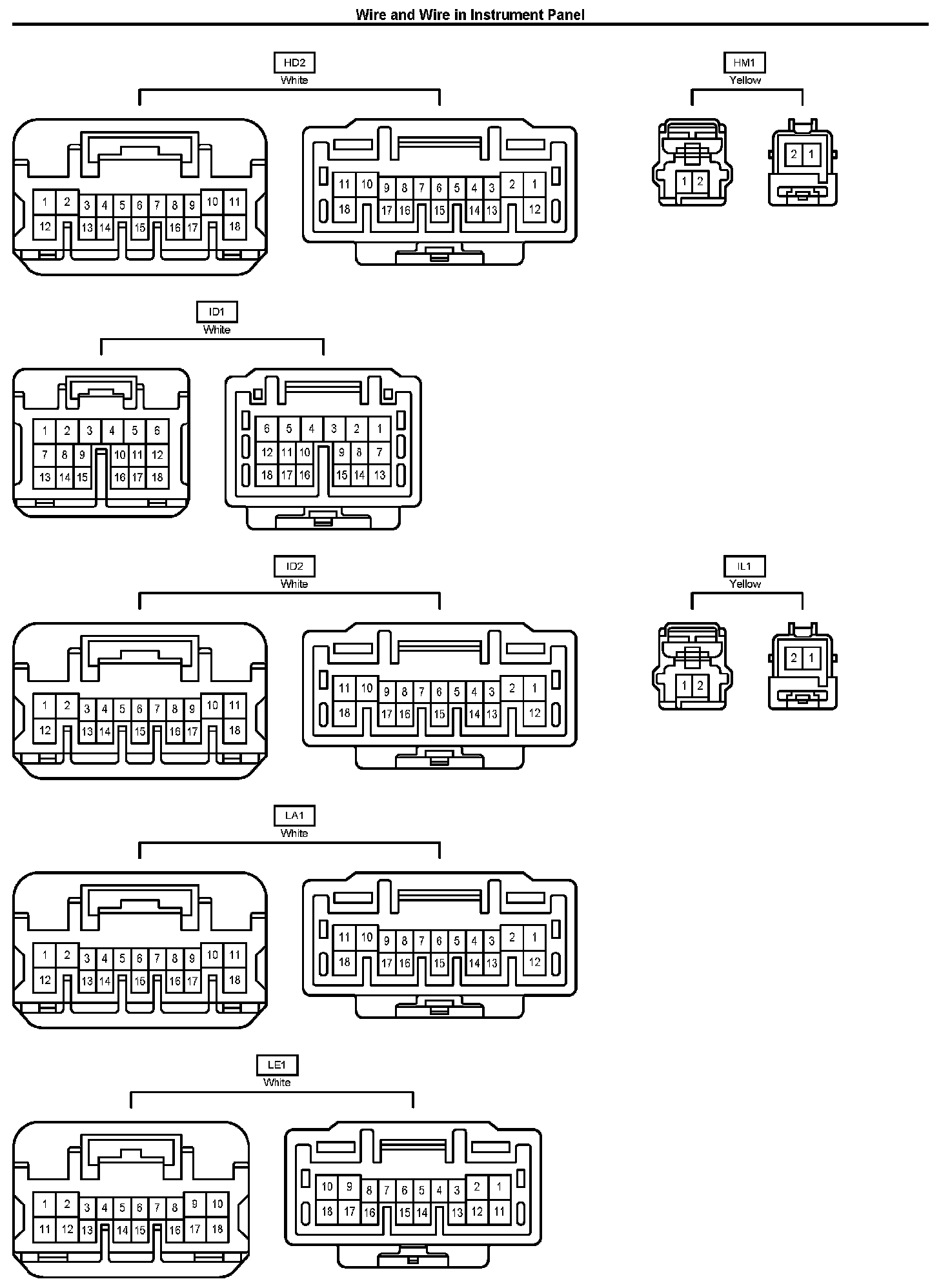

HD2-LE1:

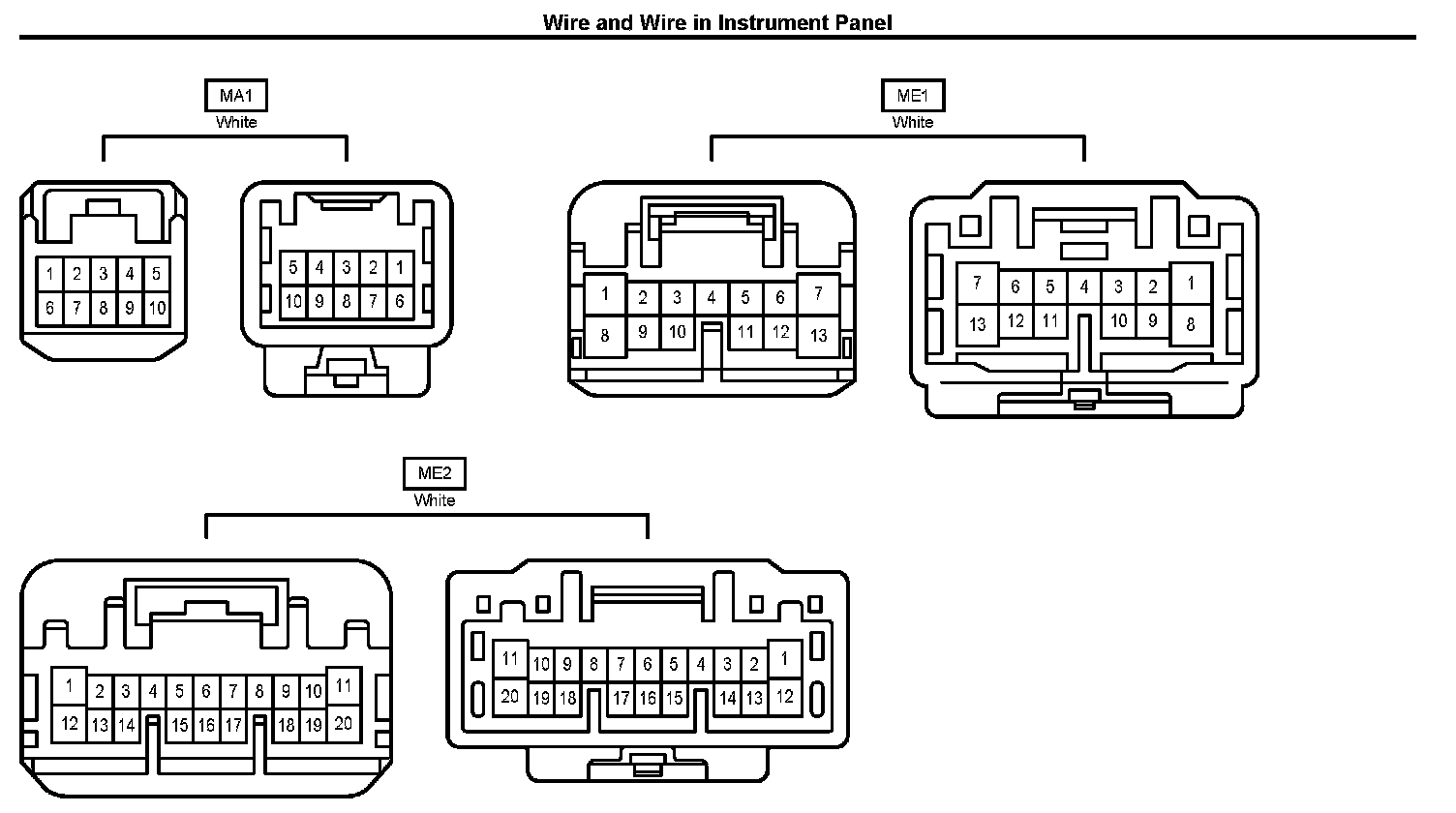

MA1-ME2:
