Back Door Closer , Back Door Opener [w/o Power Back Door W/ Back Door Closer]

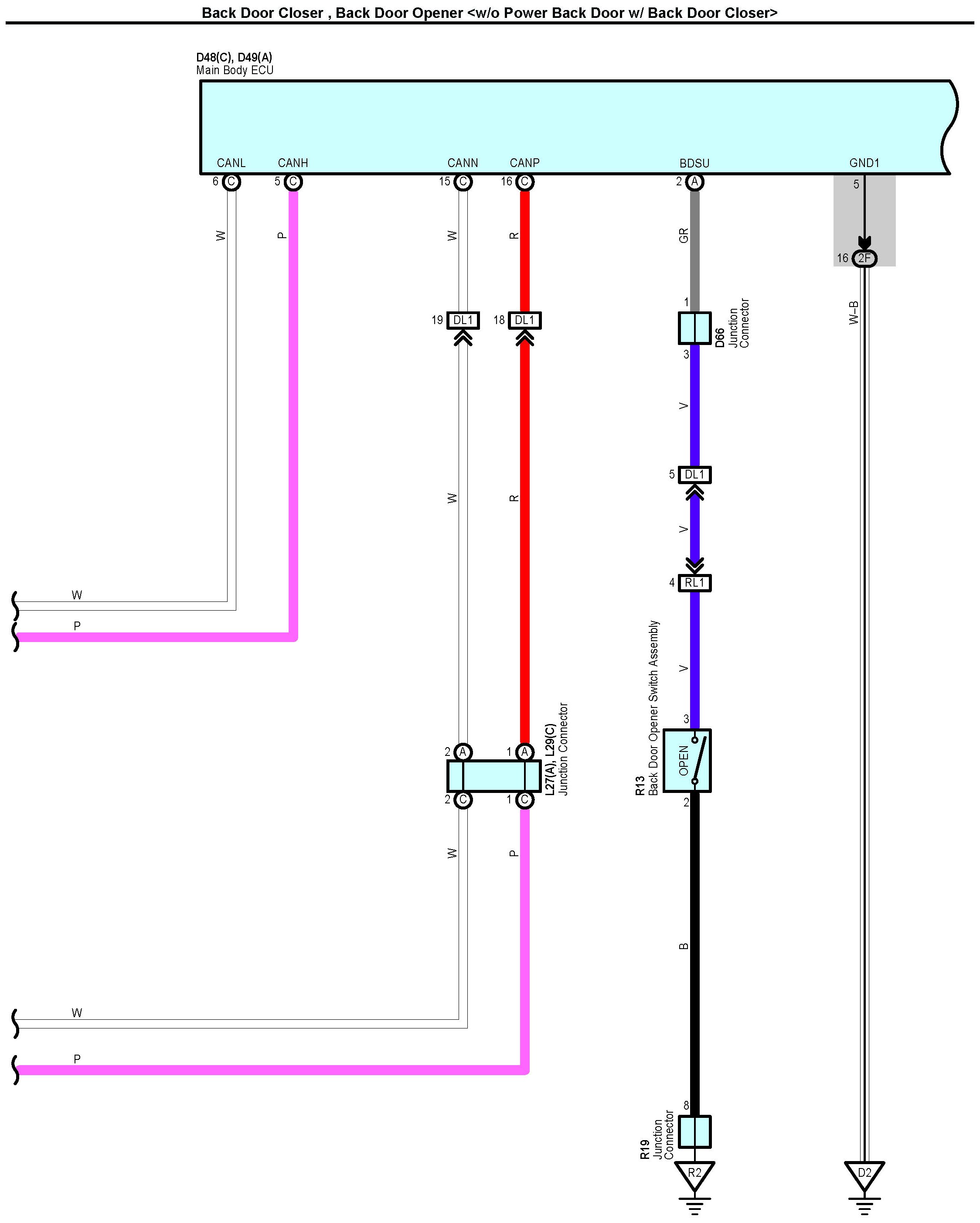

Back Door Closer, Back Door Opener <w/o Power Back Door w/ Back Door Closer> Part 1:

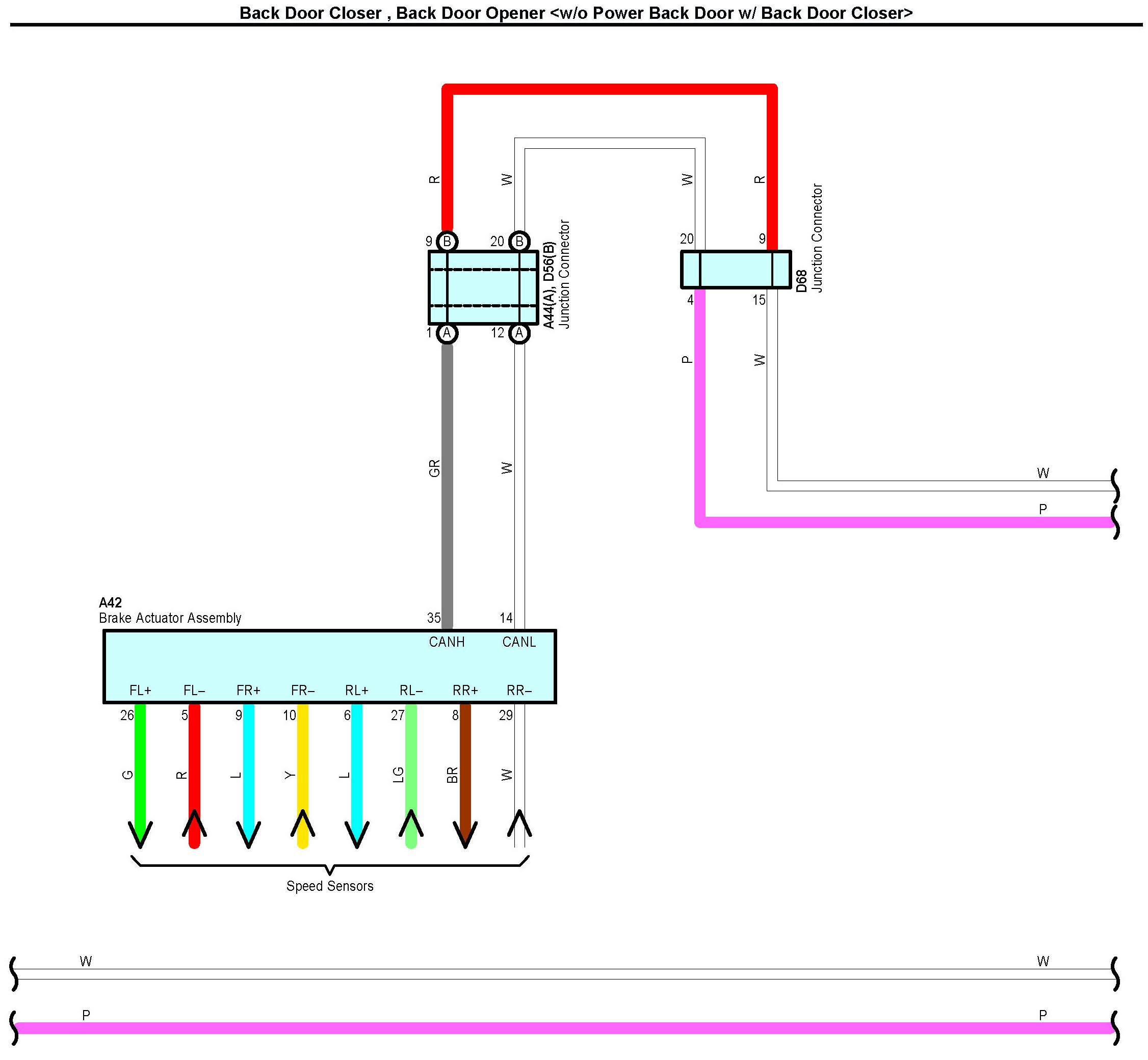

Back Door Closer, Back Door Opener <w/o Power Back Door w/ Back Door Closer> Part 2:

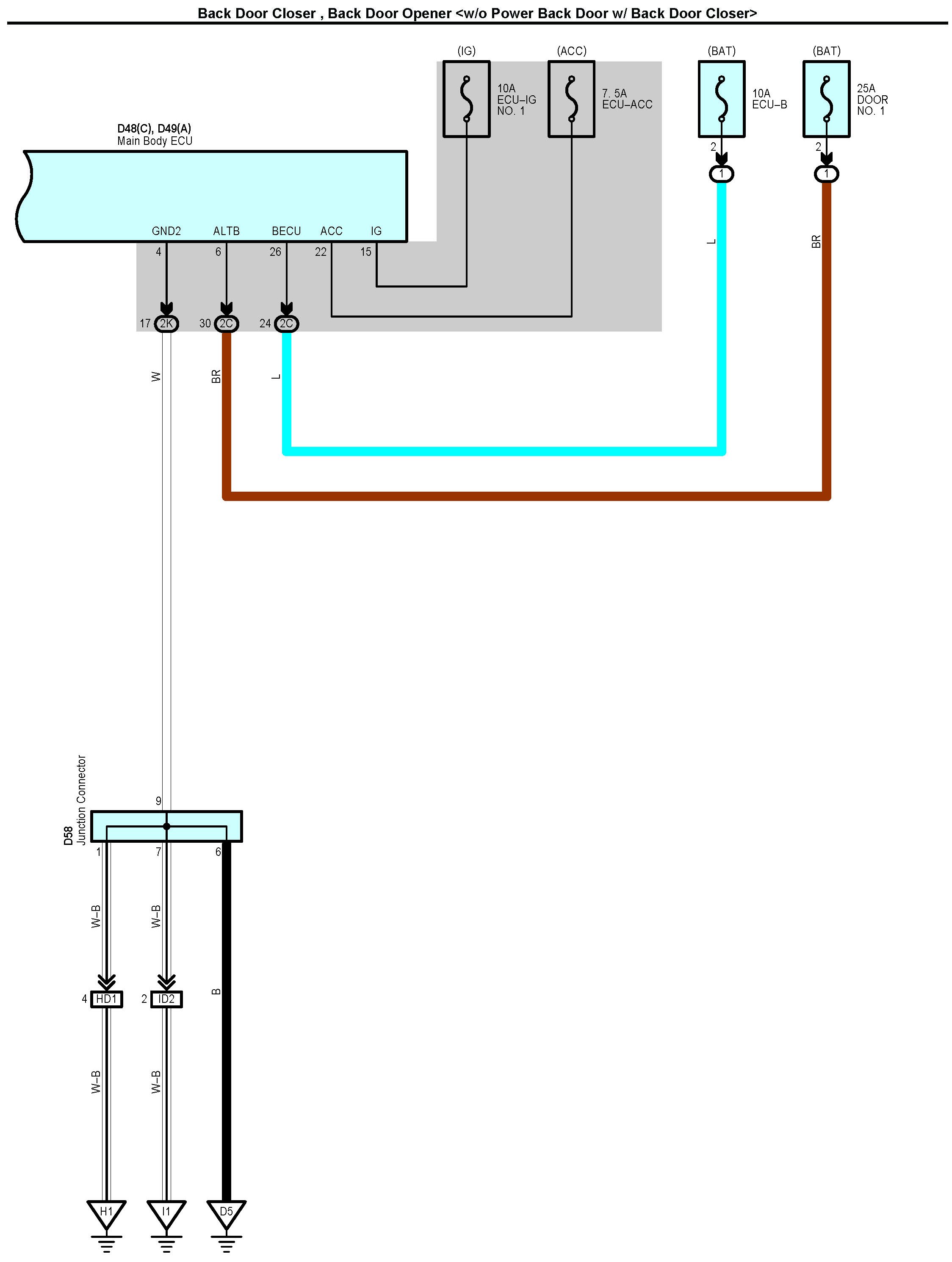

Back Door Closer, Back Door Opener <w/o Power Back Door w/ Back Door Closer> Part 3:

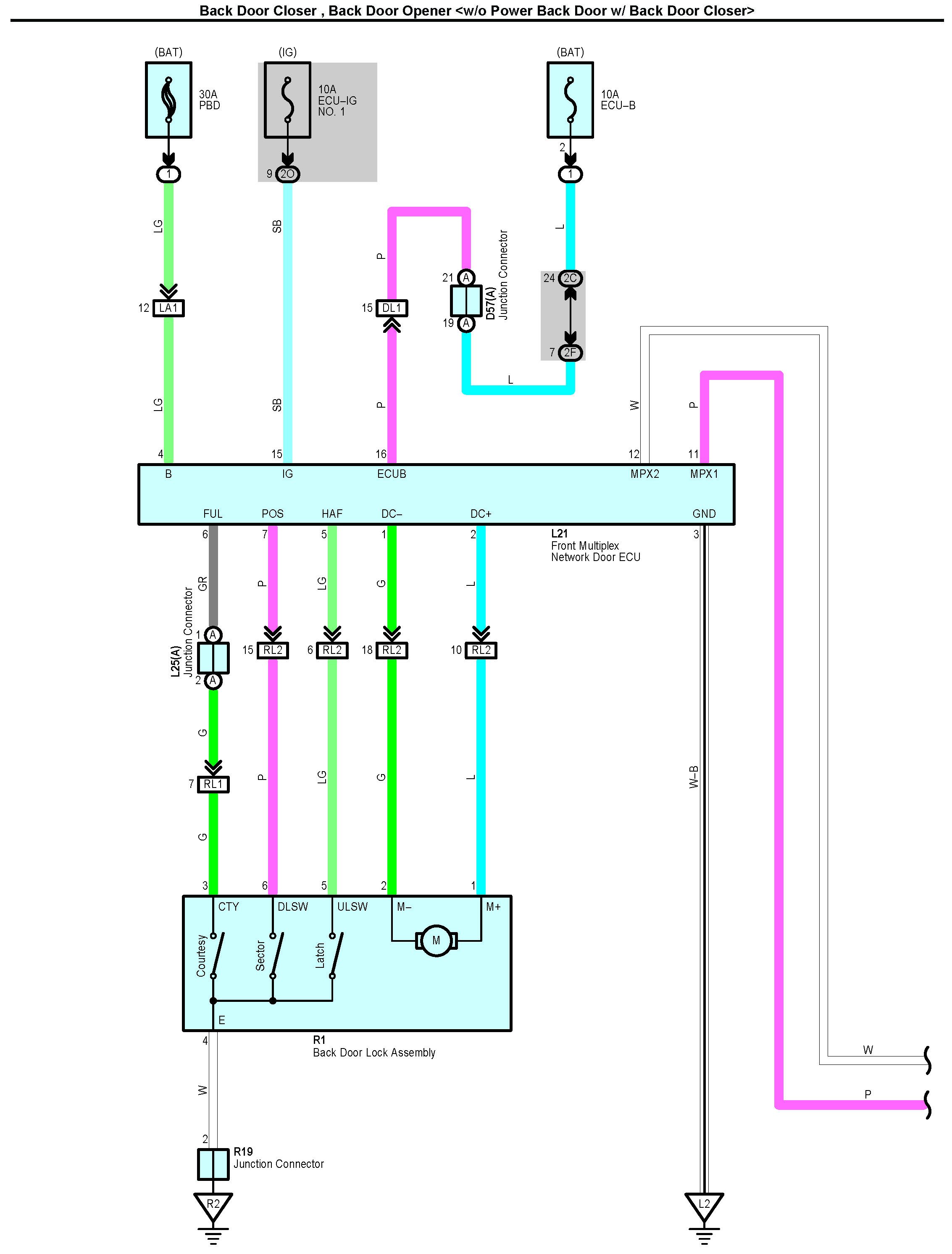

Back Door Closer, Back Door Opener <w/o Power Back Door w/ Back Door Closer> Part 4:

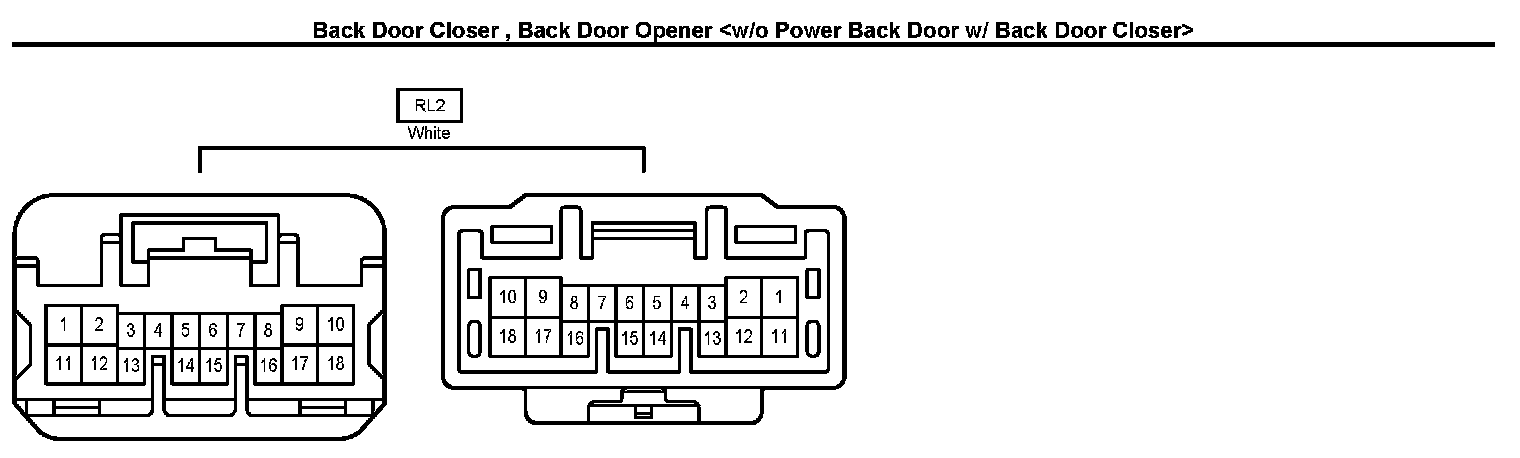

Connectors Part 1:

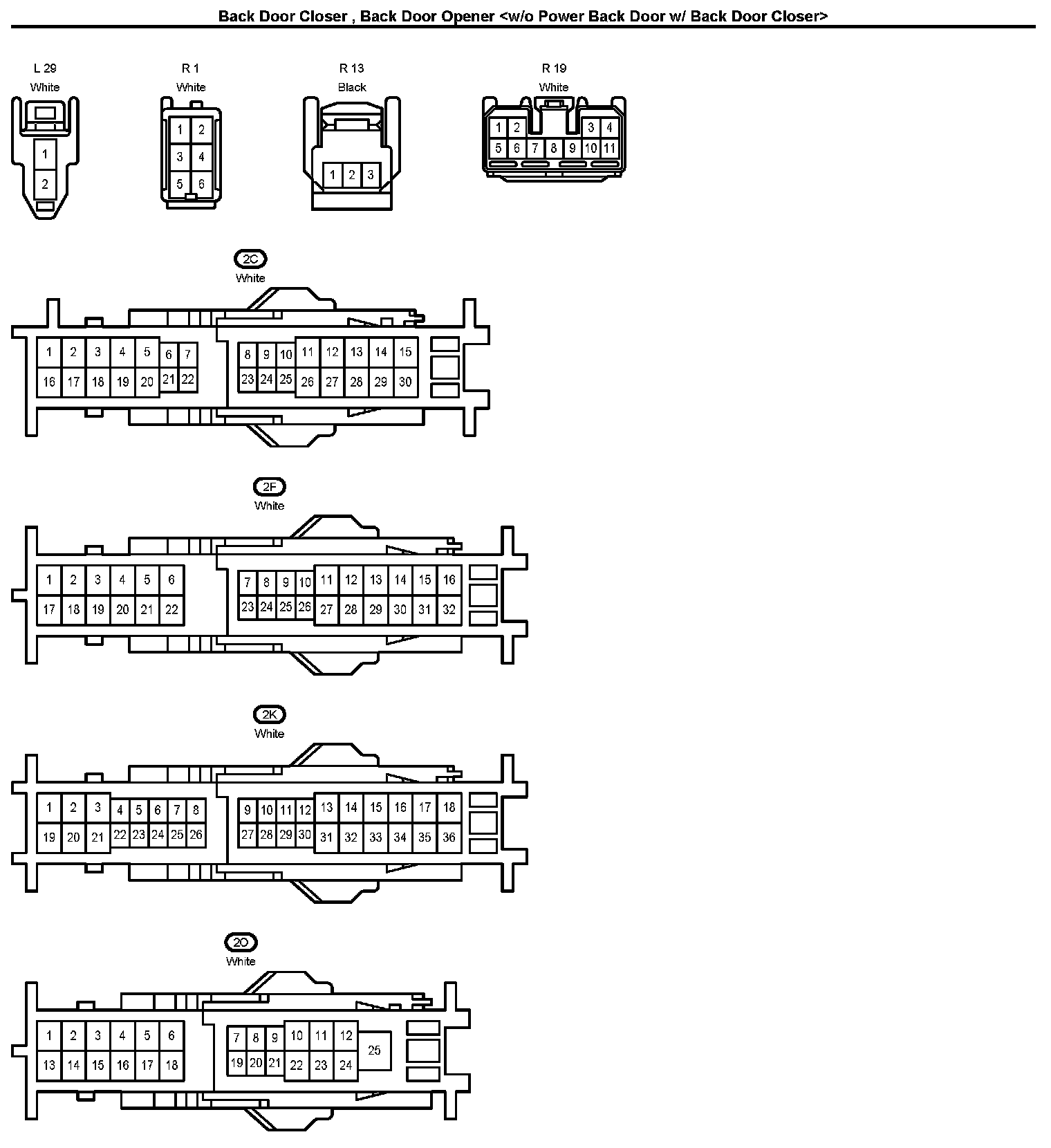

Connectors Part 2:

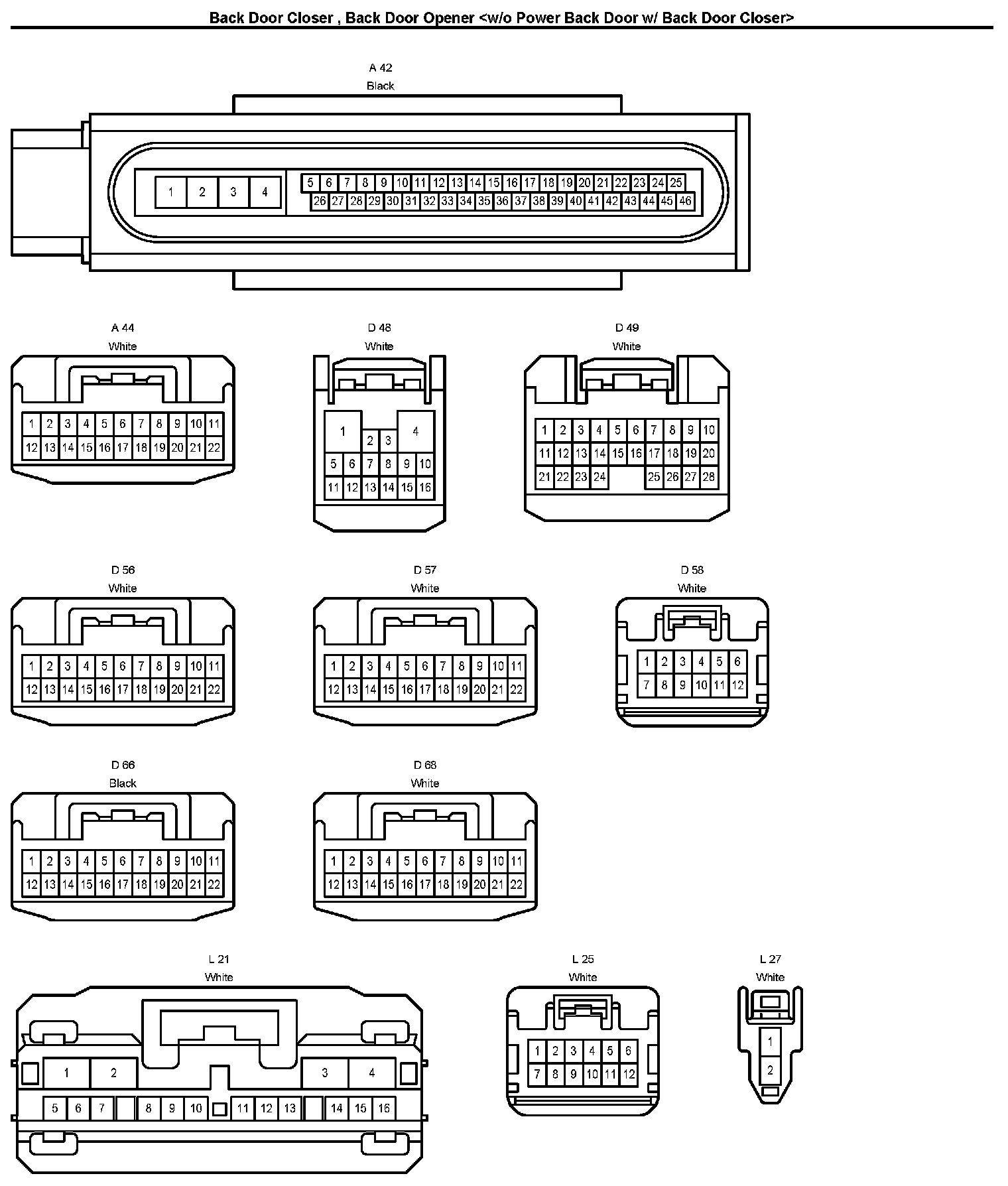

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
