Back Door Opener [w/ Power Back Door], Power Back Door

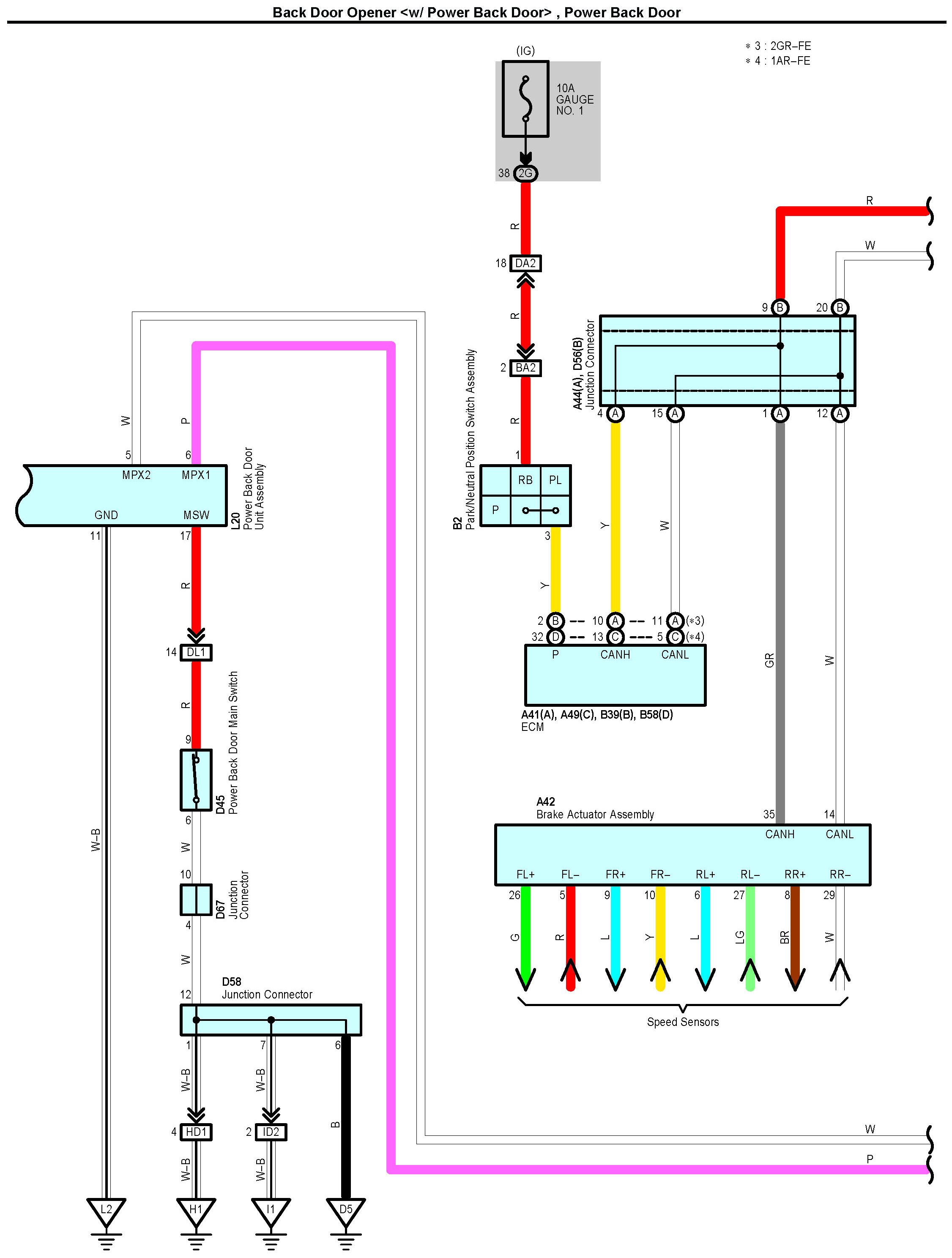

Back Door Opener <w/ Power Back Door>, Power Back Door Part 1:

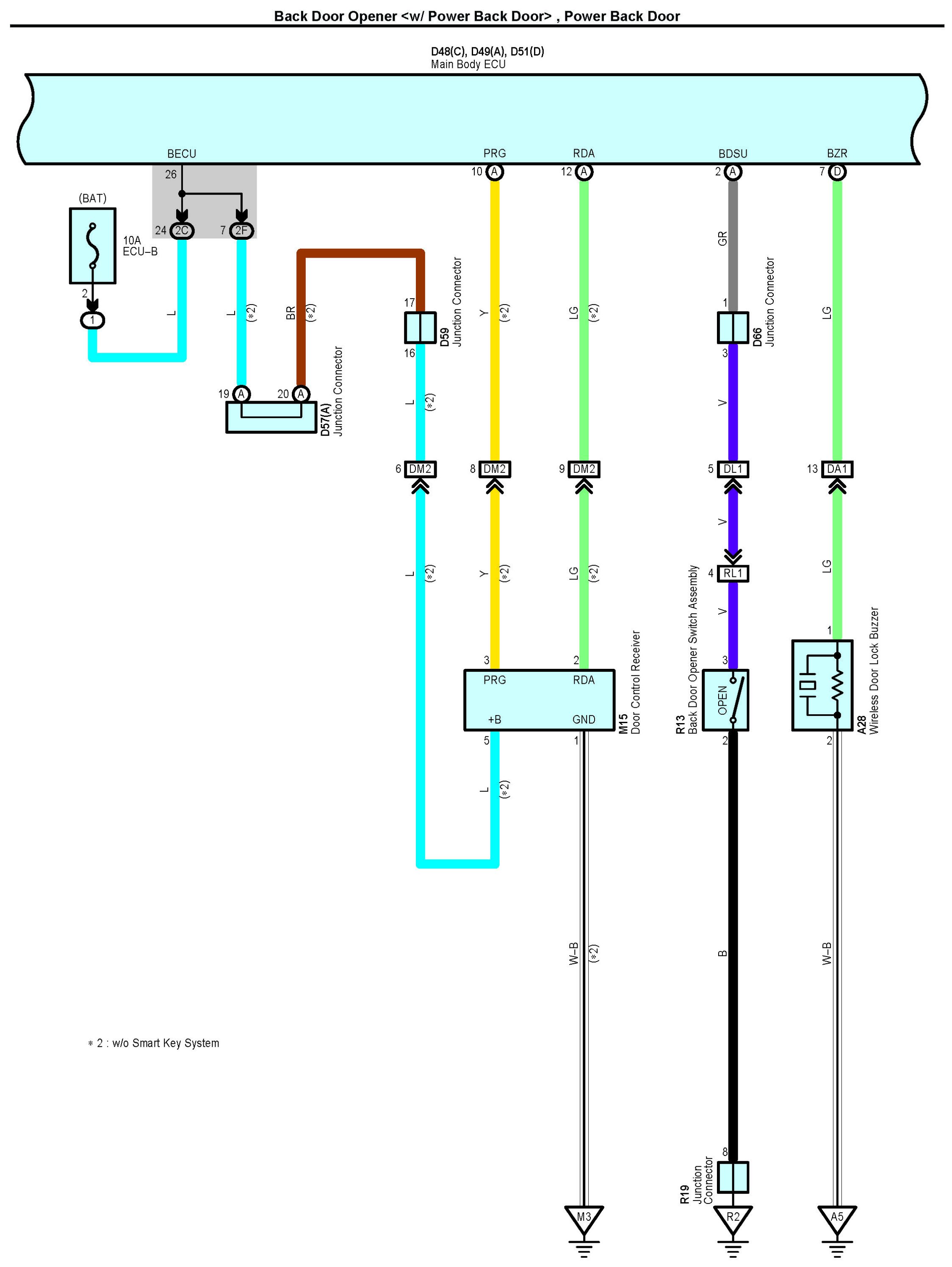

Back Door Opener <w/ Power Back Door>, Power Back Door Part 2:

Back Door Opener <w/ Power Back Door>, Power Back Door Part 3:

Back Door Opener <w/ Power Back Door>, Power Back Door Part 4:

Back Door Opener <w/ Power Back Door>, Power Back Door Part 5:

Back Door Opener <w/ Power Back Door>, Power Back Door Part 6:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
