Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control

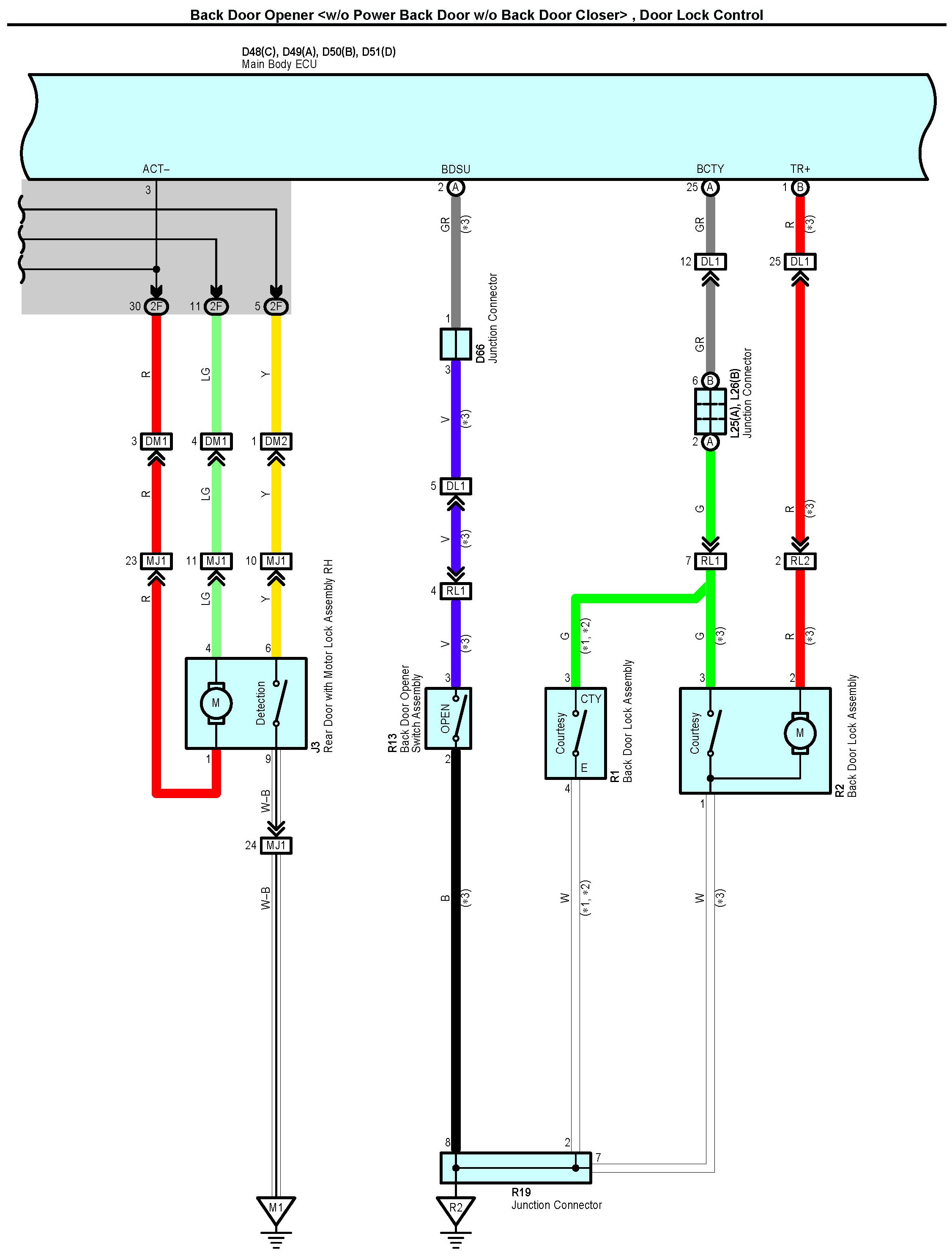

Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control Part 1:

Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control Part 2:

Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control Part 3:

Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control Part 4:

Back Door Opener [w/o Power Back Door w/o Back Door Closer], Door Lock Control Part 5:

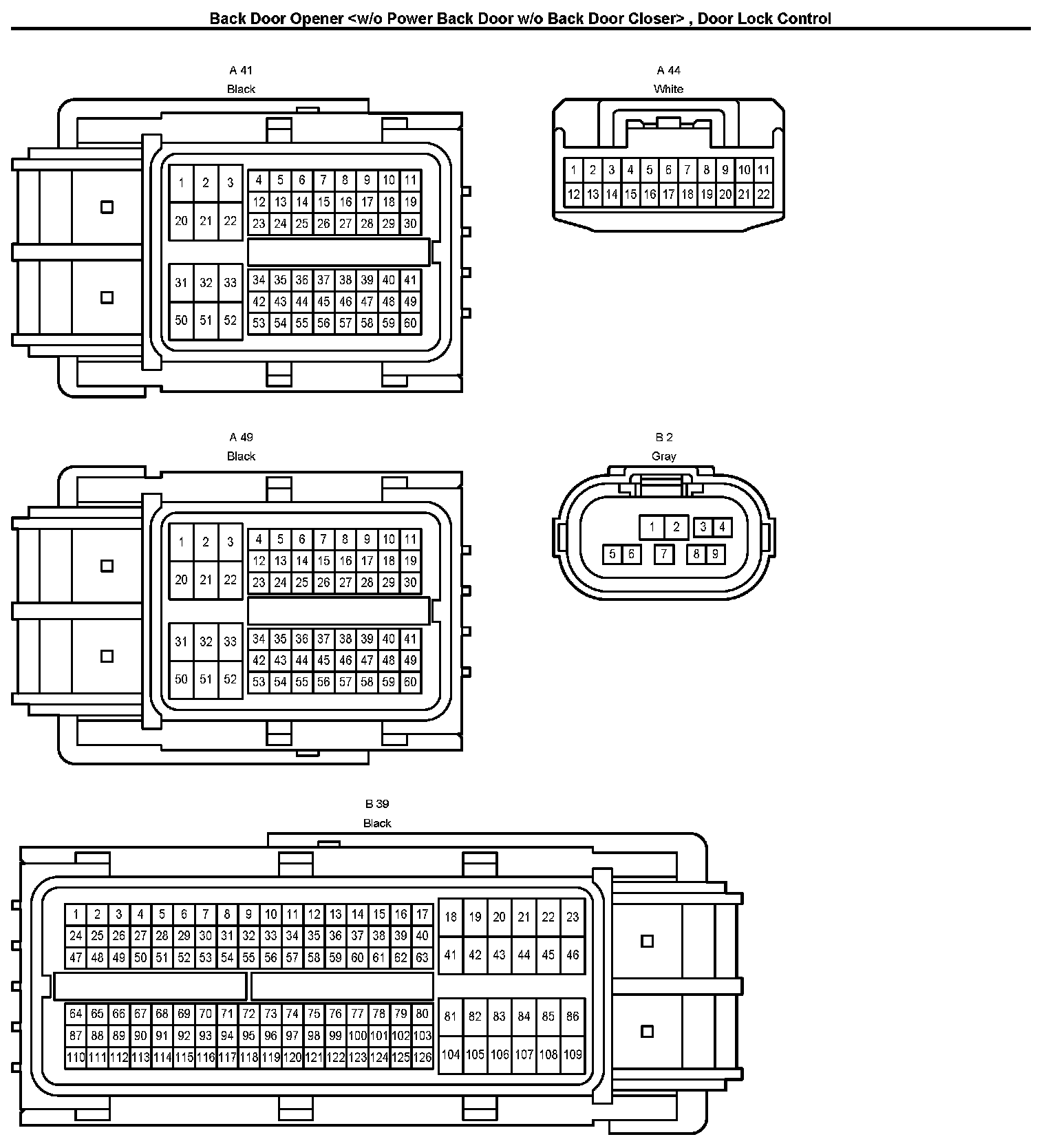

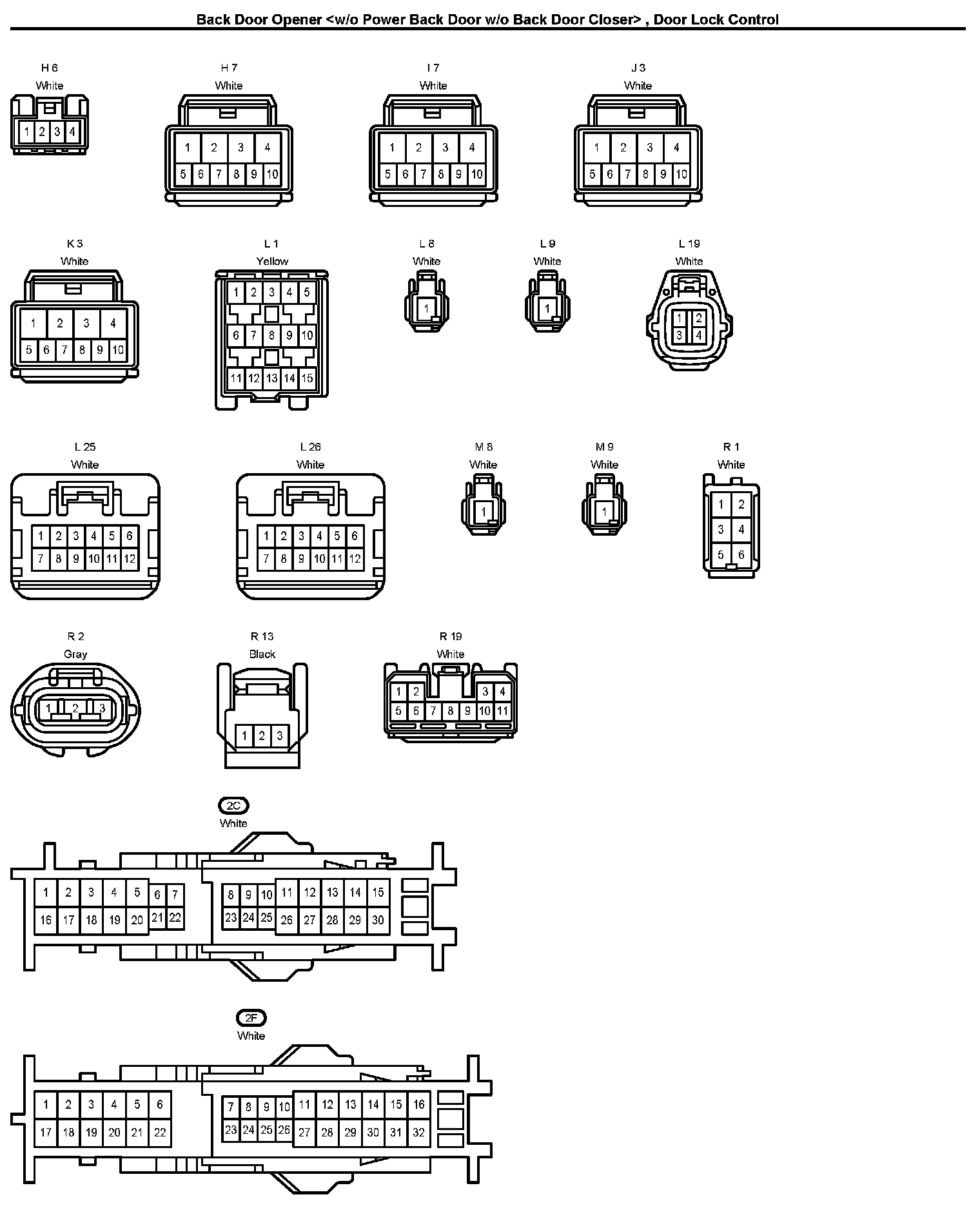

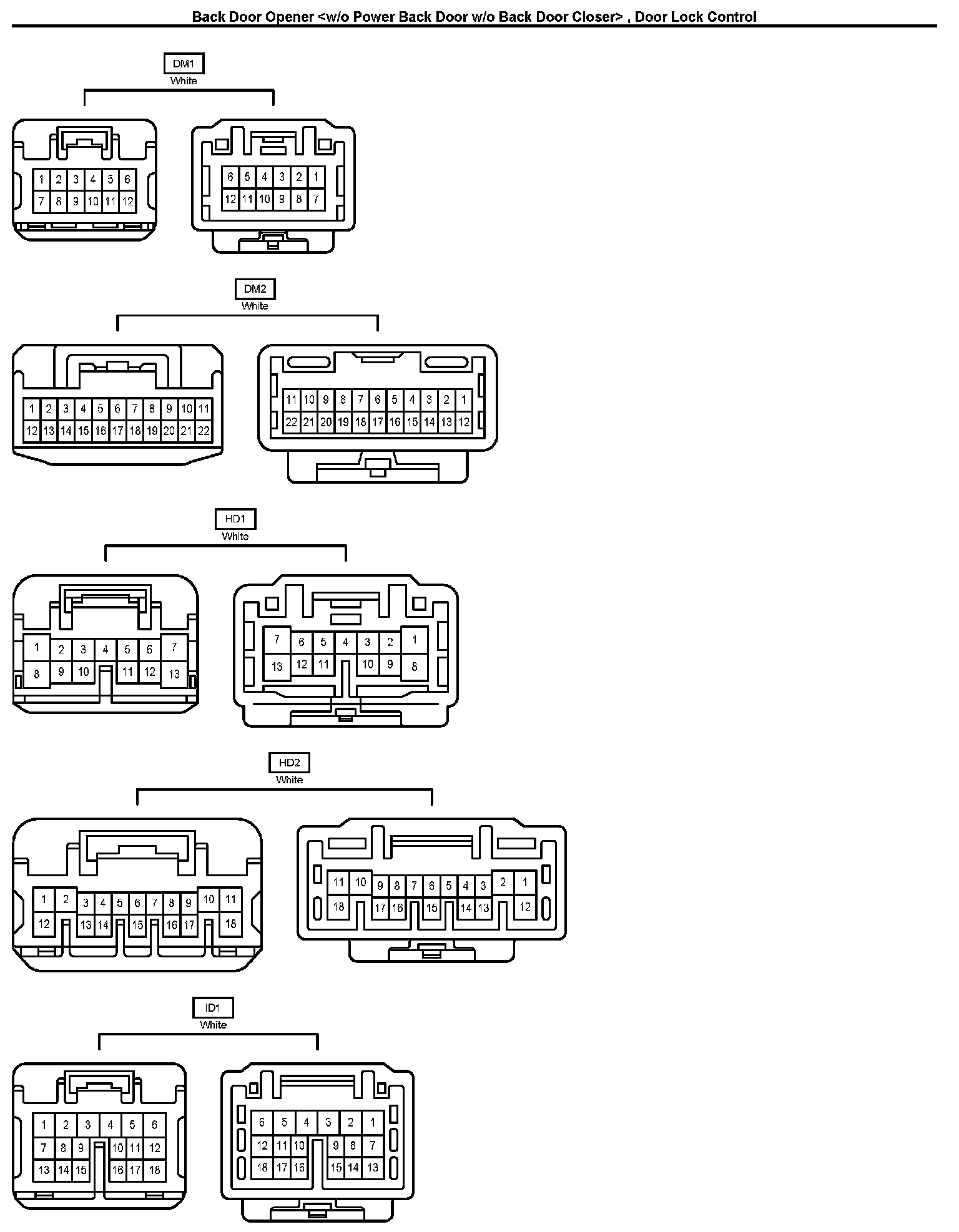

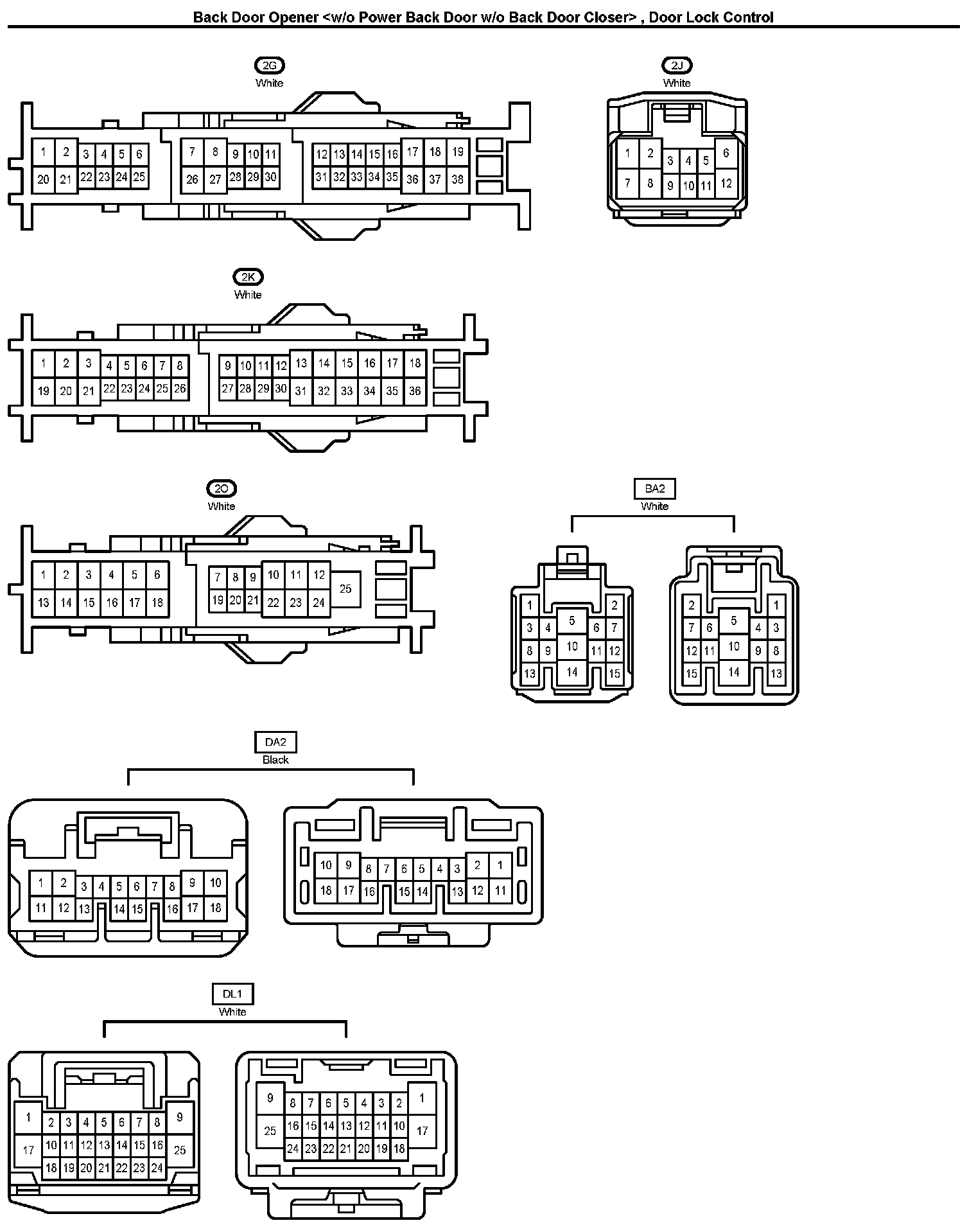

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
