Air Conditioning System (for Manual Air Conditioning System)








HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): PARTS LOCATION

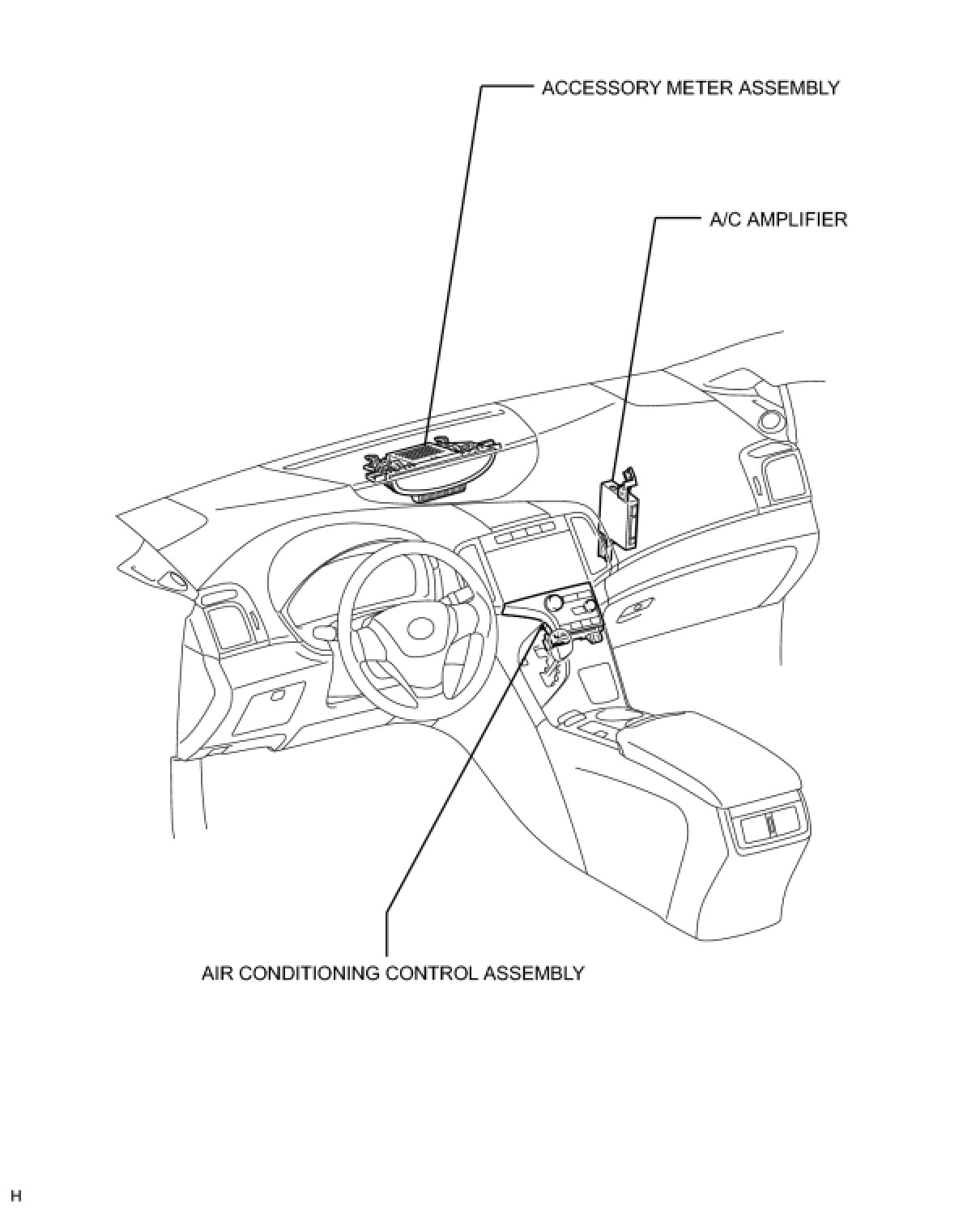

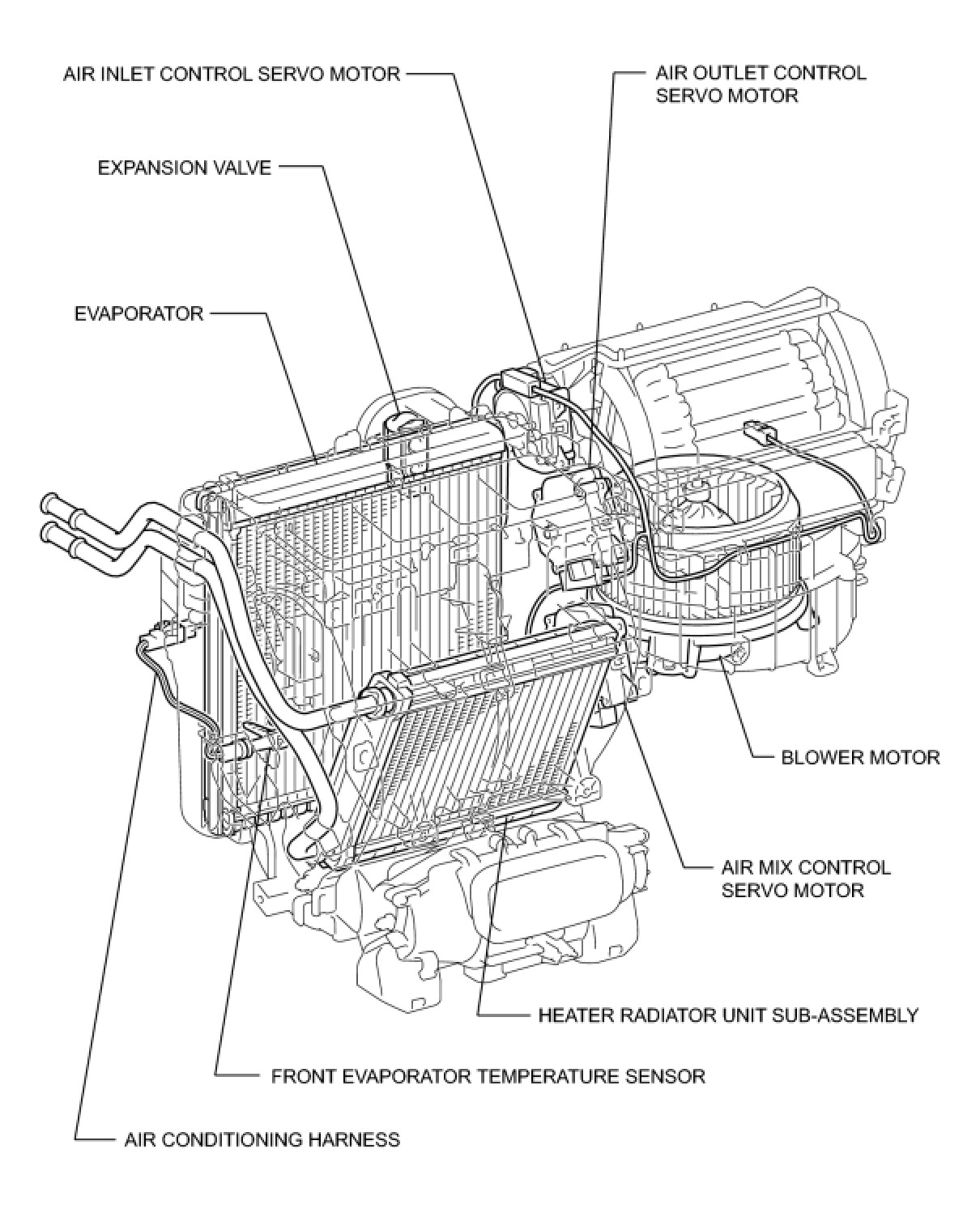

PARTS LOCATION

ILLUSTRATION
