Reassembly

INTERIOR PANELS / TRIM: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

REASSEMBLY

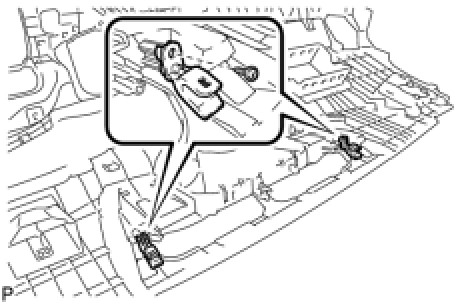

1. INSTALL NO. 1 INSTRUMENT PANEL PIN





(a) Install the 2 No. 1 instrument panel pins with the 2 screws [E] or [F].

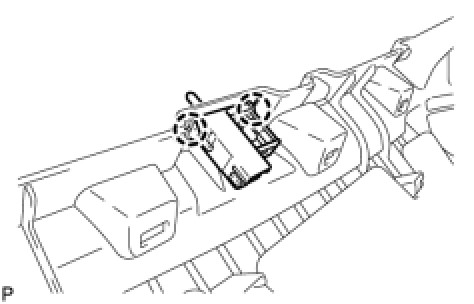

2. INSTALL GLOVE BOX LIGHT ASSEMBLY





(a) Engage the 2 claws to install the glove box light assembly.
3. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation

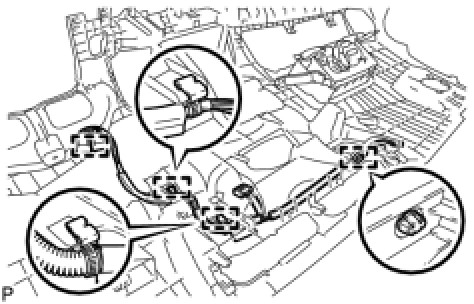

4. INSTALL NO. 3 INSTRUMENT PANEL WIRE





(a) Engage the 4 clamps to install the No. 3 instrument panel wire.
5. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System) Installation
6. INSTALL NO. 1 ANTENNA CORD SUB-ASSEMBLY Installation

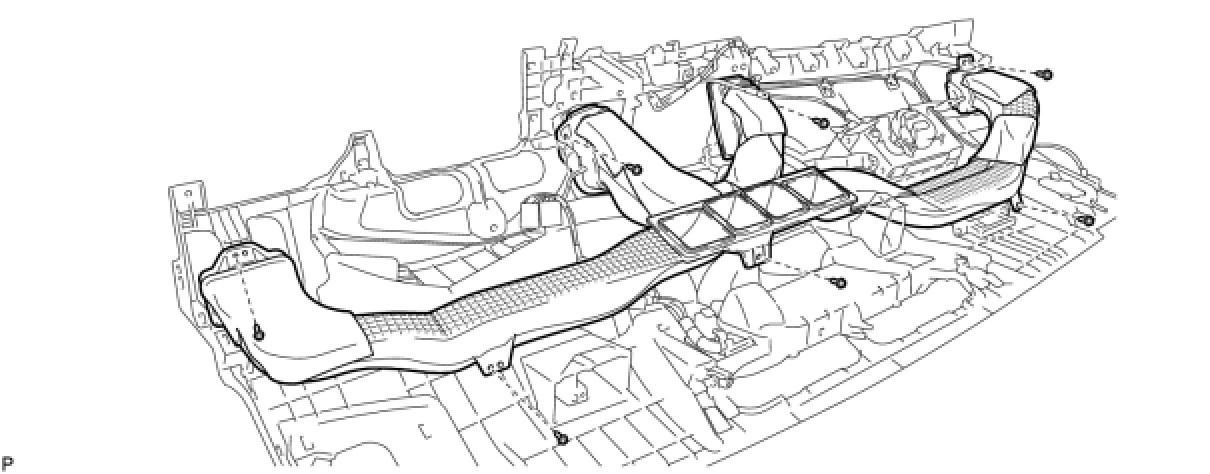

7. INSTALL HEATER TO REGISTER DUCT
(a) Install the heater to register duct with the 7 screws [E] or [F].

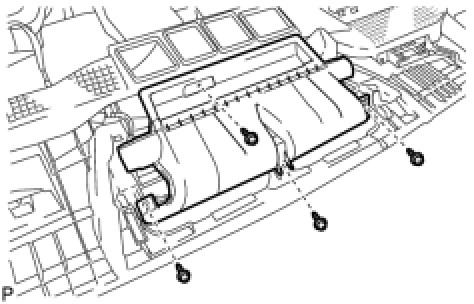

8. INSTALL DEFROSTER NOZZLE ASSEMBLY





(a) Install the defroster nozzle assembly with the 4 screws [E] or [F].

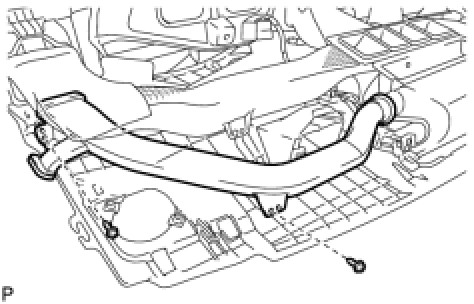

9. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT





(a) Install the No. 2 side defroster nozzle duct with the 2 screws [E] or [F].
10. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT





(a) Install the No. 1 side defroster nozzle duct with the 2 screws [E] or [F].
