Key Reminder Warning System

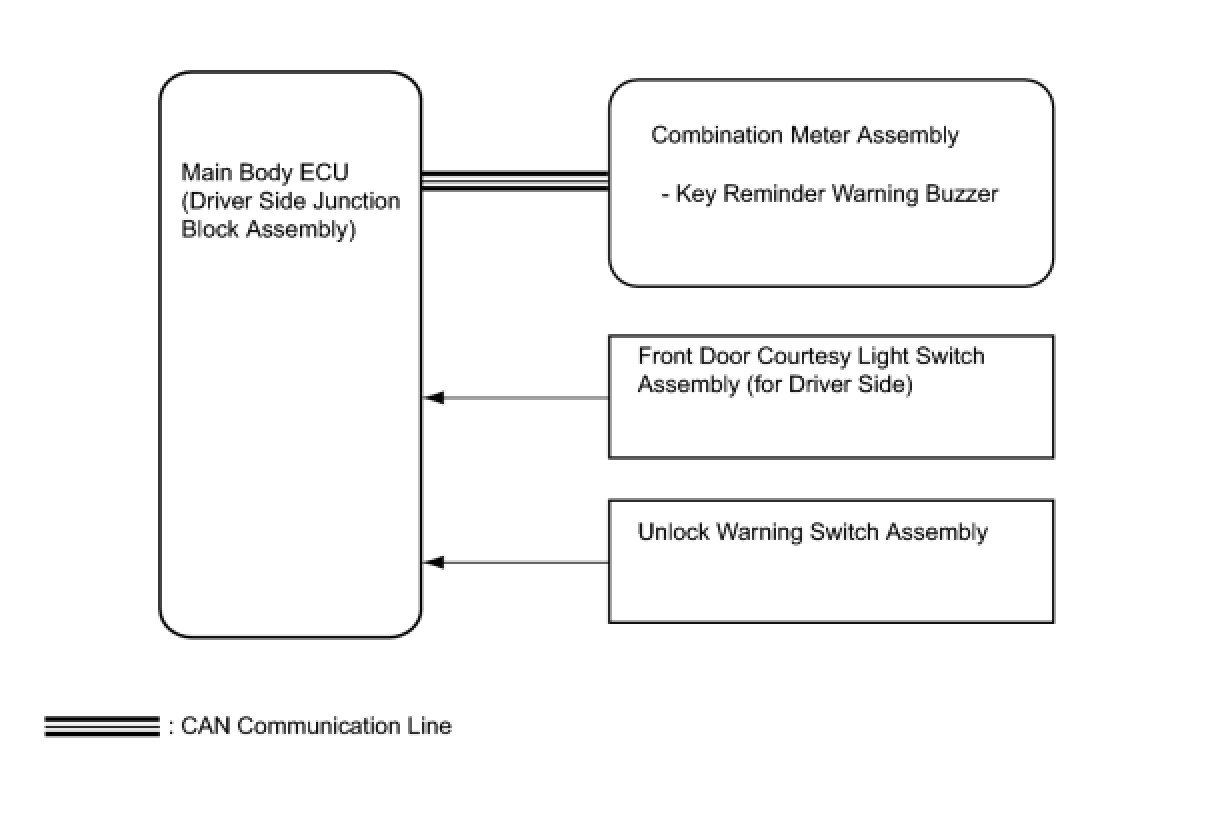

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM





Communication Table





DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. KEY REMINDER WARNING SYSTEM DESCRIPTION
(a) When the driver side door is opened with the key in ACC or LOCK, this system causes a buzzer to sound in order to warn the driver that the key has not been removed.
