Meter / Gauge System
METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
1. CAN SIGNAL

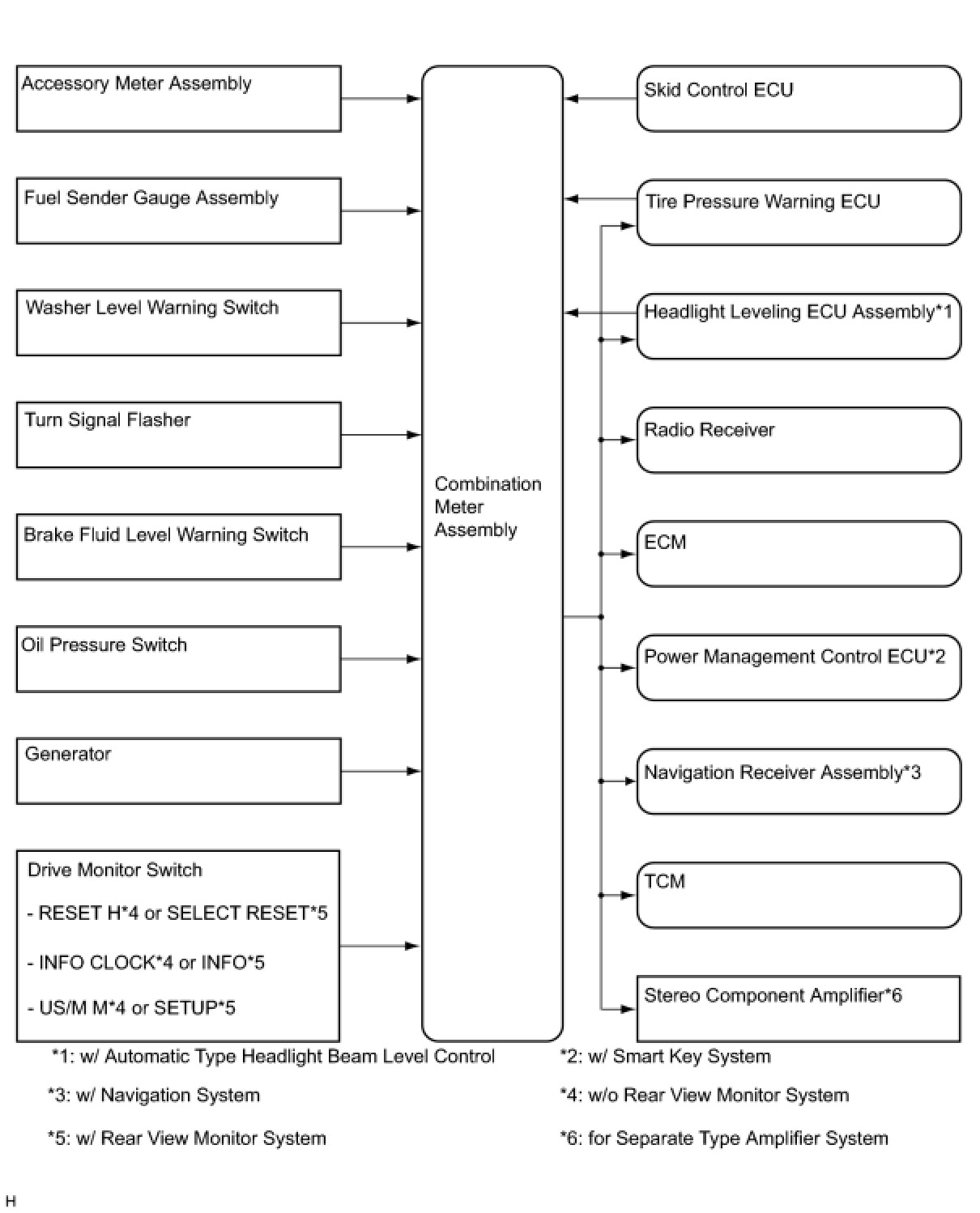

2. DIRECT LINE SIGNAL
(a) Combination Meter Assembly
(b) Accessory Meter Assembly
3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER ASSEMBLY OR ACCESSORY METER ASSEMBLY
(a) Meter or Gauge
- *1: w/o Rear View Monitor System
- *2: w/ Rear View Monitor System

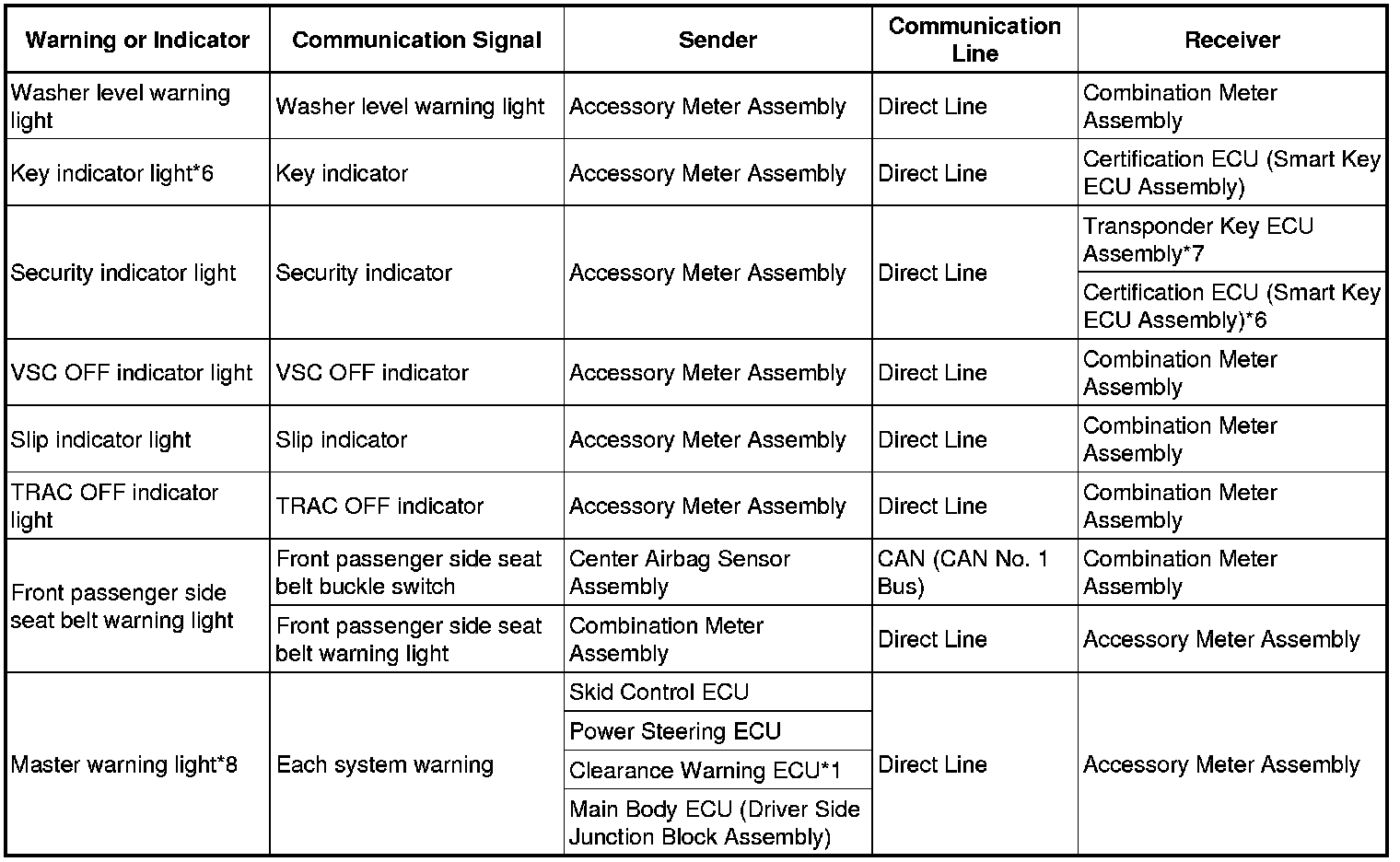

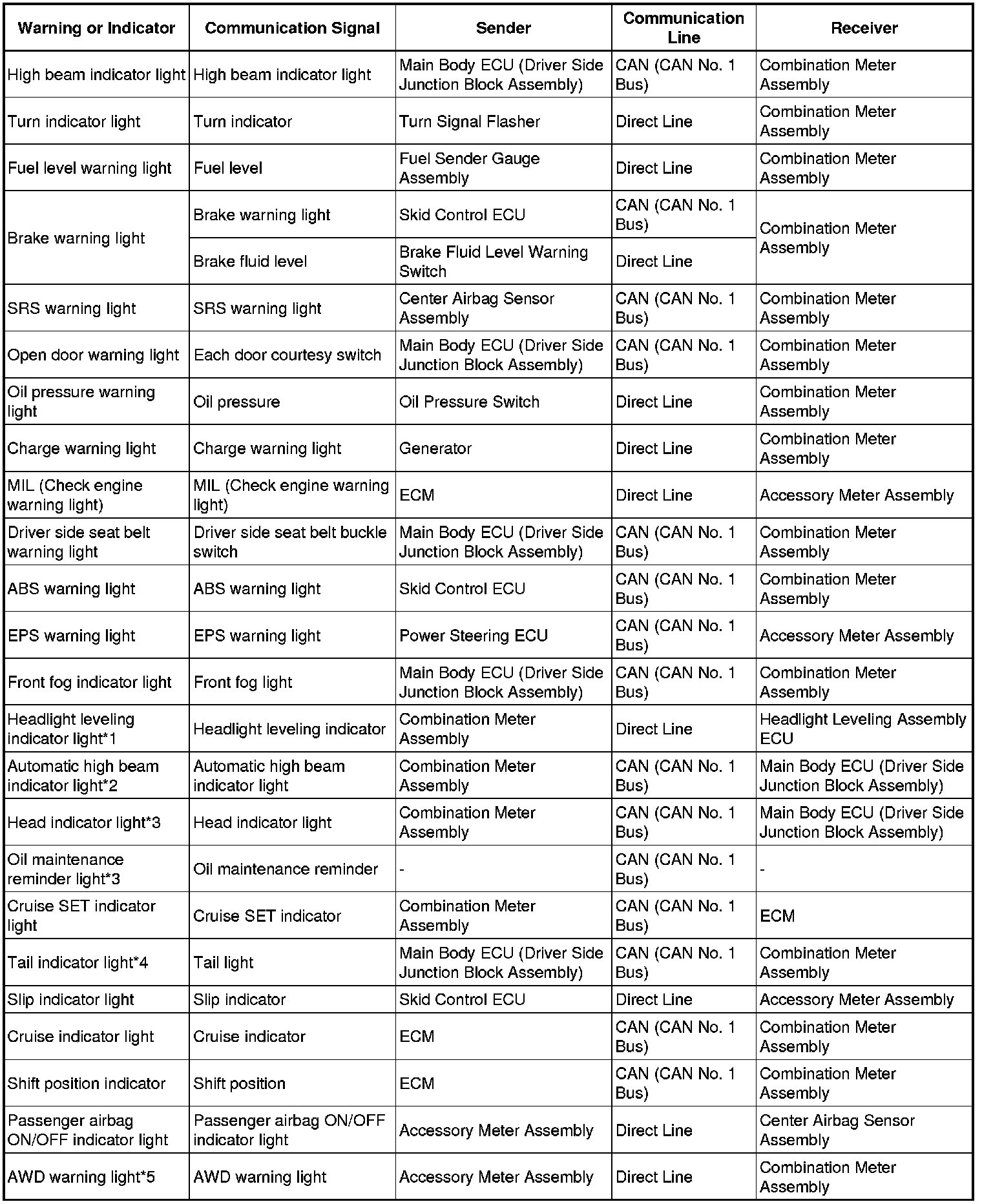

(b) Warning or Indicator
- *1: w/ Automatic Type Headlight Beam Level Control
- *2: w/ Automatic High Beam System
- *3: for U.S.A.
- *4: except U.S.A.
- *5: for AWD
- *6: w/ Smart Key System
- *7: w/o Smart Key System
- *8: w/ Rear View Monitor System

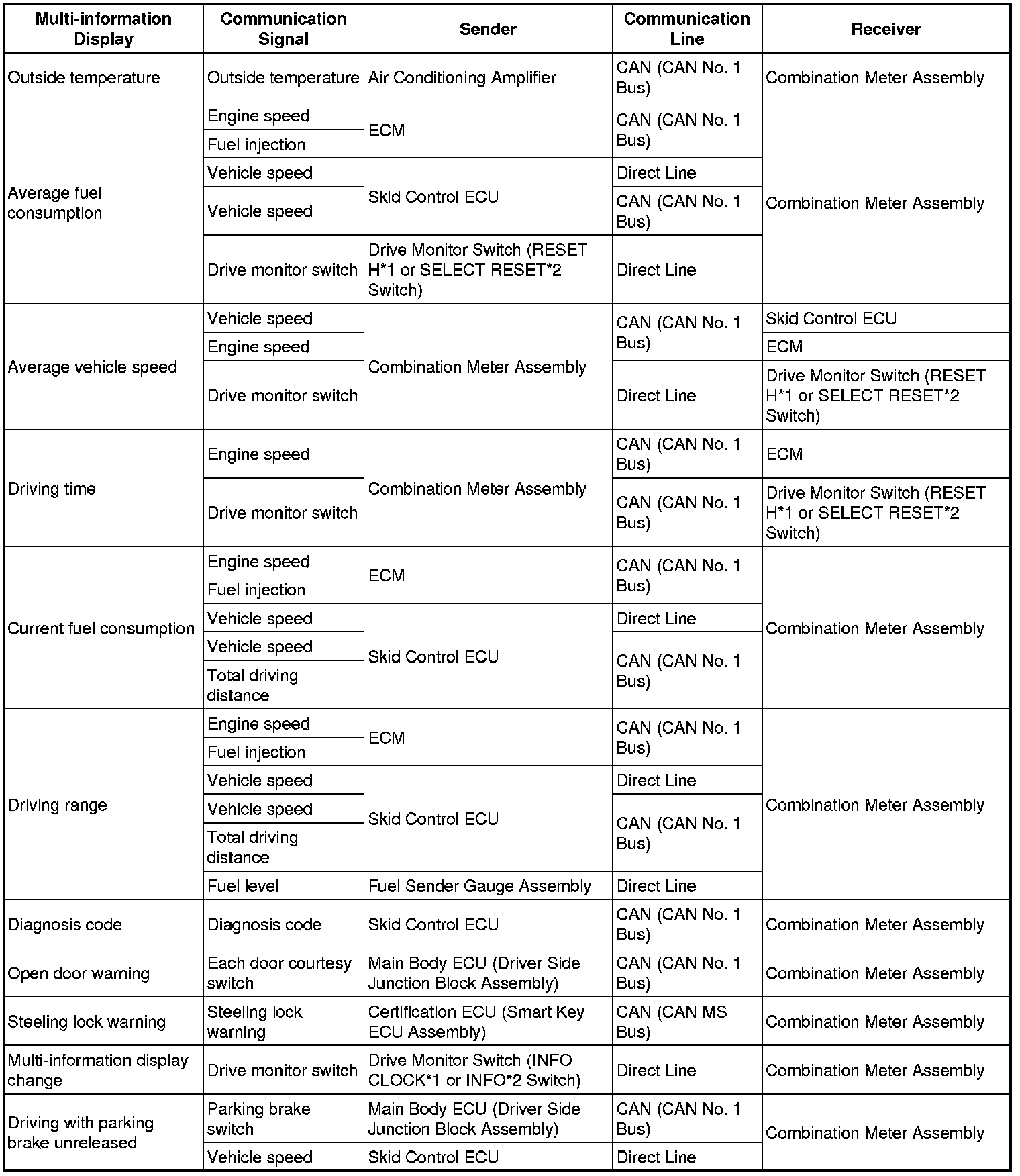

(c) Multi-information Display
- *1: w/o Rear View Monitor System
- *2: w/ Rear View Monitor System

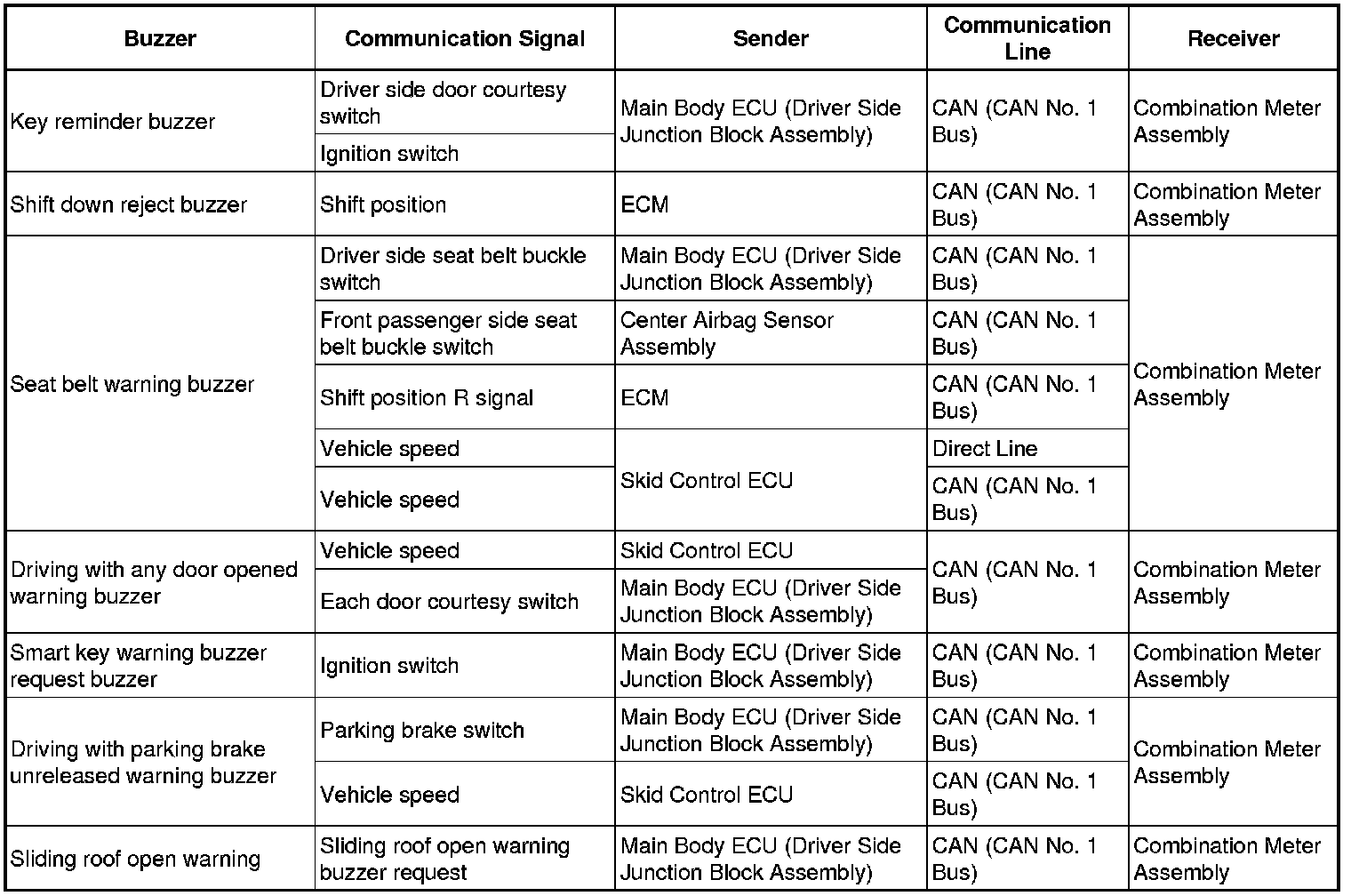

(d) Buzzer

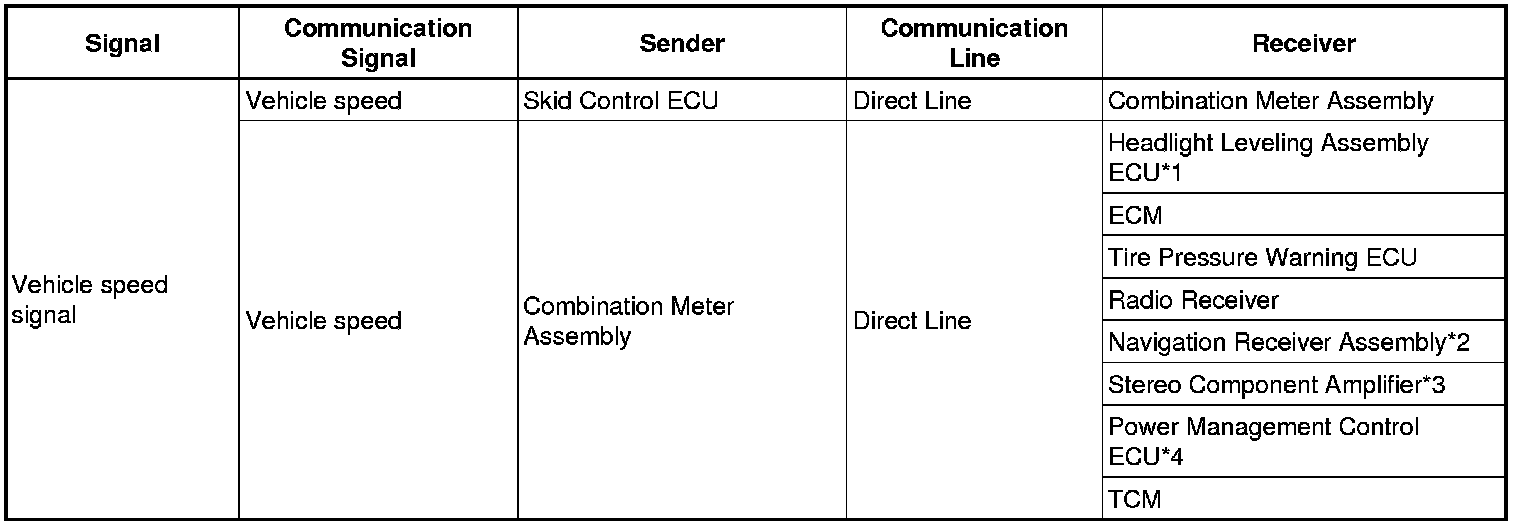

(e) Others
- *1: w/ Automatic Type Headlight Beam Level Control
- *2: w/ Navigation System
- *3: for Separate Type Amplifier System
- *4: w/ Smart Key System
METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION
SYSTEM DESCRIPTION
1. OUTLINE OF THE COMBINATION METER ASSEMBLY
(a) Meter or Gauge

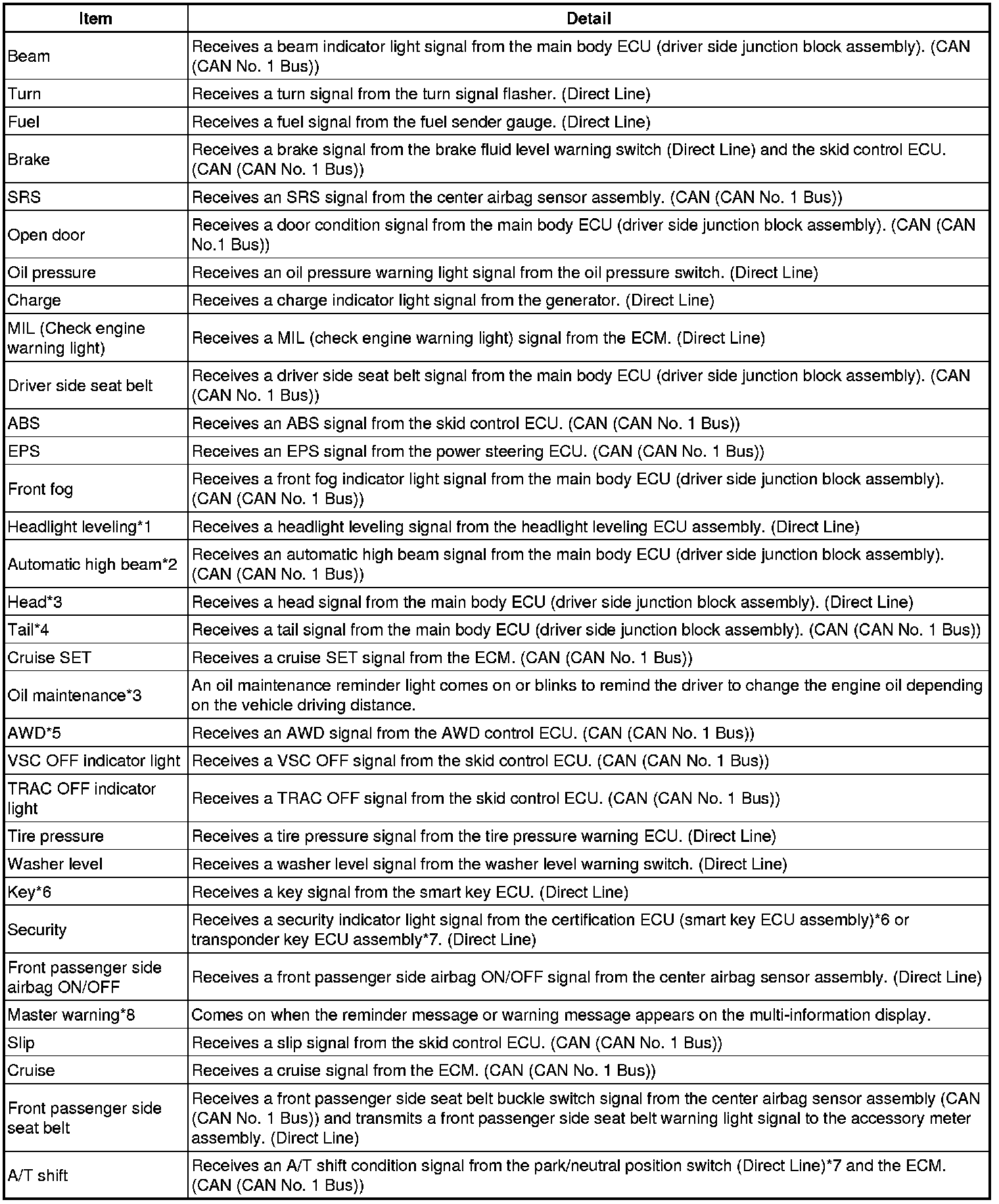

(b) Warning, Indicator, or Reminder
- *1: w/ Automatic Type Headlight Beam Level Control
- *2: w/ Automatic High Beam System
- *3: for U.S.A.
- *4: except U.S.A.
- *5: for AWD
- *6: w/ Smart Key System
- *7: w/ Smart Key System
- *8: w/ Rear View Monitor System

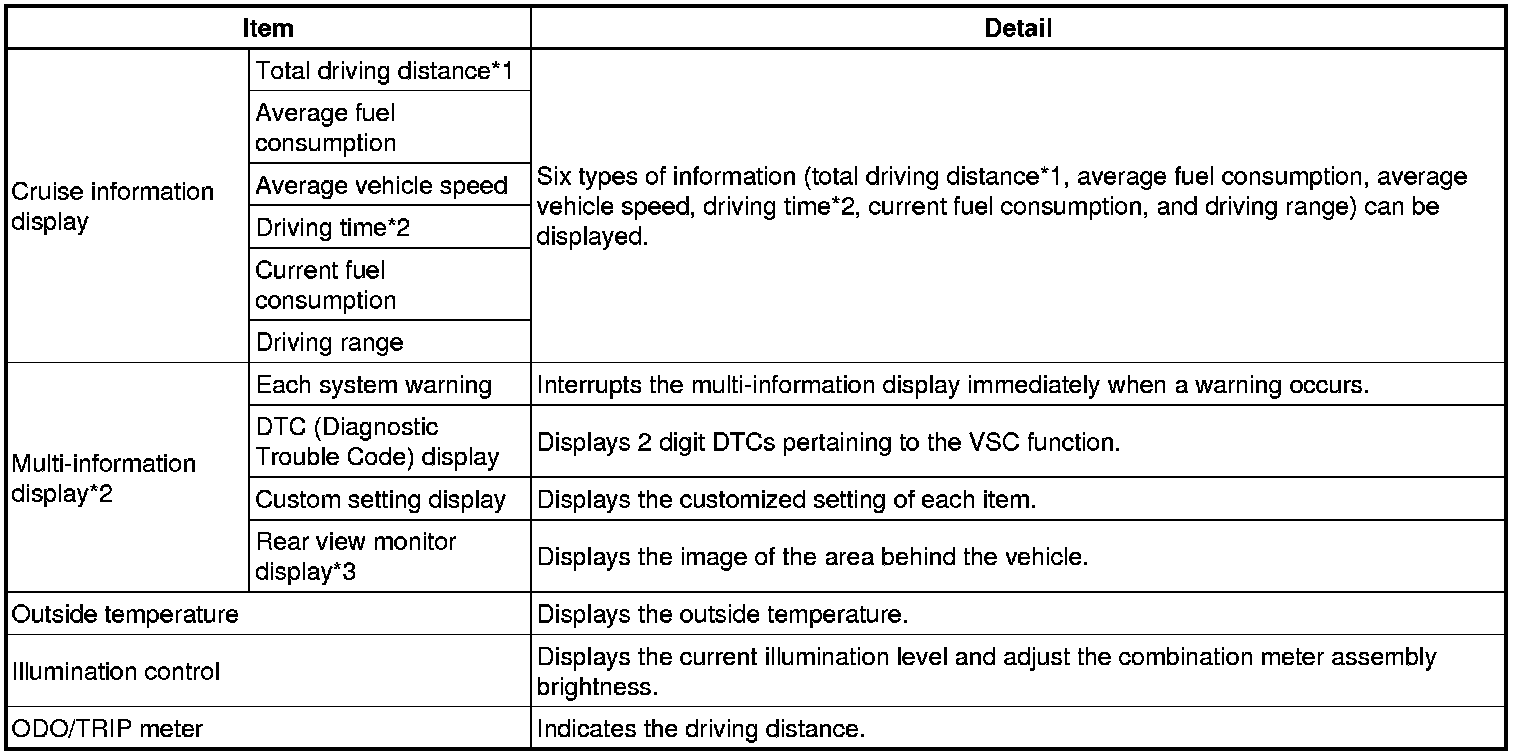

2. ACCESSORY METER ASSEMBLY
- *1: w/o Rear View Monitor System
- *2: w/ Rear View Monitor System
- *3: w/ Navigation System
3. MULTI-INFORMATION DISPLAY FLOW CHART
(a) Multi-information Display Flow Chart
4. DIAGNOSIS SYSTEM
HINT:
- The multi-information display shows "DIAG" when turn the ignition switch to ON Test Mode Procedure.
- Diagnosis information can be displayed on the multi-information display after connecting a jumper wire between terminals TC and CG of the DLC3 connector.
5. LED INITIAL CHECK
(a) Check the illumination function of the warning, indicator, or reminder light listed below when turn the ignition switch to ON.
OK:
- *1: for U.S.A.
- *2 w/ Rear View Monitor System
- *3: for AWD
