Removal

LIGHTING (INT): ROOM LIGHT: REMOVAL

REMOVAL

1. REMOVE SPOT LIGHT ASSEMBLY





(a) Using a moulding remover, pull the spot light assembly to the extent that the 2 claws [A] can be seen.

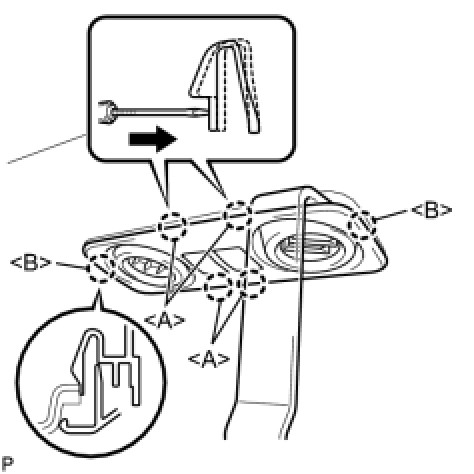

(b) Using a screwdriver, disengage the 4 claws [A] and 2 claws [B] as shown in the illustration.





(c) Disengage the 8 claws to separate the spot light sub-assembly from the spot light assembly.
