LIGHTING (EXT): HEADLIGHT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system Service Precautions.
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE RADIATOR GRILLE PROTECTOR Removal
4. REMOVE RADIATOR GRILLE Removal
5. REMOVE FRONT BUMPER ASSEMBLY Removal
6. REMOVE HEADLIGHT ASSEMBLY

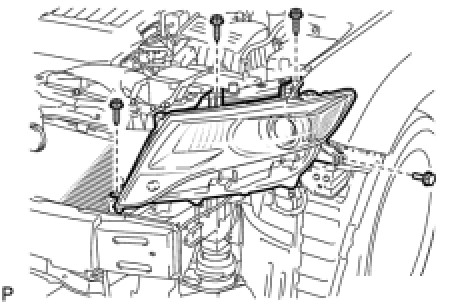

(a) Remove the bolt and 3 screws.
(b) Disconnect each connector and remove the headlight assembly.
