Key Cylinder Lamp: Testing and Inspection

LIGHTING (INT): IGNITION KEY CYLINDER LIGHT: INSPECTION

INSPECTION

1. INSPECT TRANSPONDER KEY AMPLIFIER

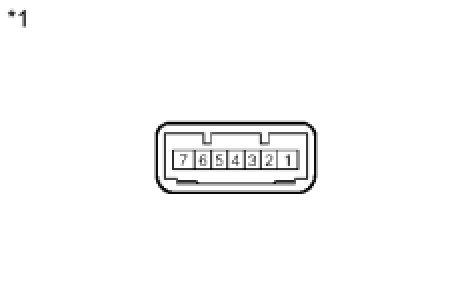

(a) Connect a positive (+) lead from battery to terminal 2 and a negative (-) lead to terminal 6.
(b) Check that the light comes on.
OK:
The light comes on.

Text in Illustration





If the result is not as specified, replace the transponder key amplifier.
