Disassembly

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: DISASSEMBLY

DISASSEMBLY

1. REMOVE TAIL AND STOP LIGHT BULB

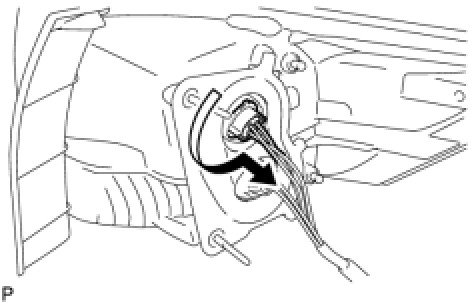

(a) Turn the tail and stop light bulb and the rear combination light socket and wire in the direction indicated by the arrow shown in the illustration, and remove them as a unit.
(b) Remove the tail and stop light bulb from the rear combination light socket and wire.
2. REMOVE REAR TURN SIGNAL LIGHT BULB





(a) Turn the rear turn signal light bulb and rear combination light socket and wire in the direction indicated by the arrow shown in the illustration, and remove them as a unit.
(b) Remove the rear turn signal light bulb from the rear combination light socket and wire.
3. REMOVE REAR BUMPER UPPER RETAINER





(a) Remove the 2 screws.
(b) Disengage the guide and remove the rear bumper upper retainer.
