LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION
INSTALLATION
1. INSTALL REAR COMBINATION LIGHT ASSEMBLY

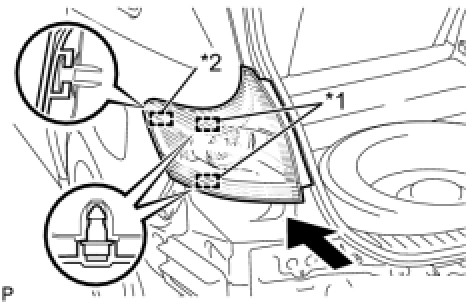

(a) Engage the guide and 2 pins, and install the rear combination light assembly as shown in the illustration.
(b) Install the rear combination light assembly with the 2 nuts.
Torque: 6.8 Nm (69 kgf-cm, 60in-lbf)
(c) Engage the clamp.
(d) Connect the connector.
2. INSTALL REAR BUMPER ASSEMBLY Installation
3. INSTALL REAR BUMPER PLATE LH Installation
4. INSTALL REAR BUMPER PLATE RH Installation
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side) Installation
6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side) Installation
7. CONNECT REAR SEAT OUTER BELT ASSEMBLY Installation
8. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation
9. INSTALL RECLINING REMOTE CONTROL BEZEL Installation
10. INSTALL REAR SEAT ASSEMBLY LH (for LH Side) Installation
11. CONNECT REAR SEAT NO. 2 RECLINING CONTROL CABLE SUB-ASSEMBLY (for LH Side) Installation
12. INSTALL REAR SEAT OUTER TRACK BRACKET COVER (for LH Side) Installation
13. INSTALL REAR SEAT INNER TRACK BRACKET COVER (for LH Side) Installation
14. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side) Installation
15. INSTALL REAR SEAT ASSEMBLY RH (for RH Side) Installation
16. CONNECT REAR SEAT RECLINING CONTROL CABLE SUB-ASSEMBLY (for RH Side) Installation
17. INSTALL REAR SEAT OUTER TRACK BRACKET COVER (for RH Side) Installation
18. INSTALL REAR SEAT INNER TRACK BRACKET COVER (for RH Side) Installation
19. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side) Installation
20. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side) Installation
21. INSTALL REAR FLOOR FINISH PLATE Installation
22. INSTALL REAR SEAT SUB FLOOR PANEL ASSEMBLY Installation
23. INSTALL NO. 1 DECK BOARD Installation
24. INSTALL DECK SIDE TRIM BOX LH Installation
25. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY Installation
26. INSTALL DECK SIDE TRIM BOX RH Installation
27. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY Installation
28. INSTALL DECK BOARD ASSEMBLY Installation
29. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Installation
30. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP Installation
31. INSTALL REAR DOOR SCUFF PLATE Installation
