Trunk / Liftgate Ajar Switch: Locations

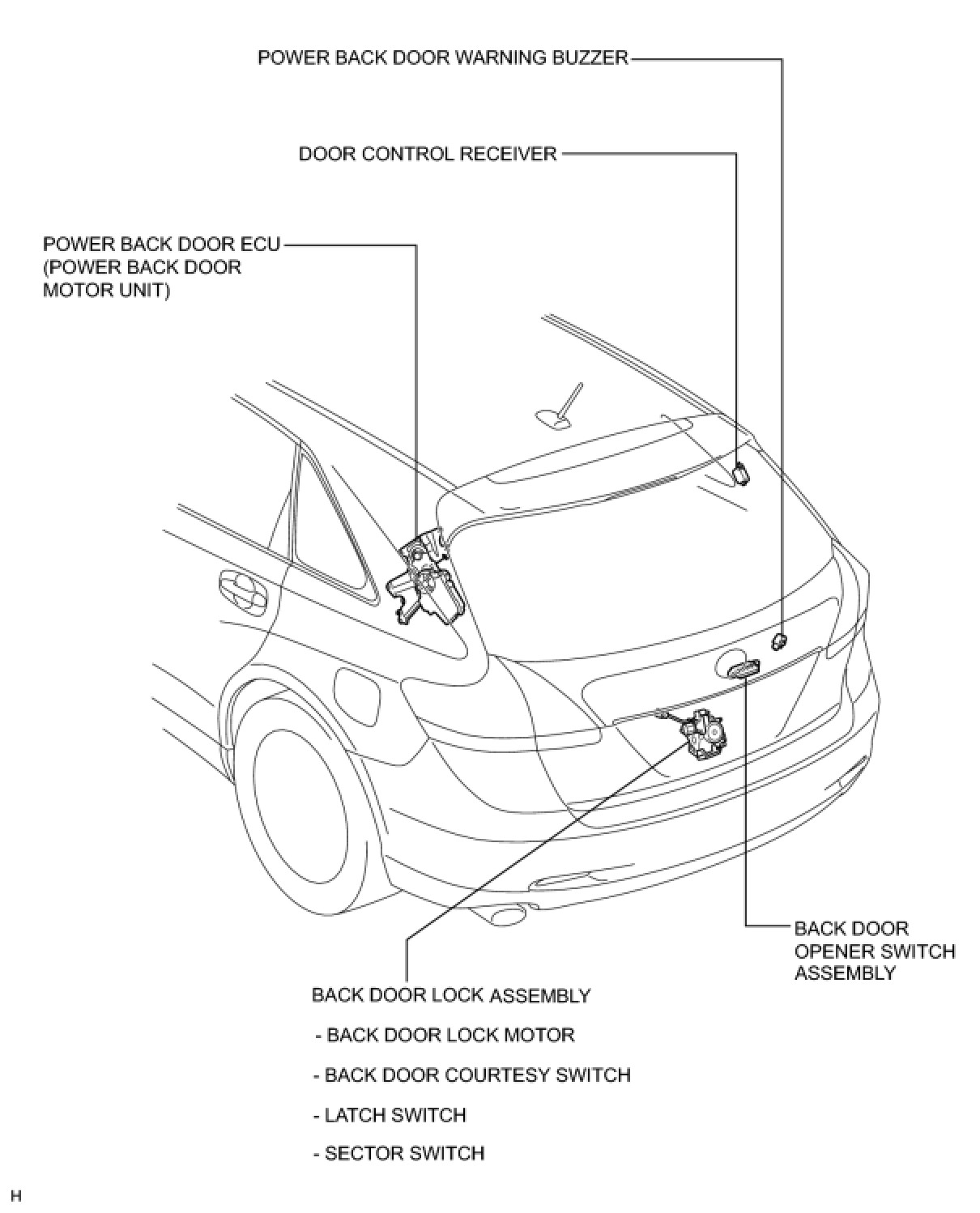

DOOR / HATCH: POWER BACK DOOR SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
