Service Data

SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA

SERVICE DATA

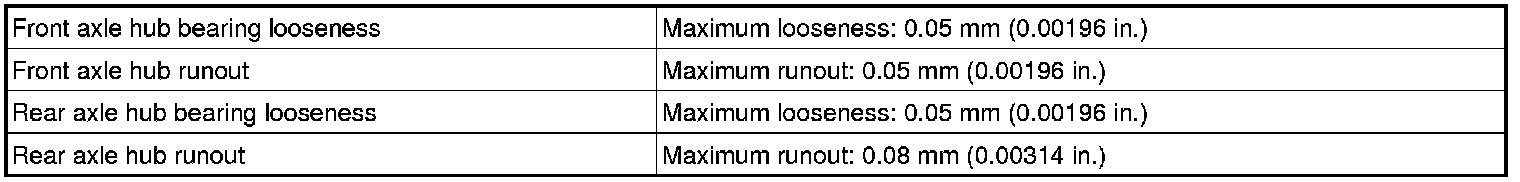

Axle

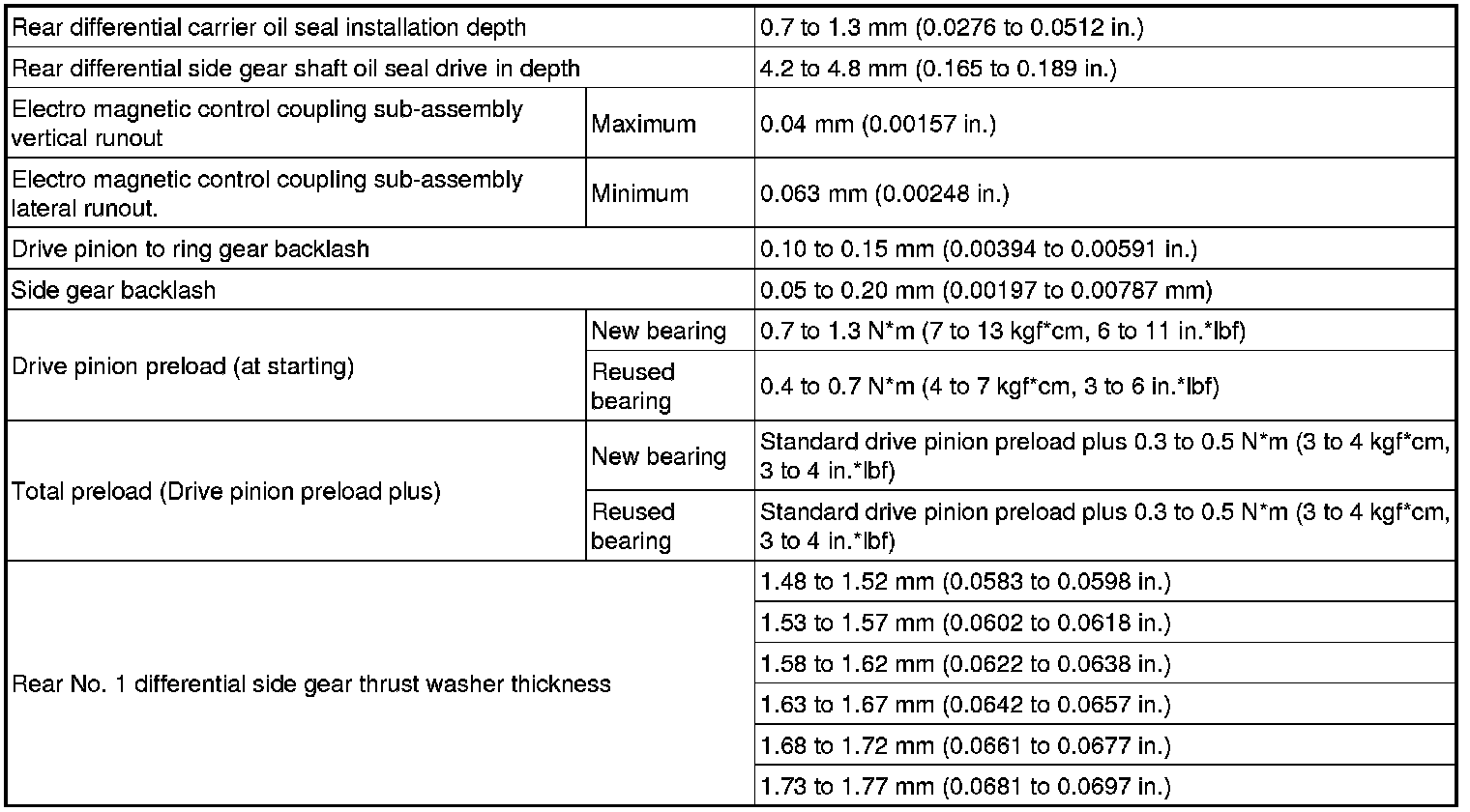

Differential

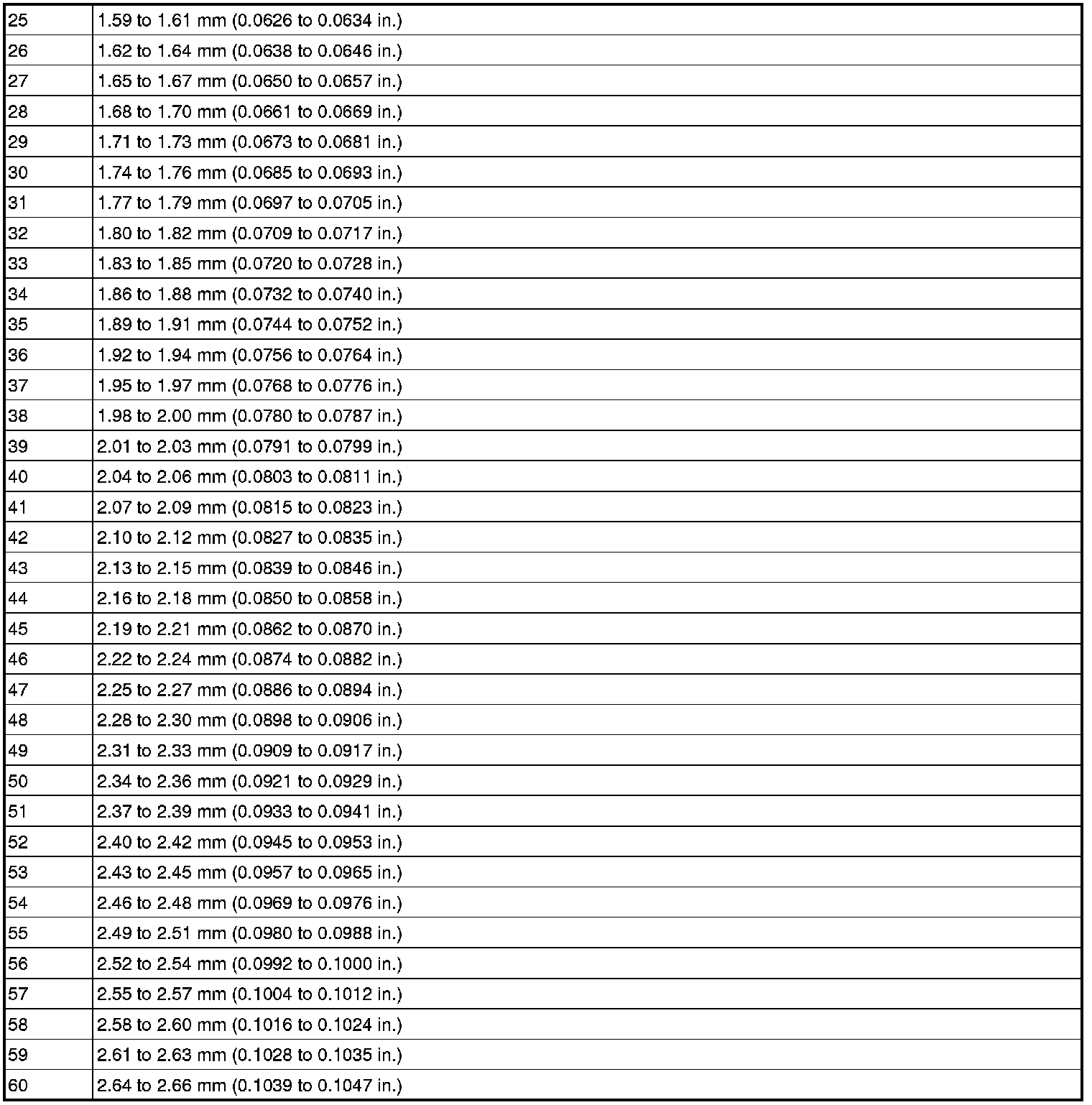

Differential / Rear differential side gear shaft plate washer thickness

Differential / Rear differential drive pinion plate washer thickness
