Torque Specifications

SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

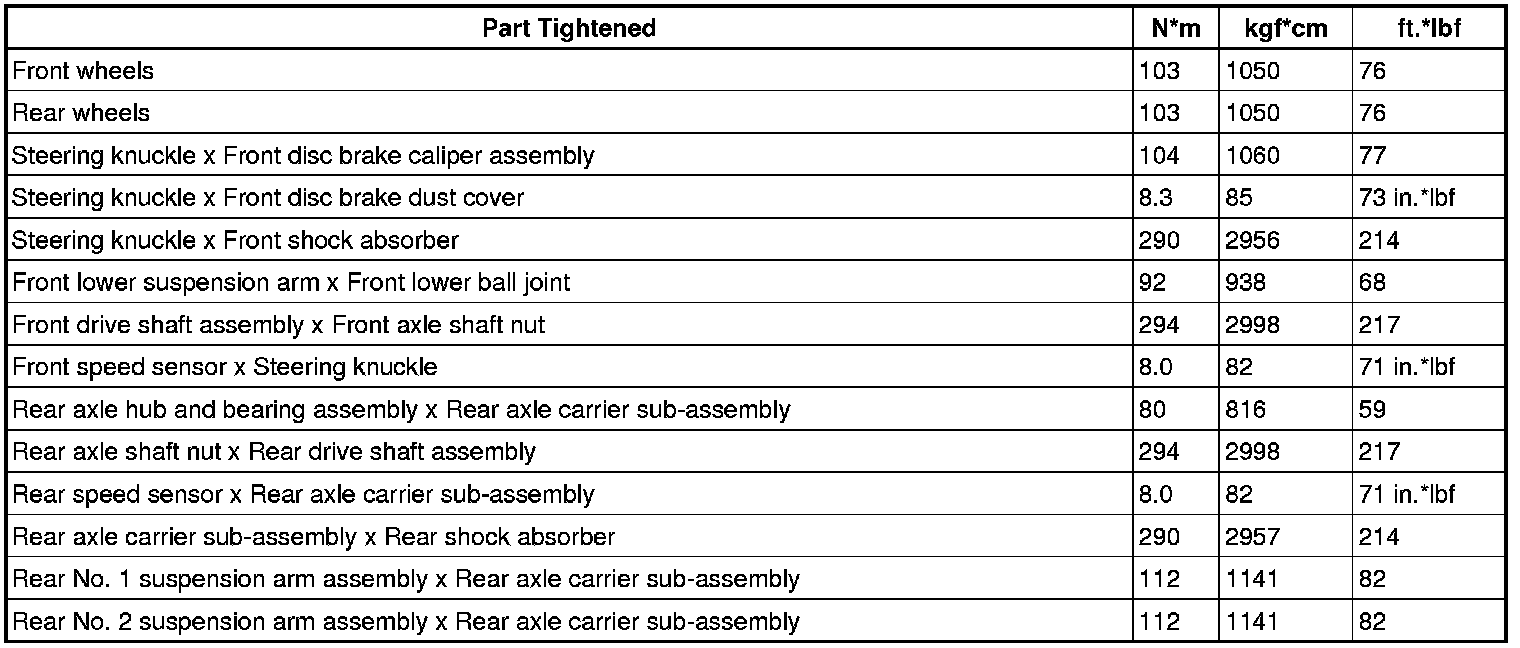

AXLE

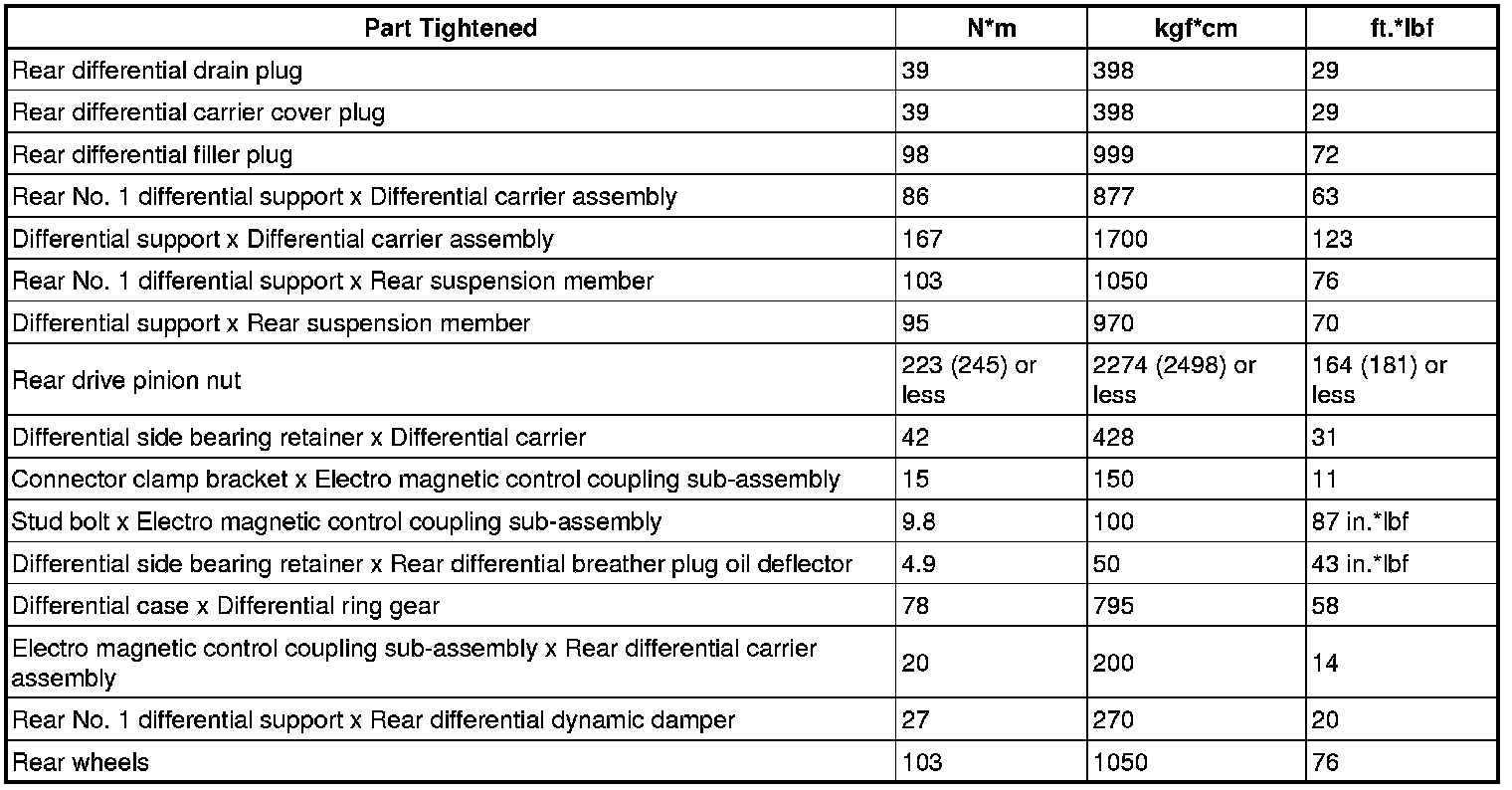

DIFFERENTIAL

( ): For use without SST
