Torque Specifications

SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Front Drive Shaft

Rear Drive Shaft

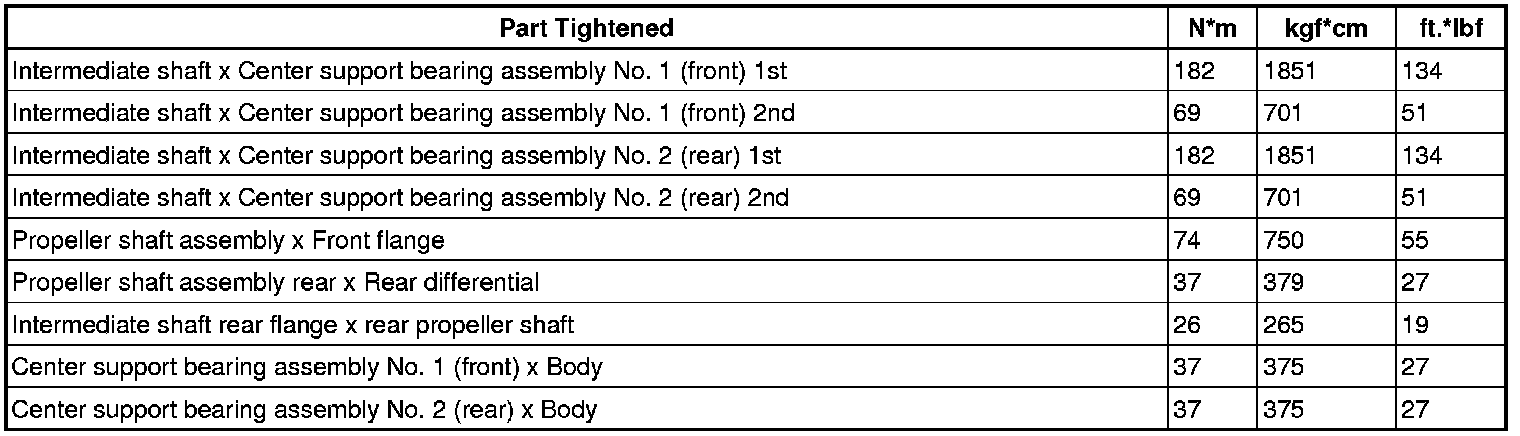

Propeller Shaft
