Intake Manifold

INTAKE MANIFOLD





Install and tighten the 6 bolts and 4 nuts uniformly in several steps.

Torque 21 Nm (214 kgf-cm, 15ft-lbf)

THROTTLE BODY

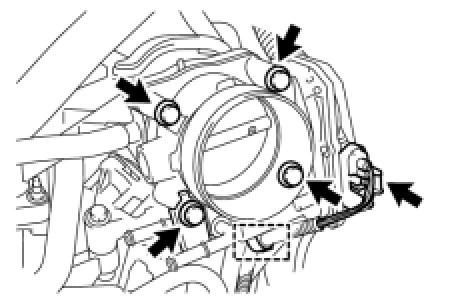

Install the throttle body and wire harness clamp stay to the intake air surge tank assembly with the 4 bolts.

Torque 10 Nm (102 kgf-cm, 7ft-lbf)
