Pinout Values and Diagnostic Parameters








POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: TERMINALS OF ECU

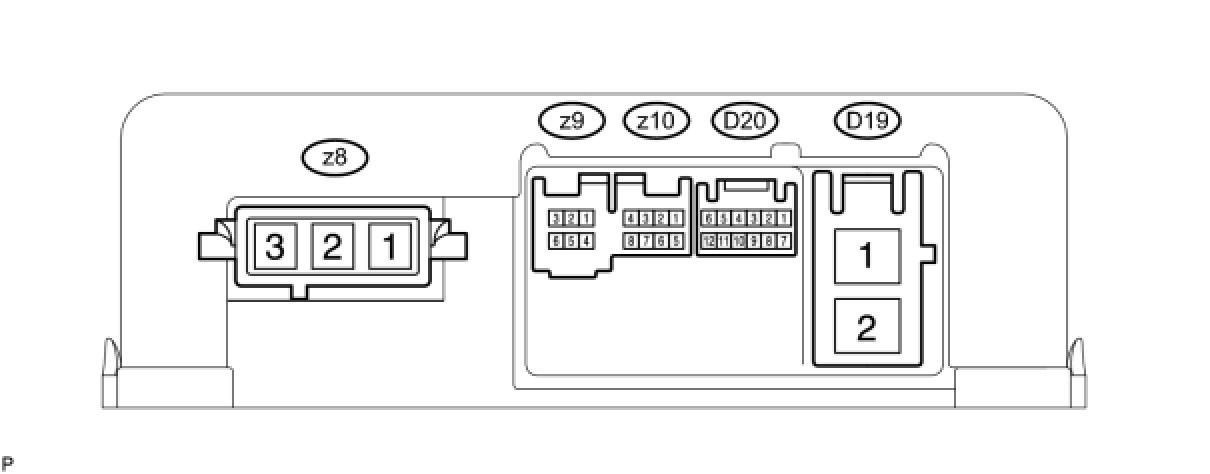

TERMINALS OF ECU

1. CHECK POWER STEERING ECU




HINT: As connector z8 uses a lock lever, each terminal cannot be checked while the connector is still connected to the power steering ECU.

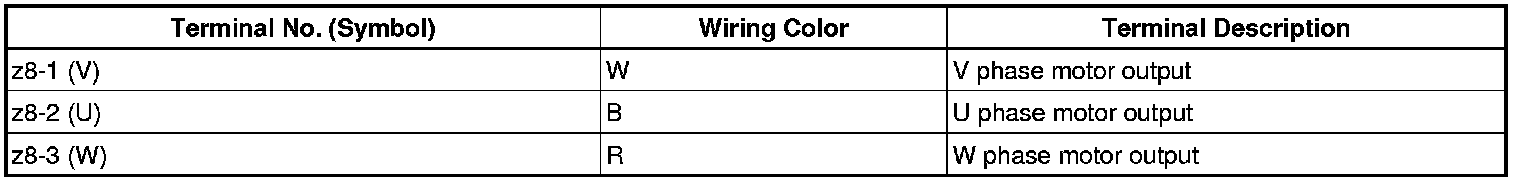

(a) Measure the voltage and resistance according to the value(s) in the table below.
NOTICE: When the P/S warning light is illuminated during a malfunction, the fail-safe function may cause the voltage of the power steering ECU terminals to become 0 V.





If the result is not as specified, the ECU may have a malfunction.
