Part 2

INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION

INITIALIZATION (Continued)

19. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES (Engine Immobiliser System (w/ Smart Key System))

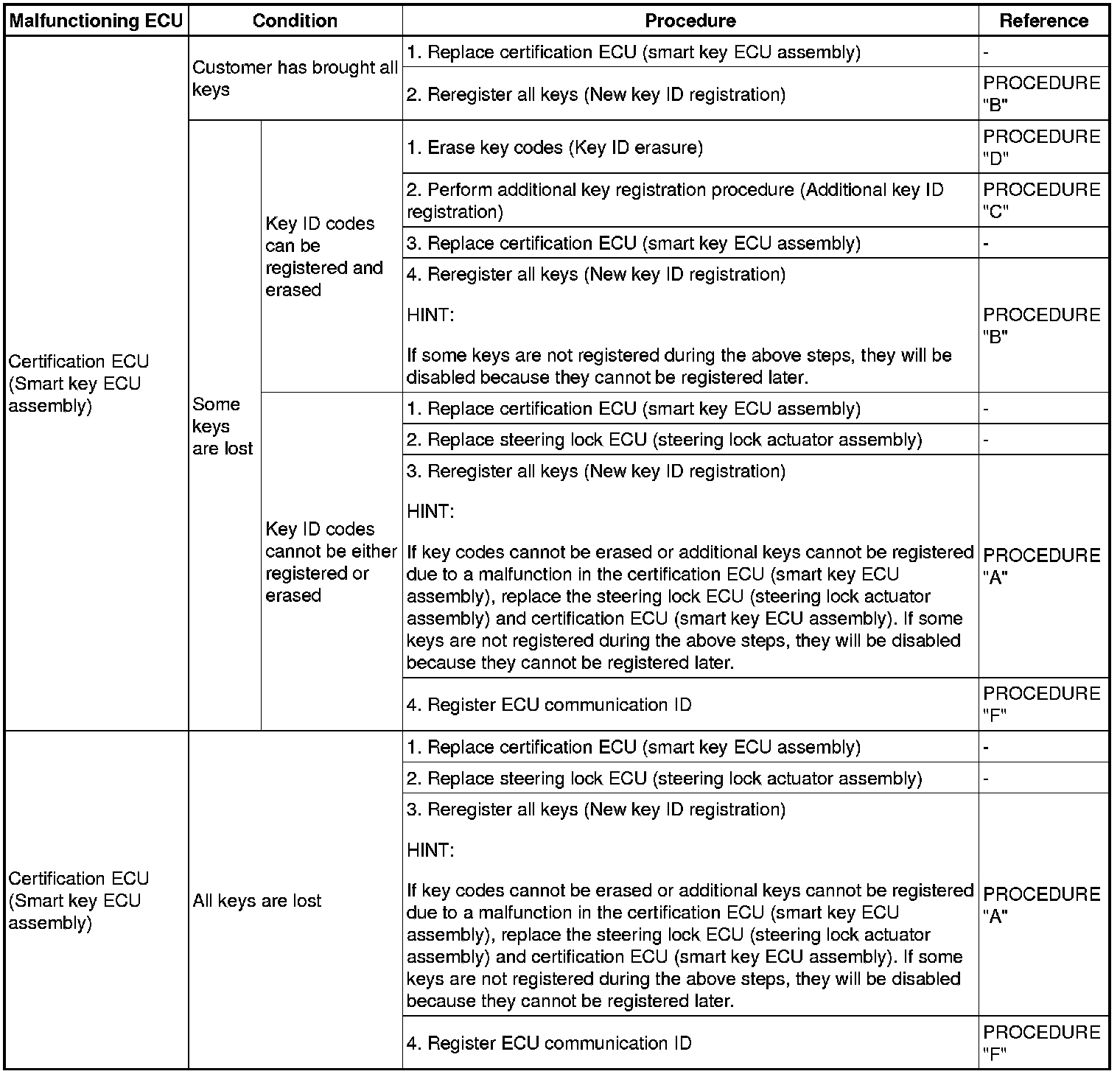

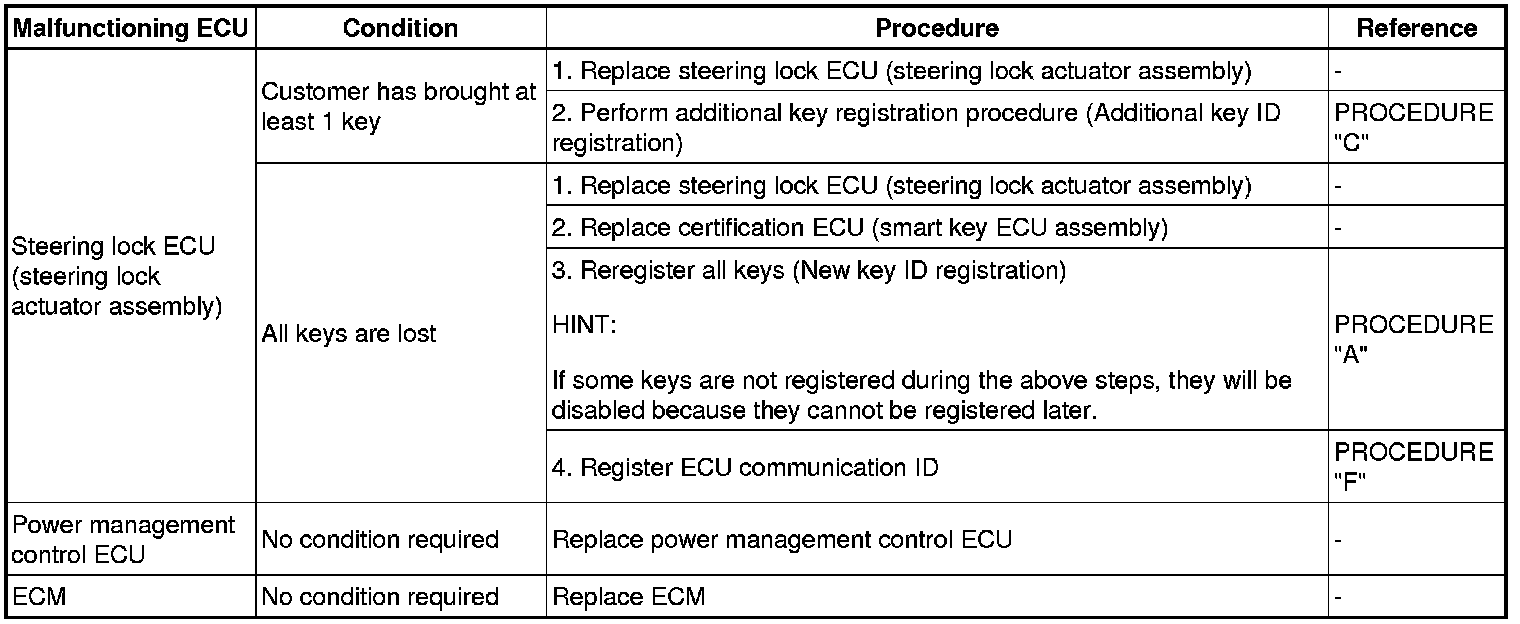

(a) The following table shows ECU replacement and key registration procedures for cases in which a malfunctioning ECU has been identified through the troubleshooting of the smart key system.
HINT:
- The following procedures can be performed:
- New key ID registration
- Additional key ID registration
- Key ID erasure
- All key ID erasure
- If the customer has not brought all the registered keys, replacement of the steering lock ECU (steering lock actuator assembly) is also required.
- A maximum of 7 keys can be registered.

20. KEY REGISTRATION (Engine Immobiliser System (w/ Smart Key System))

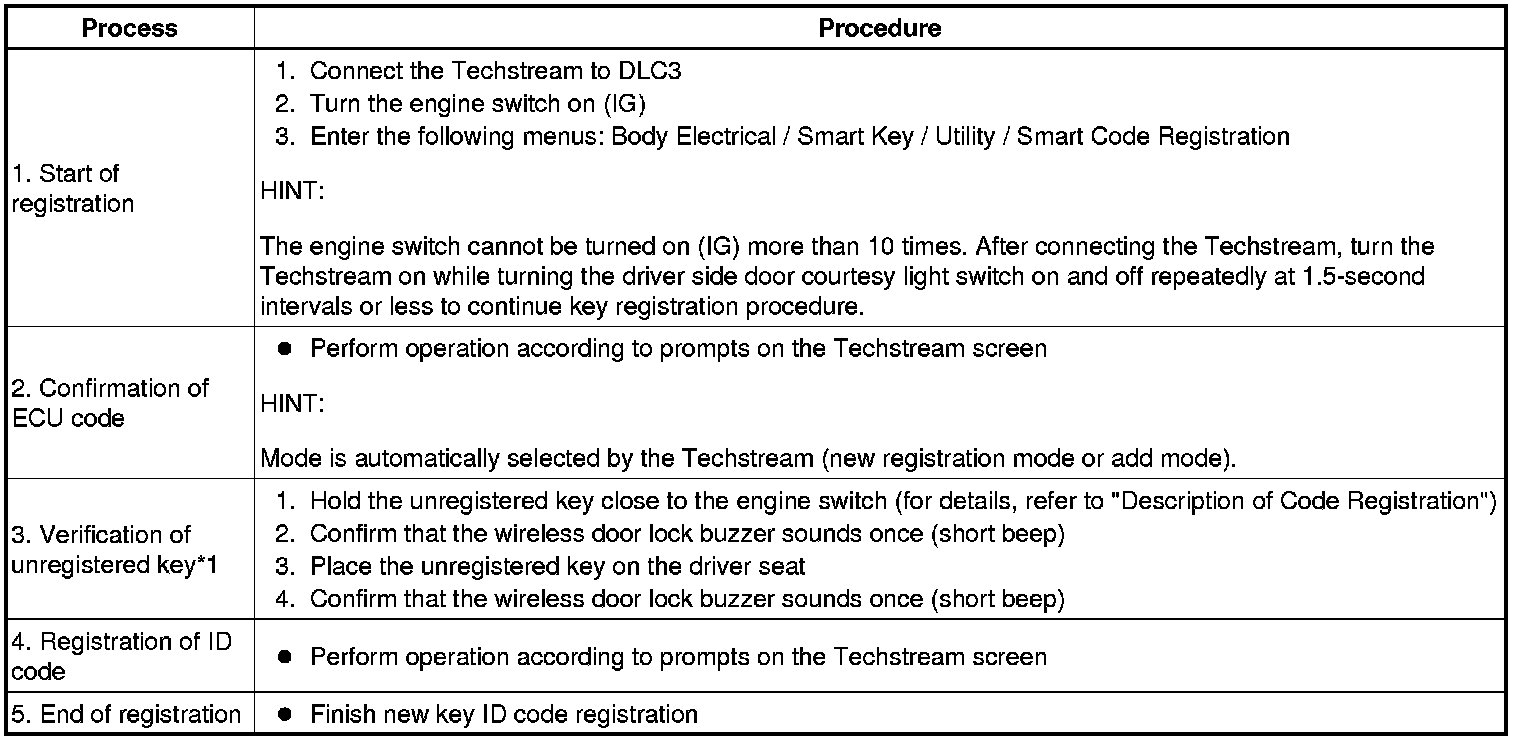

(a) PROCEDURE "A"
New key ID registration (when replacing the certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator assembly))

- *1: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedures again from process 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

(b) PROCEDURE "B"
New key ID registration (when replacing the certification ECU (smart key ECU assembly))

- *1: Repeat this process for each key registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedures again from process 1. If the key confirmation procedure for a key is performed, the security indicator light comes on and remains on until all the keys are confirmed.
- *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys is not finished within the specified time, perform the registration procedures again from 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

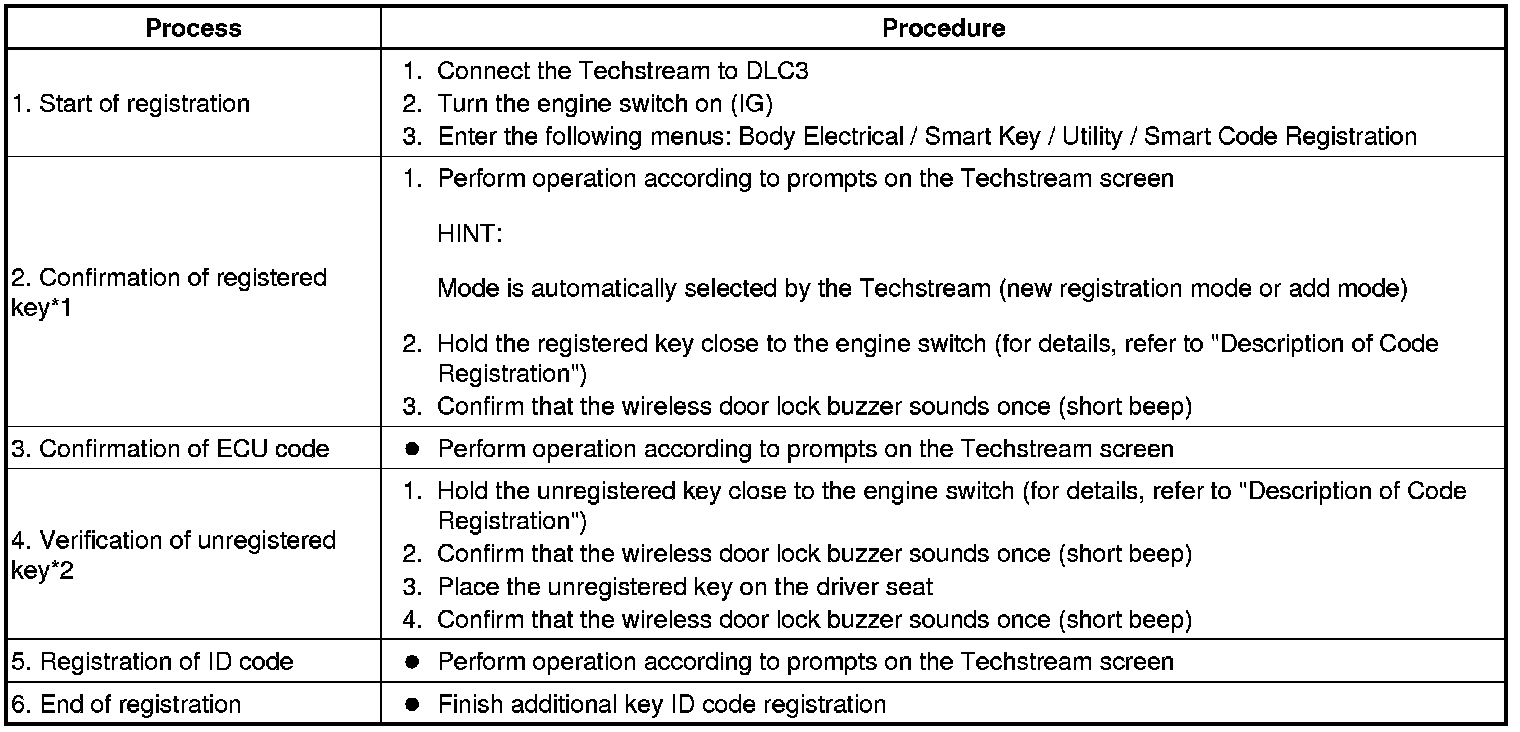

(c) PROCEDURE "C"
Additional key ID registration

- *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the registration procedures again from process 1.
- *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys is not finished within the specified time, perform the registration procedures again from 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.

(d) PROCEDURE "D"
Key ID erasure
HINT: Procedure "D" erases all registered key codes except one.

- *1: Perform this process for one of the keys registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the erasure procedures again from process 1.

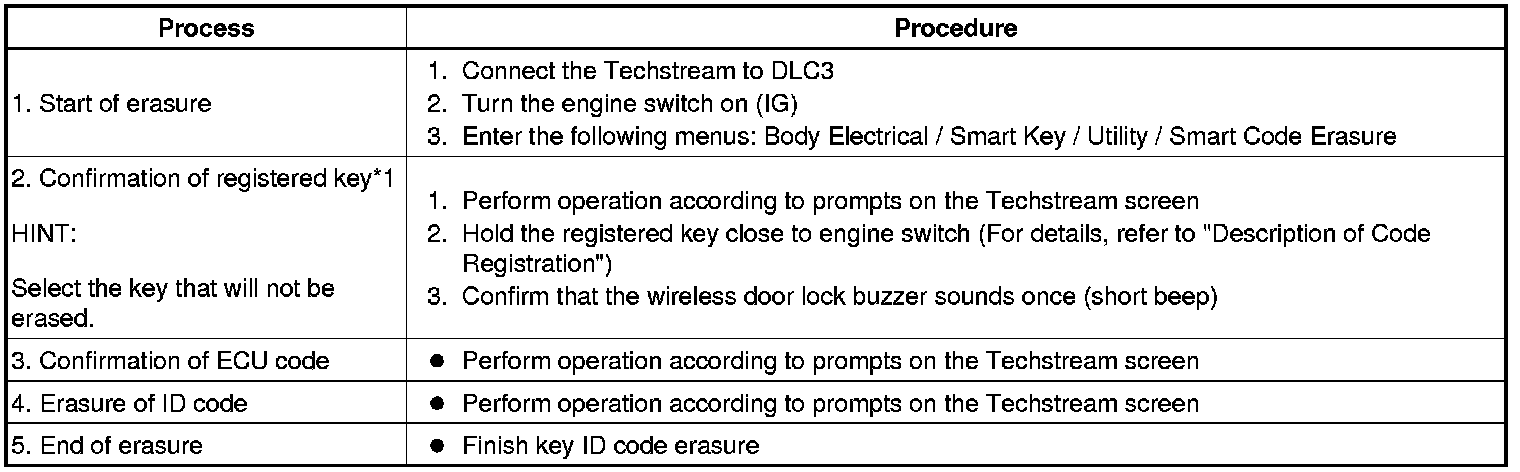

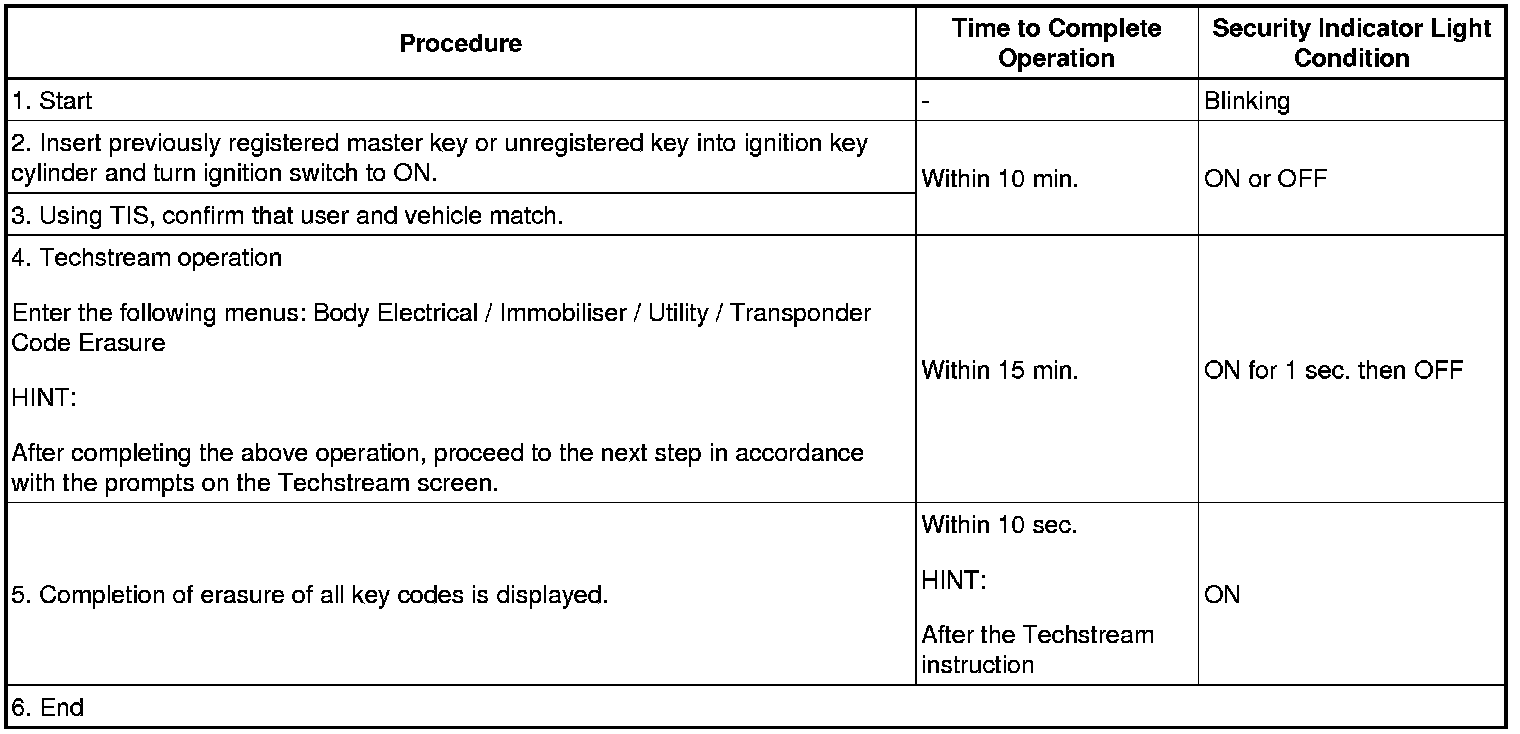

(e) PROCEDURE "E"
All key ID erasure
HINT: Procedure "E" erases all the key codes registered in the vehicle.

(f) PROCEDURE "F"
ECU communication ID registration
NOTICE:
- The ECU communication ID should be registered when the certification ECU (smart key ECU assembly) is replaced in order to match these ECU communication IDs.
- The engine cannot be started unless the ECU communication IDs match.
- After the registration, pressing the engine switch may not start the engine on the first try. If so, press the engine switch again.
- Clear DTC B2799 (code for ECM immobiliser communication error) by either of the following:

- Use the Techstream.
- Disconnect the cable from the negative (-) battery terminal for 30 seconds.

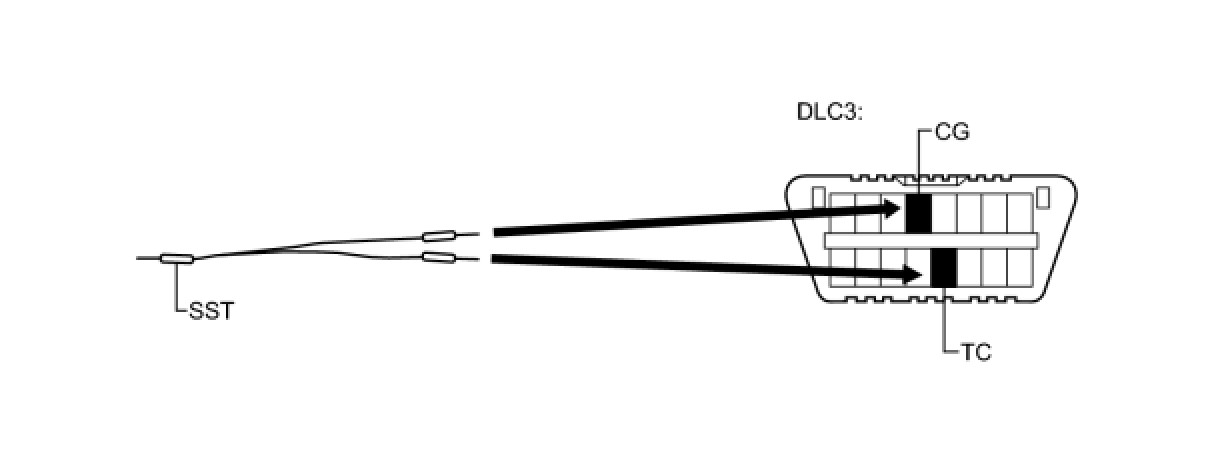

(1) Using SST, connect terminals TC and CG of the DLC3.
SST: 09843-18040

(2) Turn the engine switch on (IG) and leave it as is for 30 minutes.
HINT: Do not start the engine.
(3) Turn the engine switch off and disconnect terminals TC and CG.
(4) Check that the engine starts and stays running for more than 3 seconds.
21. DESCRIPTION OF CODE REGISTRATION (Engine Immobiliser System (w/o Smart Key System))
HINT: The key has 2 codes: the key code (immobiliser code) and the wireless code. Both of these codes need to be registered. For the wireless code registration procedures, refer to Wireless Door Lock Control System Registration.

(a) When adding master keys or sub keys (Additional registration):
(1) Register the key code (immobiliser code) in the transponder key ECU assembly.

(b) When replacing the transponder key ECU assembly (New registration):
(1) Register the key code (immobiliser code) in the new transponder key ECU assembly.

(2) Register the ECU communication ID between the new transponder key ECU assembly and the ECM.

(c) When replacing the ECM:
(1) Register the ECU communication ID between the transponder key ECU assembly and the new ECM.

(d) When replacing the transponder key ECU assembly and the ECM:
(1) Register the key codes (immobiliser codes) in the new transponder key ECU assembly.

(2) Register the ECU communication ID between the new transponder key ECU assembly and the new ECM.

(e) When erasing key codes:
(1) Erasing all of the key codes except the master key.

(2) Erasing all of the key codes.

22. KEY REGISTRATION (Engine Immobiliser System (w/o Smart Key System))

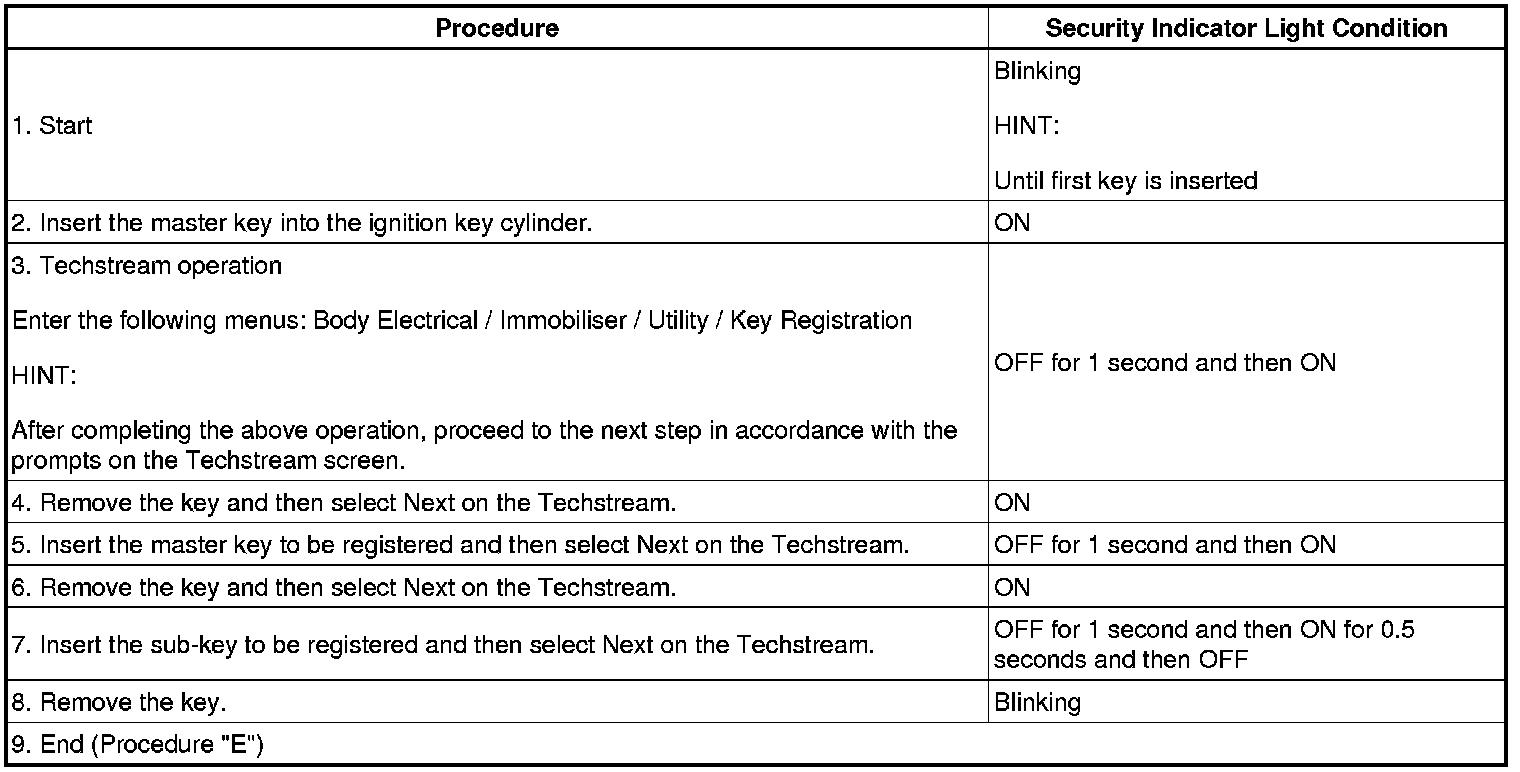

(a) New key code registration (Procedure "A"):
NOTICE: Make sure that no key codes are registered in the transponder key ECU assembly.
HINT:
- In this mode, a maximum of 3 key codes for 2 master keys and 1 sub-key can be registered. The master keys and sub-key can be registered in any order because the transponder key ECU assembly can distinguish between different types of keys.
- New key codes must be registered with the battery connected. The ignition switch can be either ON or off.
- When a new transponder key ECU assembly is installed, key codes must be registered in the transponder key ECU assembly.

Automatic Key Code Registration (New Registration)

HINT:
- When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.

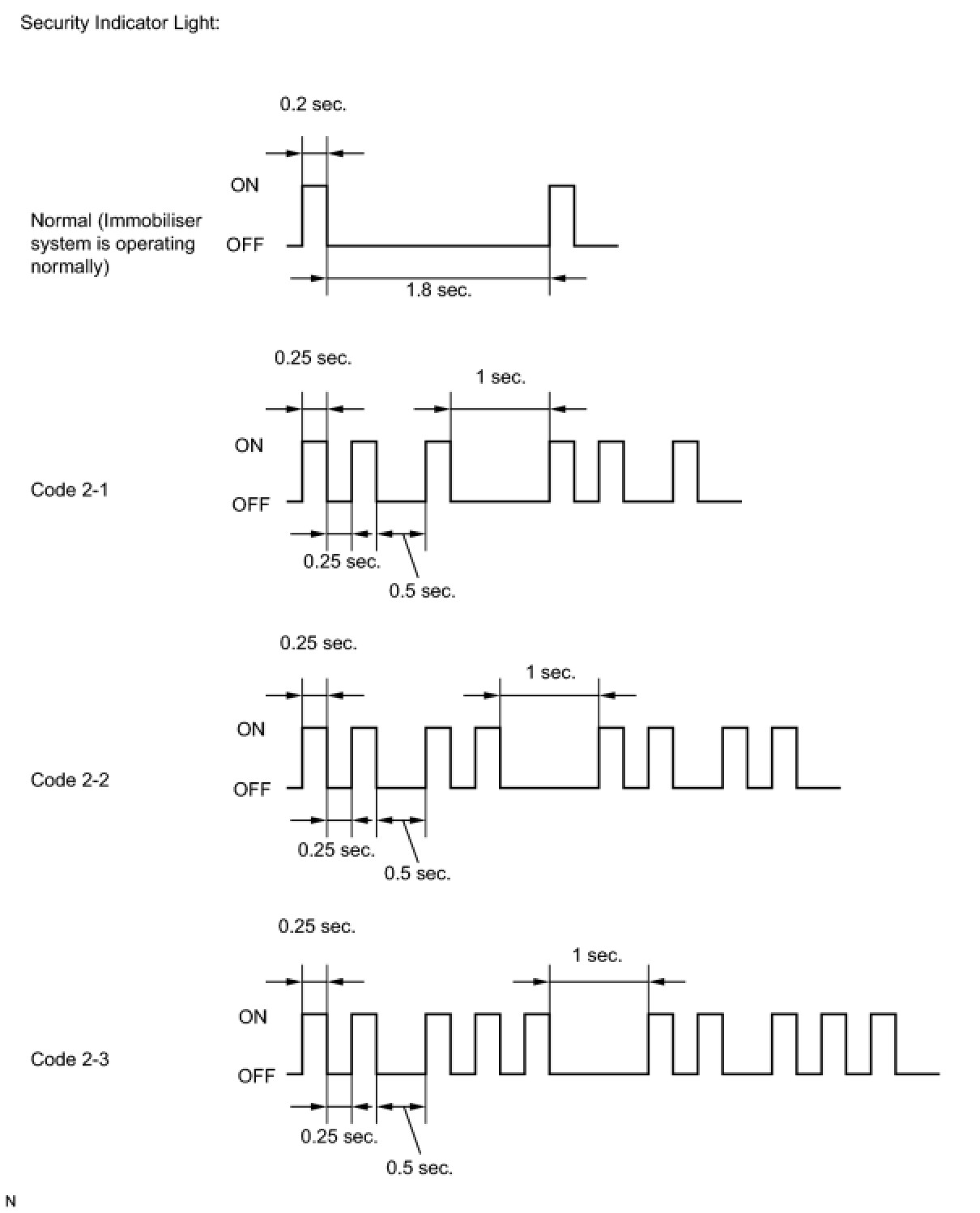

- If the new key code registration fails, code 2-1 will be output through the security indicator light. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the maximum limit, code 2-3 will be output through the security indicator light. The output details are shown below.

(b) Finish the automatic key code registration mode. The automatic key code registration mode can be forced to end when at least 1 key code (immobiliser code) for the master key has been registered.
HINT: Follow the instruction on the Techstream screen to end new key code registration mode.

23. REGISTRATION OF ADDITIONAL KEY (Engine Immobiliser System (w/o Smart Key System))
(a) Additional registration (Procedure "B"):
HINT:
- A maximum of 5 key codes and 3 sub-key codes can be registered.
- Registration mode will end if any step is not completed within the specified time.
- When the ignition cylinder or the key cylinder set is replaced, remove the transmitter module from the original master key. Then install this transmitter module to a new key and use the new key as the master key. If necessary, use this master key to register other keys.
NOTICE: When the ignition key cylinder has been replaced, locking and unlocking doors are possible with the new master key's transmitter module (removed from the original master key). However, the new master key will not be able to lock and unlock doors through the door key cylinder. Keep the original master key. If the battery in the new master key's transmitter module fails, the original master key can be used to lock and unlock doors through the door key cylinder.

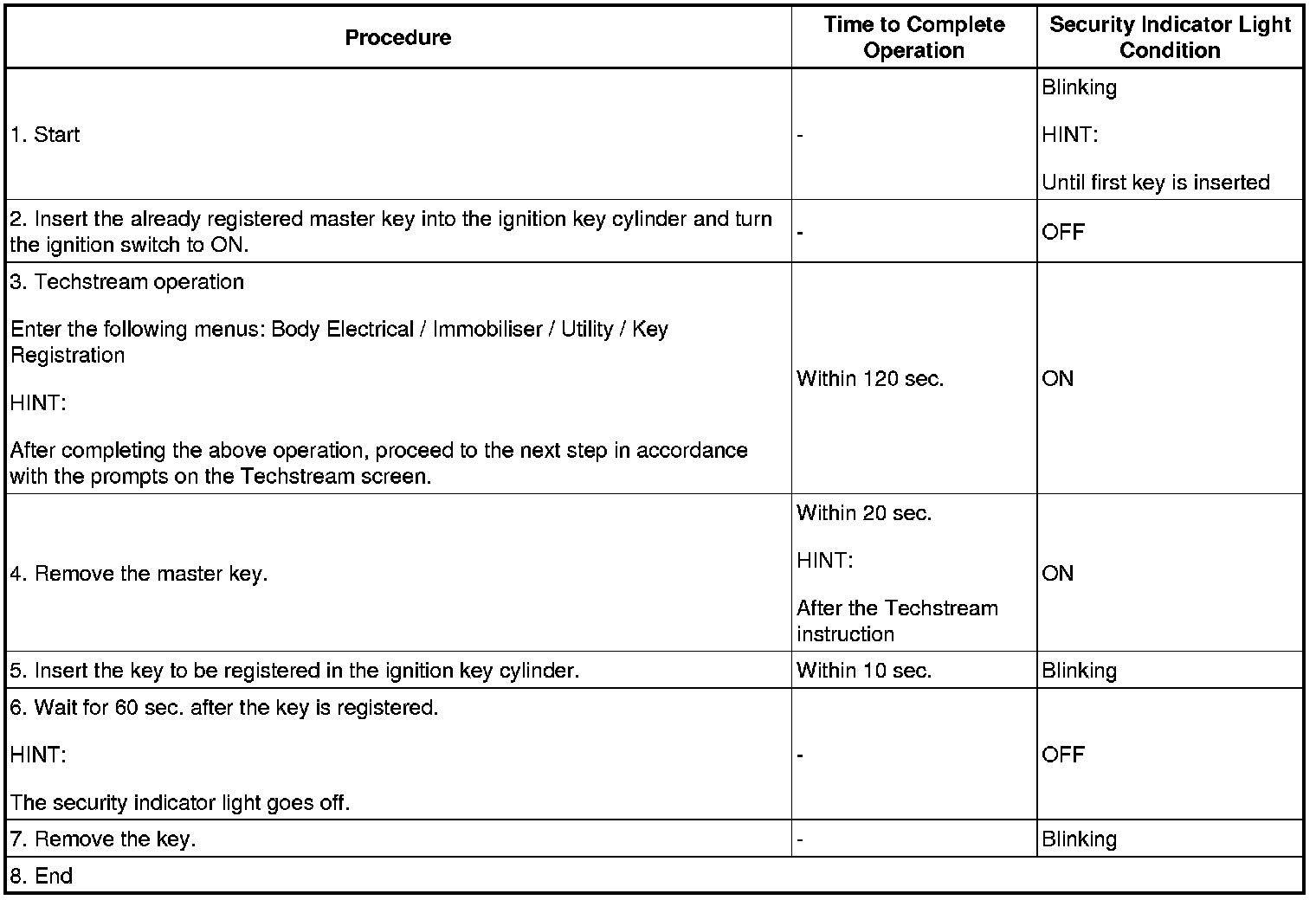

Additional Registration

HINT:
- A brief outline of a key code registration procedure is shown above. For detailed information, refer to the Techstream screen.
- When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.
- If the key code registration has failed in automatic key code registration mode, code 2-1 will be output through the security indicator light. Trying to re-register an already registered key will cause code 2-2 to be output when the key is inserted. If the number of registered key codes exceeds the maximum limit, code 2-3 will be output through the security indicator light. The details are shown in procedure "A".

24. ERASURE OF KEY CODE (Engine Immobiliser System (w/o Smart Key System))

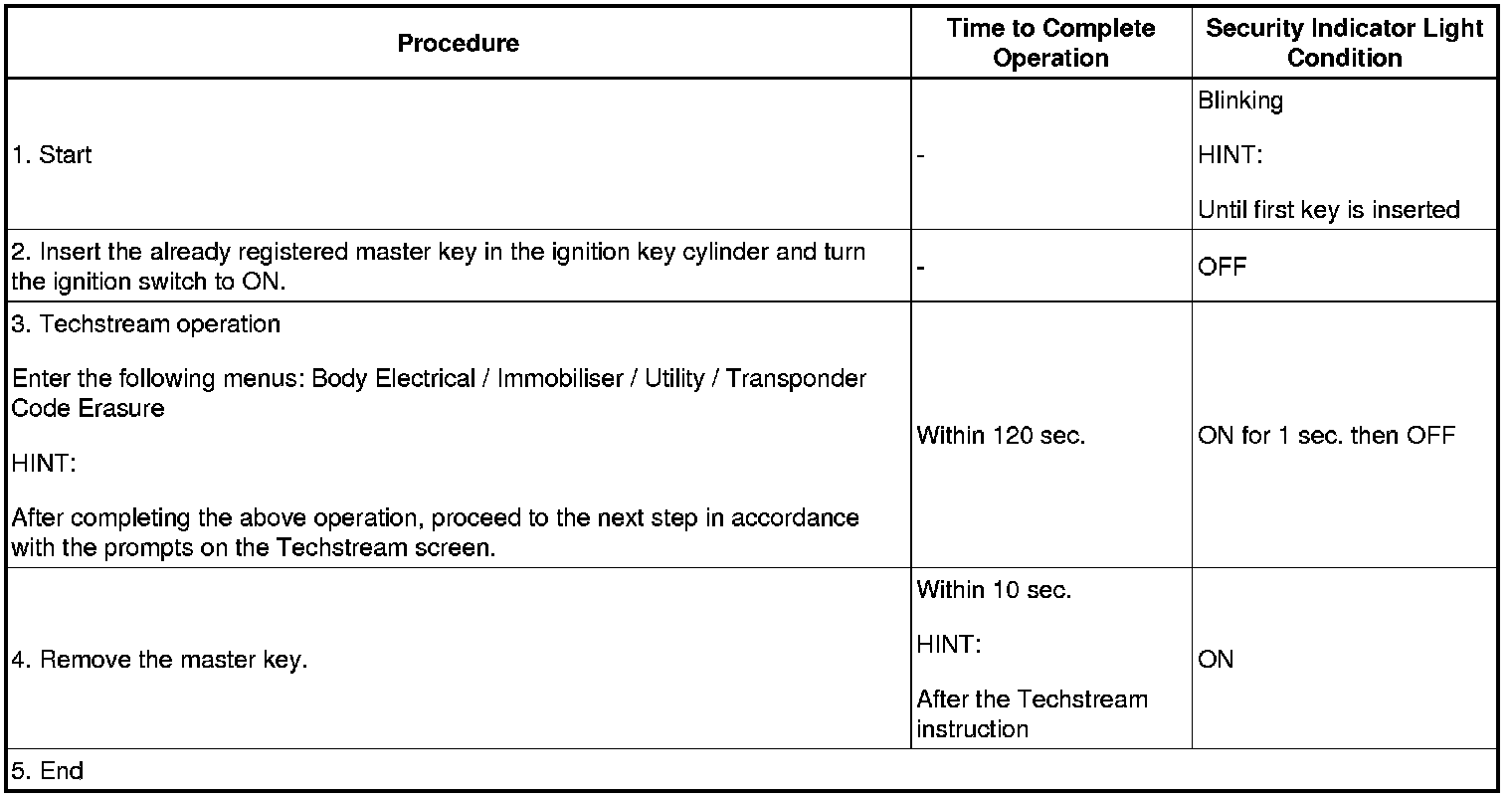

(a) Key code erasure (Procedure "C"):
HINT:
- Performing this procedure will erase all key codes except for the master key, which is used for erasing the key codes. In order to use a key whose code has been erased, a new key code must be registered.
- This procedure will be canceled if each step is not completed within the specified time.

Key Code Erasure

HINT:
- A brief outline of a key code registration procedure is shown above. For detailed information, refer to the Techstream screen.
- When the engine immobiliser system is operating normally and the key is pulled out, the security indicator light blinks continuously.

25. ECU COMMUNICATION ID REGISTRATION (Engine Immobiliser System (w/o Smart Key System))
(a) ECU communication ID registration (Procedure "E"):
NOTICE:
- When the transponder key ECU assembly is replaced, the ECU communication ID of the ECM must be registered into the transponder key ECU assembly to match their ECU communication IDs.
- The engine cannot be started unless the ECU communication IDs match.
- Do not turn the ignition switch from ON to off 20 times or more before registering the ECU communication ID. Turning the ignition switch from ON to off 20 times or more will result in the engine not starting unless the transponder key ECU assembly is replaced with a new one.
- After the registration, turning the ignition switch to START may not start the engine on the first try. If so, turn the ignition switch to START again.
- After the engine is started, clear DTC B2799 (code for ECM immobiliser communication error) by either of the following:

- Using the Techstream
- Disconnecting the battery for 30 seconds
(1) Using SST, connect terminals TC and CG of the DLC3.
SST: 09843-18040

(2) Turn the ignition switch to ON and leave the vehicle as is for 30 minutes.
HINT: Do not start the engine.
(3) Check that the engine starts.

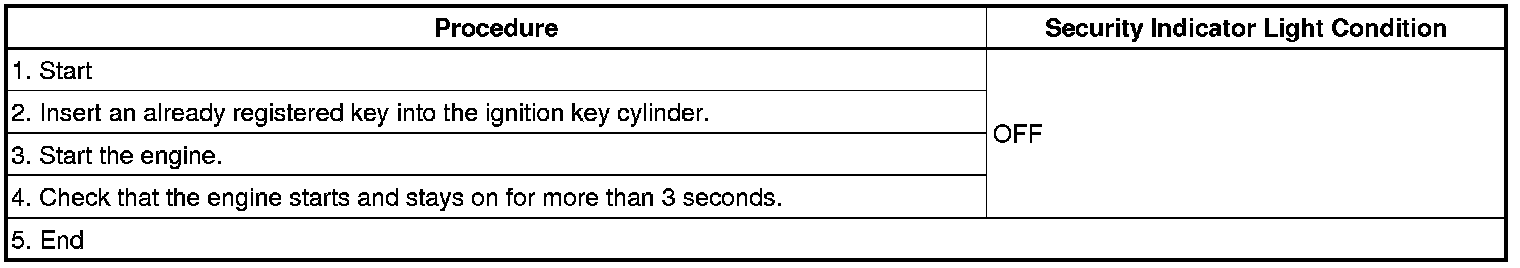

(b) ECU communication ID registration (Procedure "F"):
NOTICE: The ECU communication ID should be registered when the ECM and transponder key ECU assembly are replaced or when the ECM only is replaced in order to match the ECU communication ID.

ECU Communication ID Registration
