Differential Case

U660F AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL CASE: INSPECTION

INSPECTION

1. INSPECT DIFFERENTIAL SIDE GEAR BACKLASH





(a) Hold the differential case in a vise between aluminum plates.
NOTICE: Do not overtighten the vise.

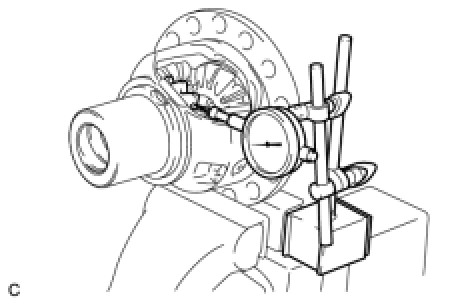

(b) Place a dial indicator at a right angle to one of the side gear teeth.
(c) Hold the pinion gear in the differential case and measure the backlash of the side gear.
Standard backlash:
0.05 to 0.15 mm (0.00196 to 0.00591 in.)

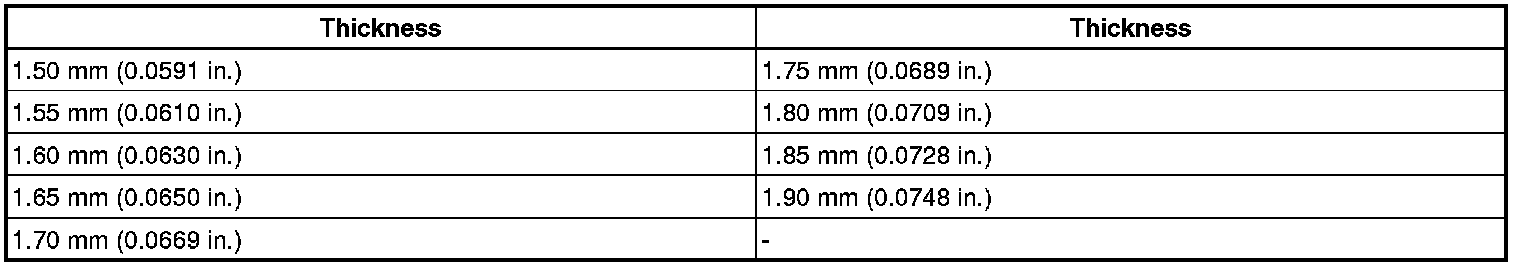

Thrust Washer Thickness





If the backlash is not within the standard range, select another side gear thrust washer.
