Windshield Deicer System

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM

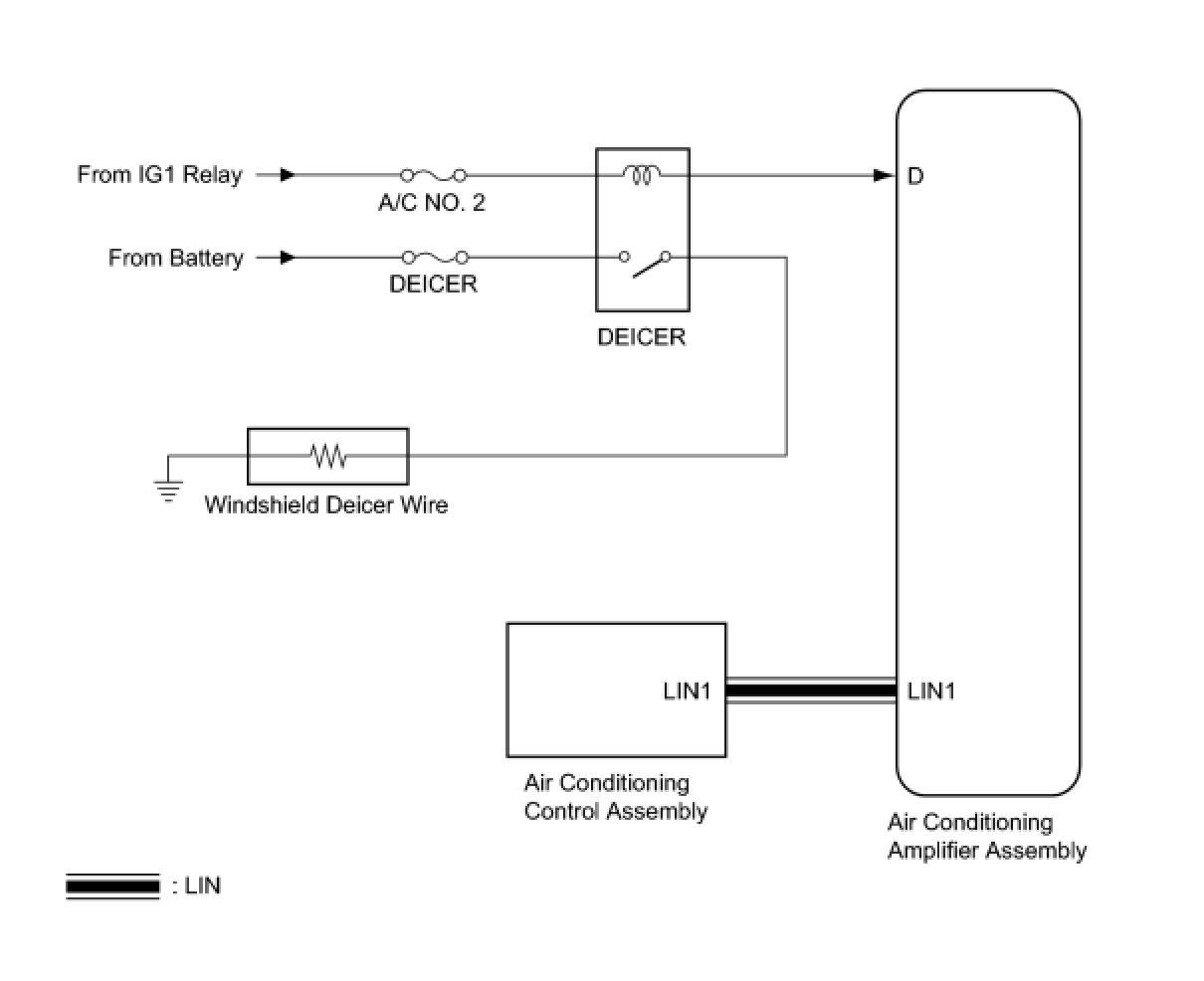

SYSTEM DIAGRAM

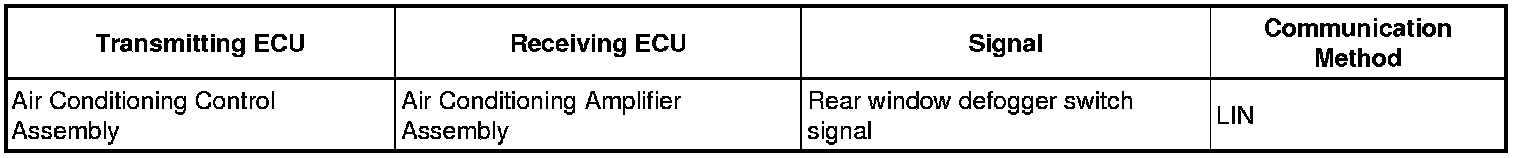

Communication Table





WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL
The windshield deicer system's thin heater wires are attached to the inside of the front window and deice the window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.
HINT:
- The windshield deicer is linked with the window defogger and mirror heater.

2. FUNCTION OF MAIN COMPONENT
