Antitheft and Alarm Systems: Adjustments
THEFT DETERRENT /
KEYLESS ENTRY
: THEFT DETERRENT SYSTEM: ADJUSTMENT
1.
ADJUST SENSITIVITY
(a)
Adjust the sensitivity volume.
(1)

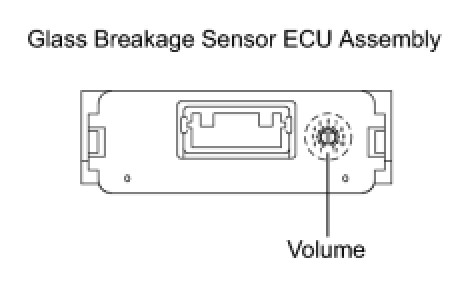

Turn the knob on the glass breakage sensor ECU assembly to adjust the volume.
