Pinout Values and Diagnostic Parameters

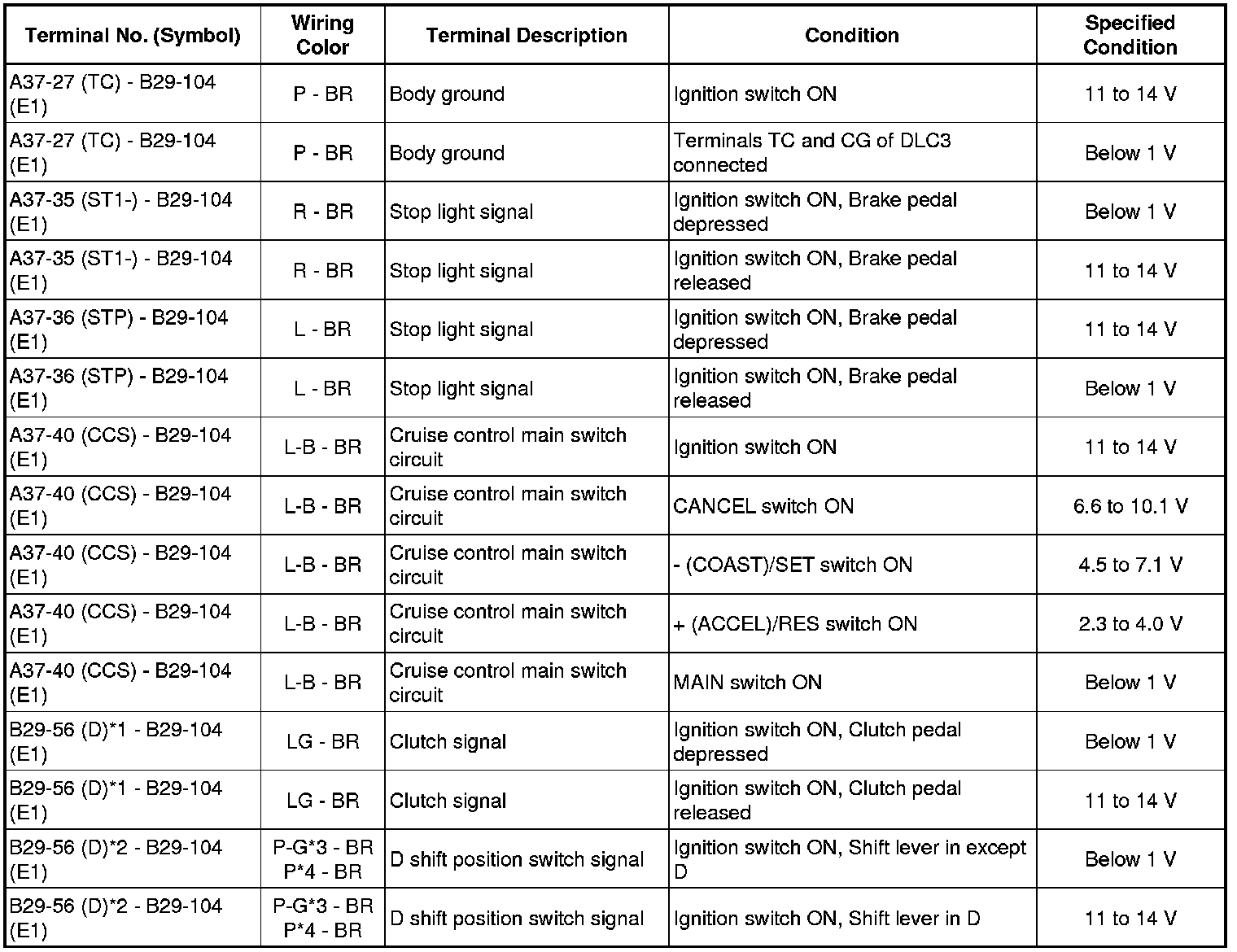

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

1. CHECK ECM









* *1: for M/T

* *2: for A/T

* *3: for 2AZ-FE (2WD)

* *4: for 2ZR-FE, 2AZ-FE (4WD)
