Wire and Wire in Instrument Panel
Wire and Wire in Instrument Panel
AE1-OE1 Positions:

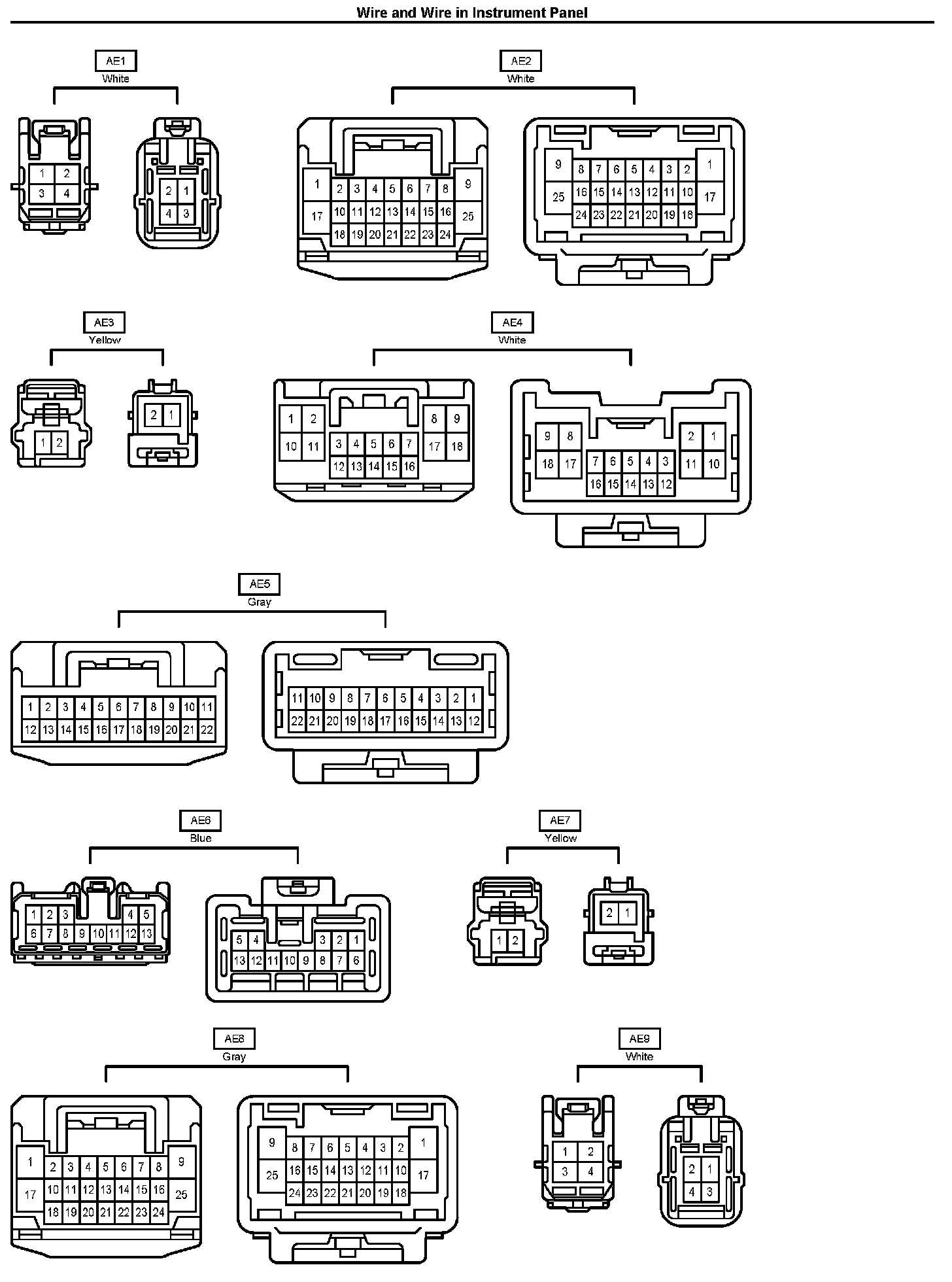

AE1-AE9 Connector Views:

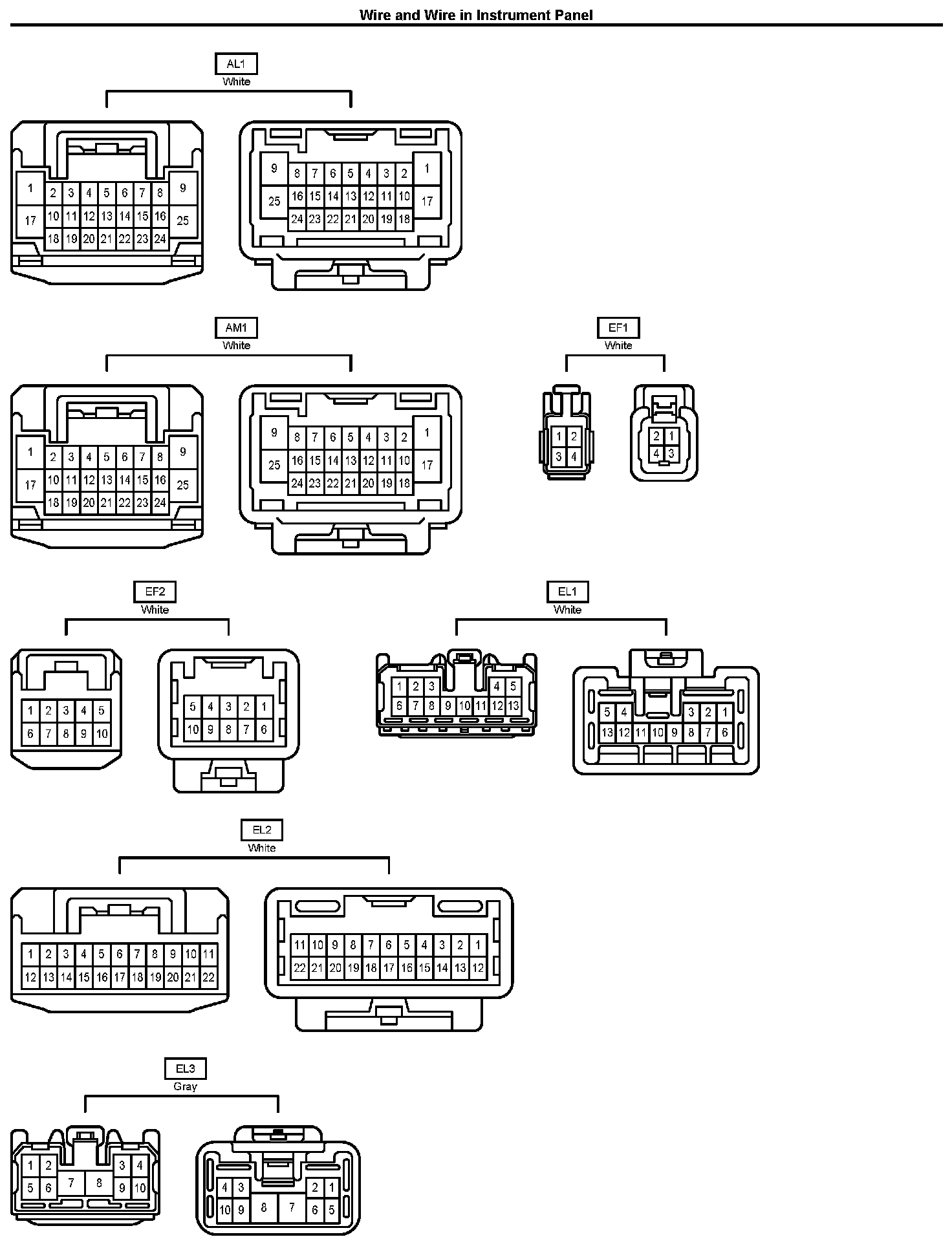

AL1-EL3 Connector Views:

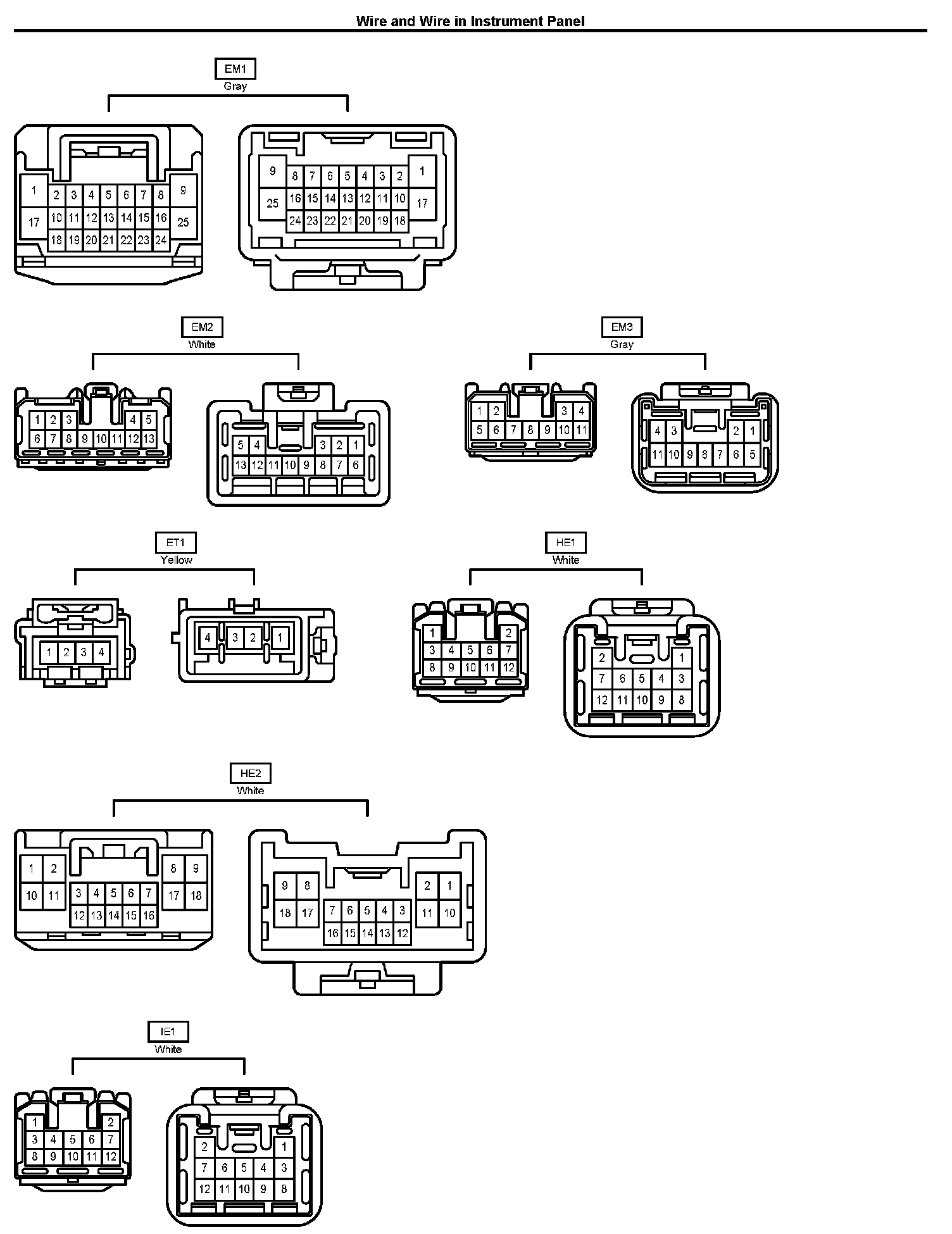

EM1-IE1 Connector Views:
IE2-OE1 Connector Views:
