Housing Assembly HVAC: Testing and Inspection

HEATING / AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

1. INSPECT PTC HEATER

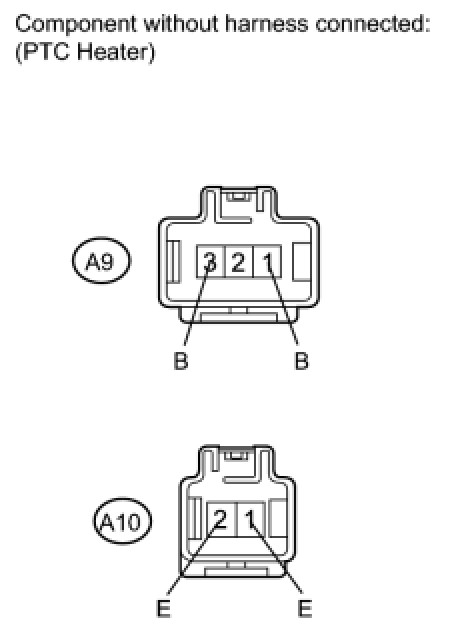

(a) Disconnect the connector from the PTC heater.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) If the resistance is not as specified, replace the PTC heater.
