Heating and Air Conditioning: Locations

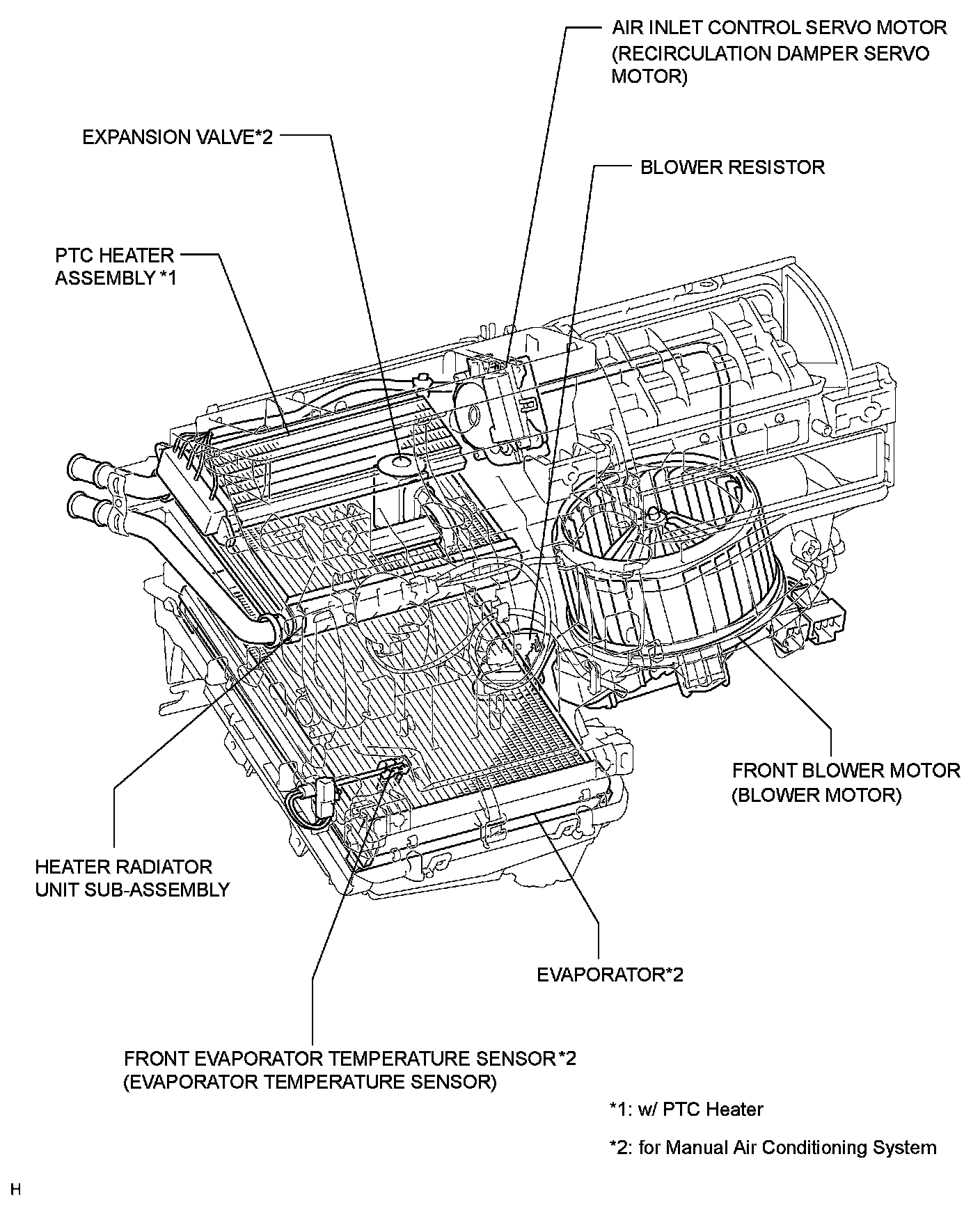

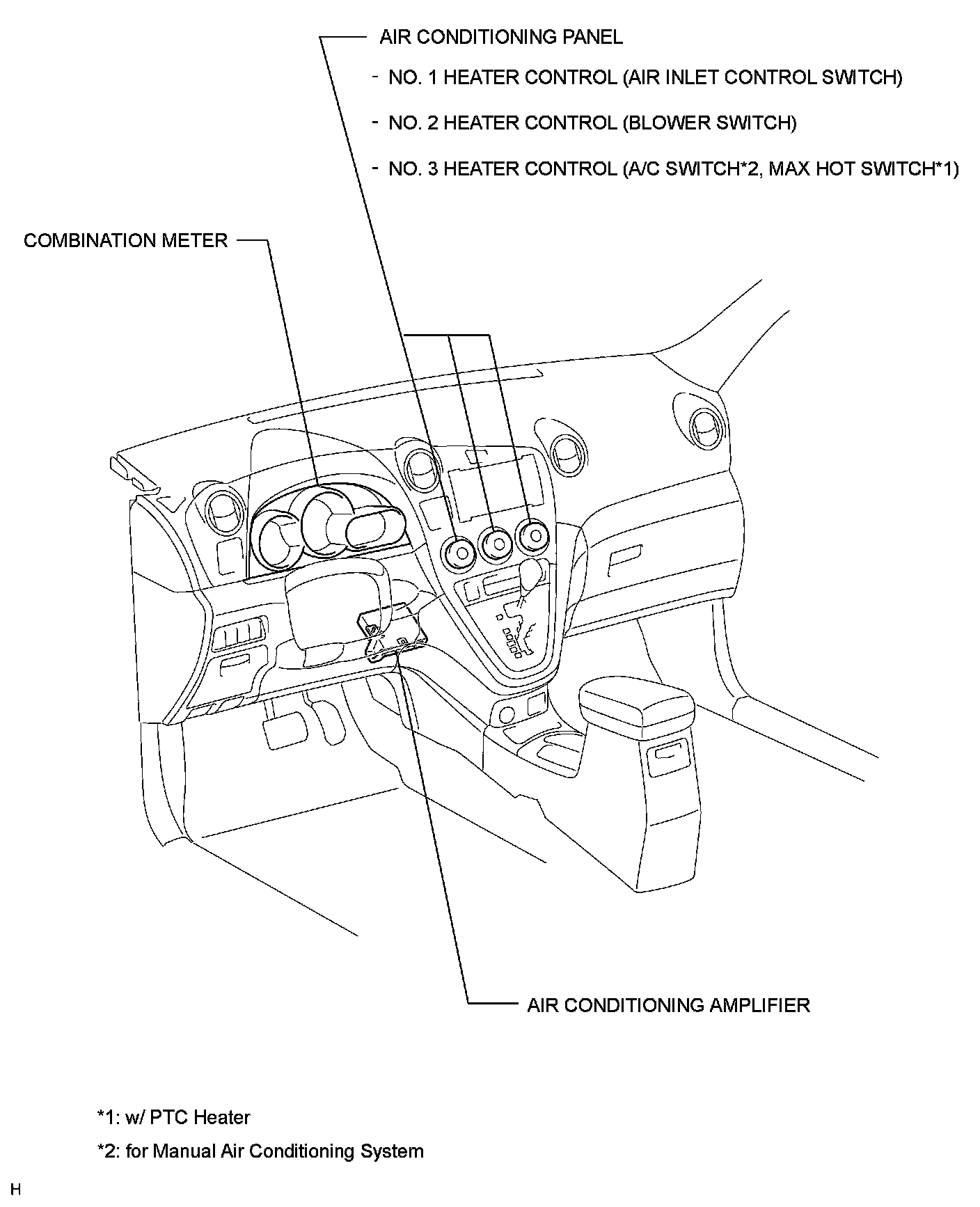

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): PARTS LOCATION
