Pinout Values and Diagnostic Parameters

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): TERMINALS OF ECU

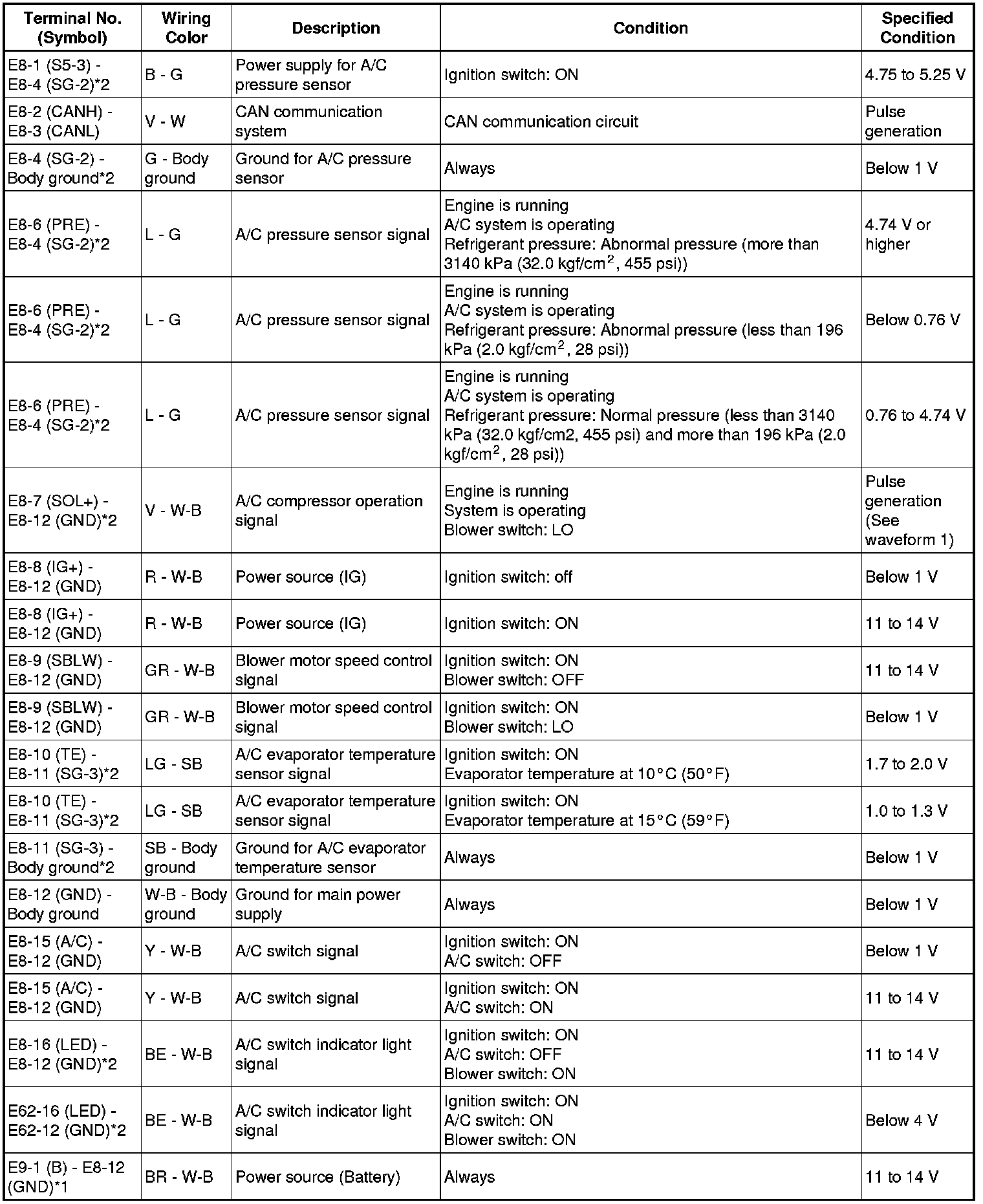

1. A/C AMPLIFIER





HINT
Check from the rear of the connector while it is connected to the A/C amplifier.

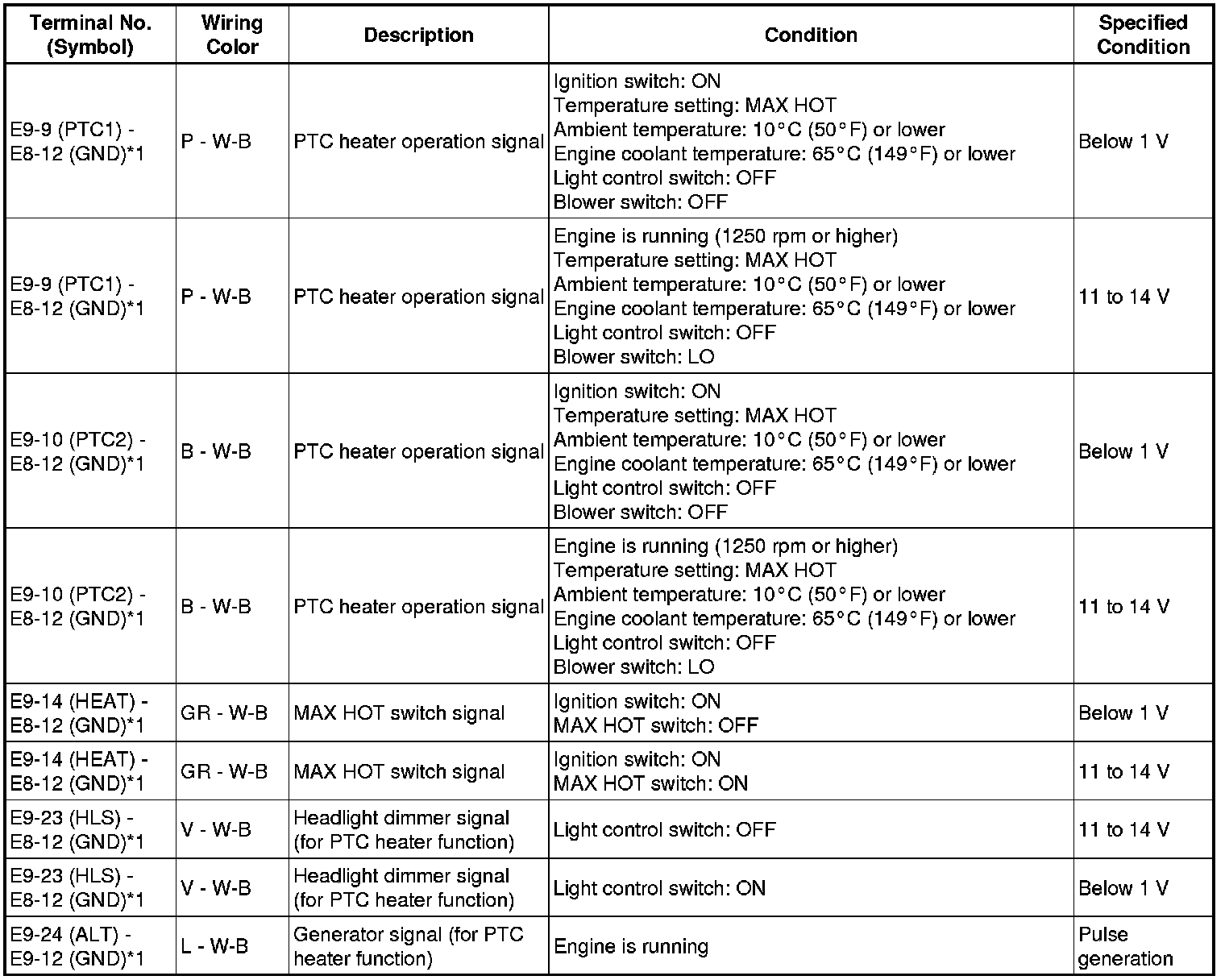

* *1: w/ PTC heater

* *2: w/ Manual System

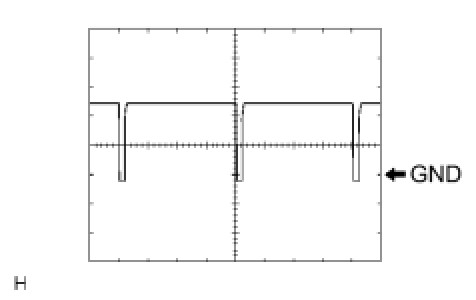

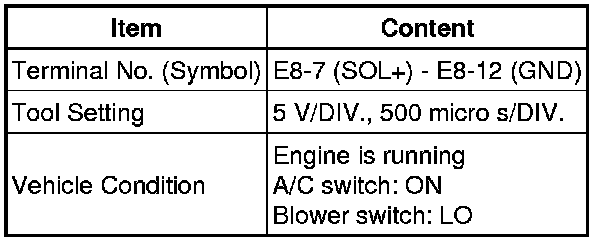

(a) Waveform 1:
