Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

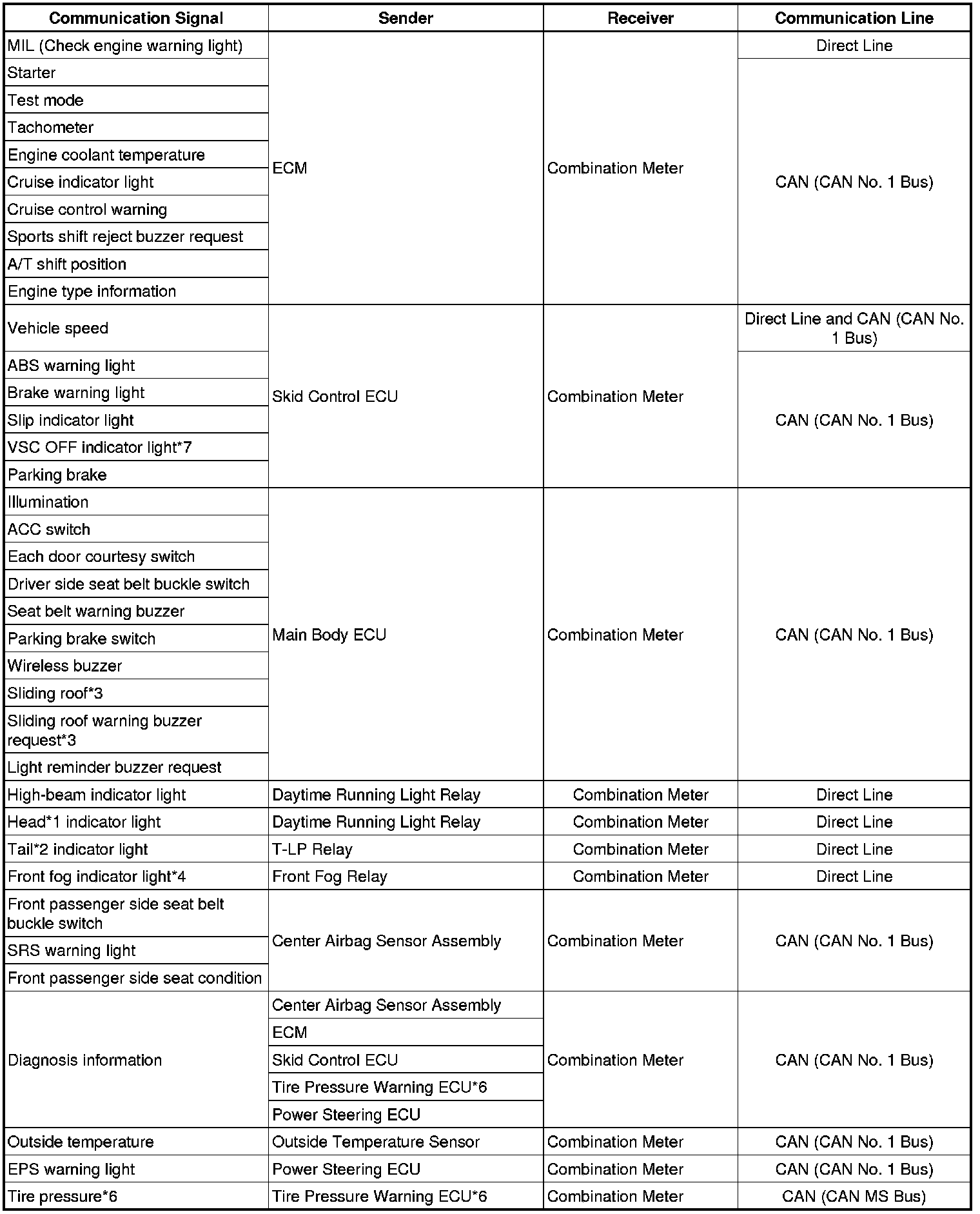

1. CAN SIGNAL





2. DIRECT LINE SIGNAL

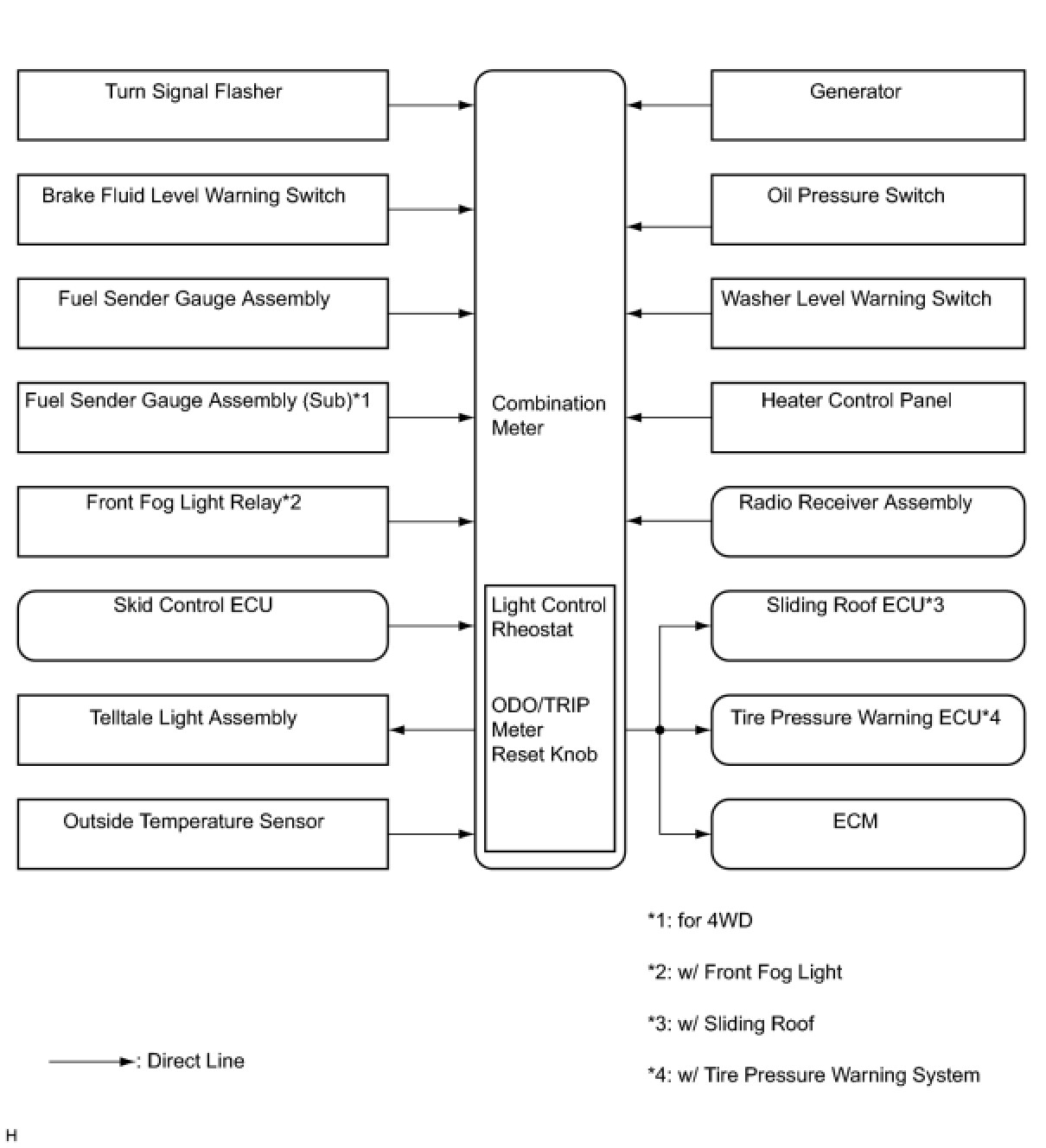

3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER









* *1: for U.S.A.

* *2: except for U.S.A.

* *3: w/ Sliding Roof

* *4: w/ Front Fog Light

* *5: for 4WD

* *6: w/ Tire Pressure Warning System

* *7: w/ VSC


METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

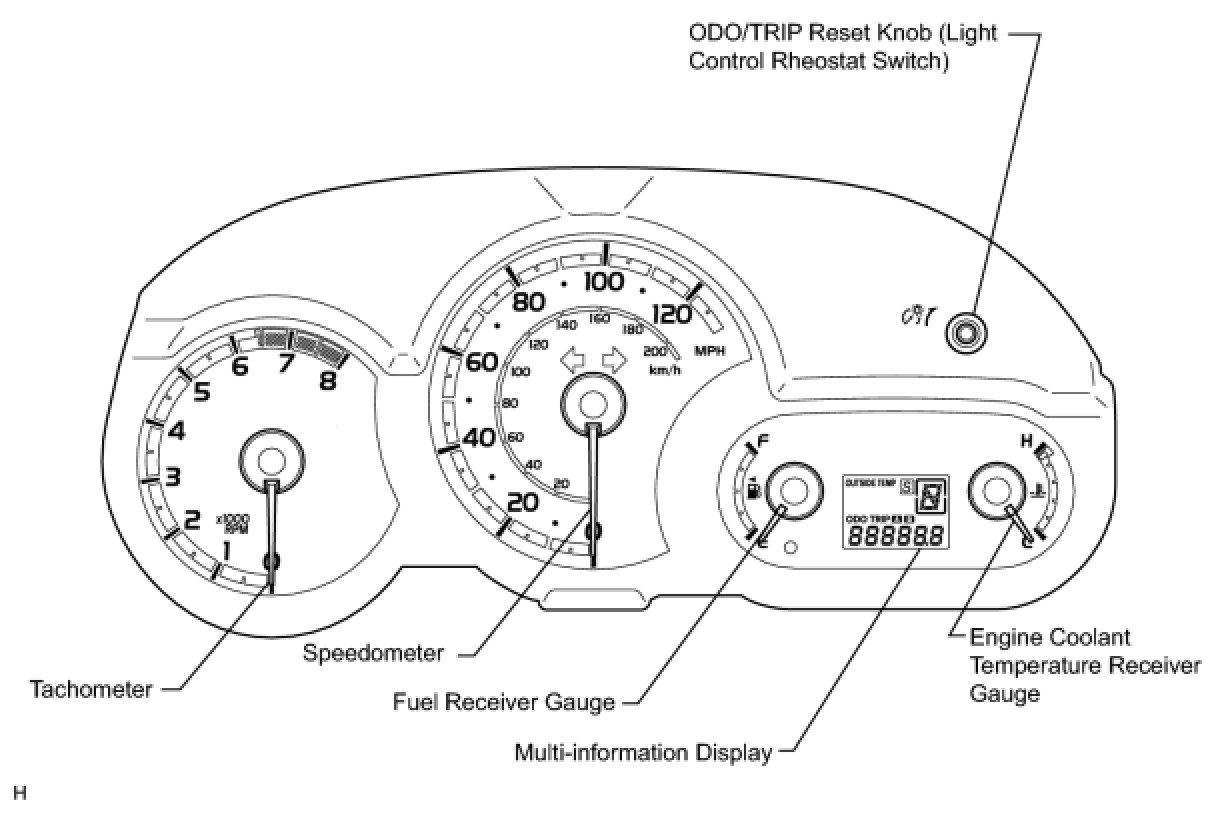

1. OUTLINE OF THE COMBINATION METER

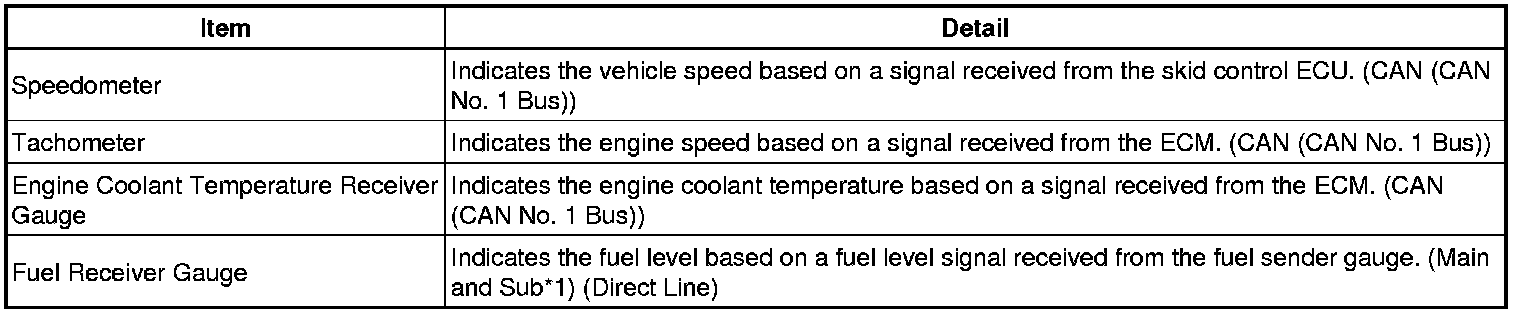

Meter Gauge:

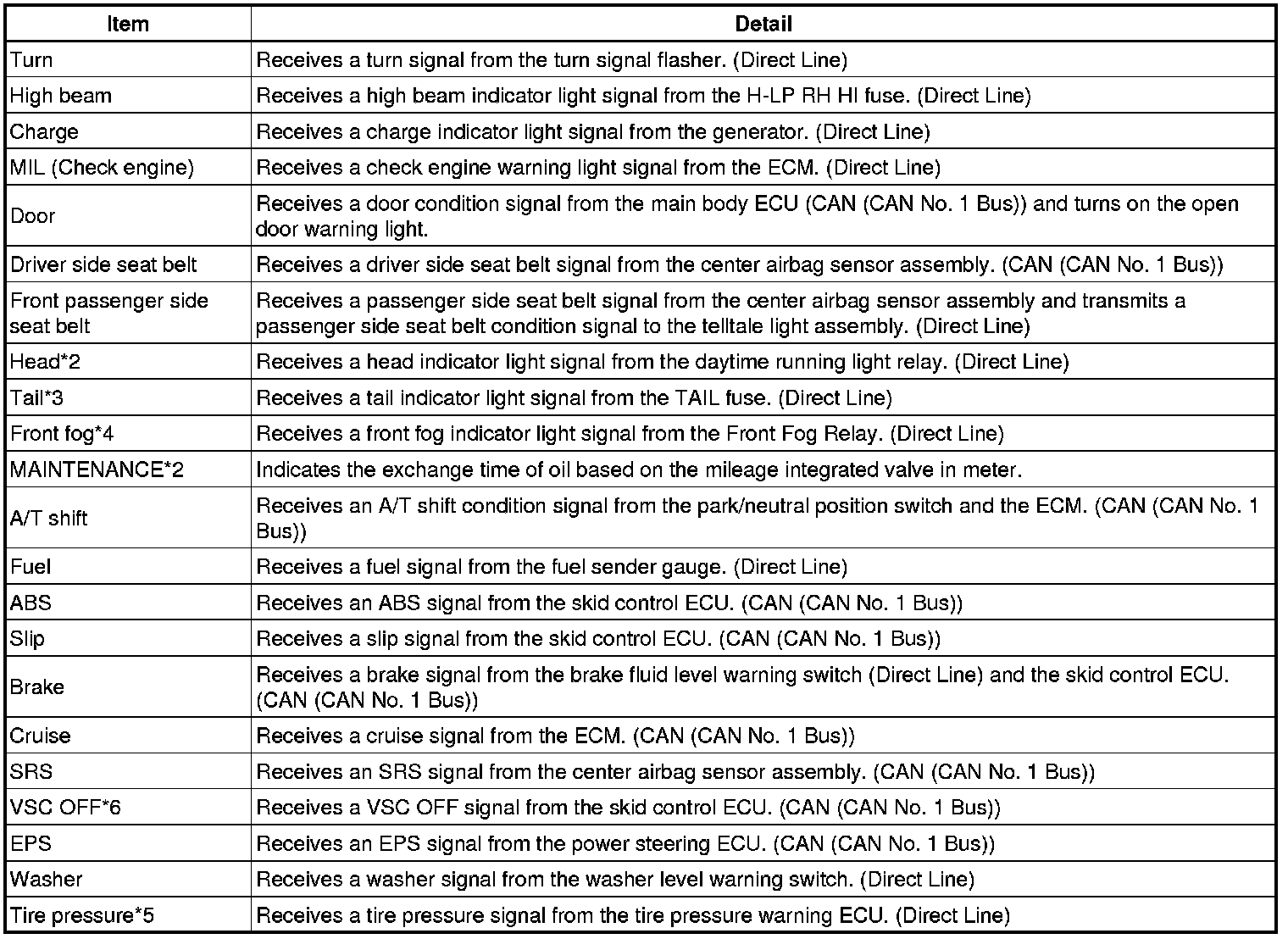

Warning/Indicator:

* *1: for 4WD

* *2: for U.S.A.

* *3: except for U.S.A.

* *4: w/ Front Fog Light

* *5: w/ Tire Pressure Warning System

* *6: w/ VSC

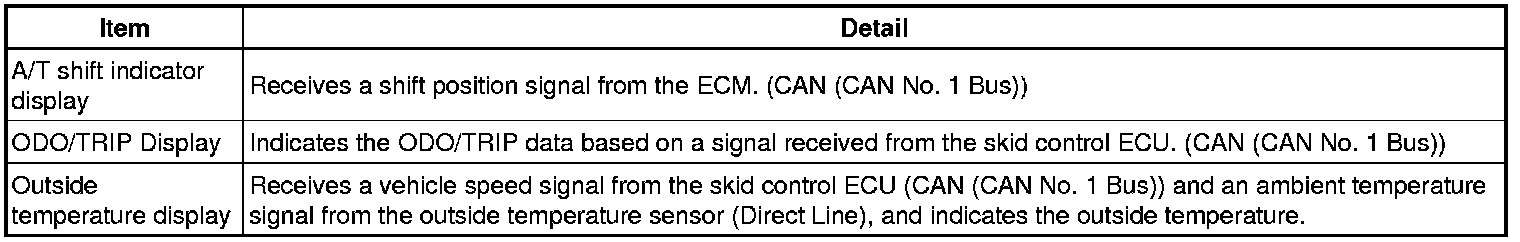

2. MULTI-INFORMATION DISPLAY

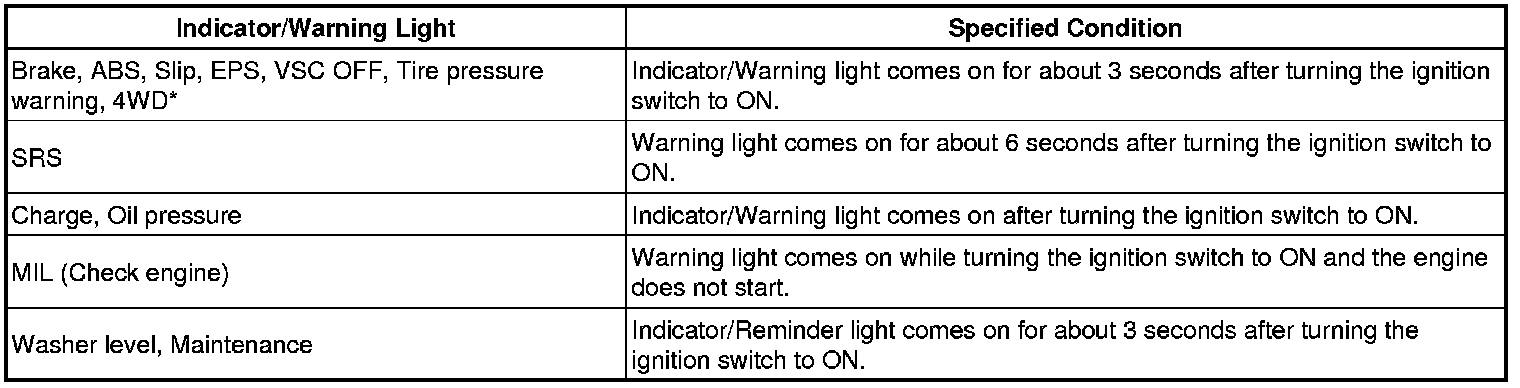

3. LED INITIAL CHECK

(a) Check the illumination function of the warning, indicator, or reminder light listed below when turning the ignition switch to ON.

OK:





* *: for 4WD
