Interior Lighting System

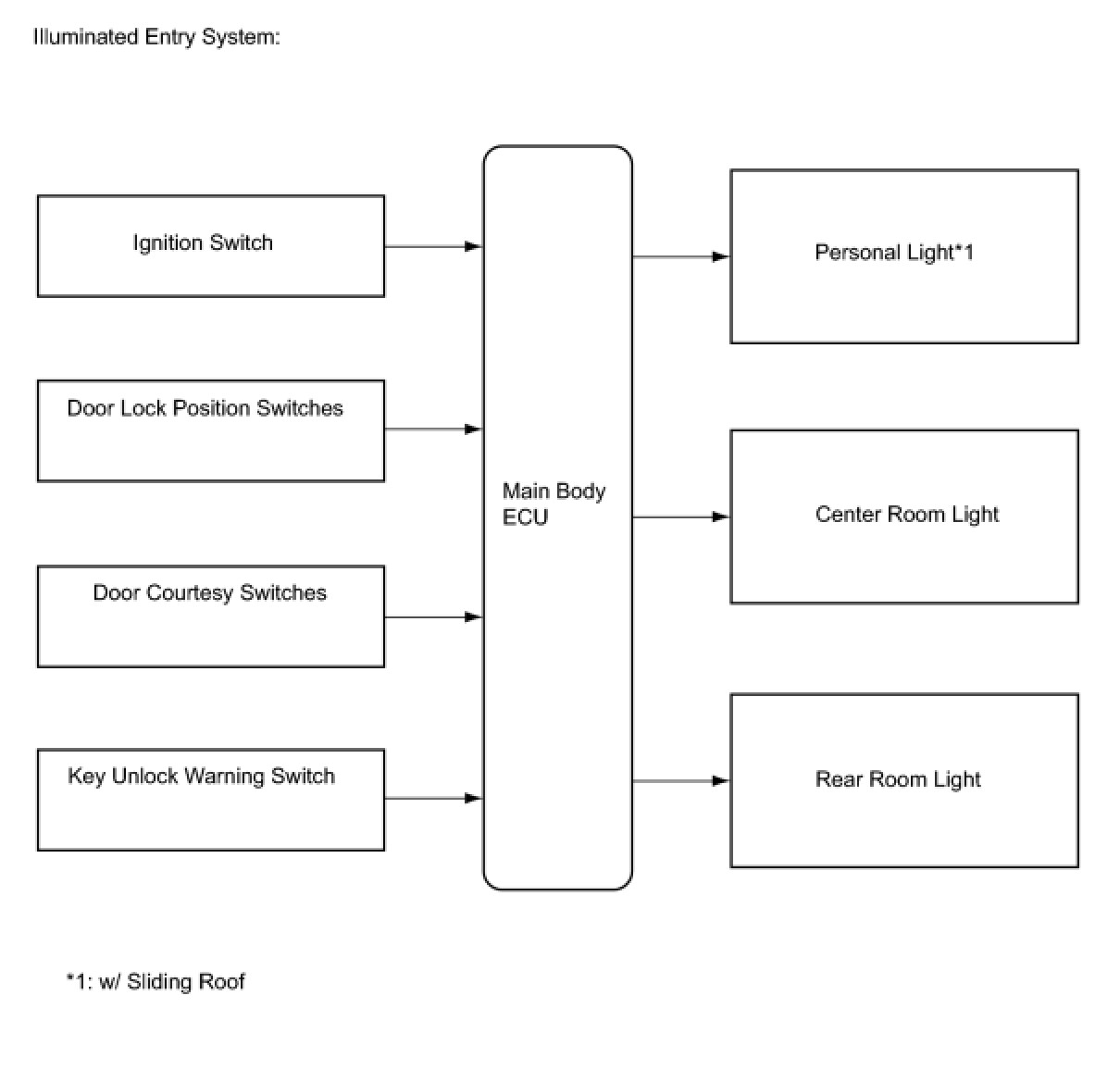

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM






LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

1. ILLUMINATED ENTRY SYSTEM

* The illuminated entry system provides convenience when getting in or out of the vehicle at night.

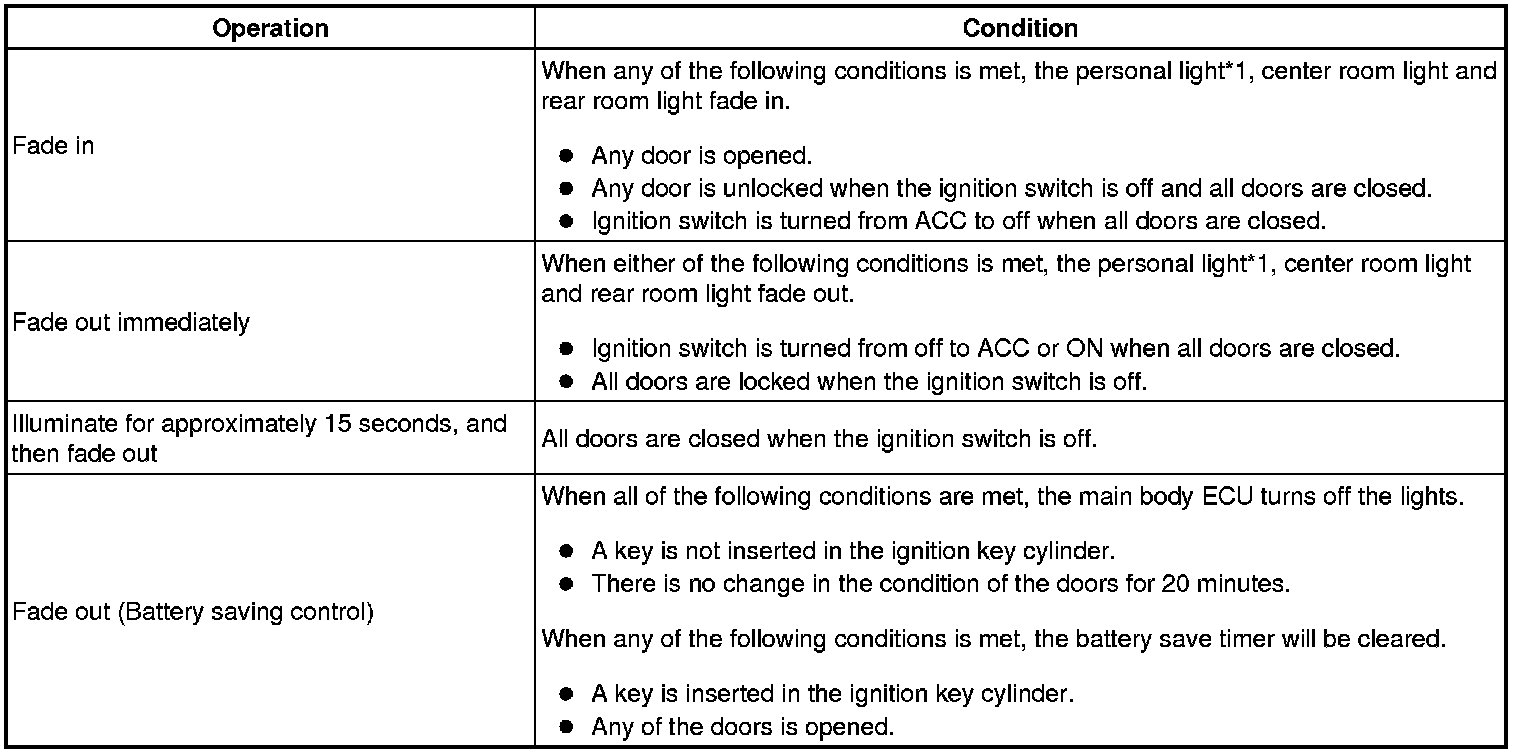

* This function is controlled by the main body ECU. The operations and conditions of this control are described below.





HINT
*1: w/ Sliding Roof
