Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

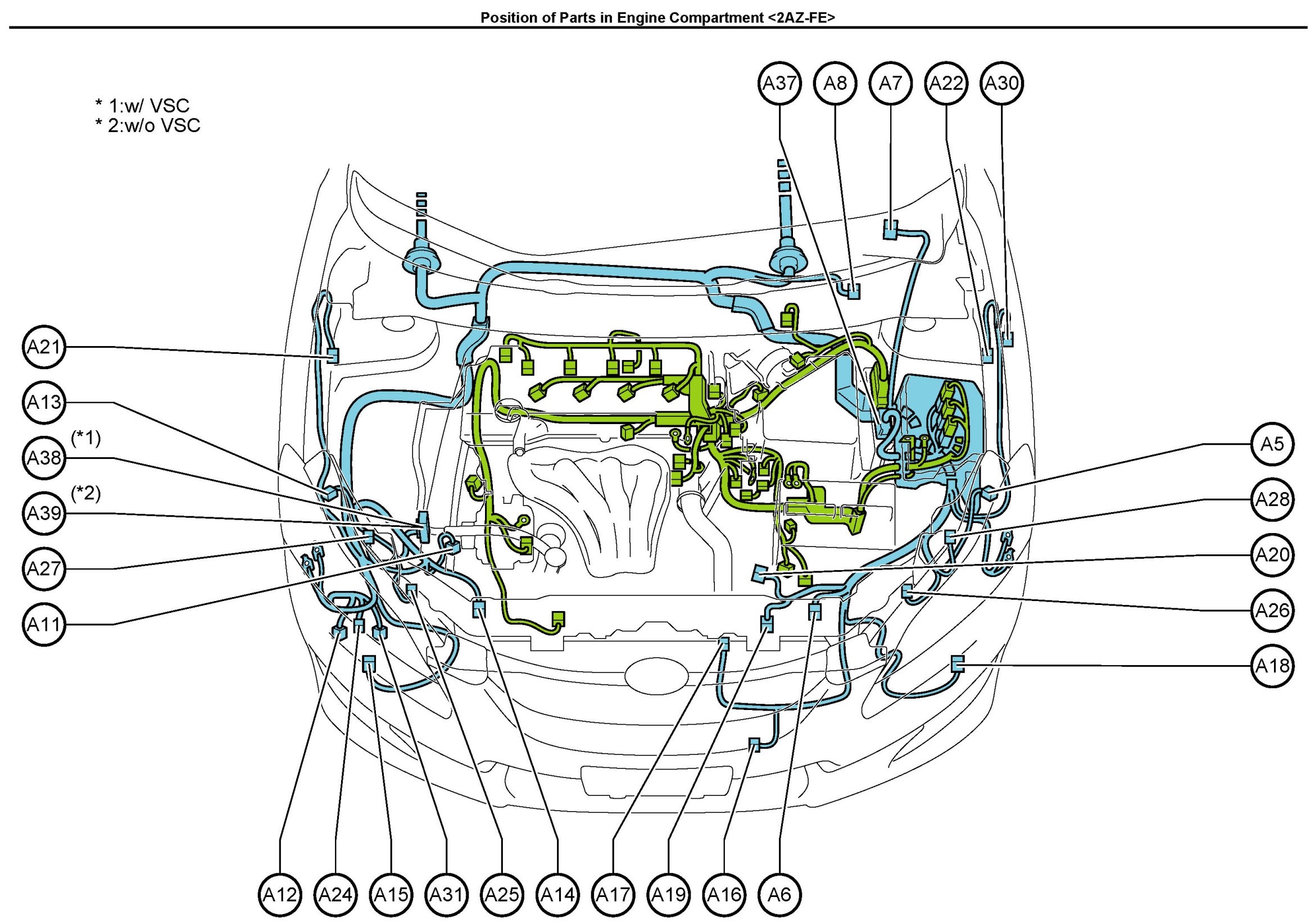

Position of Parts in Engine Compartment:

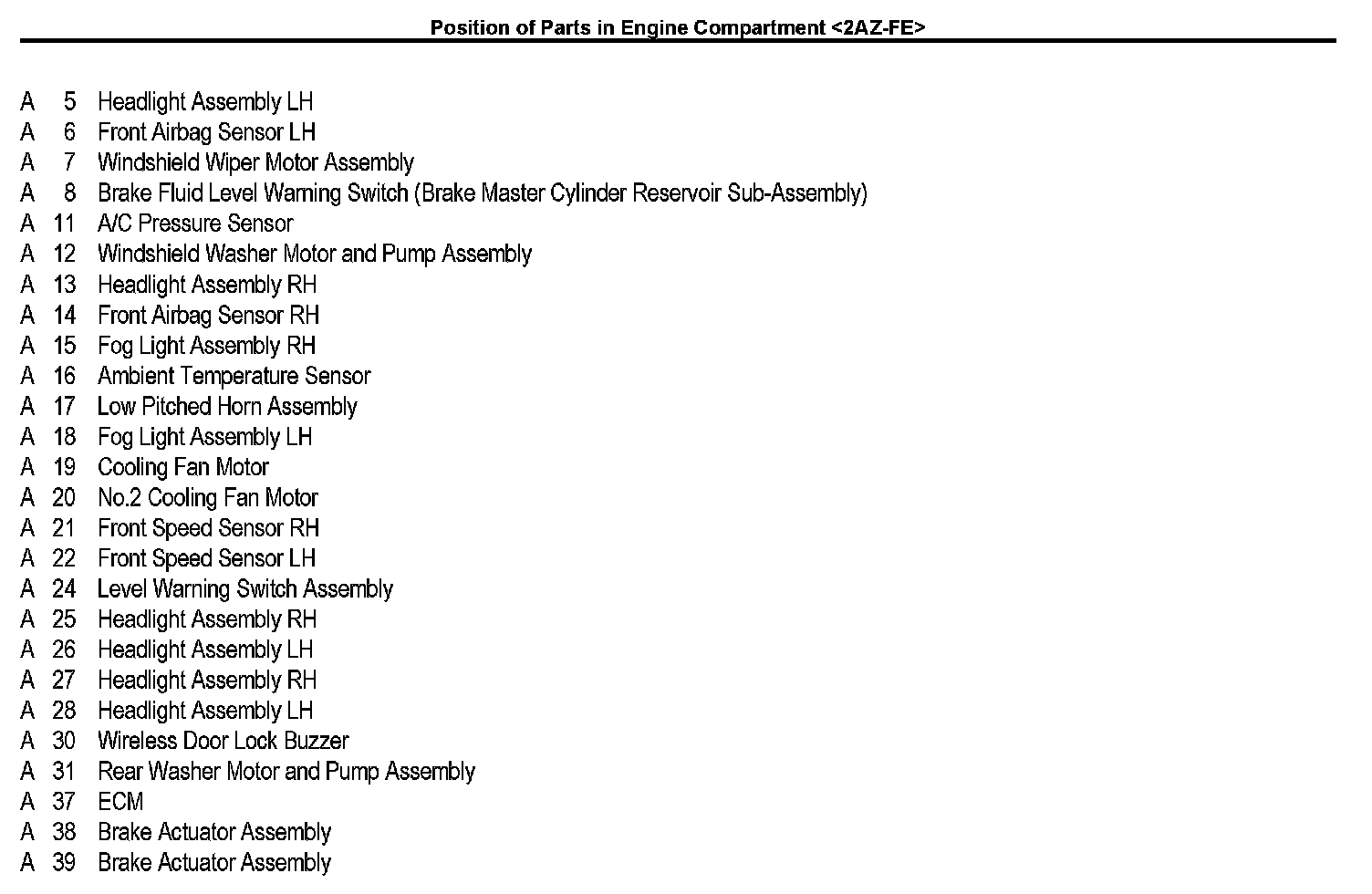

Legend:

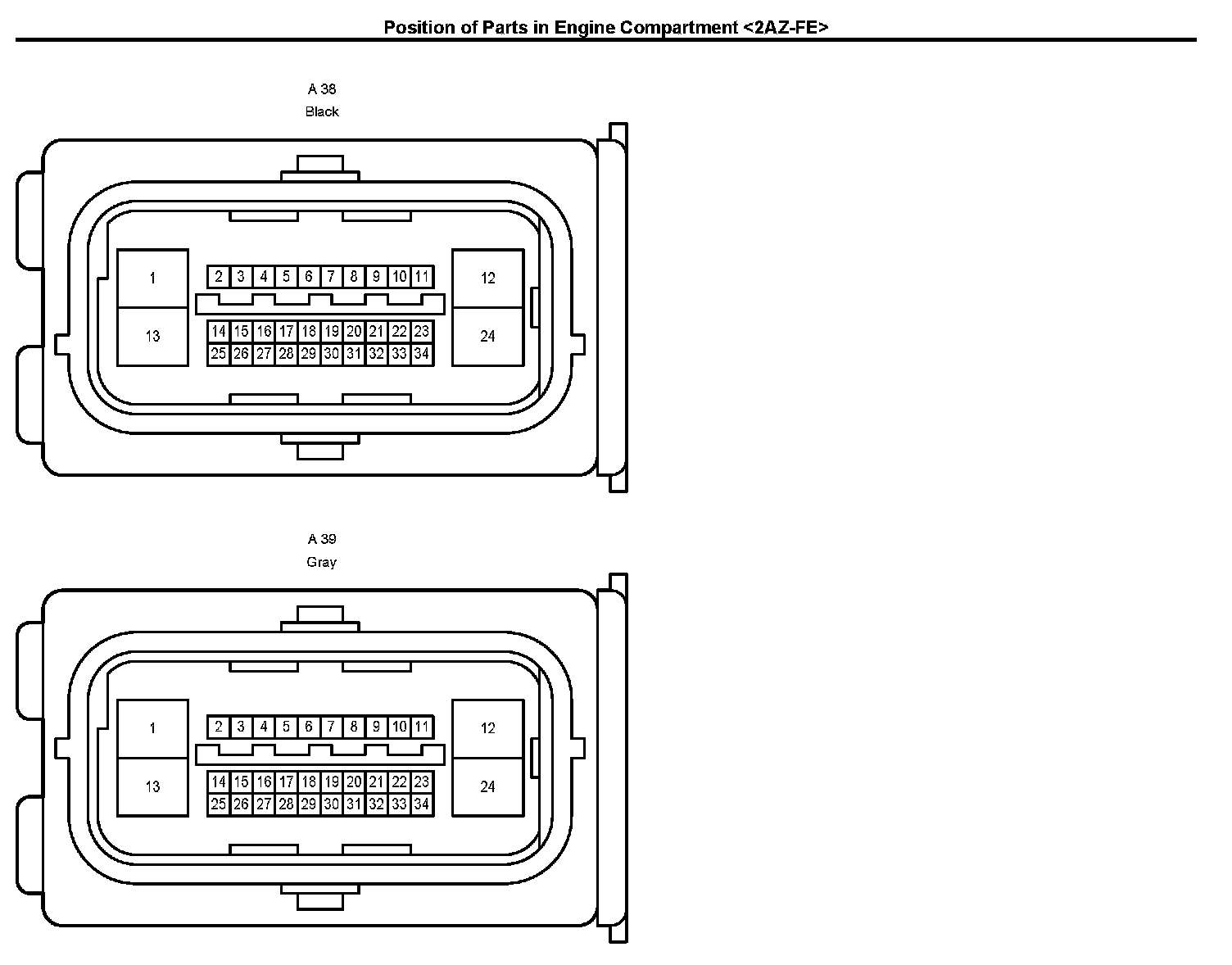

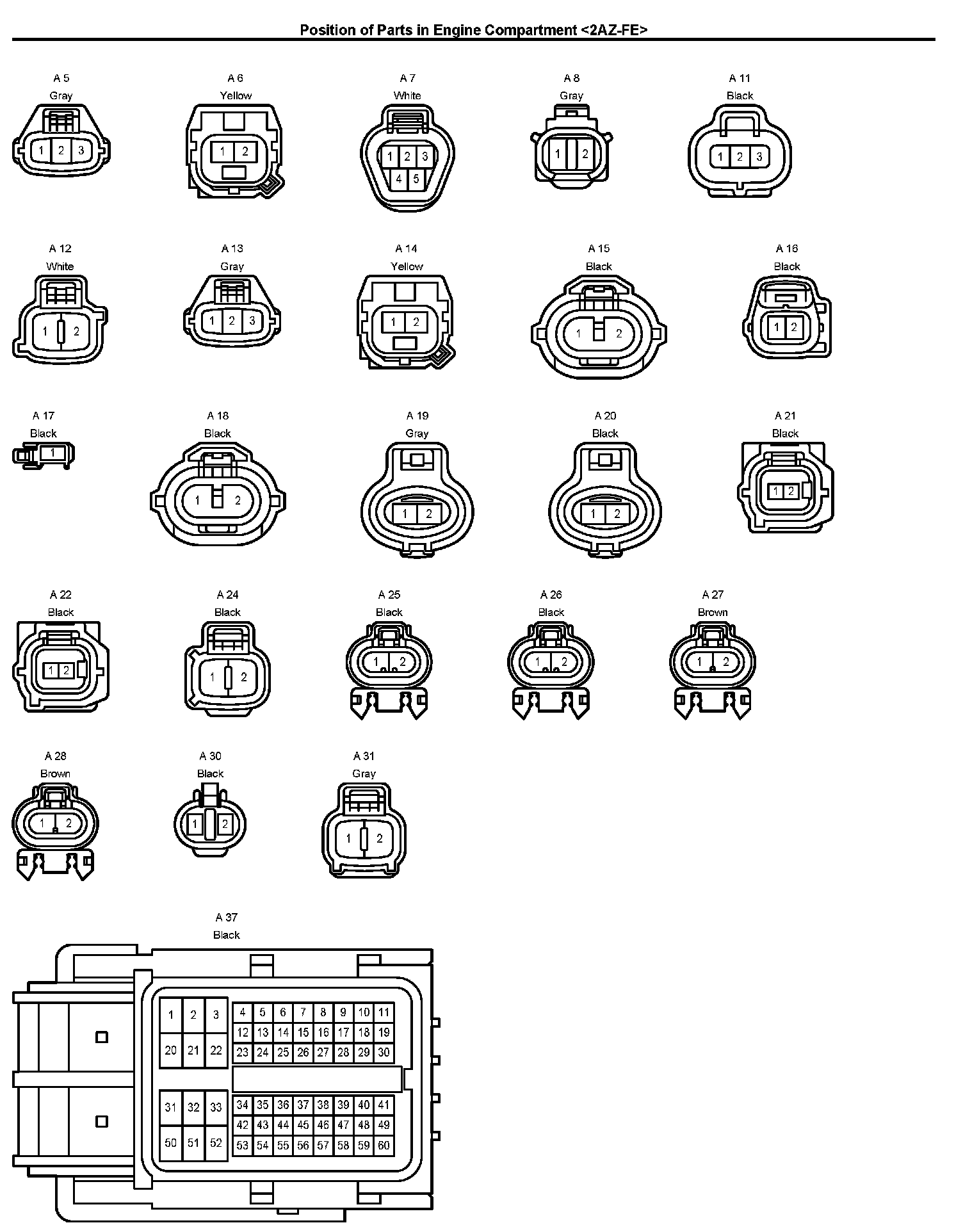

Connector Views:
Connector Views:

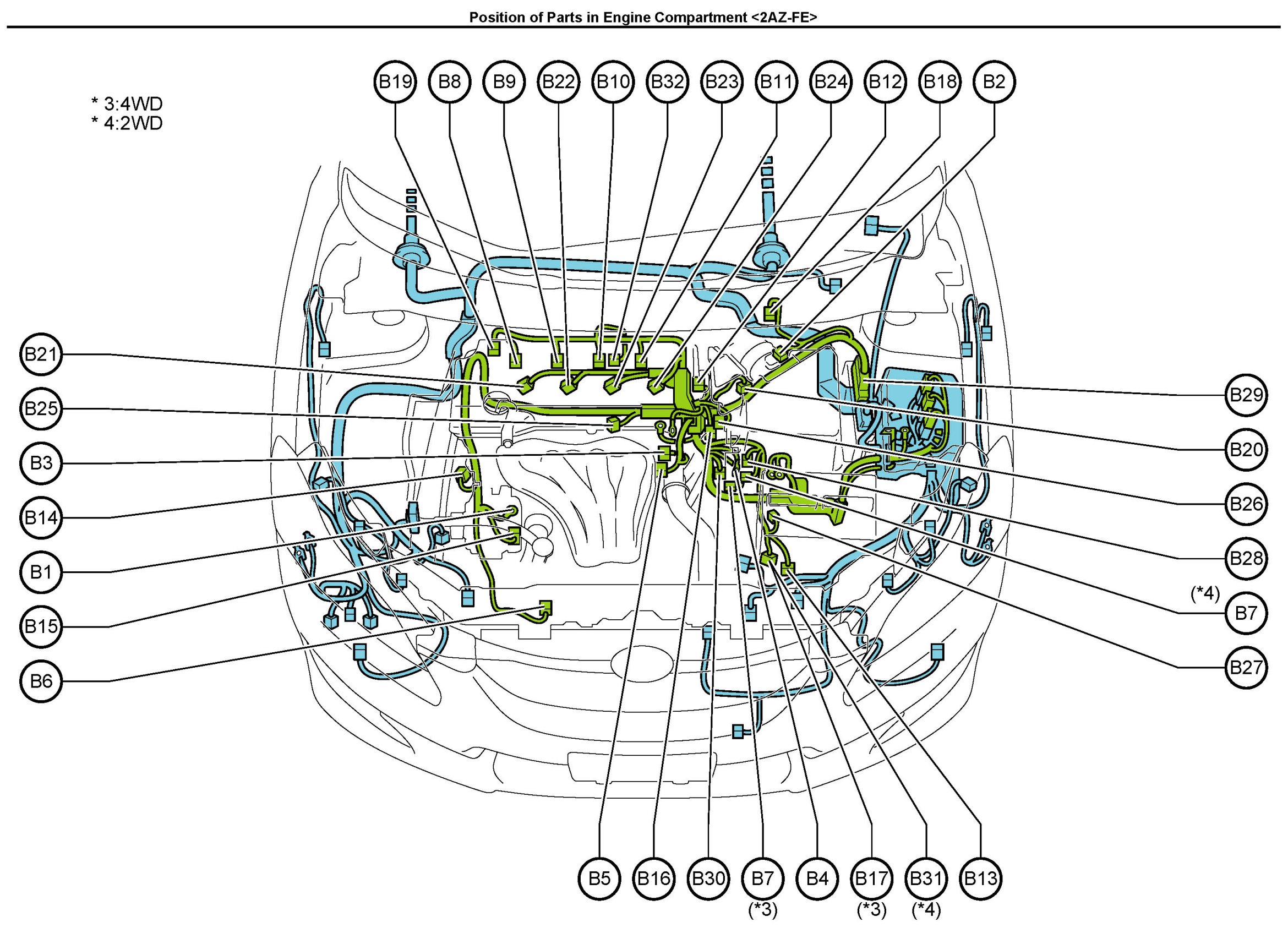

Position of Parts in Engine Compartment:

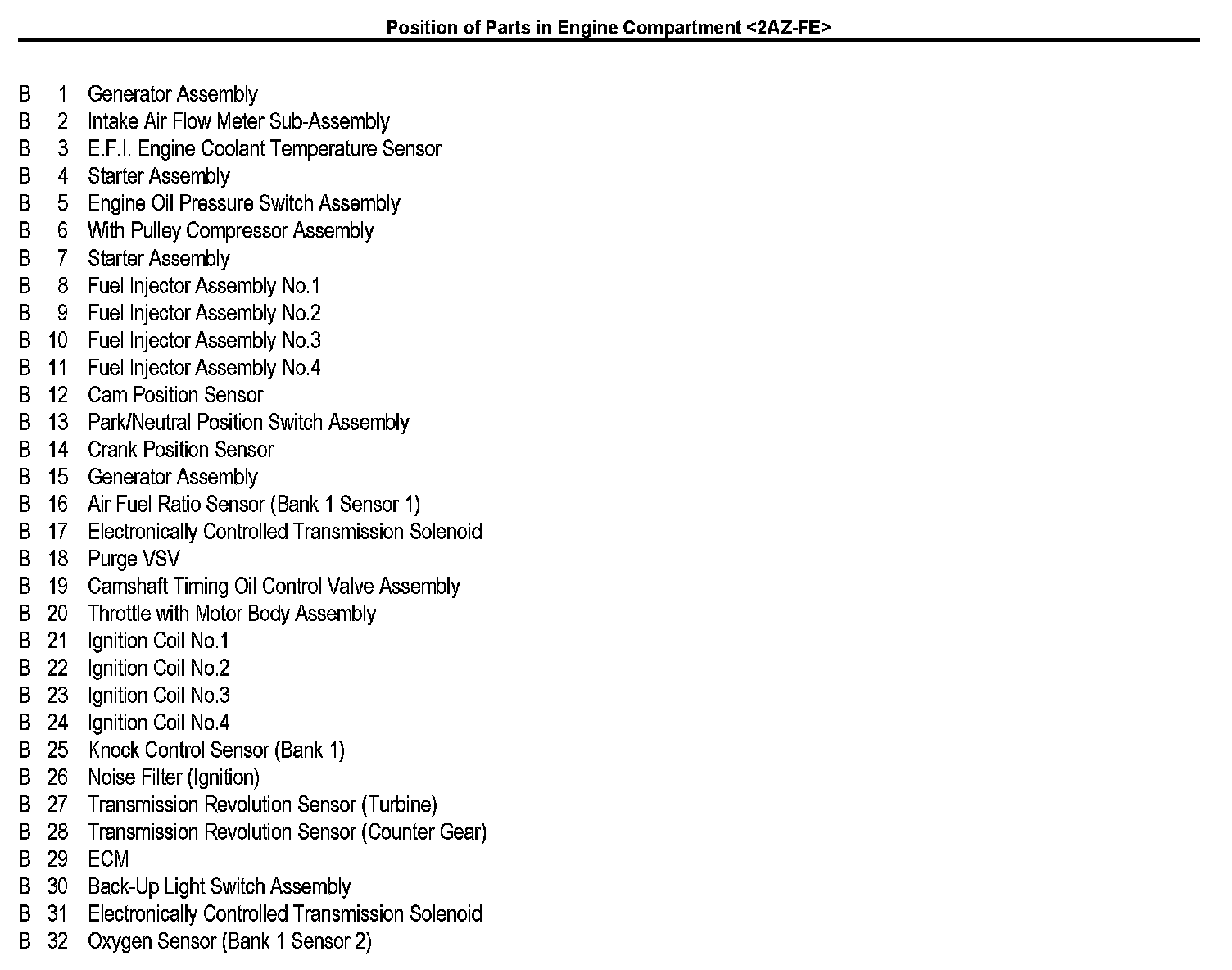

Legend:

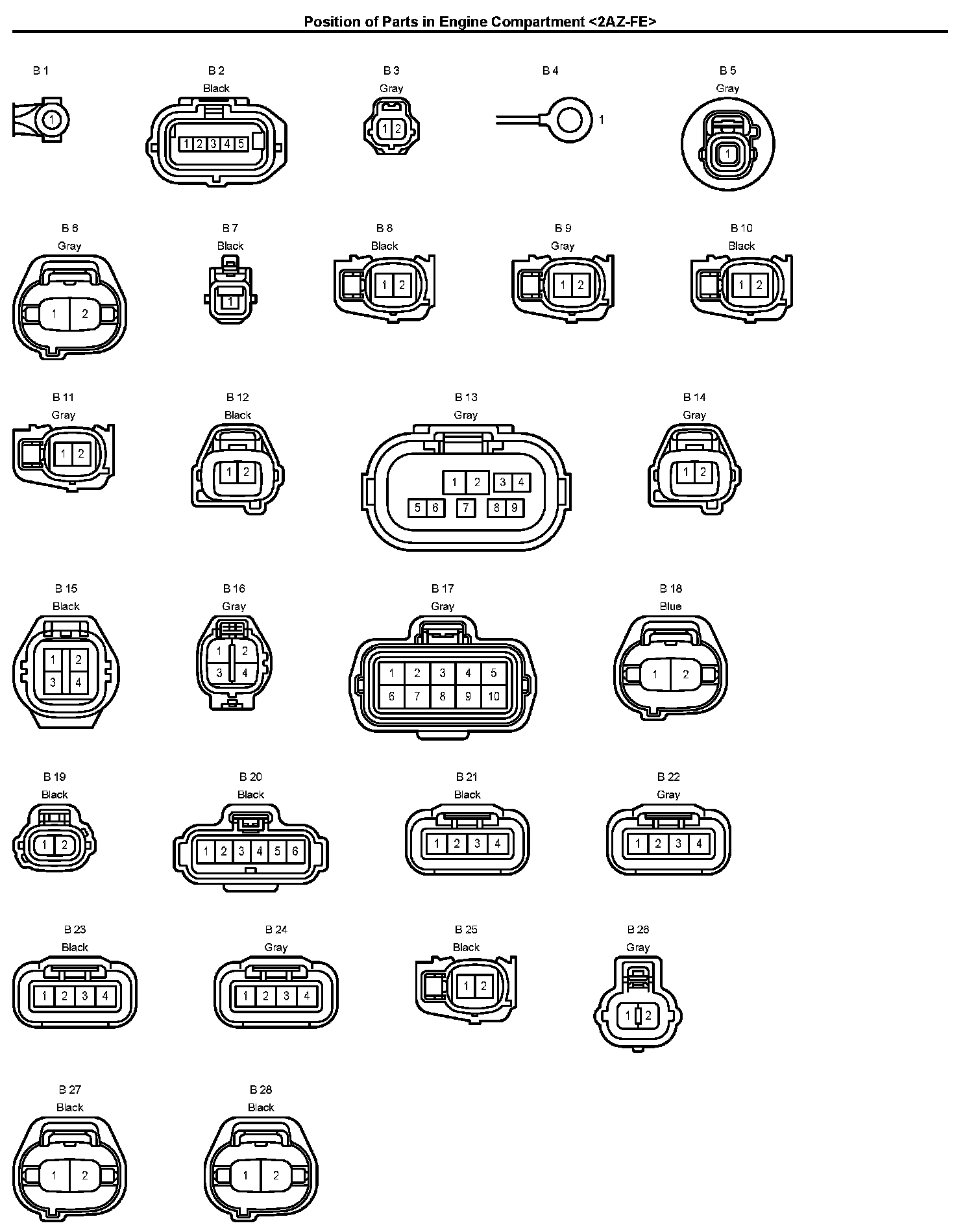

Connector Views:

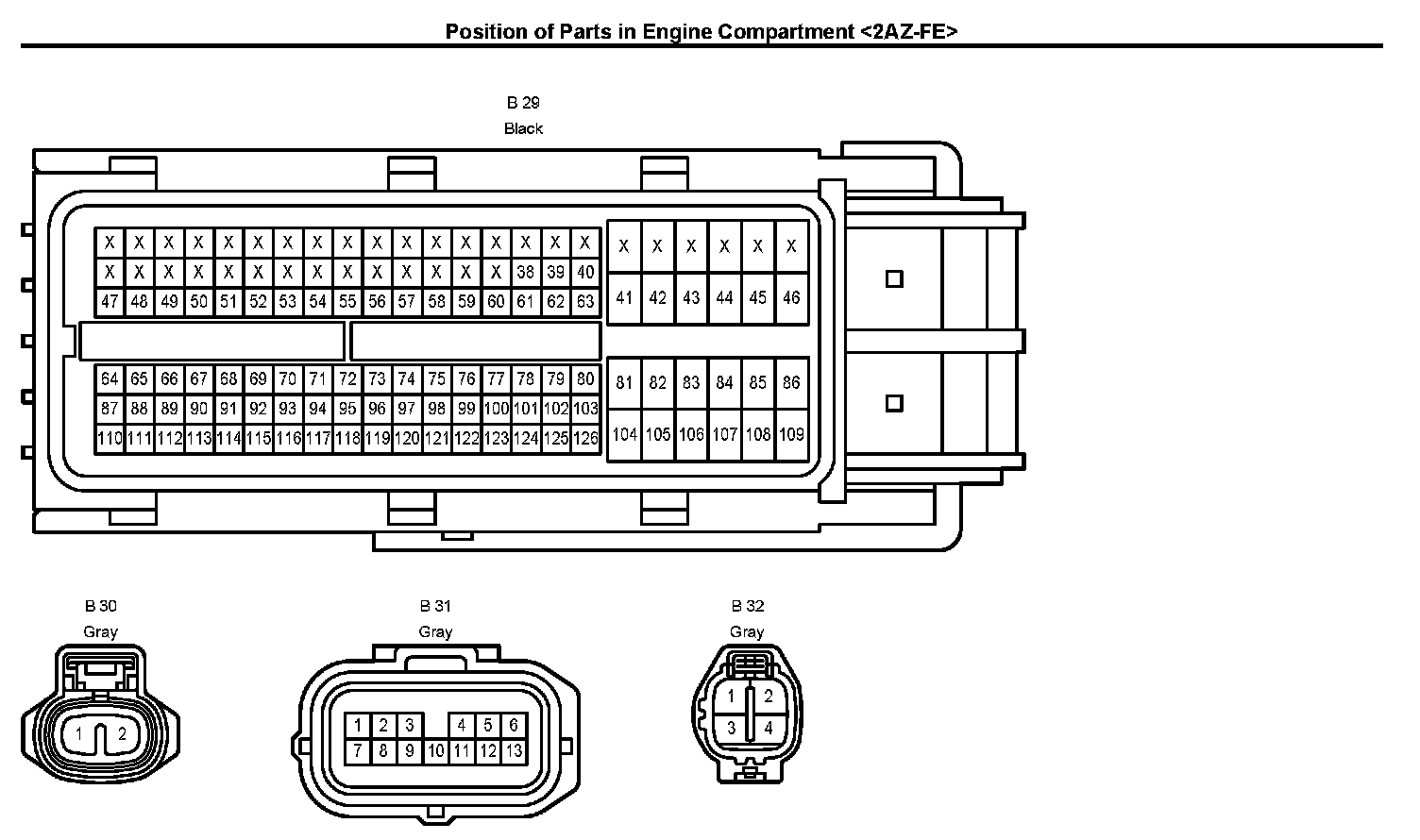

Connector Views:
