Fuse: Application and ID

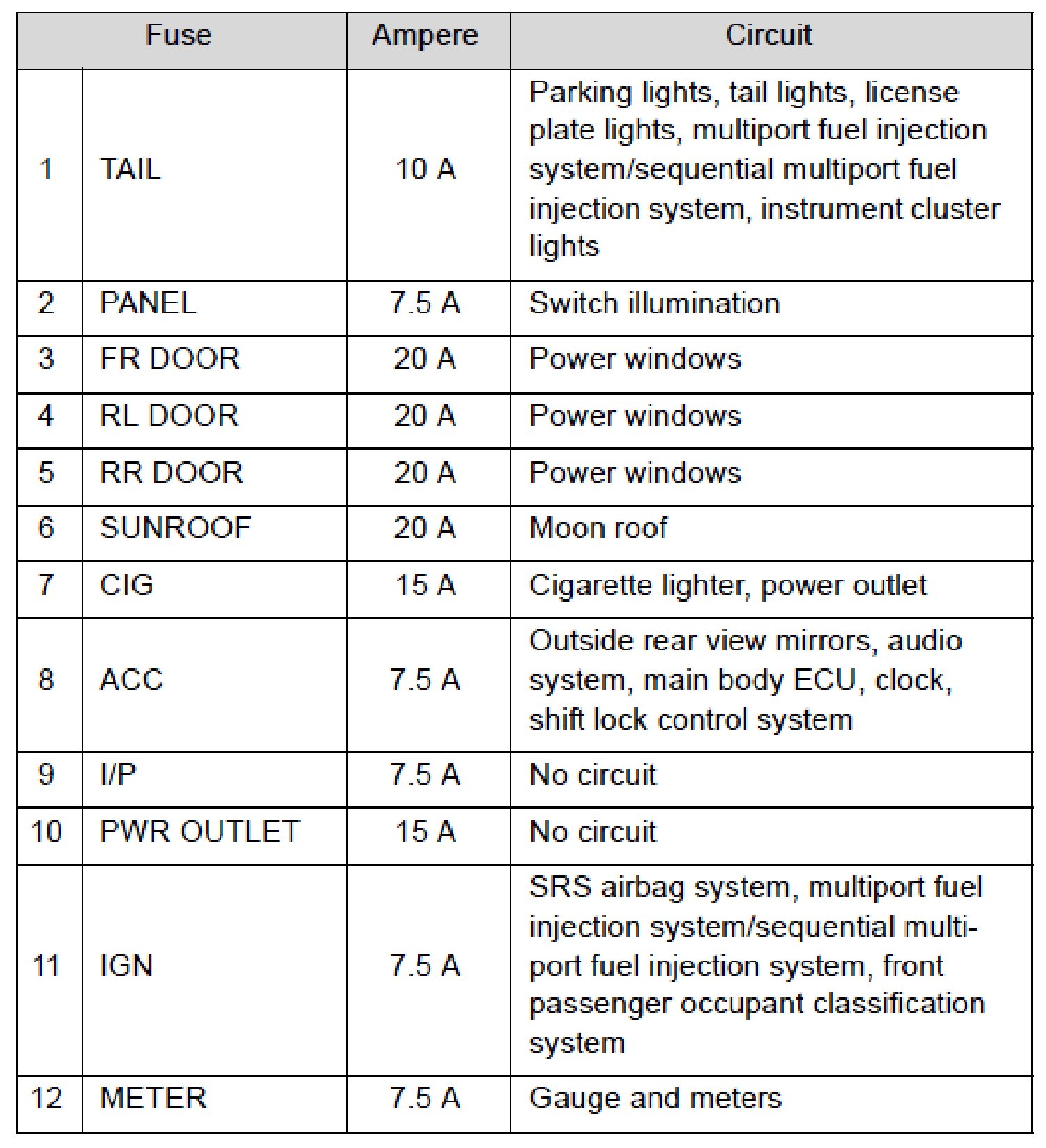

Fuse Layout and Amperage Ratings

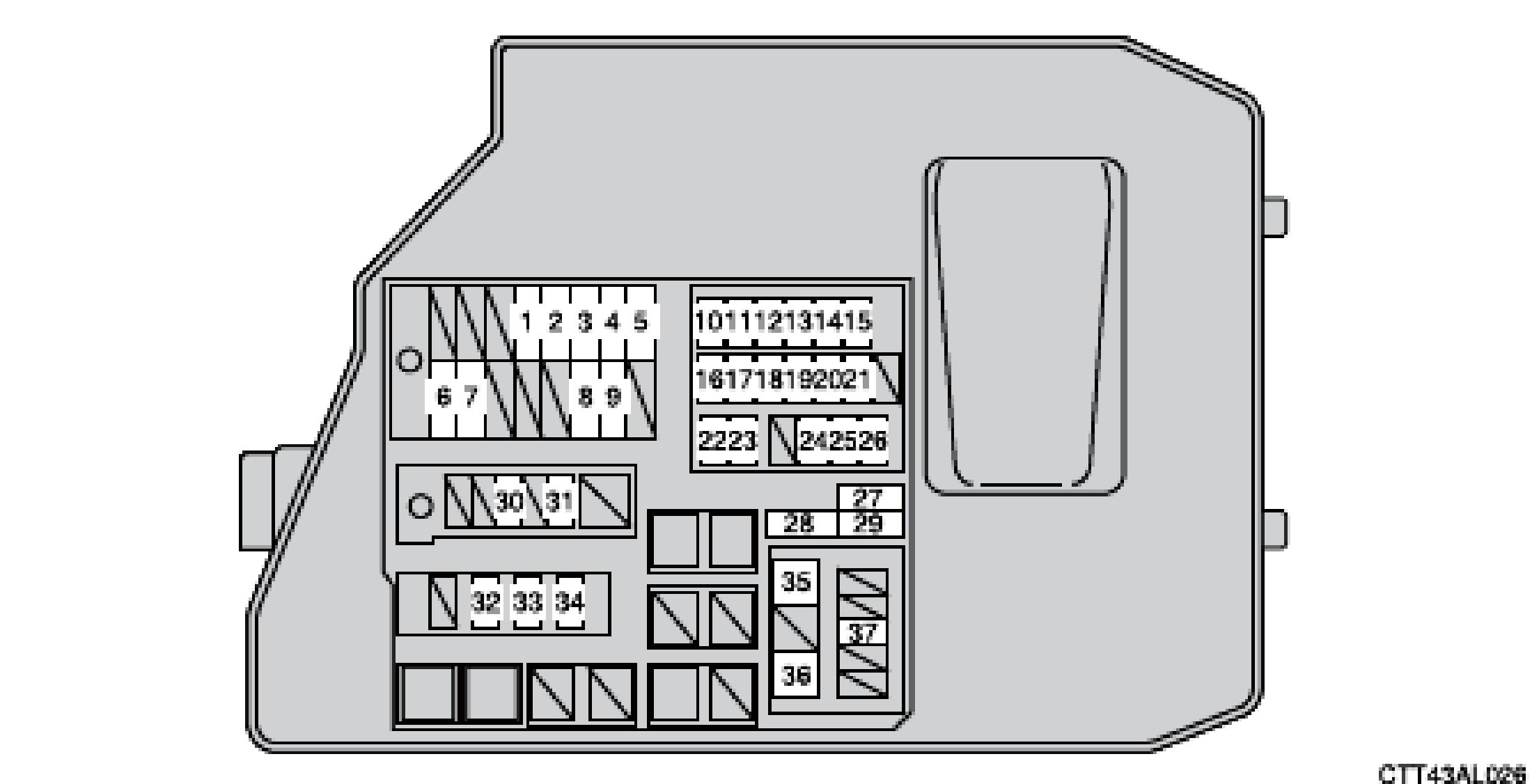

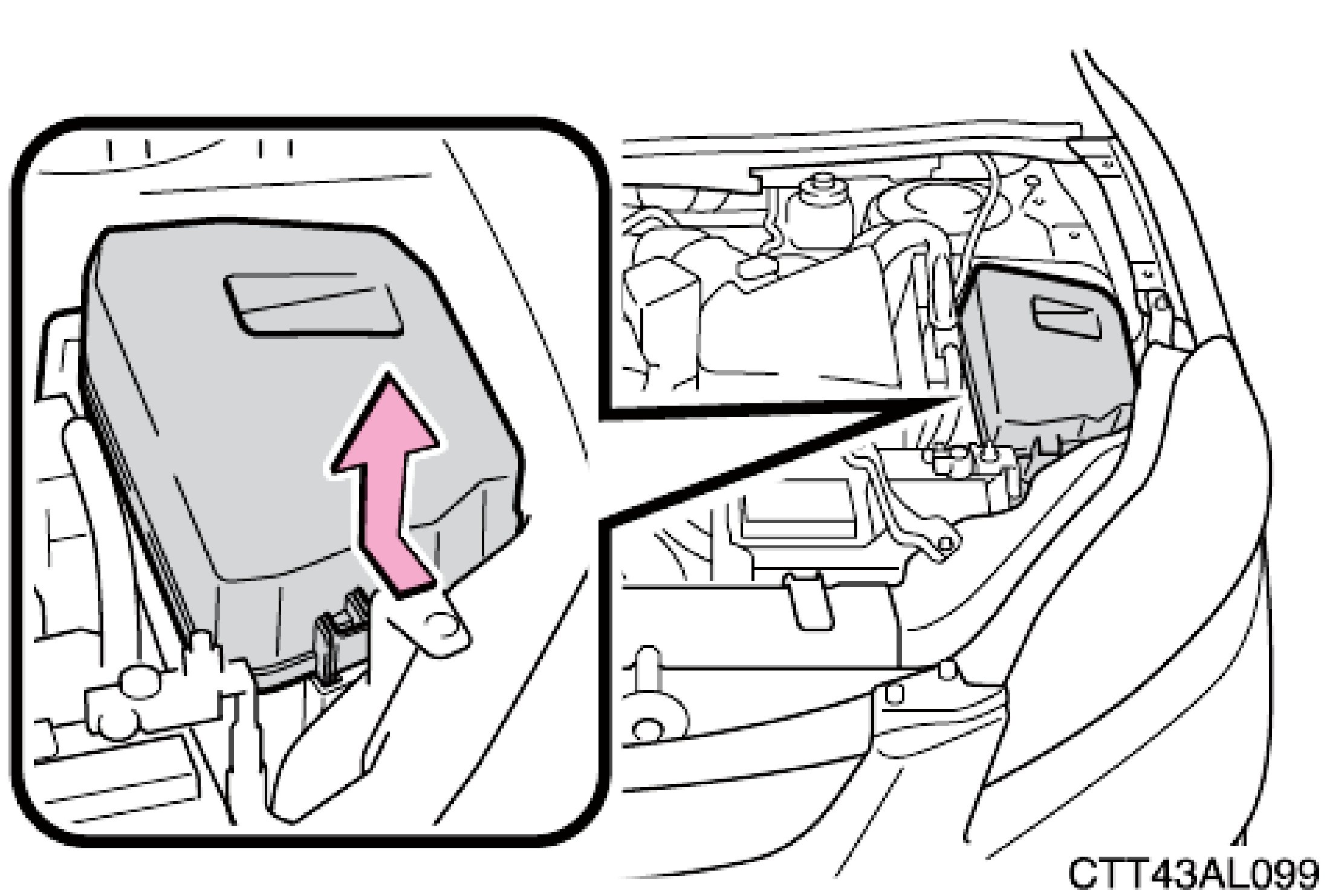

Engine Compartment:





Fuse Location:

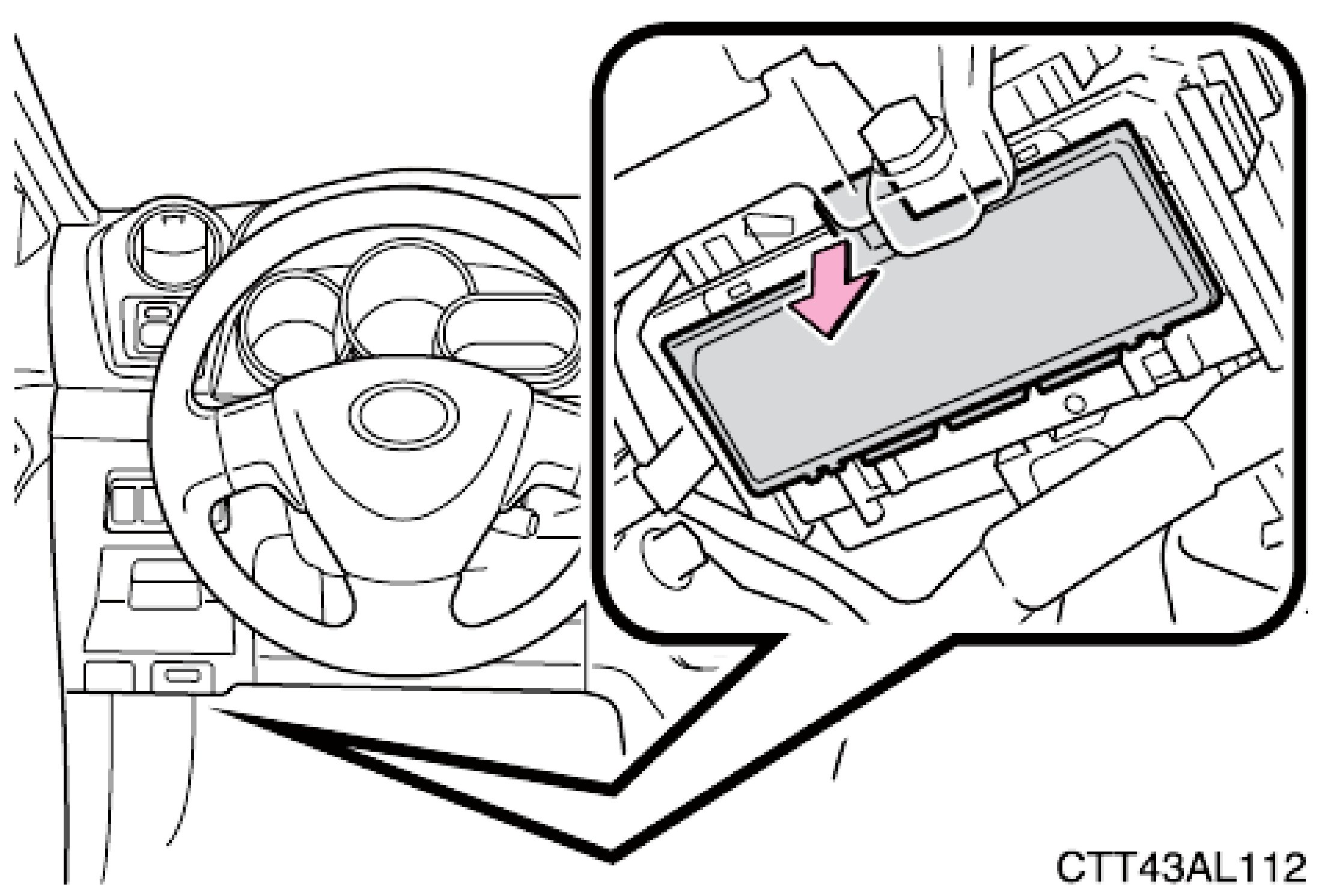

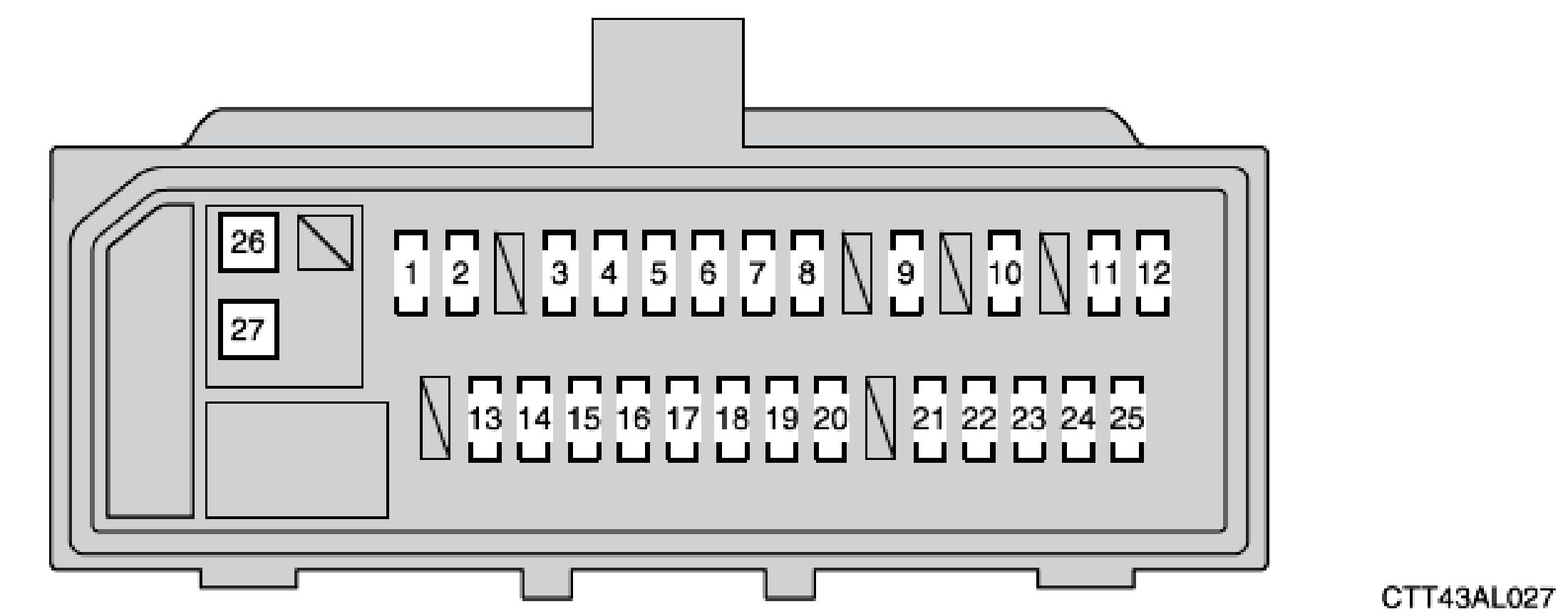

Left Side Instrument Panel:





Fuse Location:
