Power Distribution Relay: Locations
2AZ-FE STARTING: STARTING SYSTEM: PARTS LOCATION

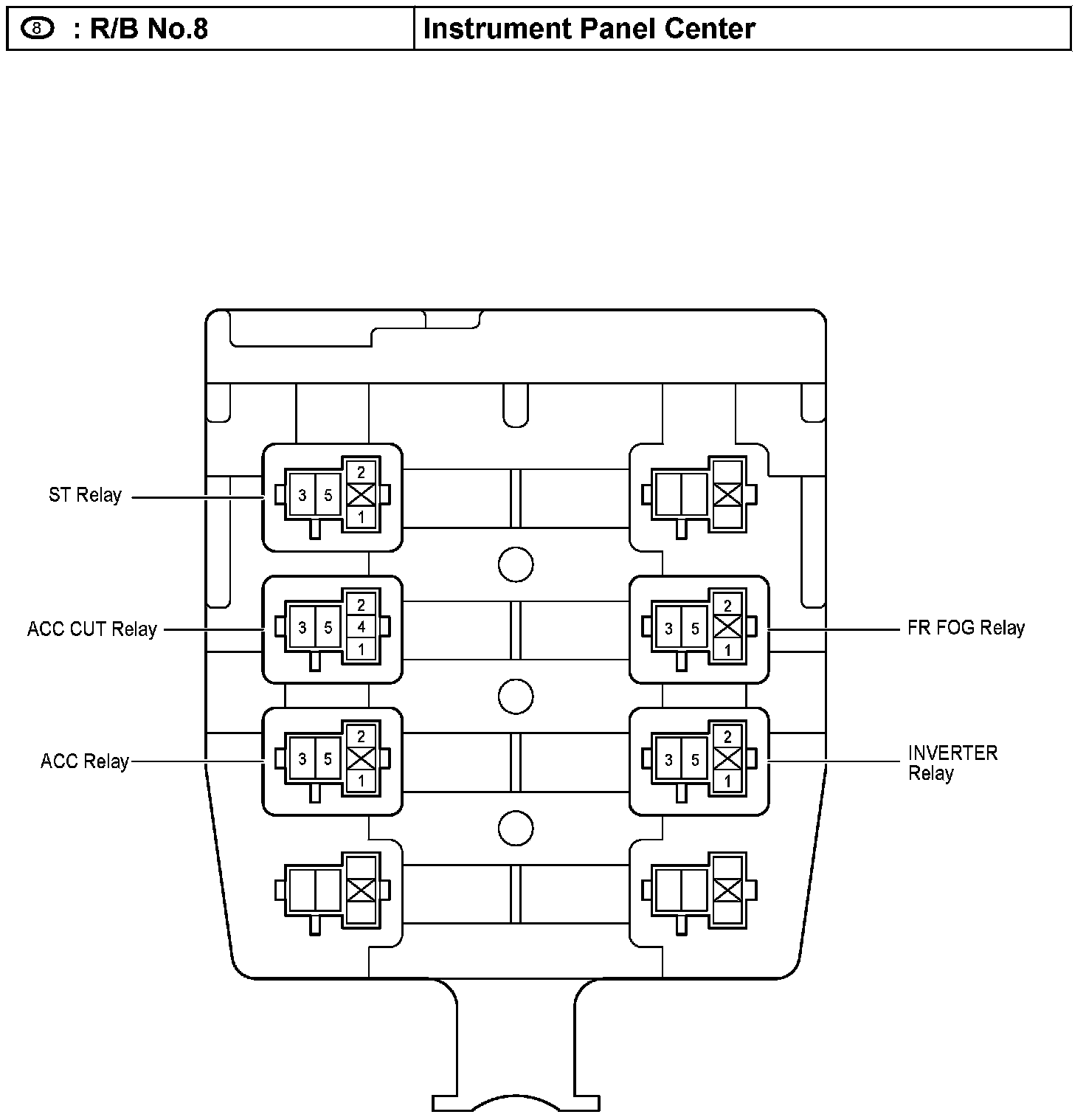

R/B NO.8 - Instrument Panel Center:
