Canada - Drivetrain - 4WD Towing Precautions

Bulletin
TSB3324

Issue Date
December 3, 2009

Market
Canada

Title
4WD TOWING PRECAUTIONS

Component
DRIVELINE

Models
'09-'10 Matrix; '06-10 RAV4; '09-'10 Venza

INTRODUCTION:
The only acceptable towing method for vehicles equipped with an Active Torque Control 4WD system is to have all four wheels off the ground. Flat towing or towing where only the front or rear wheels are supported may damage the all-wheel drive system. Follow the procedures below for proper towing methods.

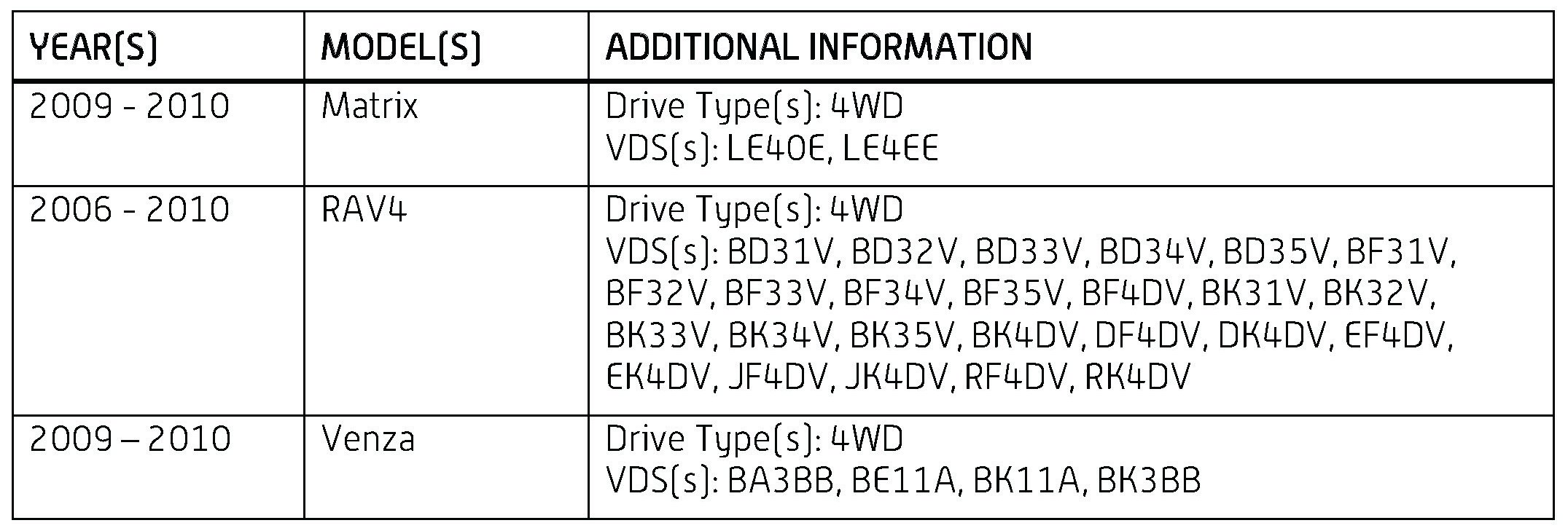

APPLICABILITY:

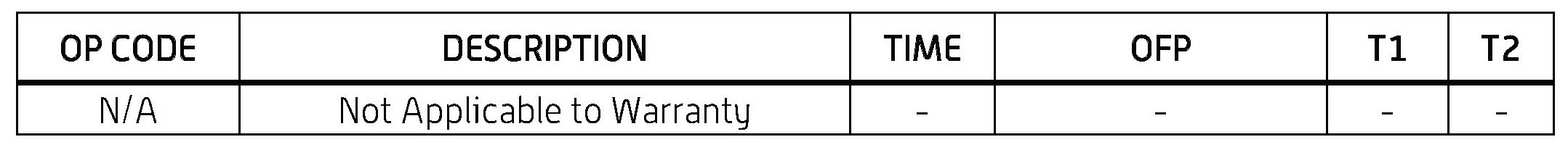

WARRANTY INFORMATION:

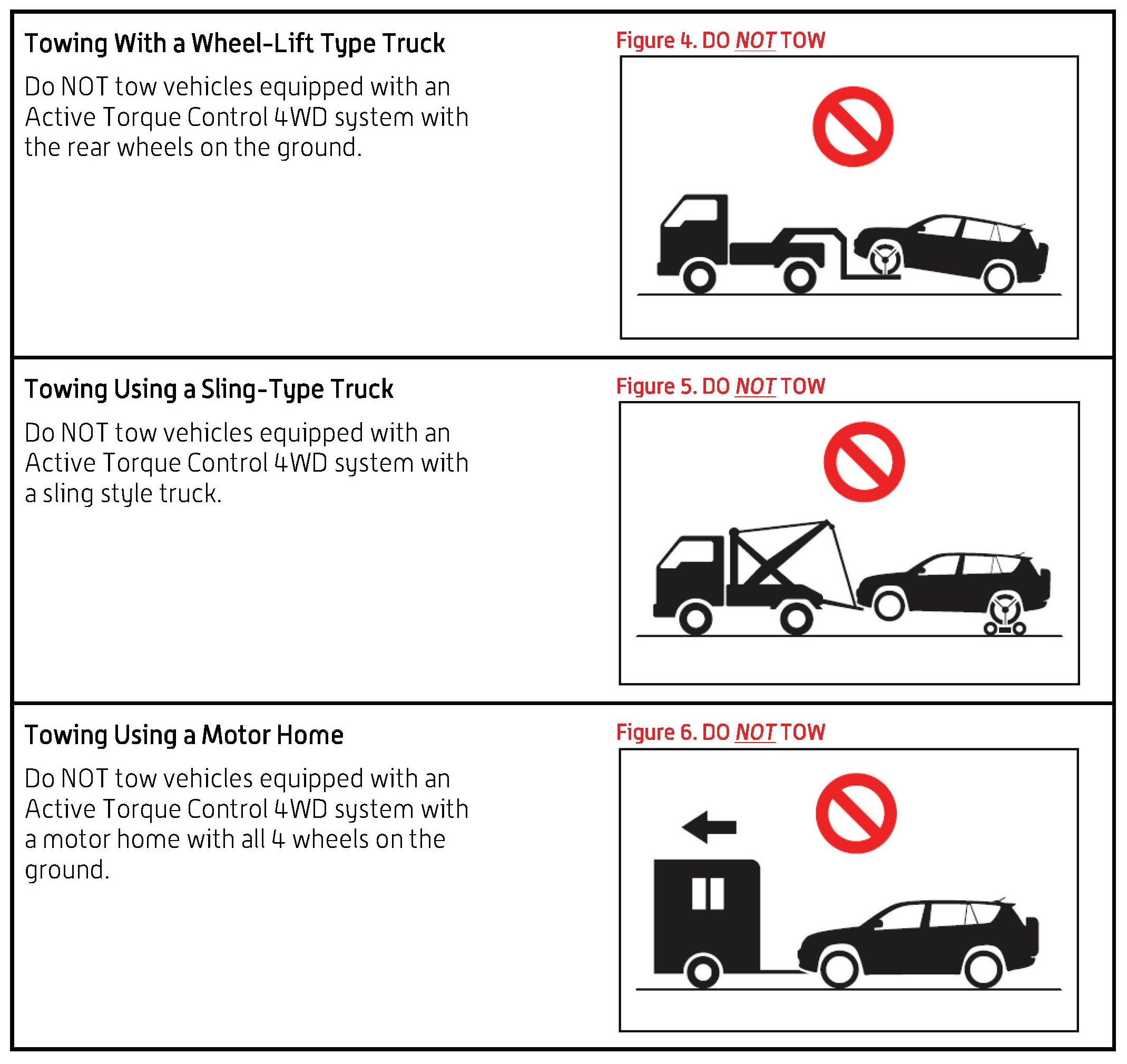

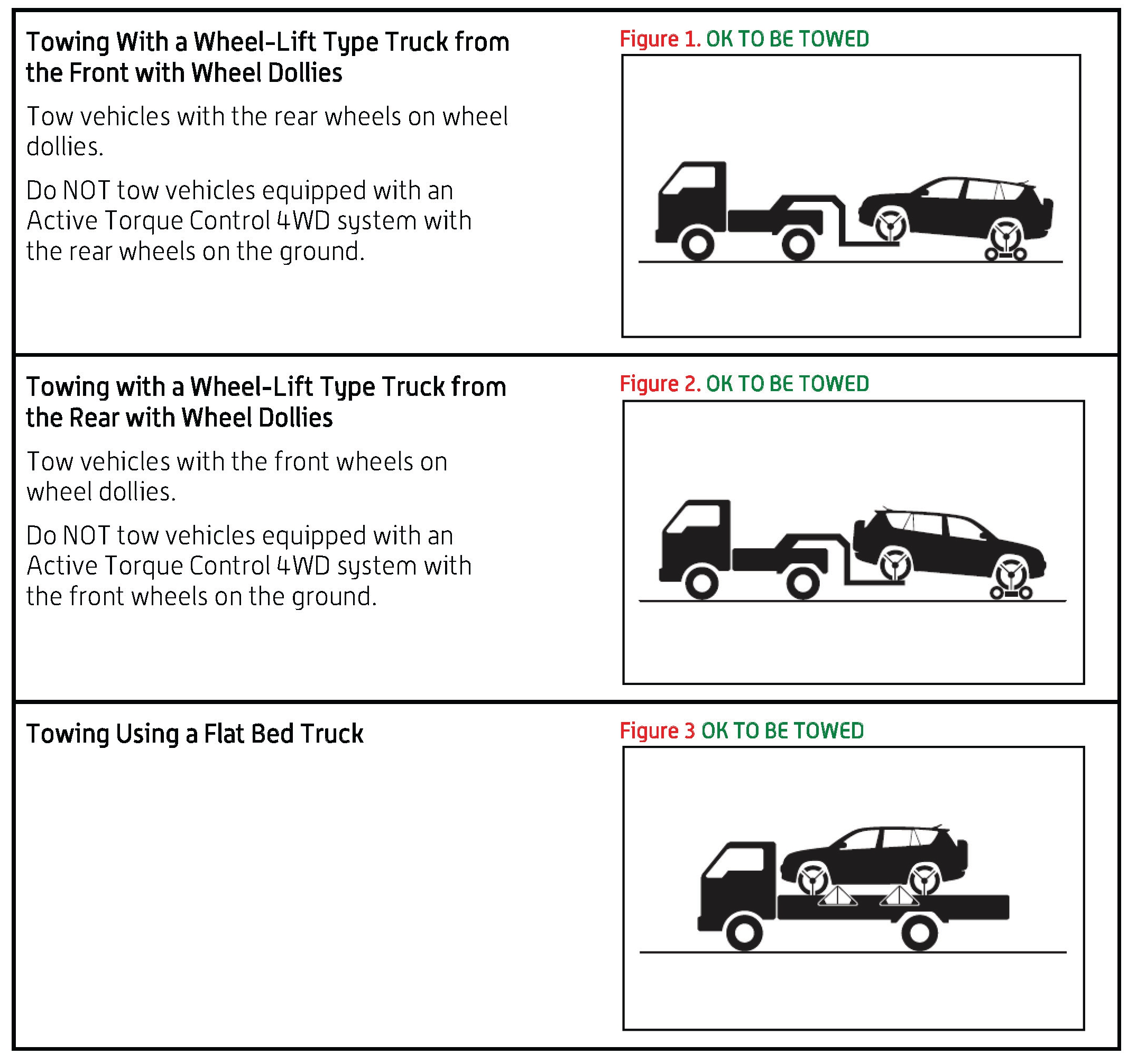

TOWING PRECAUTIONS:

















NOTICE:
To prevent damaging the vehicle when towing:
- Never tow a vehicle equipped with an Active Torque Control 4WD system with the front or rear wheels on the ground.
- See the Owner's Manual for your specific vehicle to find complete towing instructions.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
