Interior - Floor Mat Installation/Precautions

T-SB-0024-09

Rev1

January 13, 2009

Floor Mat Installation During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA





Applicability

TSB REVISION NOTICE

January 21, 2010 Rev1:

^ Applicability has been updated to include 2010 Prius PHV model.

Any previous printed versions of this service bulletin should be discarded.

Introduction

2010 model year Toyota vehicles are equipped with driver's side floor mat retaining clips to help ensure the floor mat stays in the correct position. In addition, some models may utilize retaining clips for passenger's side floor mats as well. Attach the driver's side and passenger's side (if applicable) floor mat to the vehicle carpet using the floor mat retaining clips during Pre-Delivery Service (PDS).

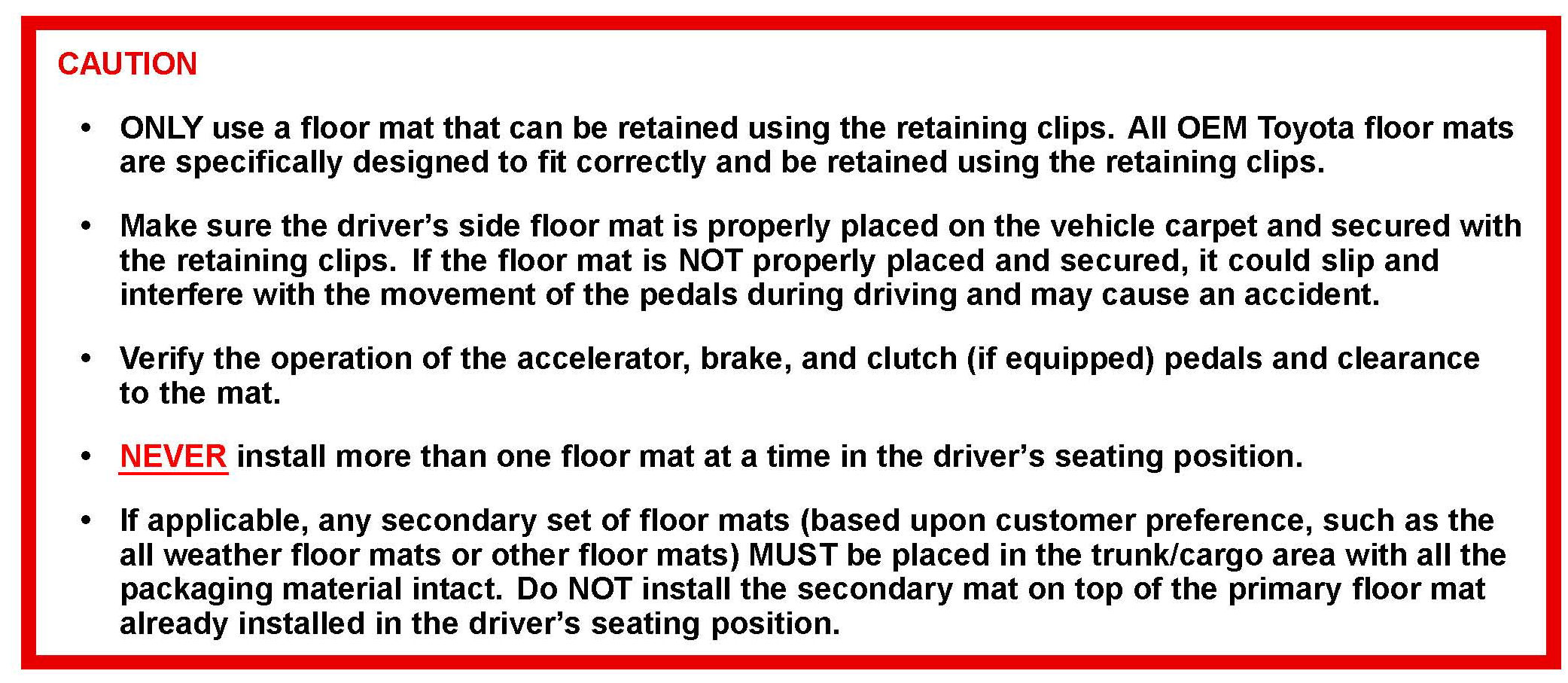

CAUTION





Warranty Information

Installation Procedure

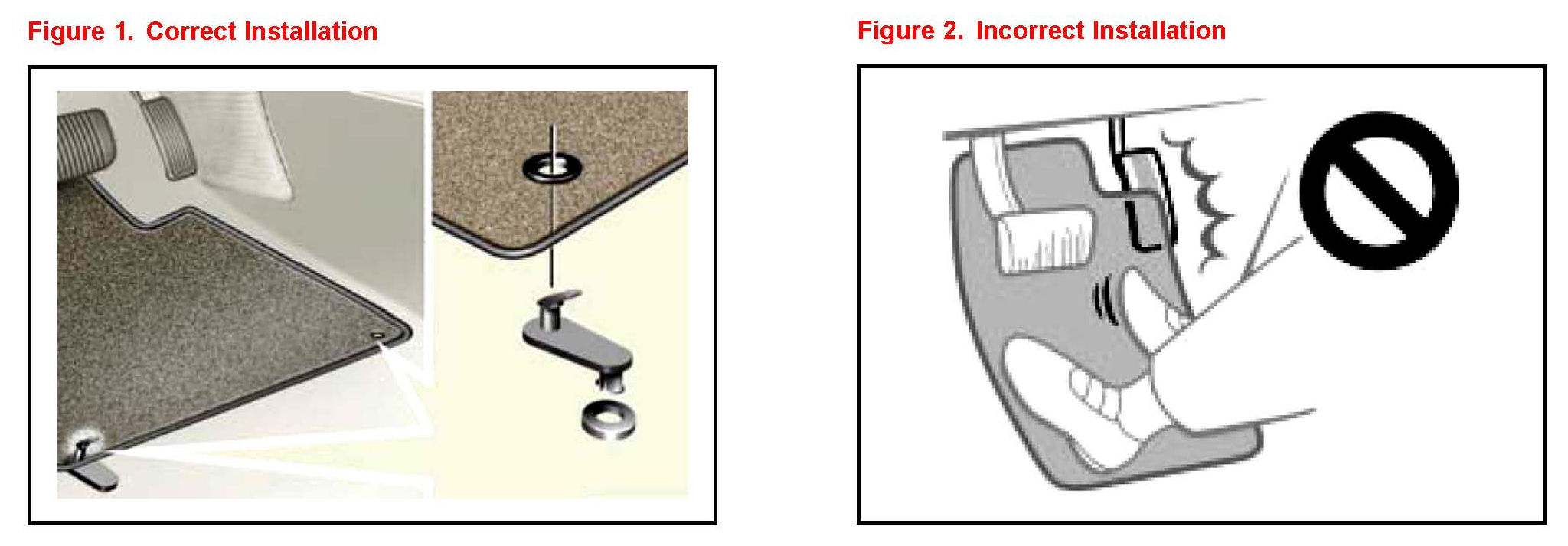

Attach the driver's side and passenger's side (if applicable) floor mat clips. Secure the mat by inserting the retaining clips through the grommet holes.
