Restraints - Proper Rear Seat Belt Orientation

T-SB-0154-09

May 1, 2009

Rear Seat Belt Orientation

Service Category
General

Section
Identification

Market
USA

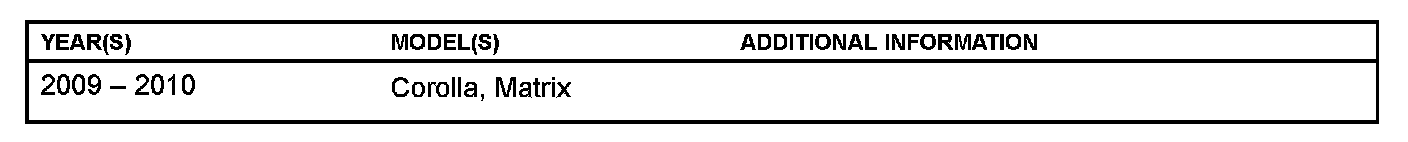

Applicability

Introduction

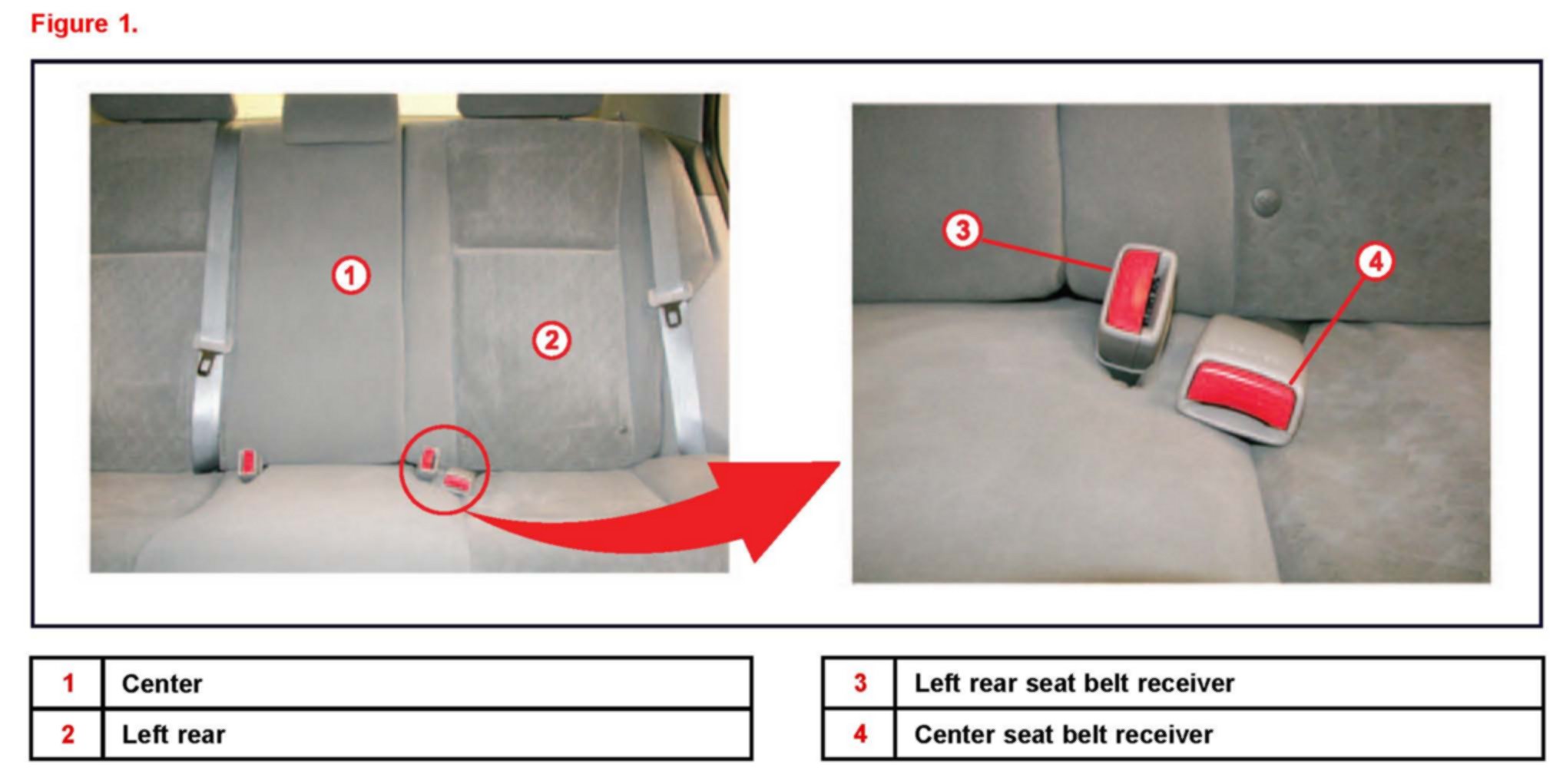

This bulletin provides additional information on the Corolla and Matrix rear seat belt assembly and its proper orientation. This information will help address any customer questions regarding the orientation of the rear seat belt assembly which includes the center and left rear seat belt receiver. Some customers think that the left rear seat belt receivers are reversed. By design the center and left rear seat belt receivers are in the correct position. (see Figure 1).

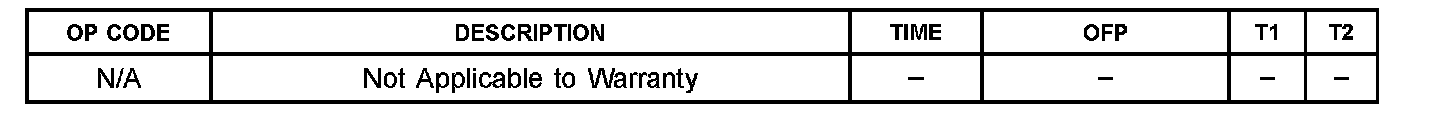

Warranty Information
