Part 2
INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION - (Continued)
12. REGISTER TRANSMITTER ID (Using Techstream) (Tire Pressure Warning System)
(a) Set all tire pressures to the specified value(s) Service Precautions.
(b) Turn the ignition switch off.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn the Techstream on.
(f) Enter the following menus: Chassis / Tire Pressure Monitor / Utility / ID Registration.
(g) Follow the ID Registration steps displayed the Techstream screen.
(h) Confirmation of transmitter ID registration.
(1) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.

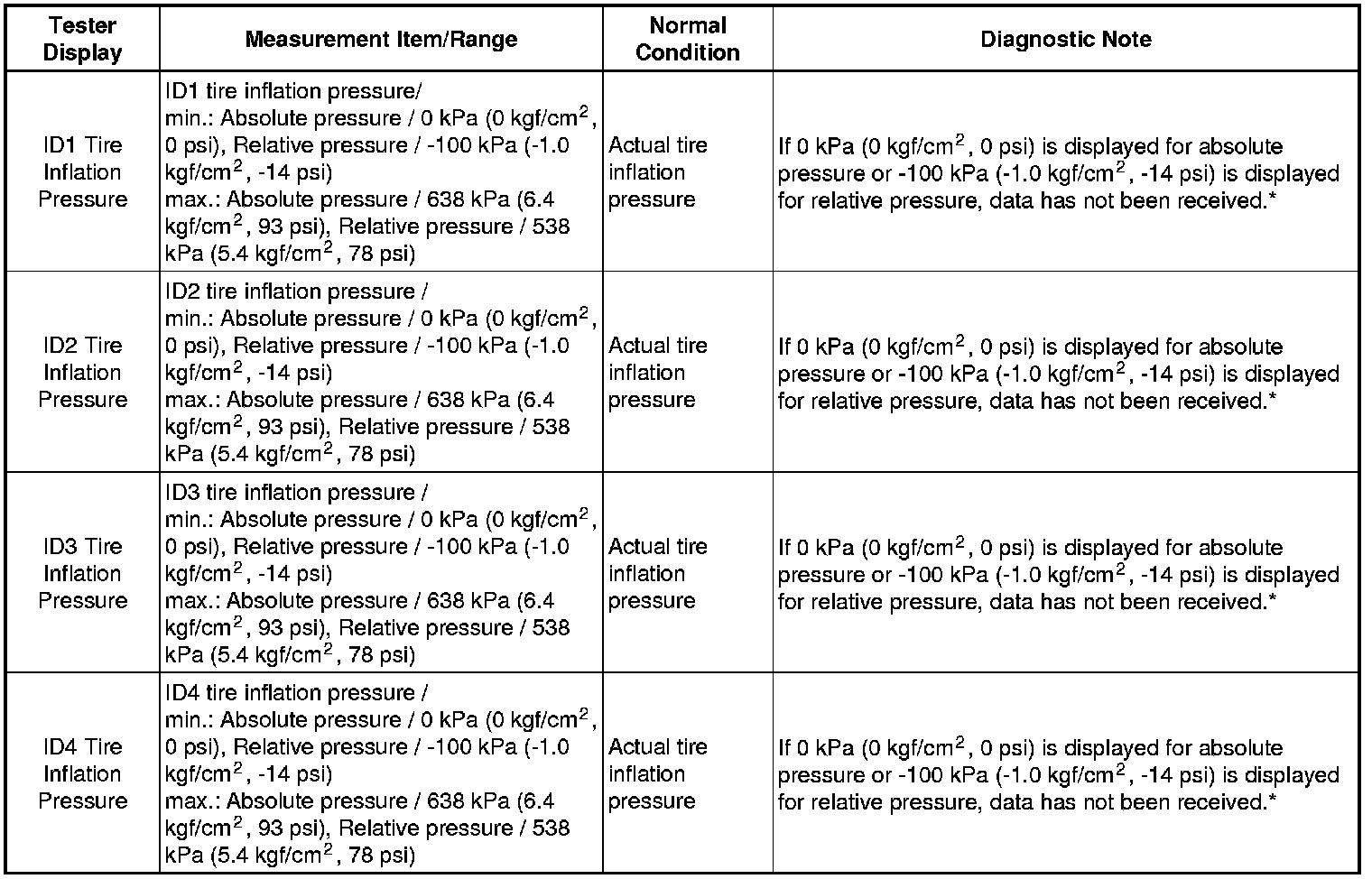

(2) Read the "ID Tire Inflation Pressure" values.
(3) Confirm that the tire pressure data of all tires are displayed on the Techstream.
NOTICE:
* It takes about 2 or 3 minutes to display the updated tire pressure data. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 C2121.
* If the IDs have not been registered, DTC C2171/71 is set in the tire pressure warning ECU after 3 minutes or more.
* If normal pressure values are displayed, the IDs have been registered correctly.
* If the tire pressure values are not displayed after a few minutes, the IDs may be incorrect or the system may have a malfunction.
* After all IDs are registered, DTC C2126/26 (Transmitter ID not Received) is set in the tire pressure warning ECU and the tire pressure warning light blinks for 1 minute and then comes on. When the tire pressure warning ECU successfully receives signals from all the transmitters whose IDs are stored in the ECU, DTC C2126/26 is cleared and the tire pressure warning light goes off.
13. INITIALIZATION PROCEDURE (Tire Pressure Warning System)
(a) Adjust all tire pressures to the standard tire inflation pressure, as indicated on the tire and loading information label on the vehicle.
(b) Turn the ignition switch to ON.

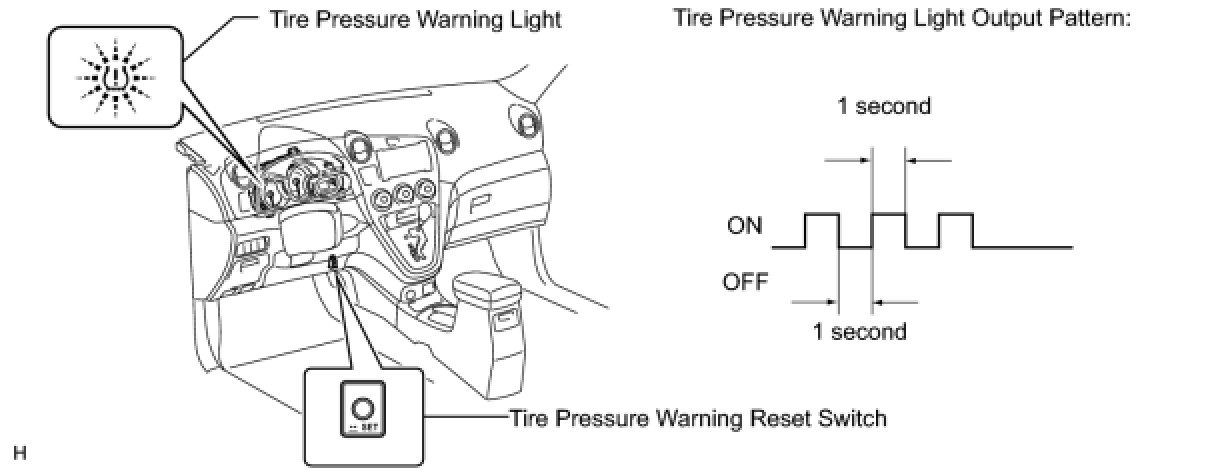

(c) Push and hold the tire pressure warning reset switch for 3 seconds or more so that the tire pressure warning light blinks 3 times.
(d) Turn the ignition switch off.
(e) Connect the Techstream to the DLC3.
(f) Turn the ignition switch to ON.
(g) Turn the Techstream on.
(h) Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
(i) Check that initialization has been completed.
(j) Confirm that tire pressure data of all wheels are displayed on the Techstream.
NOTICE:
* Initialization normally completes within 2 or 3 minutes.
* If initialization did not complete successfully, DTC C2177/77 will be set after a vehicle speed 8 km/h (5 mph) or more continues for 20 minutes or more.

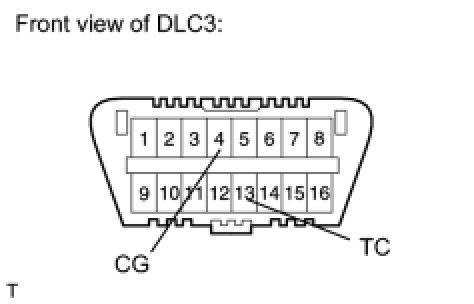

* Initialization can be terminated by connecting terminals TC and CG of the DLC3.
HINT
* The initialization is completed when the "ID Tire Inflation Pressure" display shows the correct pressures.
* *: It may take about 2 or 3 minutes until the values are displayed. If the values are not displayed after a few minutes, perform troubleshooting according to the inspection procedure for DTCs C2121/21 to C2124/24 C2121.
14. OBTAIN ZERO POINT OF YAW RATE AND ACCELERATION SENSOR (When Using the Techstream) (Vehicle Stability Control System)
NOTICE:
* While obtaining the zero point, keep the vehicle stationary and do not vibrate, tilt, move, or shake it. (Do not start the engine.)
* Be sure to perform this procedure on a level surface (with an inclination of less than 1 degree).
(a) Clear the zero point calibration data.
(1) Turn the ignition switch off.
(2) Check that the steering wheel is centered.
(3) Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
(4) Connect the Techstream to the DLC3.
(5) Turn the ignition switch to ON.
(6) Turn the Techstream on.
(7) Select the skid control ECU to clear the zero point calibration data using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Reset Memory.
(8) Turn the ignition switch off.
NOTICE:
If the ignition switch is turned to ON for more than 15 seconds with the shift lever in P (for automatic transaxle) or the parking brake applied (for manual transaxle) after zero point of the yaw rate and acceleration sensor has been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator lights.
(b) Perform zero point calibration of the yaw rate and acceleration sensor.
(1) Turn the ignition switch off.
(2) Check that the steering wheel is centered.
(3) Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
NOTICE:
DTCs C1210/36 and C1336/39 will be recorded if the shift lever is not in P (for automatic transaxle) or the parking brake is not applied (for manual transaxle) C1210.
(4) Connect the Techstream to the DLC3.
(5) Turn the ignition switch to ON.
(6) Turn the Techstream on.
(7) Switch the skid control ECU to Test Mode using the Techstream. Enter the following menus: Chassis / ABS/VSC/TRAC / Utility / Test Mode.
(8) After the system enters Test Mode, keep the vehicle stationary on a level surface for 2 seconds or more.

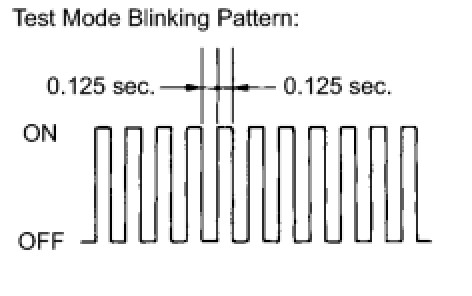

(9) Check that the VSC OFF indicator light comes on for several seconds and then blinks in Test Mode.
HINT
* The slip indicator light remains on during Test Mode because traction control operation is prohibited (The slip indicator light goes off when the VSC OFF switch is on).
* If the VSC OFF indicator light does not blink, perform zero point calibration again.
* Zero point calibration is performed only once after the system enters Test Mode.
* Calibration cannot be performed again until the stored data is cleared.
(10) Turn the ignition switch off and disconnect the Techstream.
15. OBTAIN ZERO POINT OF YAW RATE AND ACCELERATION SENSOR (When not Using the Techstream) (Vehicle Stability Control System)
NOTICE:
* While obtaining the zero point, keep the vehicle stationary and do not vibrate, tilt, move, or shake it. (Do not start the engine.)
* Be sure to perform this procedure on a level surface (with an inclination of less than 1 degree).
(a) Clear the zero point calibration data.
(1) Turn the ignition switch off.
(2) Check that the steering wheel is centered.
(3) Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
(4) Turn the ignition switch to ON.
(5) The warning and indicator light come on for 3 seconds to indicate that the initial check is completed.
(6) Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.
SST : 09843-18040
(7) Check that the VSC OFF indicator light comes on.
NOTICE:
If the ignition switch is turned to ON for more than 15 seconds with the shift lever in P (for automatic transaxle) or the parking brake applied (for manual transaxle) after zero point of the yaw rate and acceleration sensor has been cleared, only the zero point of the yaw rate sensor will be stored. If the vehicle is driven under these conditions, the skid control ECU will store the zero point calibration for the acceleration sensor as not being completed. The skid control ECU will then also indicate this as a malfunction of the VSC system using the indicator lights.
(b) Perform zero point calibration of the yaw rate and acceleration sensor.
(1) Turn the ignition switch off.
(2) Check that the steering wheel is centered.
(3) Check that the shift lever is in P (for automatic transaxle) or the parking brake is applied (for manual transaxle).
NOTICE:
DTCs C1210/36 and C1336/39 will be recorded if the shift lever is not in P (for automatic transaxle) or the parking brake is not applied (for manual transaxle) C1210.
(4) Using SST, connect terminals TS and CG of the DLC3.
SST : 09843-18040
(5) Turn the ignition switch to ON.
(6) Keep the vehicle stationary on a level surface for 2 seconds or more.
(7) Check that the VSC OFF indicator light comes on for several seconds and then blinks in Test Mode.
HINT
* The slip indicator light remains on during Test Mode because traction control operation is prohibited (The slip indicator light goes off when the VSC OFF switch is on).
* If the VSC OFF indicator light does not blink, perform zero point calibration again.
* Zero point calibration is performed only once after the system enters Test Mode.
* Calibration cannot be performed again until the stored data is cleared.
(8) Turn the ignition switch off and disconnect SST from the DLC3.
16. ROTATION ANGLE SENSOR INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION (Power Steering System)
NOTICE:
Clear the rotation angle sensor calibration value, initialize the rotation angle sensor, and calibrate the torque sensor zero point if any of the following has occurred:
* The power steering ECU has been replaced.
* The power steering link assembly has been replaced.
* Steering effort differs between left and right.
(a) Inspection before calibration
(1) Turn the ignition switch off.
(2) Connect the Techstream to the DLC3.
(3) Turn the ignition switch to ON.
(4) Turn the Techstream on.
(5) Enter the following menus: Chassis / EMPS / Data List.

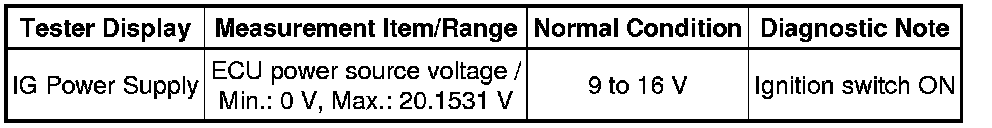

Check the values by referring to the table below.
Standard voltage:
9 to 16 V
NOTICE:
If the IG power supply voltage is 9 V or less, calibration cannot be performed. In this case, charge or replace the battery, and then perform calibration.
(b) Rotation angle sensor calibration value clear, rotation angle sensor initialization, and torque sensor zero point calibration.
NOTICE:
* If DTC C1516 (Torque Sensor Zero Point Adjustment Incomplete) is stored, the torque sensor zero point cannot be calibrated. Clear the DTC before starting calibration.
* If DTC C1526 (Rotation Angle Sensor Initialization Incomplete) is stored, the rotation angle sensor cannot be initialized. Clear the DTC before starting initialization.
(1) Turn the ignition switch off.
(2) Connect the Techstream to the DLC3.
(3) Turn the ignition switch to ON.
(4) Turn the Techstream on.
(5) Enter the following menus: Chassis / EMPS / Utility / Torque Sensor Adjustment.
NOTICE:
* Center the steering wheel and align the front wheels straight ahead.
* Do not turn the steering wheel sharply.
* Do not touch the steering wheel during the torque sensor zero point calibration (for 3 seconds).
17. REGISTRATION OF RECOGNITION CODE (USING TECHSTREAM) (Wireless Door Lock Control System)
(a) Turn the ignition switch to ON.
(b) Select either add or rewrite mode according to the Techstream display.
(c) The number of registered codes is indicated.
(d) Register of the door control transmitter.
(1) If either add mode or rewrite mode has been selected, press the LOCK and UNLOCK switches on the transmitter simultaneously.
(2) Within 3 seconds of releasing the LOCK and UNLOCK switches, press either of the switches on the door control transmitter.
NOTICE:
* Do not press the LOCK and UNLOCK switches simultaneously for more than 1.5 seconds.
* Perform this operation within 1 meter of the driver seat to register the transmitter.
* Do not push other transmitter switches during the transmitter registration process.
(3) The main body ECU automatically performs the power door LOCK-UNLOCK operation once in order to indicate whether registration has been completed correctly or not.
(4) If continuing registration, the next recognition code must be registered in the door control transmitter within 30 seconds.
HINT
Up to 4 recognition codes can be registered.
(e) Complete the registration mode.
(1) Registration mode will end when any of the following occurs:
* 30 seconds or more have elapsed after a code is registered.
* The Techstream is used to finish registration.
* The Techstream is disconnected.
* The ignition switch is turned off.
(f) Perform the following after registration is completed.
(1) Perform the wireless door lock control operation check Operation Check.
HINT
If the wireless door lock control does not operate, perform the registration procedure again.
18. REGISTRATION OF RECOGNITION CODE (MANUAL OPERATION) (Wireless Door Lock Control System)
(a) The vehicle should be in the following conditions.
(1) No key is inserted in the ignition key cylinder.
(2) Only driver door is opened.
(b) Perform the following operations to select the desired mode.
(1) Insert and remove the key from the ignition switch twice within 5 seconds. (End with key removed)
(2) After the above operation, close and open the driver door twice. (End with door open)
Then insert the key into the ignition key cylinder and remove it.
HINT
Complete this procedure within 40 seconds.
(3) After the above operations, close and open the driver door twice. (End with door open)
Then insert the key into the ignition key cylinder and close the door.
HINT
Complete this procedure within 40 seconds.
(4) Turn the ignition switch from LOCK to ON and back to LOCK at approximately 1 second intervals 1 to 5 times to select a mode (see the illustration). Then remove the key from the ignition key cylinder.
HINT
Complete this procedure within 40 seconds.
NOTICE:
If the number of the ON-LOCK operations of the ignition switch is 0, 4, 6 or more, there will be no response to inform which mode has been selected.

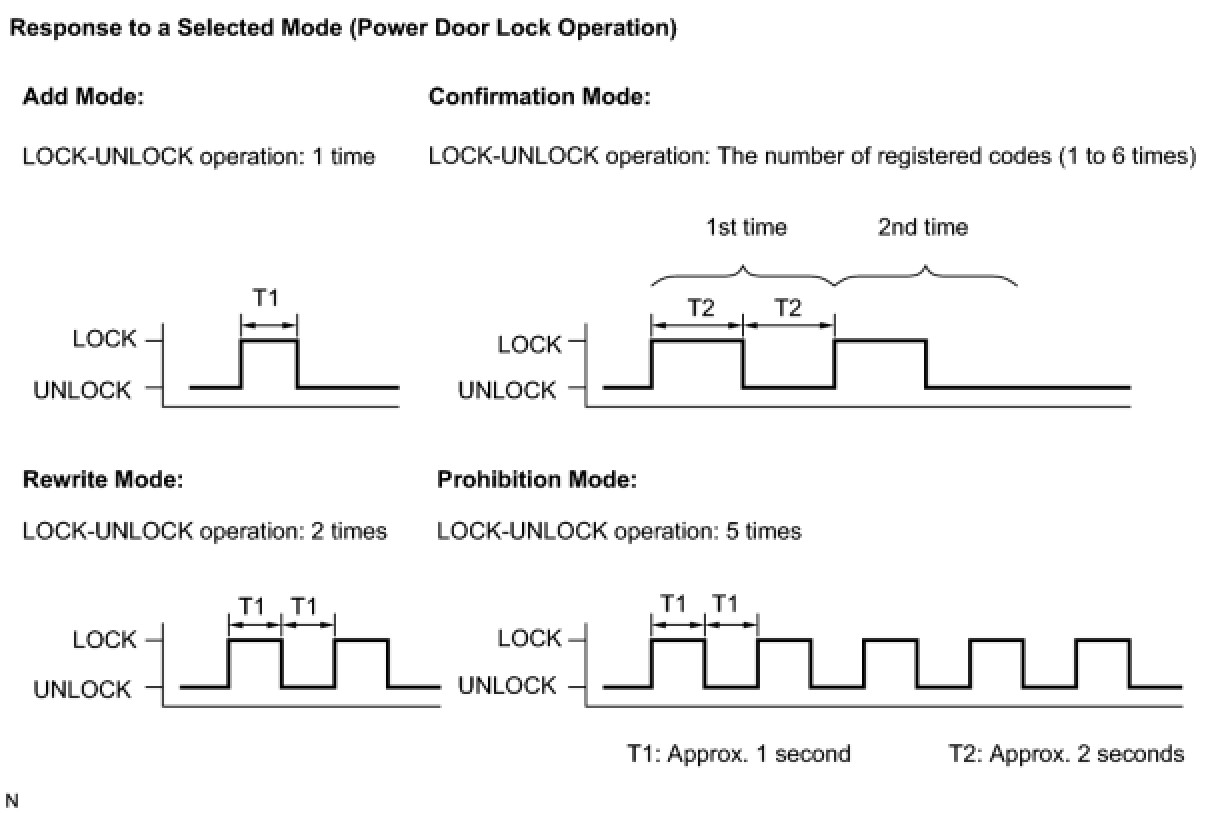

(5) After selecting a mode, the main body ECU automatically performs the power door LOCK- UNLOCK operation within 5 seconds to inform the selected mode (see the illustration).
HINT
* In confirmation mode, the LOCK- UNLOCK operation will occur once for each recognition code that has been registered. For example, if 2 recognition codes have been registered, the LOCK-UNLOCK operation will occur 2 times.
* In confirmation mode and prohibition mode, once a LOCK-UNLOCK operation response has occurred, the registration procedure will end.
(c) Register new recognition codes (add mode or rewrite mode):
(1) Within 45 seconds after add mode or rewrite mode has been selected, press the LOCK and UNLOCK switches on the transmitter simultaneously for 1.0 to 1.5 seconds.
Then, press either one of the switches for more than 1.0 second. (Procedure "A")

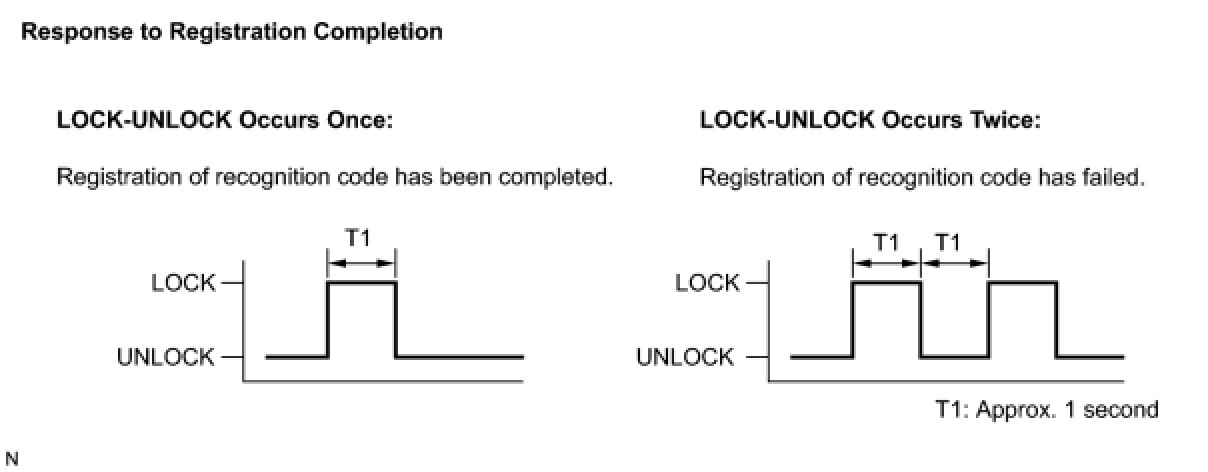

(2) Within 5 seconds after the transmitter has been released, the LOCK-UNLOCK operation will be automatically performed once if the registration of the recognition code of the transmitter is completed correctly.
If the LOCK-UNLOCK operation is performed twice, registration of the recognition code has failed. Perform the registration procedure from the beginning. (Procedure "B")
(3) If multiple transmitters need to be registered, repeat procedures "A" and "B" within 45 seconds after the previous registration.
HINT
* 4 recognition codes can be registered at once.
* If even one of the following conditions is satisfied, registration mode will end.
* 40 seconds have elapsed after a recognition code has been registered.
* Any of the doors is opened.
* The key is inserted into the ignition key cylinder.
* 4 recognition codes are registered.
19. ZERO POINT CALIBRATION (Occupant Classification System)
(a) Zero point calibration procedures
(1) Check that all of the following conditions are met:
* The vehicle is parked on a flat surface.
* No objects are placed on the front passenger seat.
* The front passenger seat belt buckle switch is OFF.

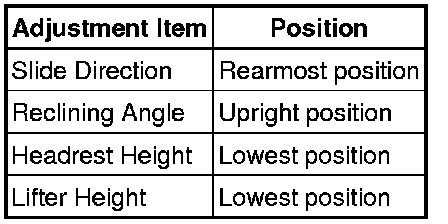

(2) Adjust the seat position according to the table below:
(3) Connect the Techstream to the DLC3.
(4) Turn the ignition switch to ON.
(5) Perform zero point calibration by following the prompts on the Techstream screen.
HINT
* Refer to the Techstream operator's manual for further details.
* If zero point calibration is performed when the calibration conditions are not satisfied, DTC B1797 is output.
* If zero point calibration has failed, DTC B1797 is output.
20. SENSITIVITY CHECK (Occupant Classification System)
(a) Sensitivity check procedure
(1) Turn the ignition switch off.
(2) Place a 20 kg (44.0 lb) weight on the front passenger seat.
NOTICE:
* Do not allow the weight to come into contact with the seatback when placing it on the seat cushion.
* Place the weight in the area shown in the illustration.
(3) Turn the ignition switch to ON, and wait for at least 6 seconds.
(4) Check that the passenger airbag ON/OFF indicator indicates OFF.
OK:
The passenger airbag ON/OFF indicator indicates OFF.
(5) Add a 30 kg (66.1 lb) weight to the front passenger seat (total 50 kg (110.2 lb)).
NOTICE:
* Do not allow the weight to come into contact with the seatback when placing it on the seat cushion.
* Place the weight in the area shown in the illustration.
(6) Check that the passenger airbag ON/OFF indicator indicates ON.
OK:
The passenger airbag ON/OFF indicator indicates ON.
21. INITIALIZE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (Sliding Roof System)
NOTICE:
When removing the sliding roof control ECU (sliding roof drive gear sub-assembly), the sliding roof control ECU (sliding roof drive gear sub-assembly) requires initialization. If a reset is not executed, the following functions do not operate: auto operation, key off operation and jam protection function.
(a) Turn the ignition switch to ON.
(b) Make sure that the sliding roof is fully closed.
(c) Press the TILT UP switch until the sliding roof stops at the fully tilt up position. Then release the switch.
(d) Press and hold the TILT UP switch until the following movement finishes and then release the switch: approximately 10 seconds -> tilt up (approximately 5 mm) -> tilt down (approximately 5 mm).
(e) Within 5 seconds after finishing the previous step, press and hold the TILT UP switch until the following movement finishes and then release the switch: approximately 5 seconds -> tilt down -> fully closed -> slide open -> fully open -> slide close -> fully closed.
HINT
The initialization process ends when the close operation completes.
(f) Check that the AUTO operation functions normally.
NOTICE:
If the following conditions occur during the initialization procedure, initialization will fail:
* One of the following electric loads is given to the vehicle during initialization: cranking the engine, power window operation, rear defogger operation, blower operation, power seat operation, power door lock operation or headlight illumination.
* The ignition switch is turned off.
* Another switch is turned on during initialization.
* The vehicle experiences a strong vibration during initialization, such as slamming of a door.
HINT
* If the sliding roof cannot be fully closed or its position has become misaligned, perform initialization again.
* If the roof glass stops moving or starts moving in the opposite direction while the CLOSE/UP switch is held down, continue to hold the switch for another 10 seconds or more to return the sliding roof control ECU to an uninitialized condition. Then perform the initialization procedure again.
* If the AUTO operation function and jam protection function do not operate after the drive gear has been reset, replace the sliding roof control ECU (sliding roof drive gear sub-assembly).
