Windows: Description and Operation

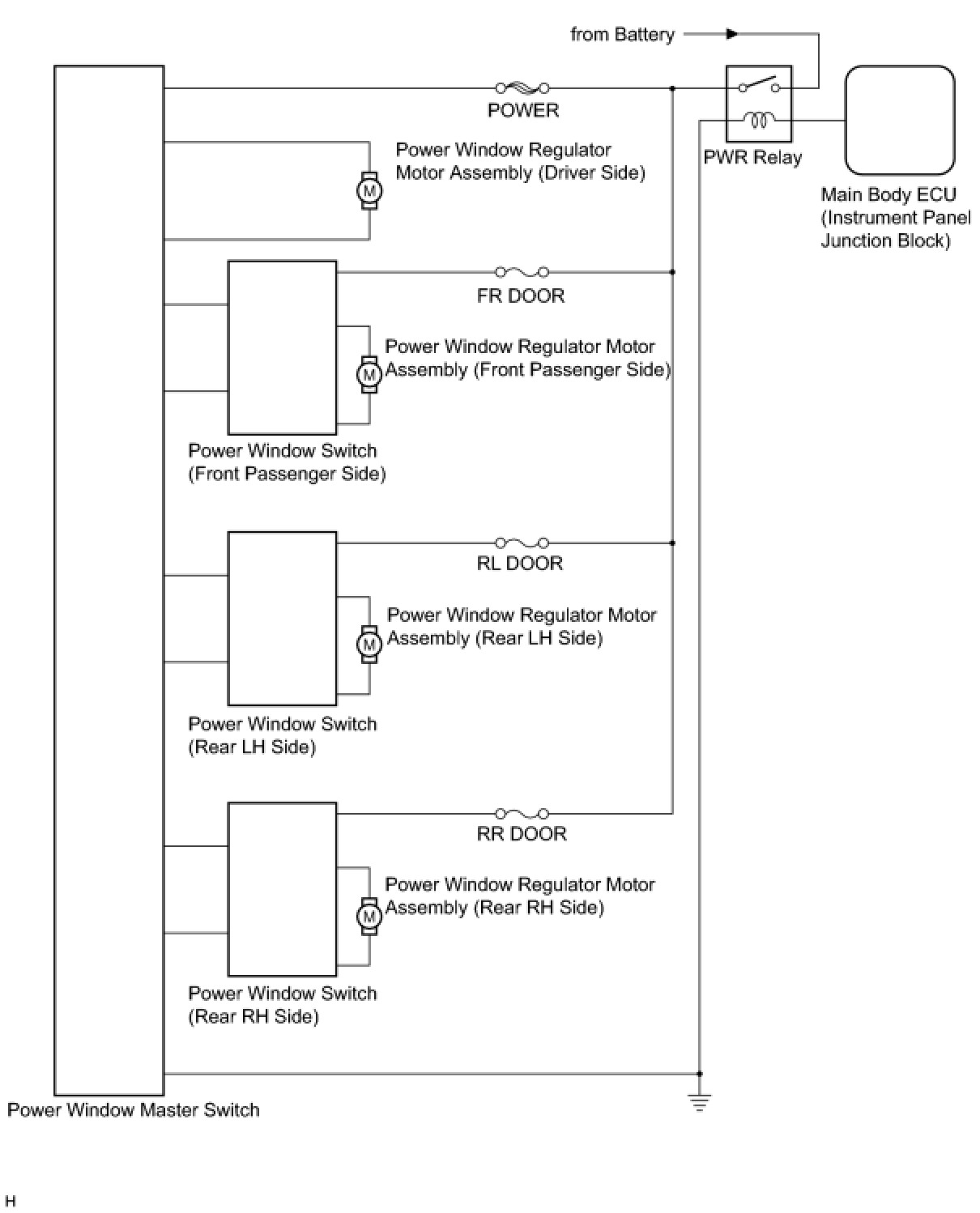

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DIAGRAM






WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION

The power window control system controls the power window UP / DOWN function using the regulator motors.

The main controls of this system are: the power window master switch, which is built into the driver side door, and the power window switches, which are built into the passenger side door and rear doors. Pressing the switch or any of the switches on the master switch transmits an UP / DOWN signal to the corresponding power window regulator motor.

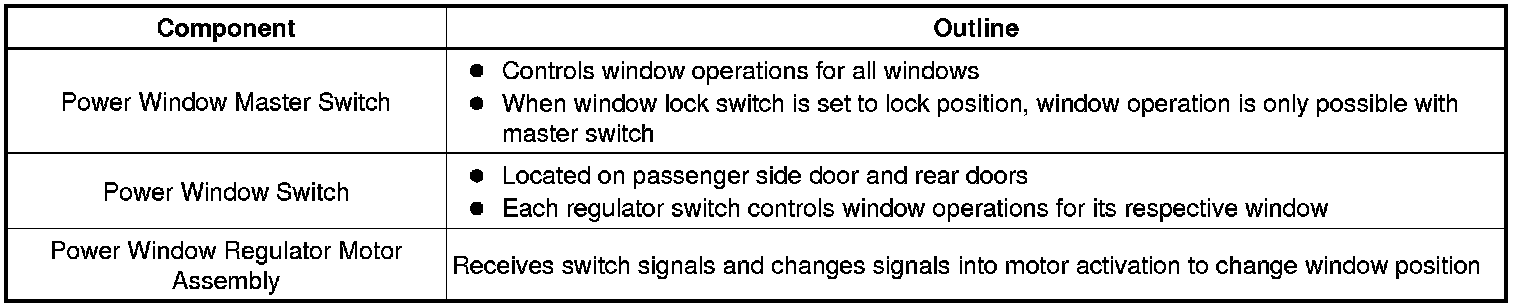

2. FUNCTION OF MAIN COMPONENTS





3. SYSTEM FUNCTION

The power window control system has the following functions.
