Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

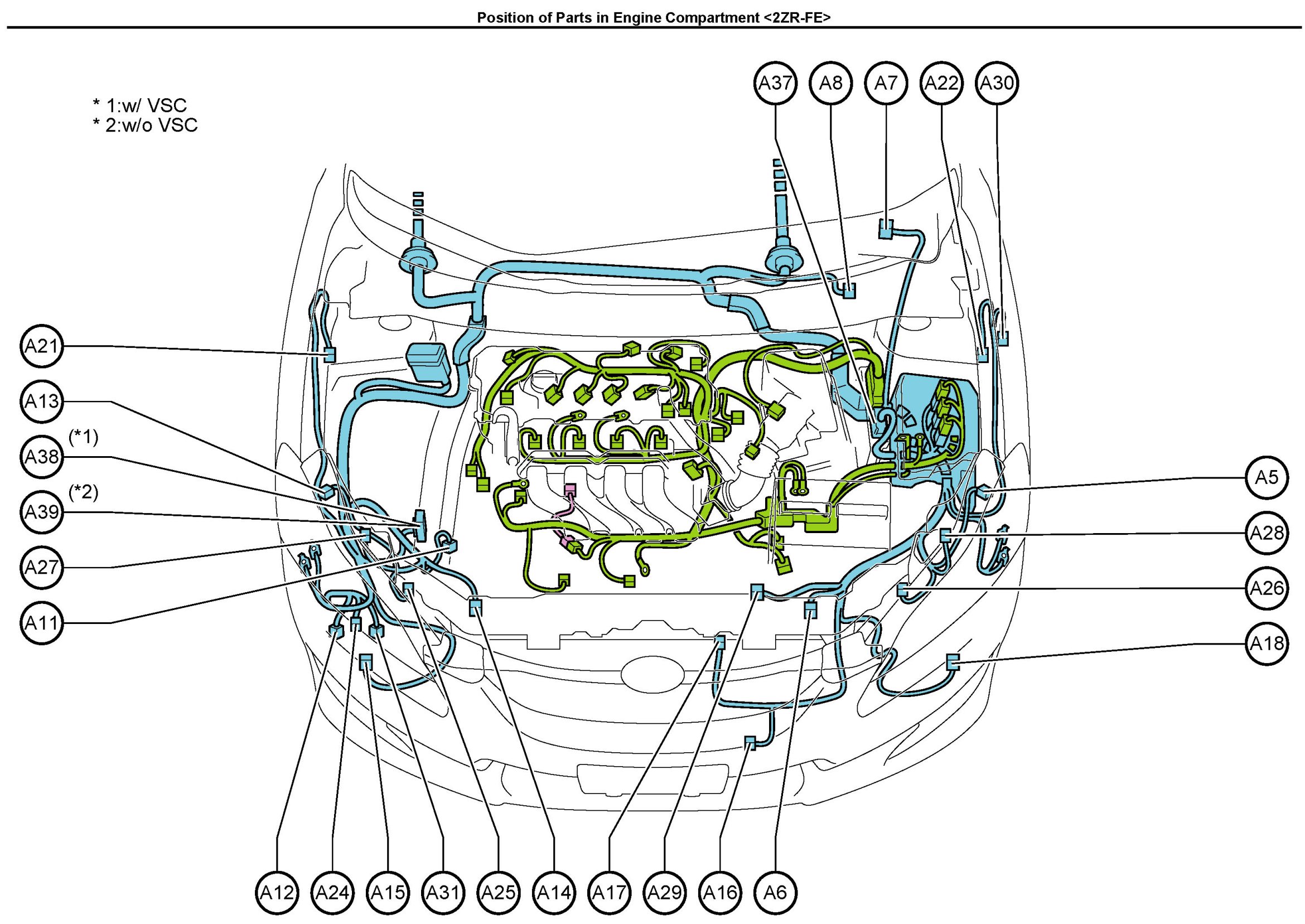

Position of Parts in Engine Compartment:

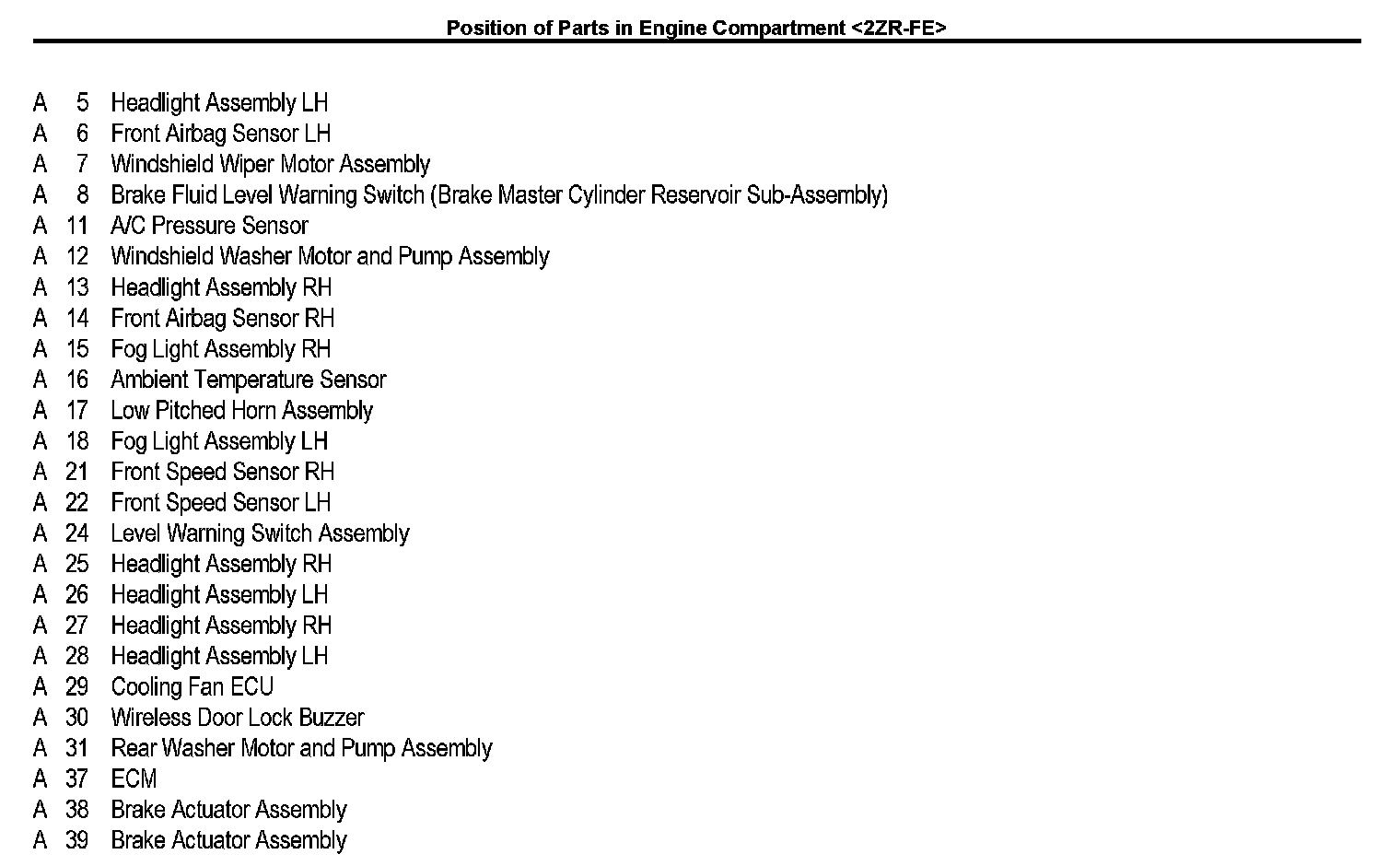

Legend:

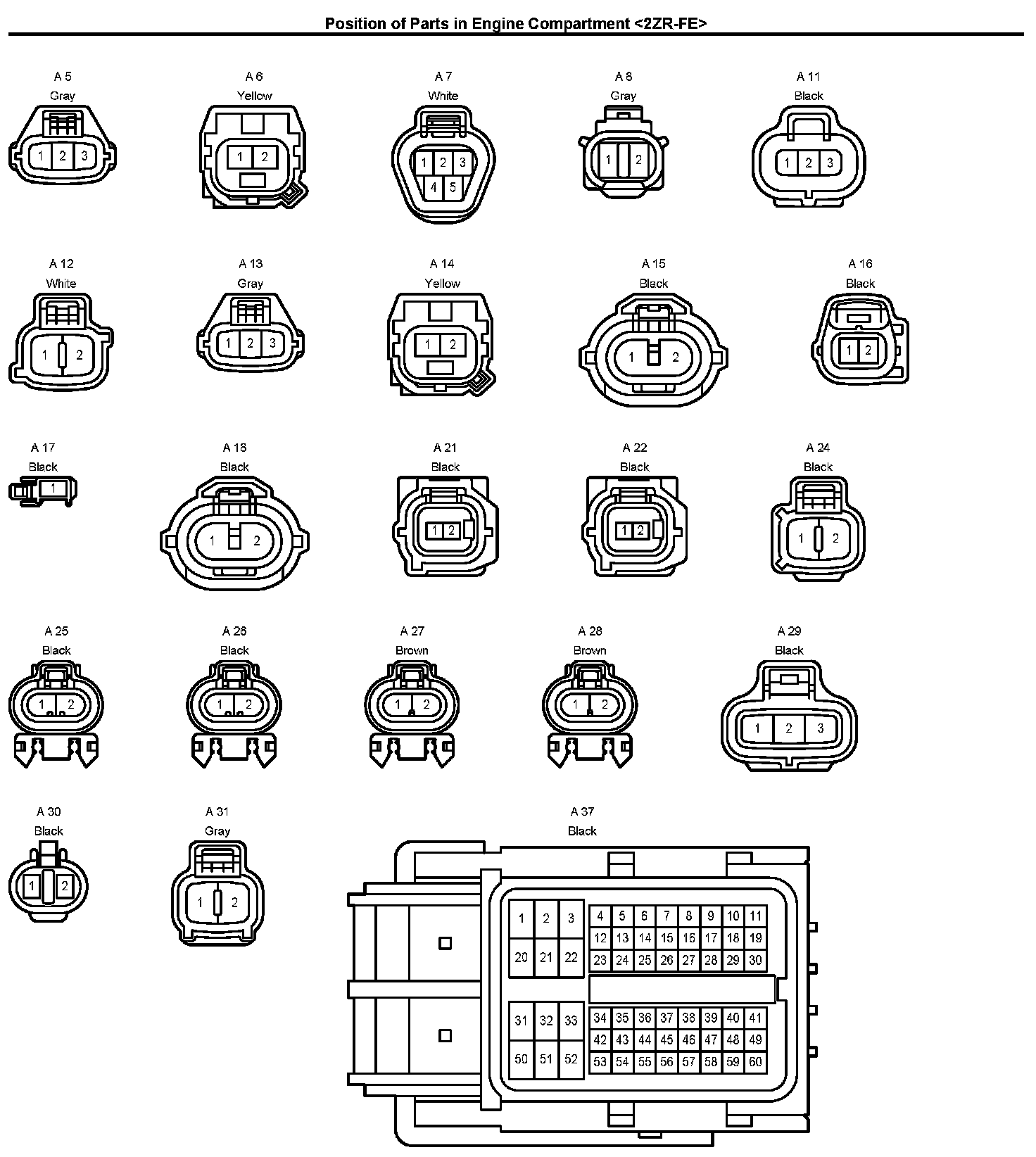

Connector Views:

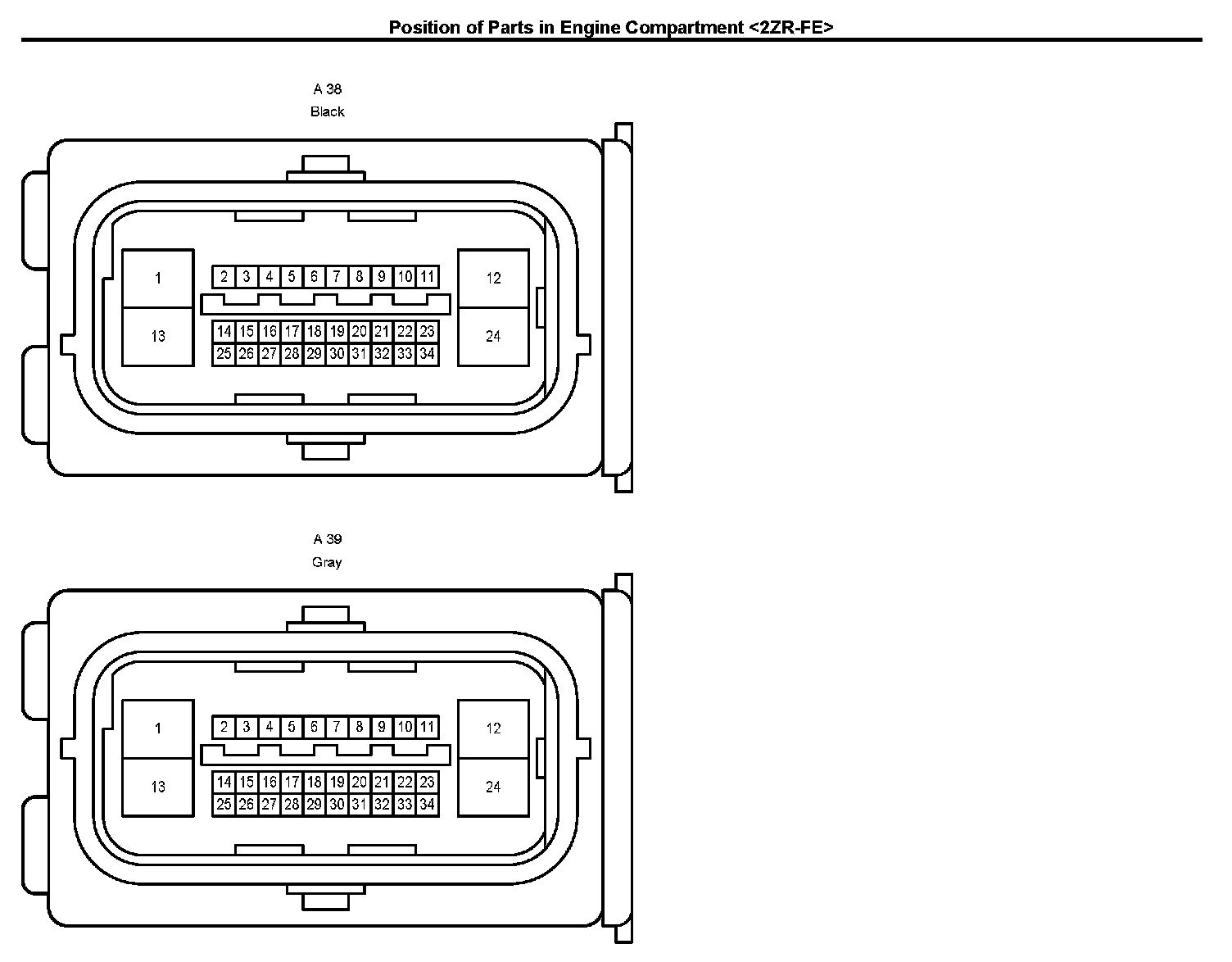

Connector Views:
Position of Parts in Engine Compartment:

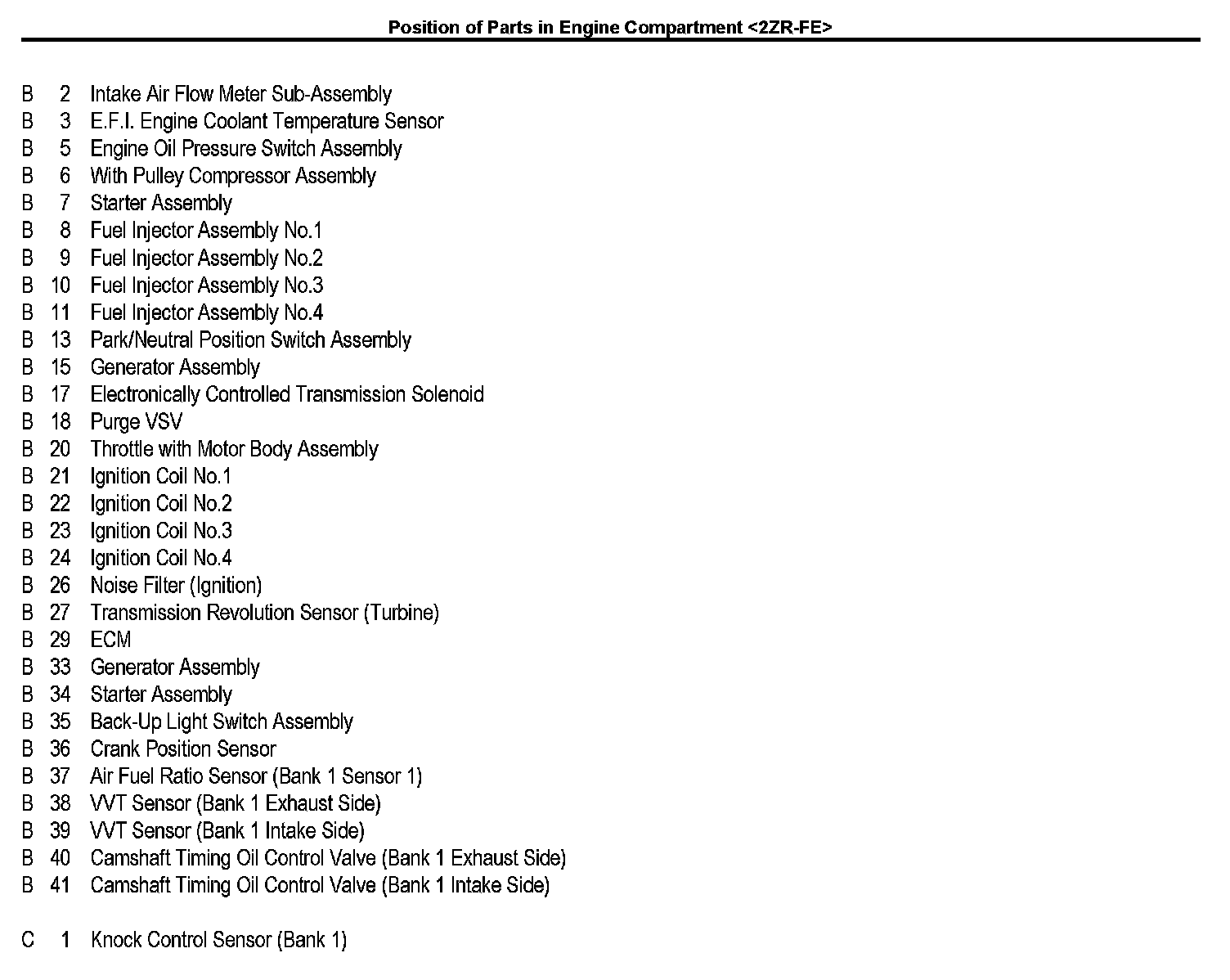

Legend:

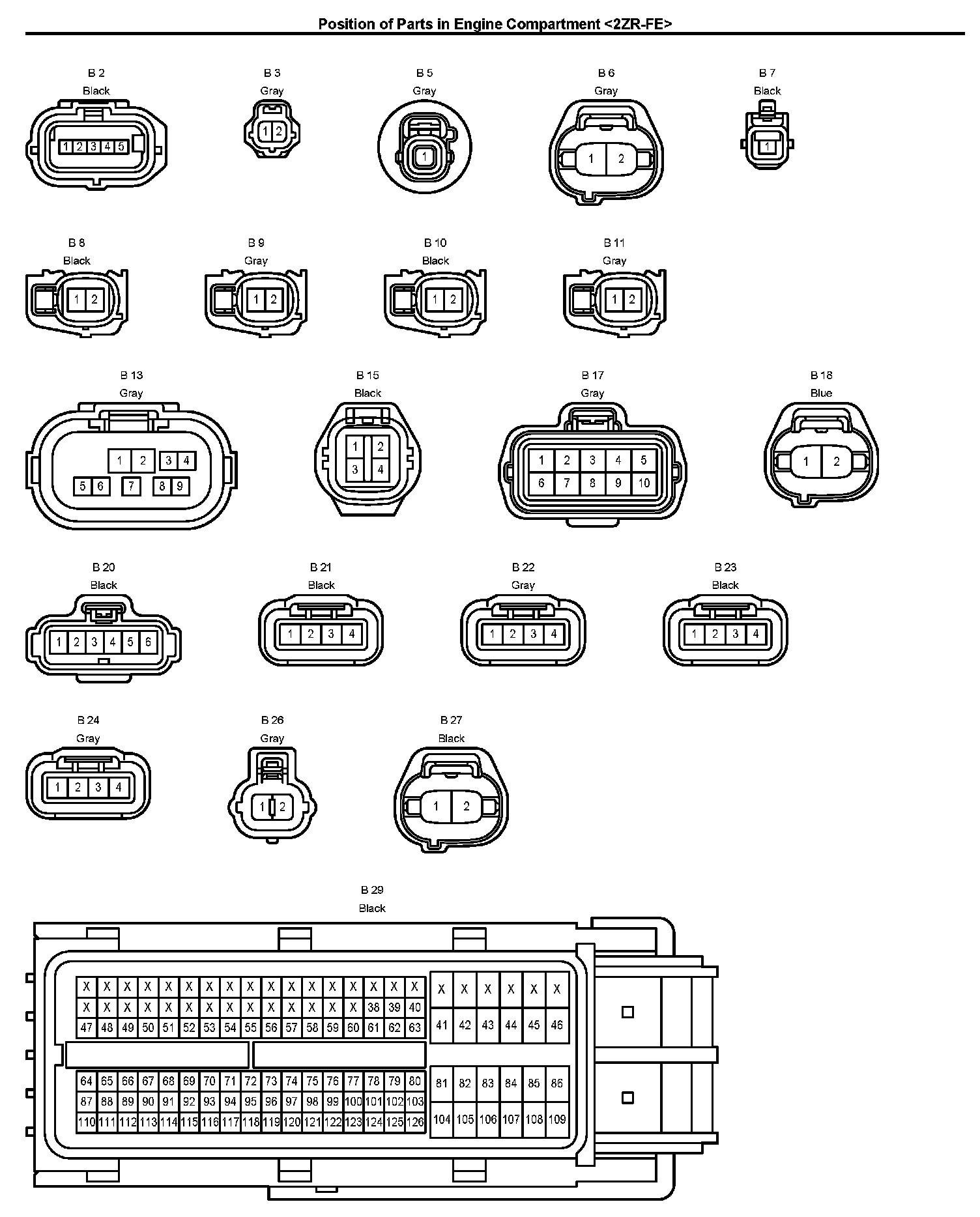

Connector Views:
Connector Views:
