Spark Plug
Spark Plug

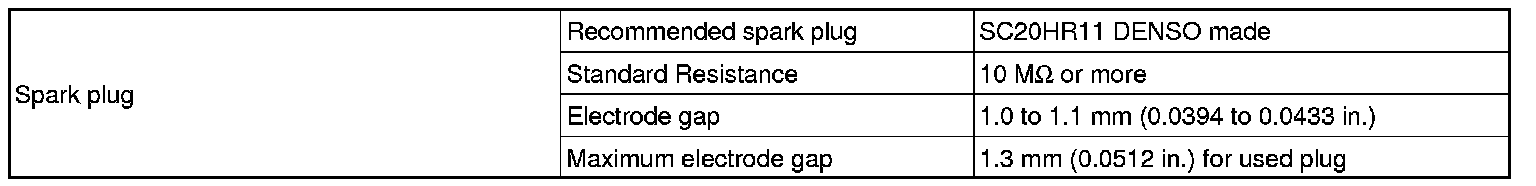

SPARK PLUG
Gap
Torque
Using a 14 mm
spark plug
wrench, install the 4 spark plugs.
Torque
20 Nm (204 kgf-cm, 15 ft-lbf)
