A/T Controls - MIL ON/DTC P0713 Set
T-SB-0099-10April 9, 2010
MIL "ON" DTC P0713 (U34 # E)
Service Category
Drivetrain
Section
Automatic Transmission/Transaxle
Market
USA
Applicability
Introduction
Some 2010 model year Corolla Matrix and Yaris vehicles equipped with the U34 # E automatic transaxle may exhibit a MIL "ON" condition with the Diagnostic Trouble Code (DTC) P0713 (Transaxle Fluid Temperature Sensor "A" High Input) stored in the Engine Control Module/ECM (SAE term: Powertrain Control Module/PCM). The transaxle wire harness has been revised. Please follow the repair procedure in this bulletin to address this condition.
Production Change Information

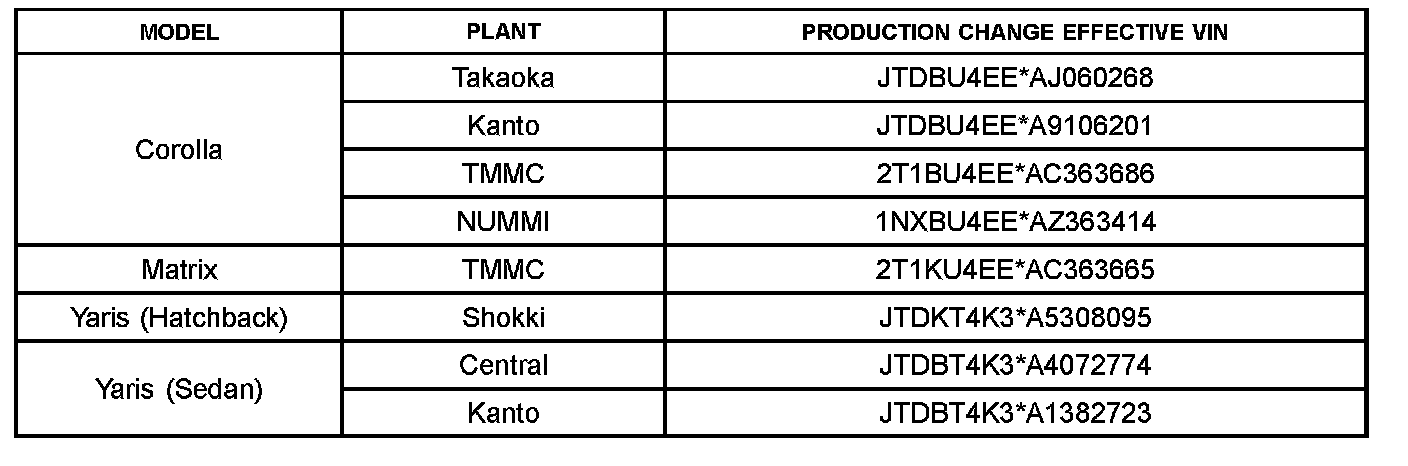

This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.
Repair Procedure
Replace the transaxle wire harness.
Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:
^ 2010 Corolla:
Drivetrain - Automatic Transmission/Transaxle - "U341E Automatic Transmission/Transaxle: Transmission Wire: Removal / Installation"
^ 2010 Matrix:
Drivetrain - Automatic Transmission/Transaxle - "U341E Automatic Transmission/Transaxle: Transmission Wire: Removal / Installation"
^ 2010 Yaris:
Drivetrain - Automatic Transmission/Transaxle: Unit Repair - "U340E Automatic Transaxle: Transmission Wire: Removal / Installation"
