Key Reminder Warning System

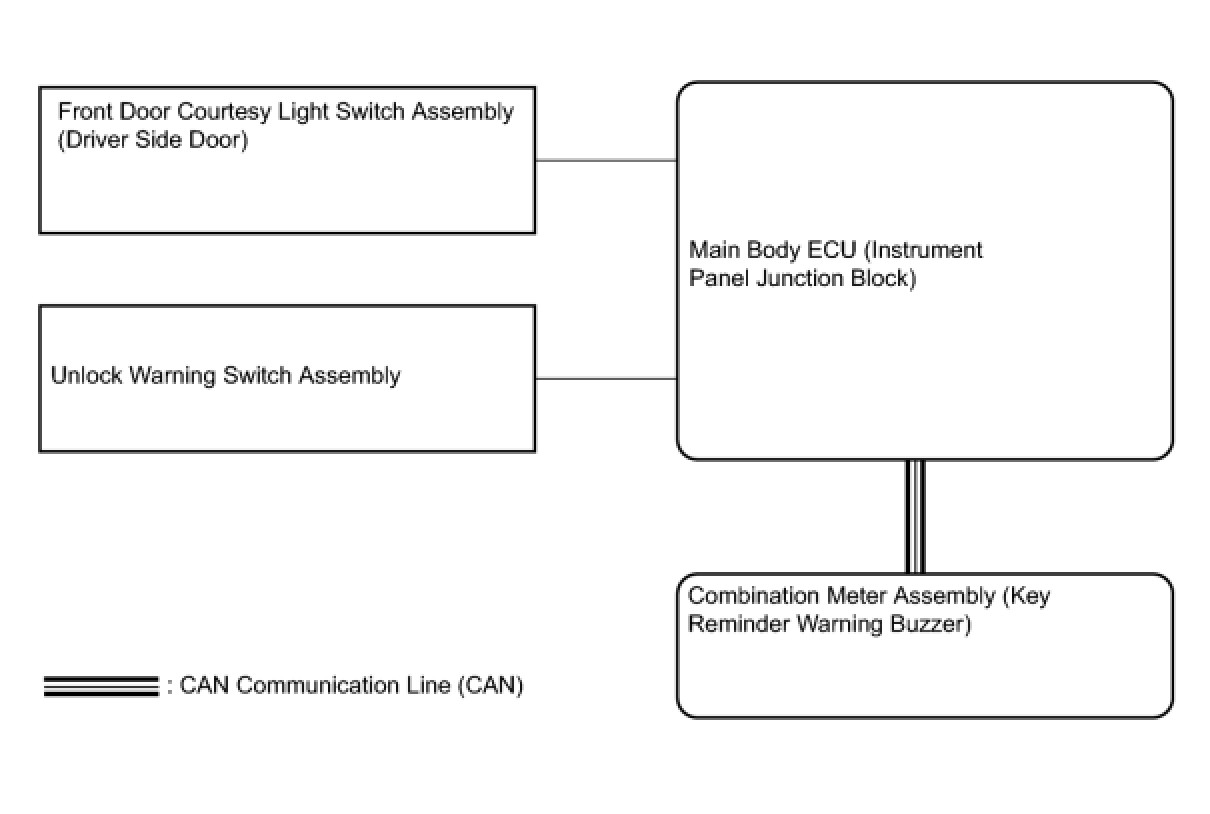

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DIAGRAM





Main Body ECU






1. KEY REMINDER WARNING SYSTEM DESCRIPTION

(a) When the driver side door is opened with the ignition key in ACC or LOCK, this system causes a buzzer to sound in order to warn the driver that the ignition key has not been removed.
