Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM

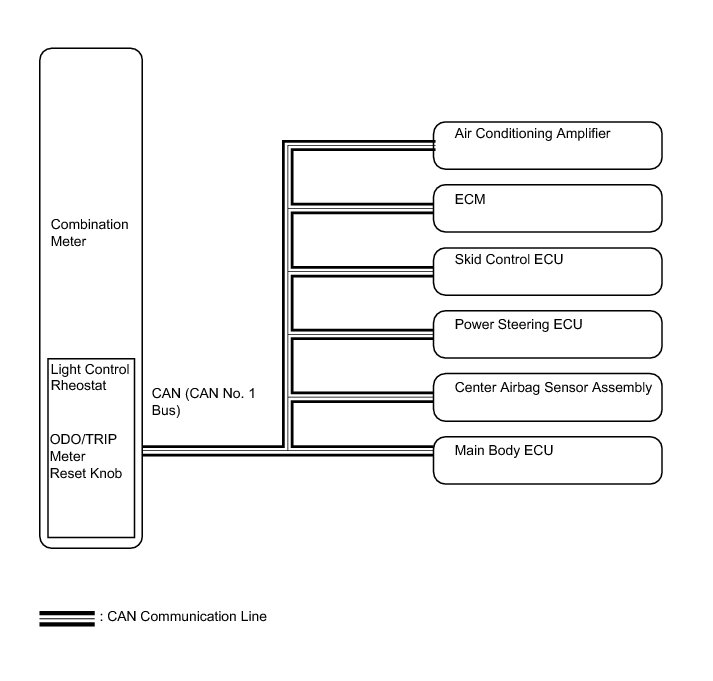

1. CAN SIGNAL

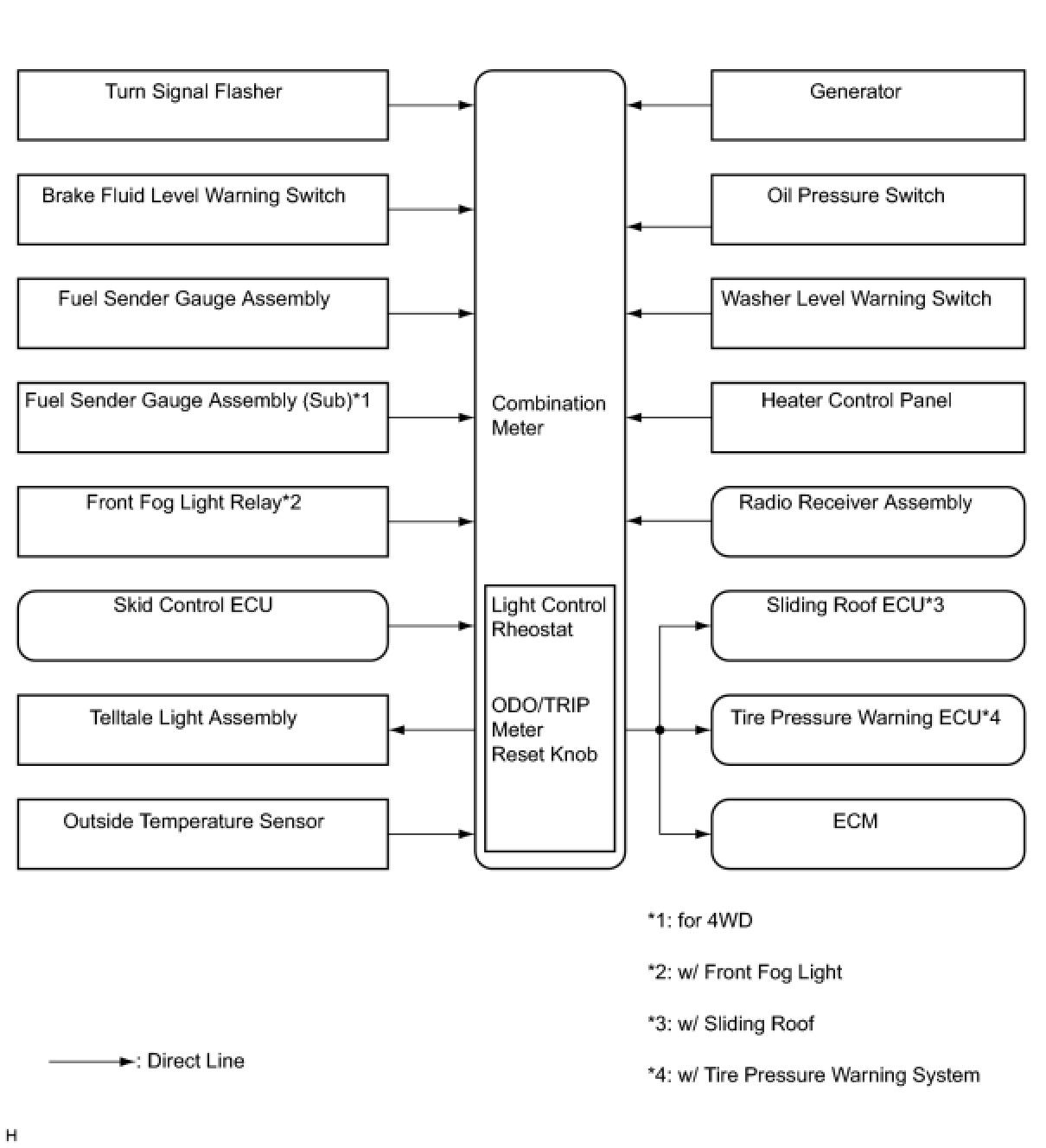

2. DIRECT LINE SIGNAL

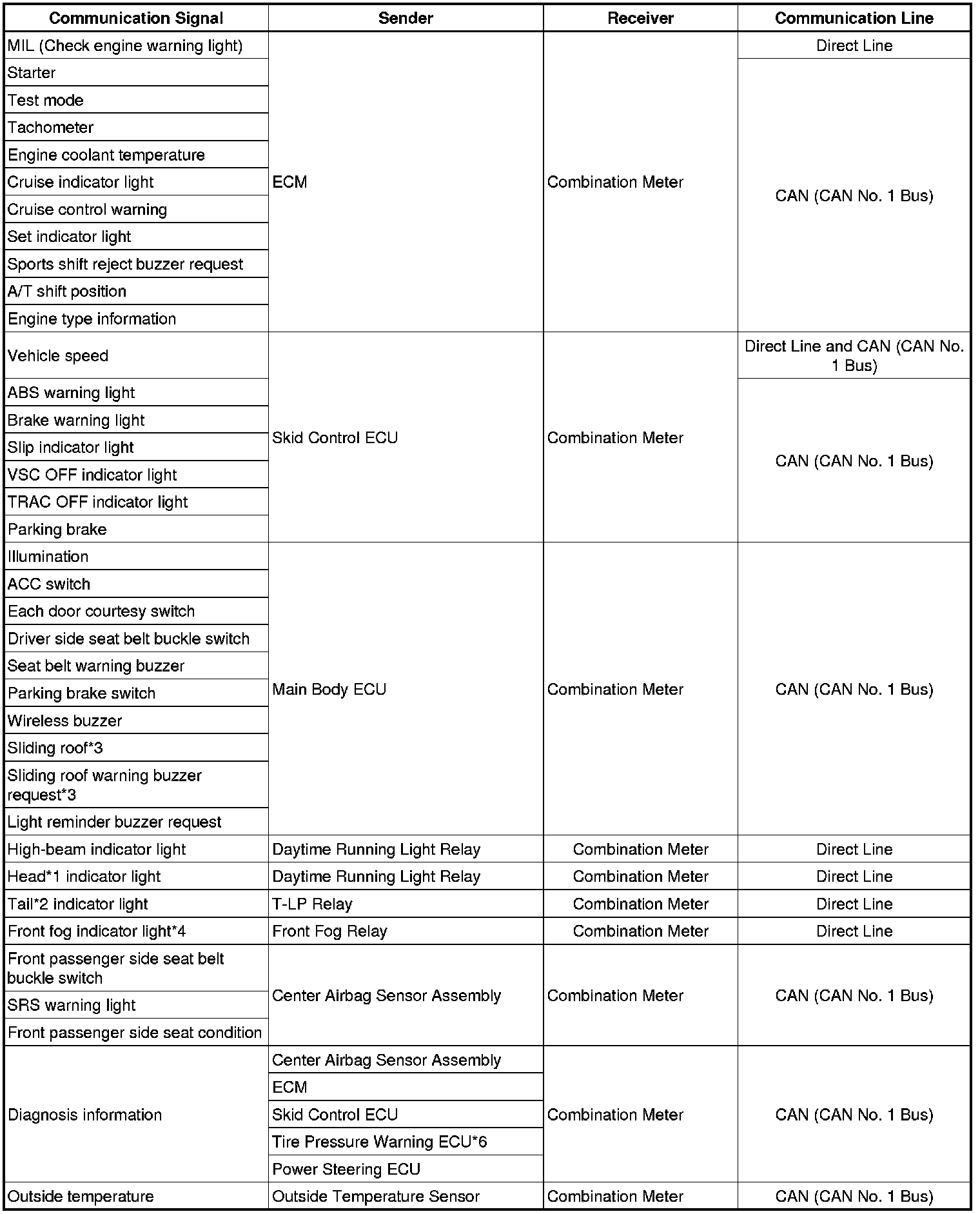

3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER









* *1: for U.S.A.

* *2: except for U.S.A.

* *3: w/ Sliding Roof

* *4: w/ Front Fog Light

* *5: for 4WD

* *6: w/ Tire Pressure Warning System


1. OUTLINE OF THE COMBINATION METER

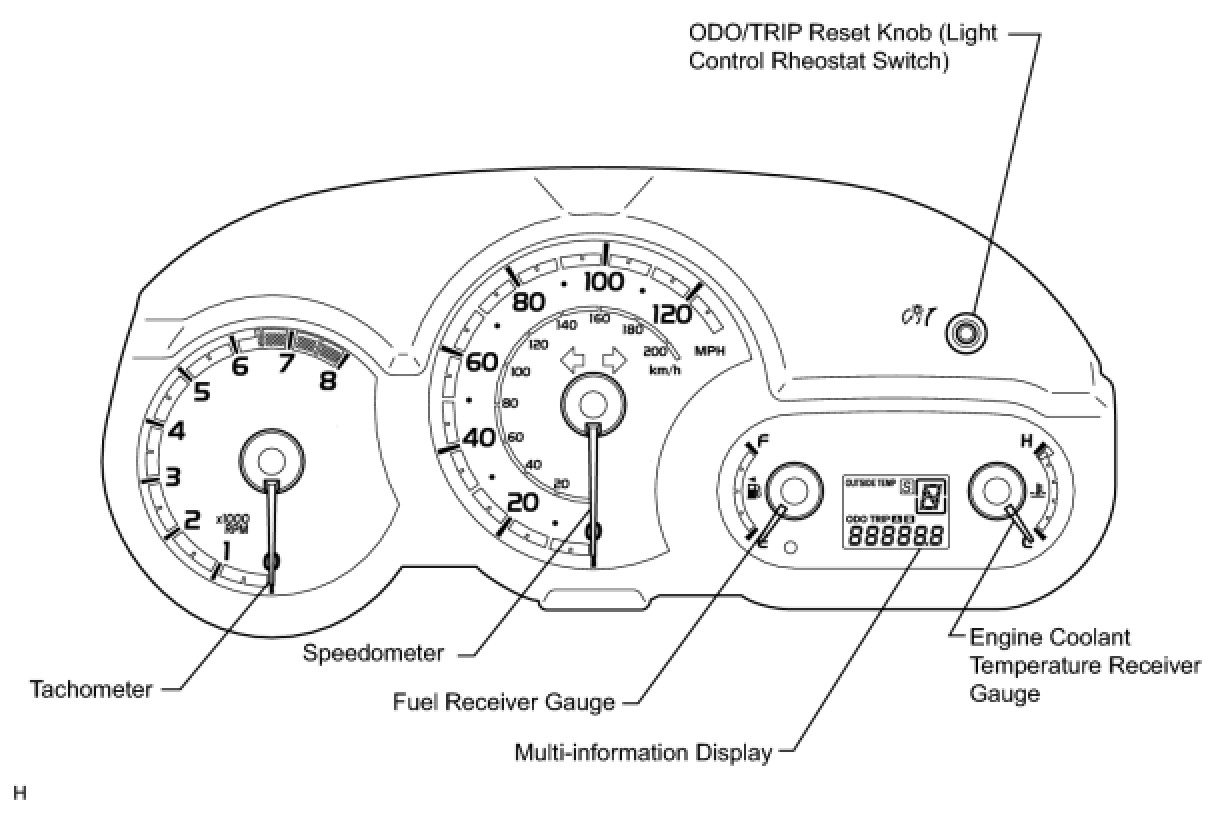

Meter Gauge

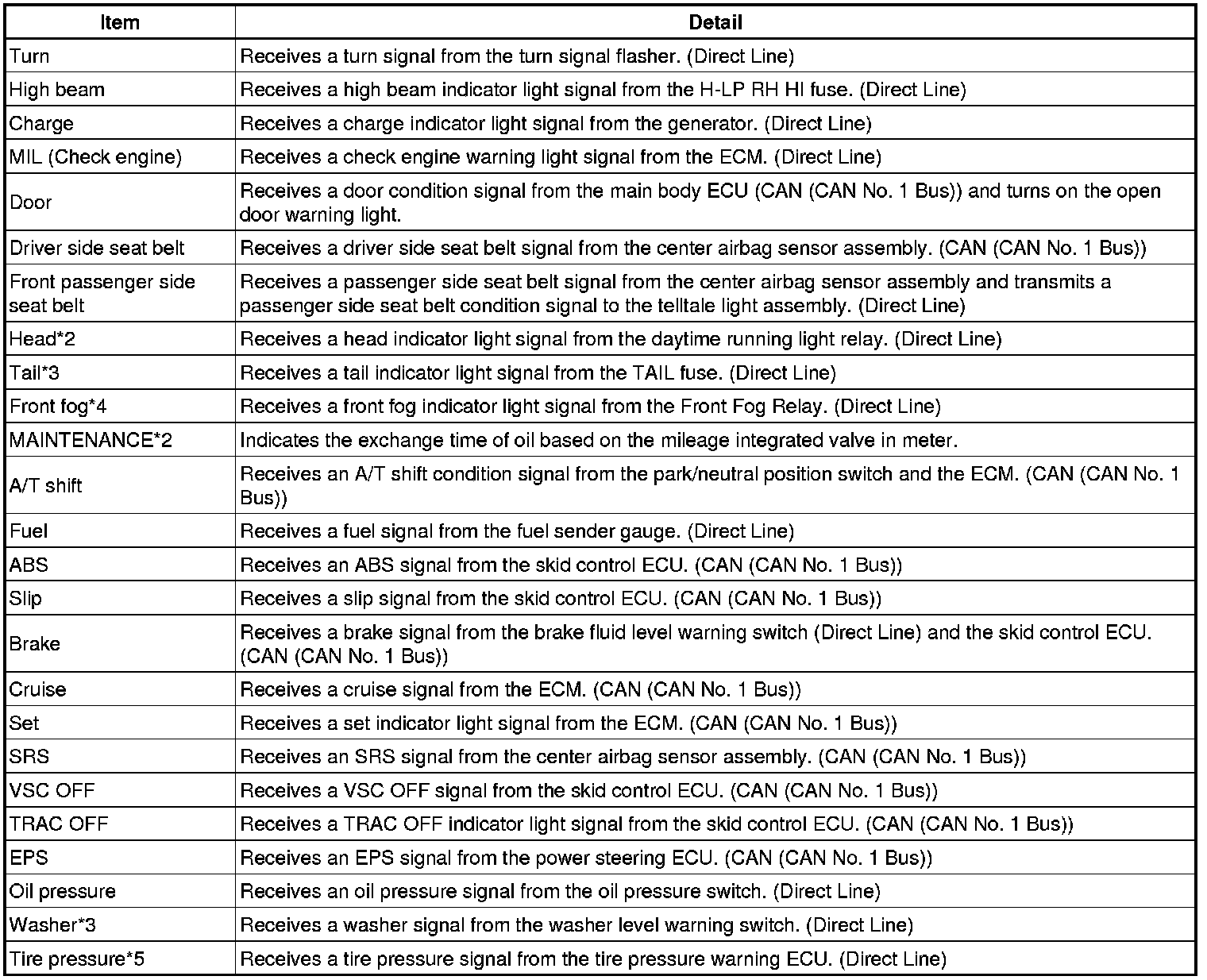

Warning/Indicator





*1: for 4WD

*2: for U.S.A.

*3: except for U.S.A.

*4: w/ Front Fog Light

*5: w/ Tire Pressure Warning System

2. MULTI-INFORMATION DISPLAY





3. LED INITIAL CHECK

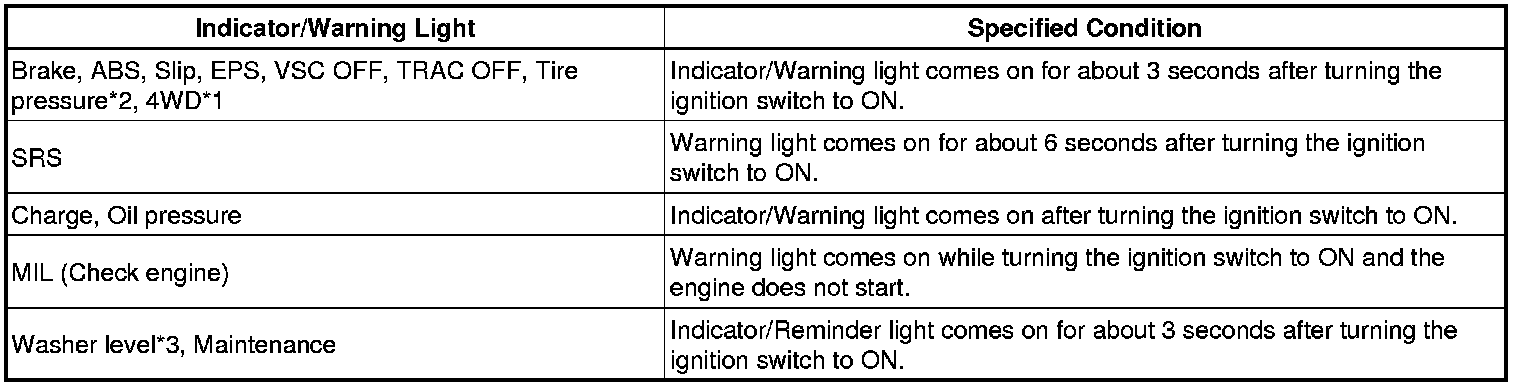

(a) Check the illumination function of the warning, indicator, or reminder light listed below when turning the ignition switch to ON.

OK:





*1: for 4WD

*2: w/ Tire Pressure Warning System

*3: except for U.S.A.
