Interior Lighting System

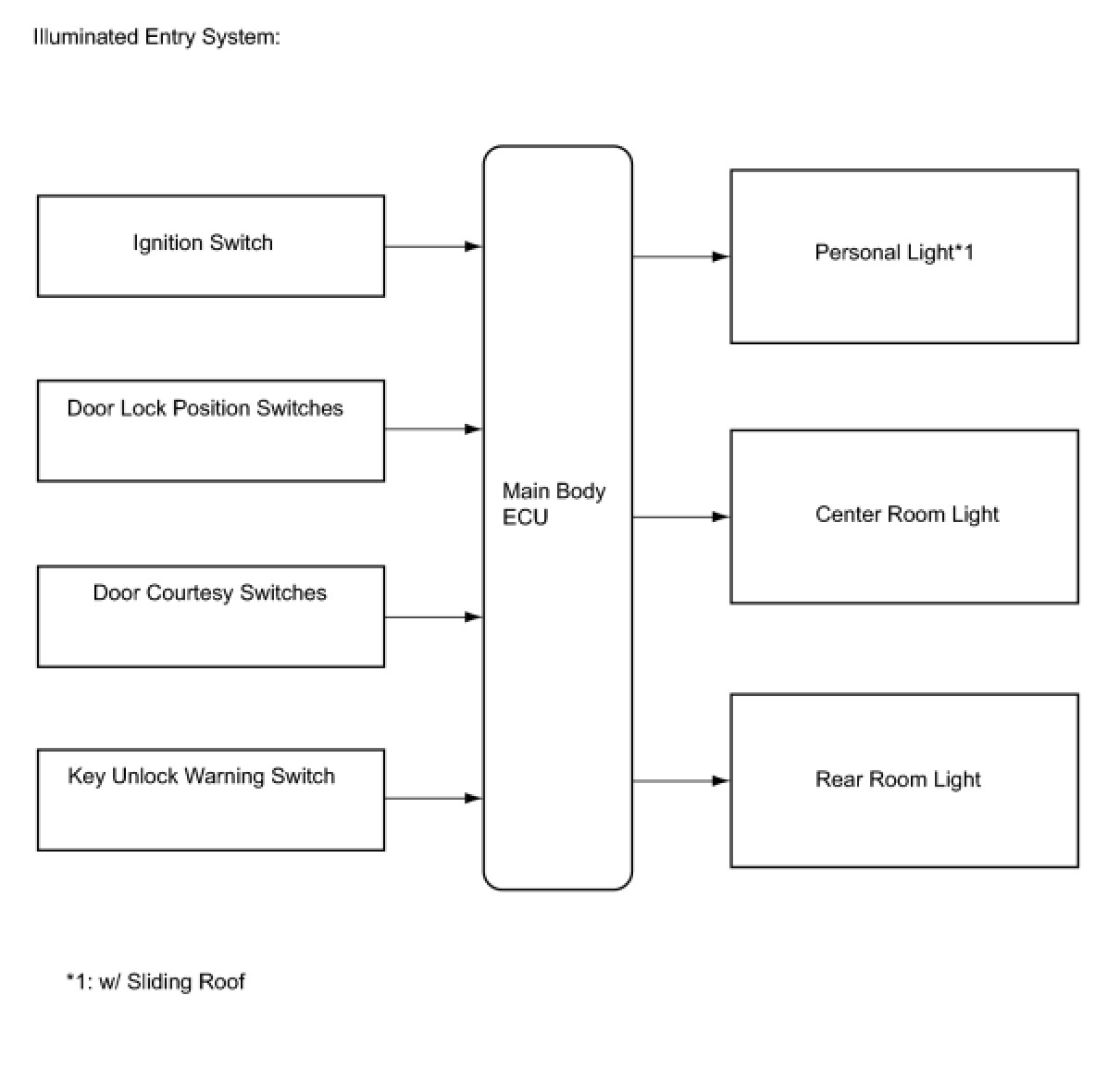

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM






1. ILLUMINATED ENTRY SYSTEM

The illuminated entry system provides convenience when getting in or out of the vehicle at night.

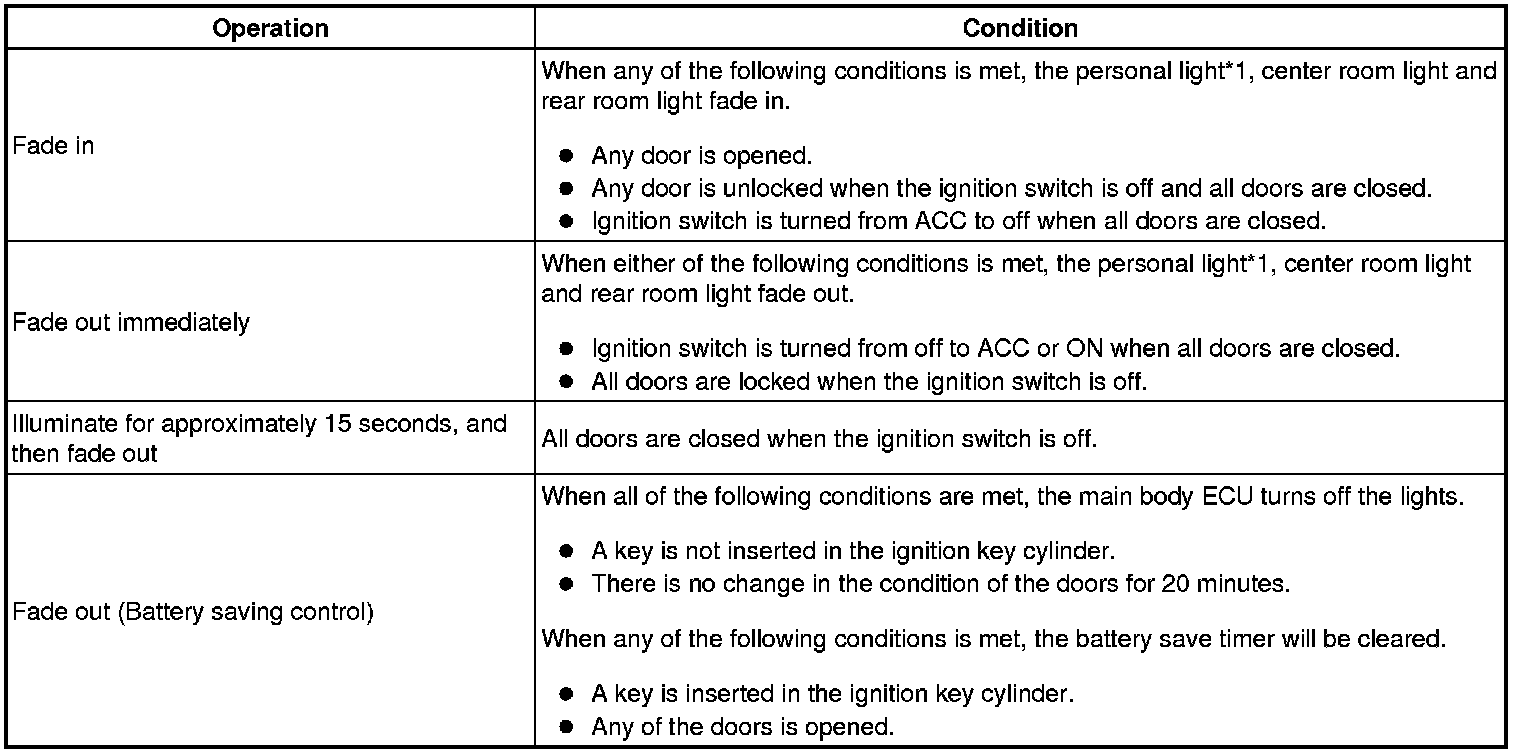

This function is controlled by the main body ECU. The operations and conditions of this control are described below.





HINT
*1: w/ Sliding Roof
