Position of Parts In Instrument Panel
Position of Parts In Instrument Panel

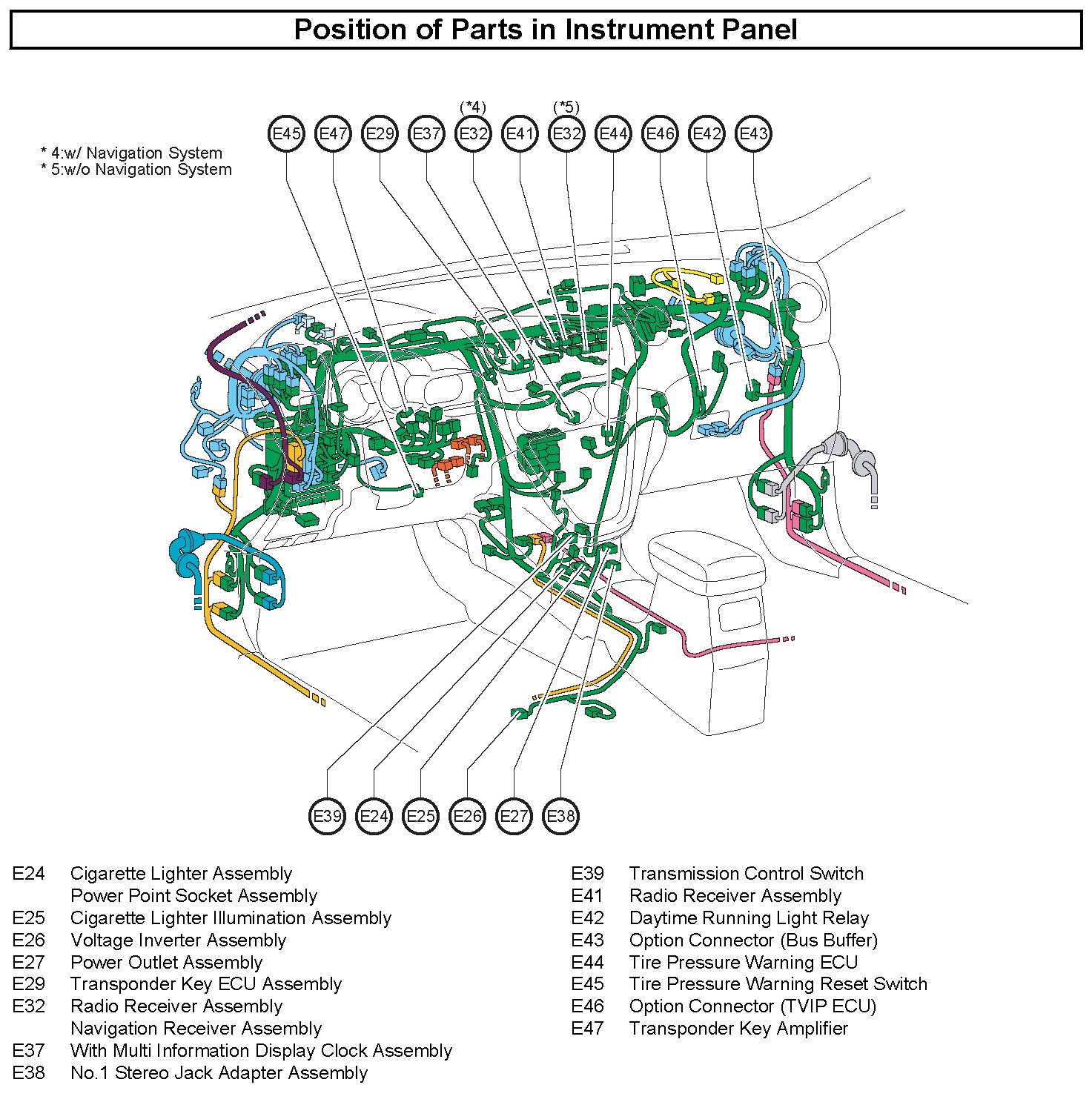

Position Of Parts In Instrument Panel:

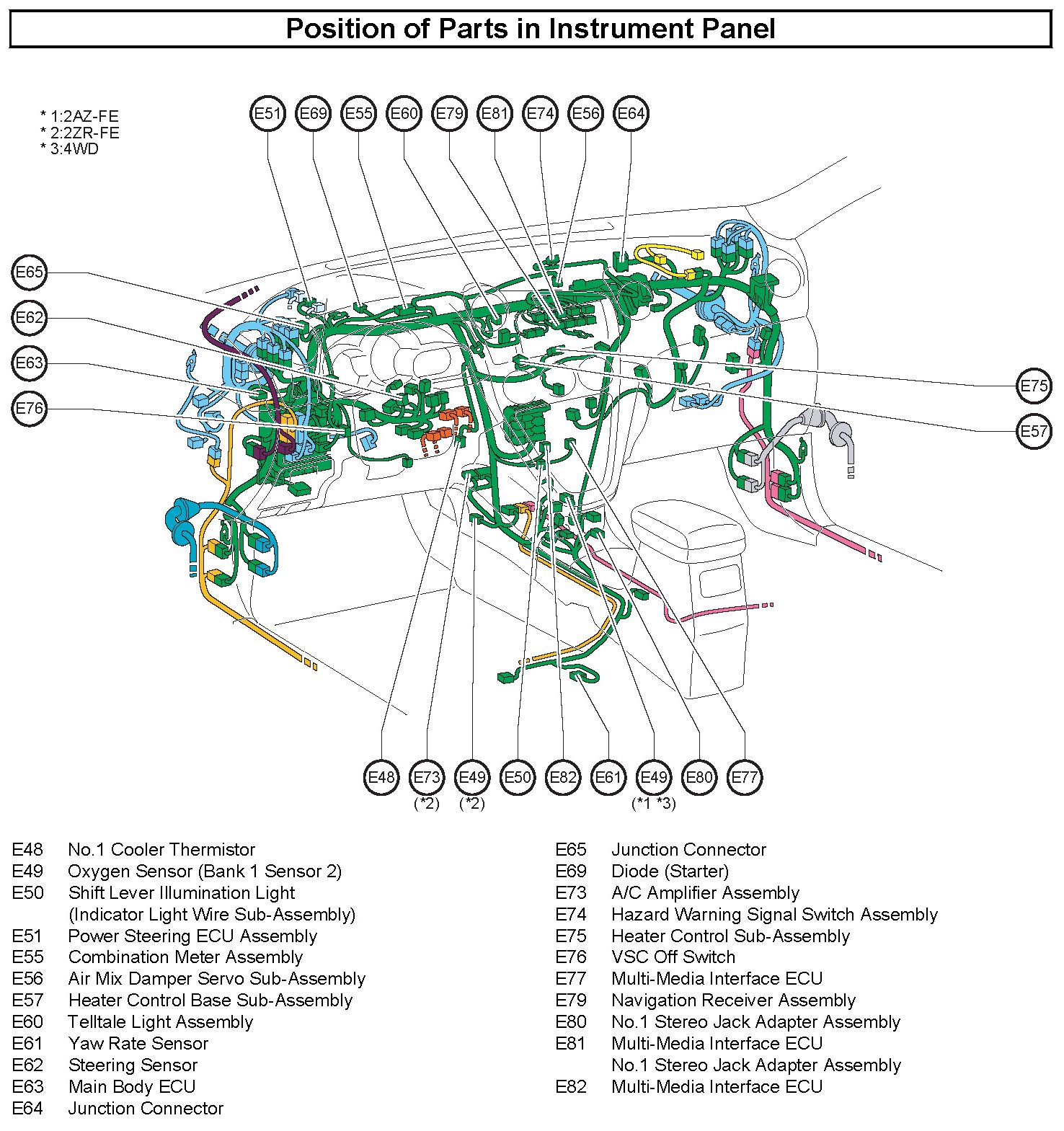

Position Of Parts In Instrument Panel:
Position Of Parts In Instrument Panel:
Position Of Parts In Instrument Panel:
