B15A3

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: B15A3: Stereo Component Amplifier Malfunction
B15A3 - Stereo Component Amplifier Malfunction

DESCRIPTION

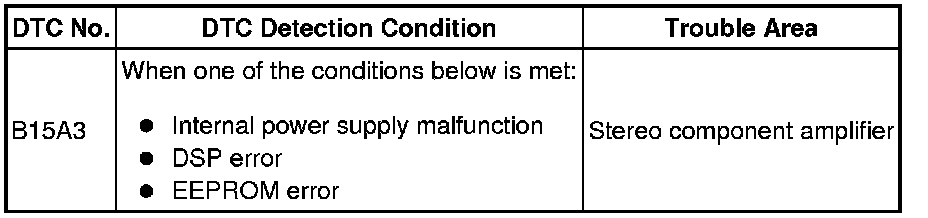

This DTC is stored when a malfunction occurs in the stereo component amplifier.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTC is output.

NG -- REPLACE STEREO COMPONENT AMPLIFIER Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
