B2324 - Rear Door LH ECU Communication Stop

DESCRIPTION

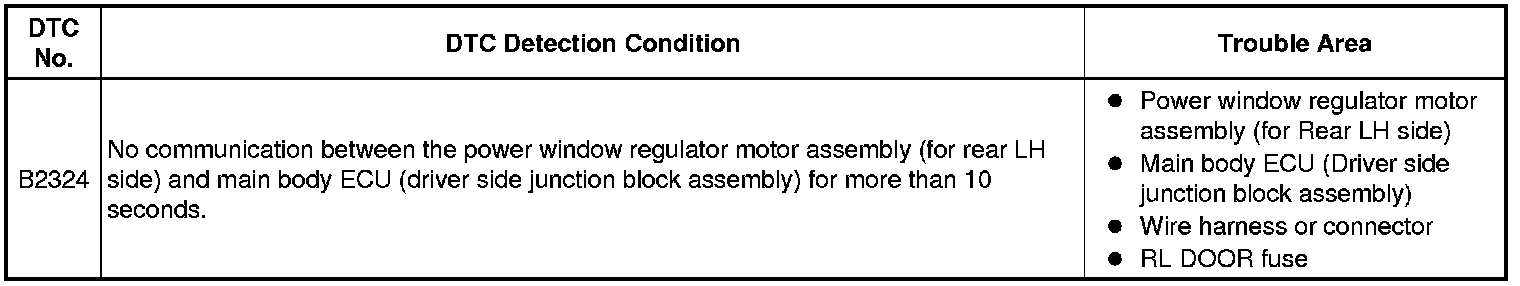

This DTC is stored when LIN communication between the power window regulator motor assembly (for rear LH side) and main body ECU (driver side junction block assembly) stops for more than 10 seconds.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When the power window regulator motor assembly (for rear LH side) is replaced or removed and reinstalled, it requires initialization Programming and Relearning.
* When using the Techstream to troubleshoot with the ignition switch off:
Connect the Techstream to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR - BATTERY AND BODY GROUND)

(a) Disconnect the K2 motor connector.

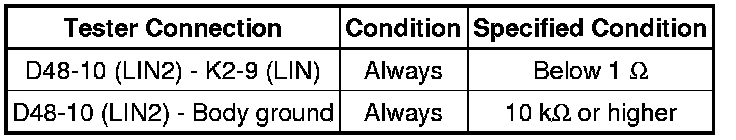

(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard Resistance:





Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - POWER WINDOW REGULATOR MOTOR ASSEMBLY)

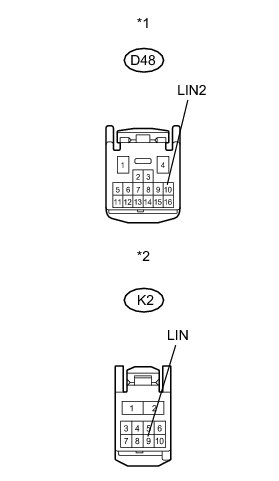

(a) Disconnect the D48 ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

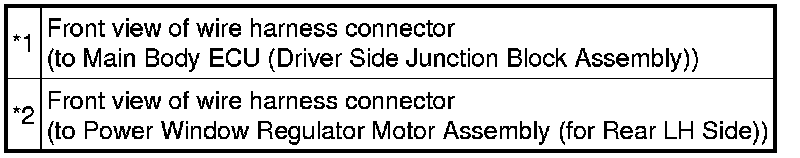

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for REAR LH SIDE)

(a) Replace the power window regulator motor assembly (for rear LH side) Removal.

NEXT -- Continue to next step.

4. CHECK DTC OUTPUT

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs.

OK:

DTC B2324 is not output.

NG -- REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK ASSEMBLY) Removal

OK -- END (POWER WINDOW REGULATOR MOTOR ASSEMBLY WAS DEFECTIVE)
